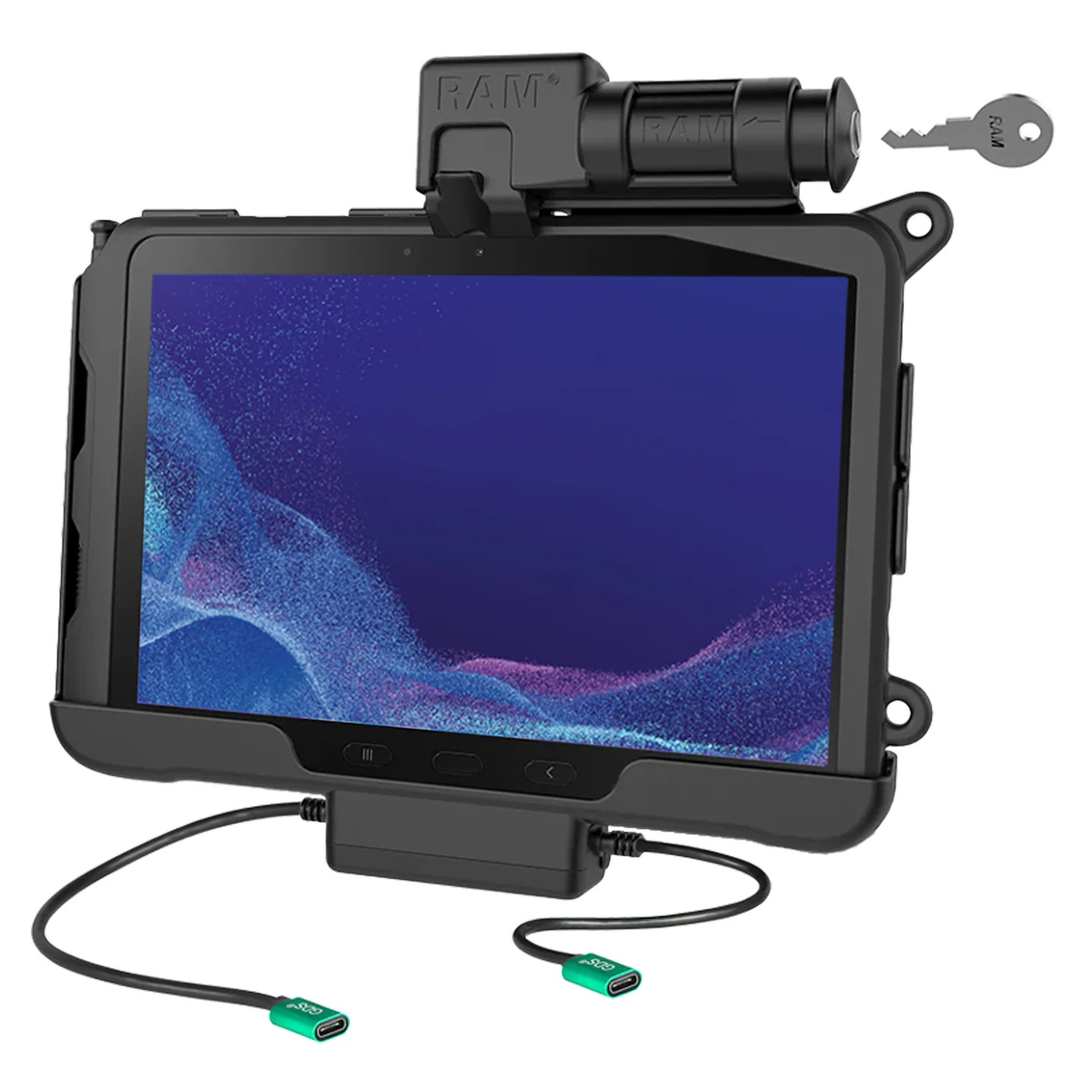

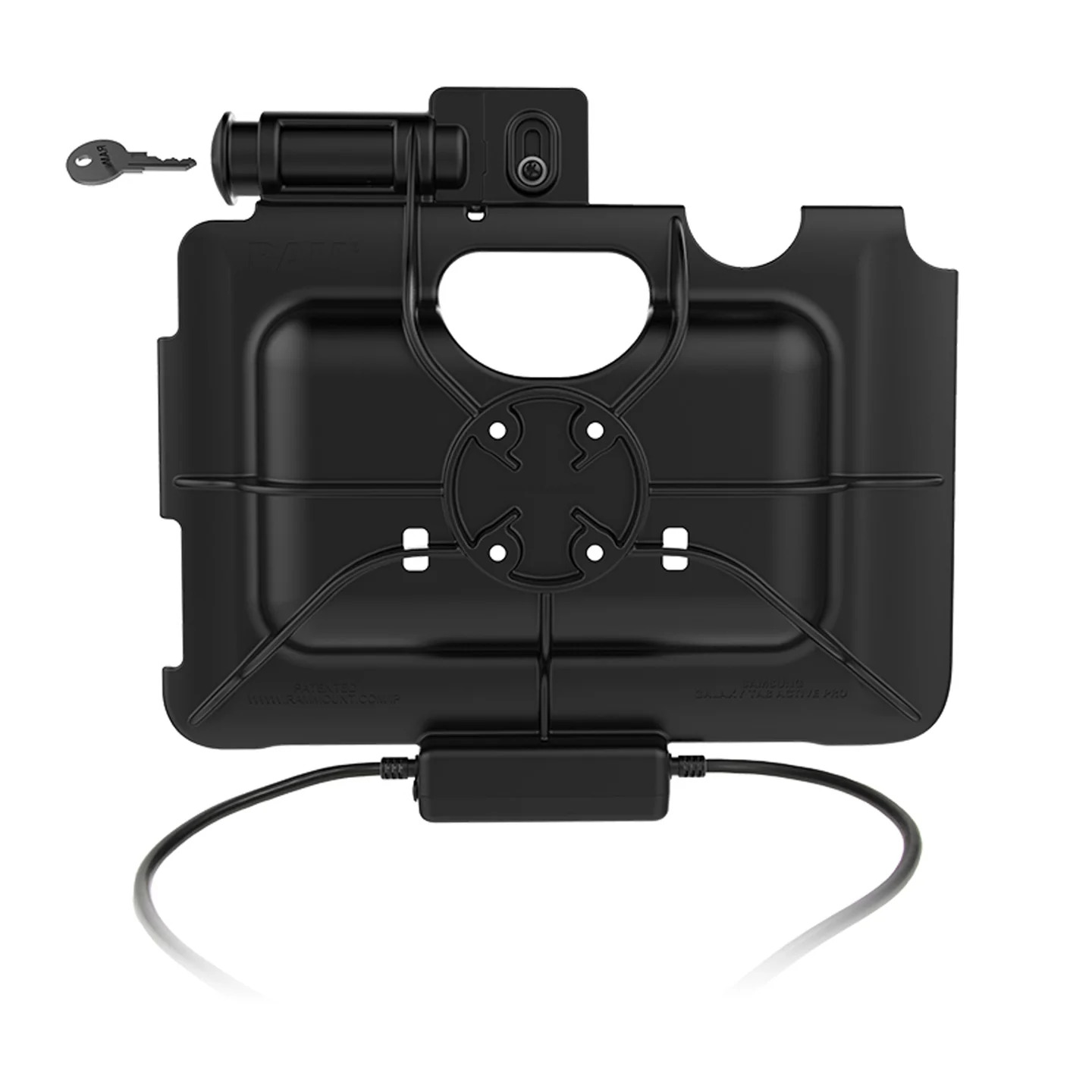

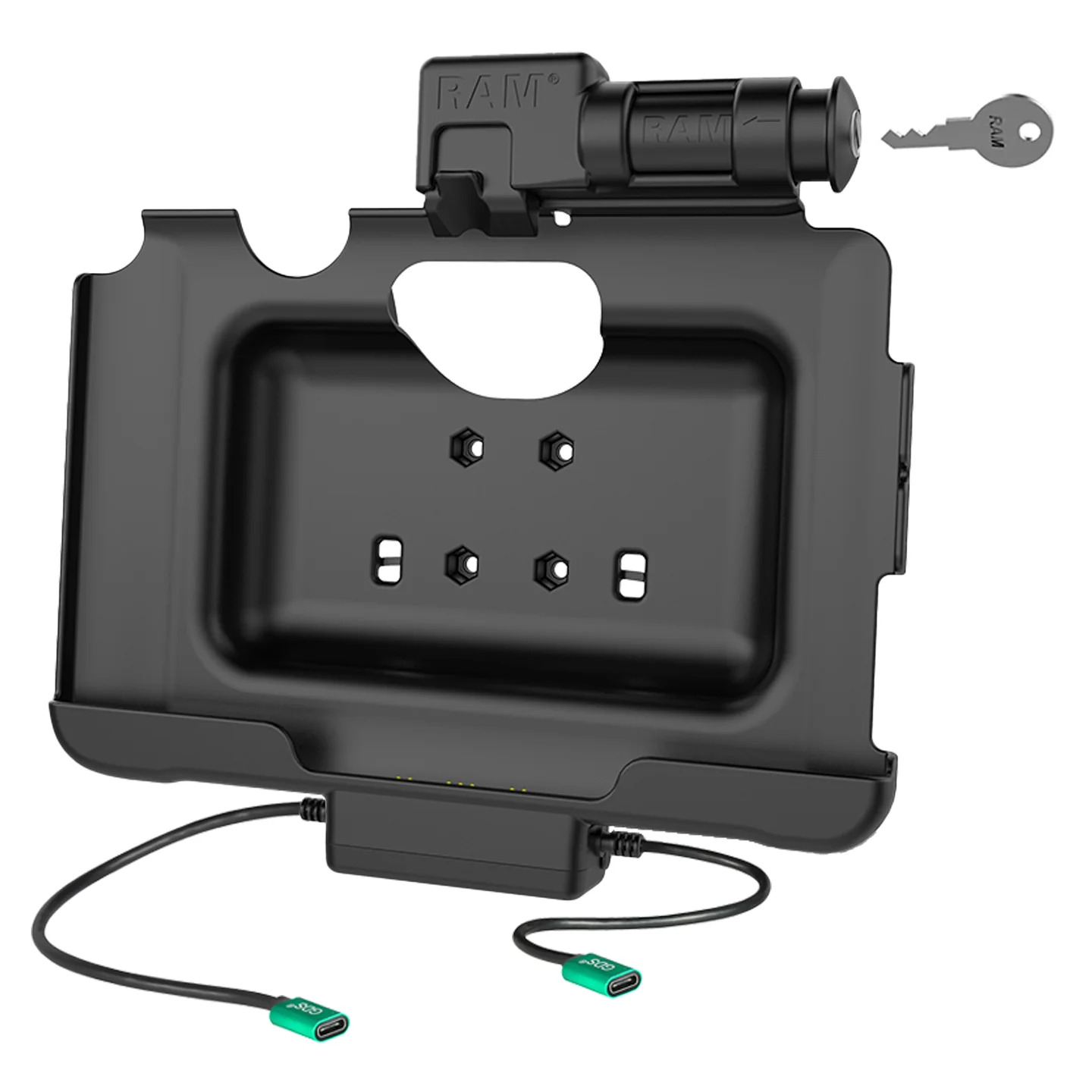

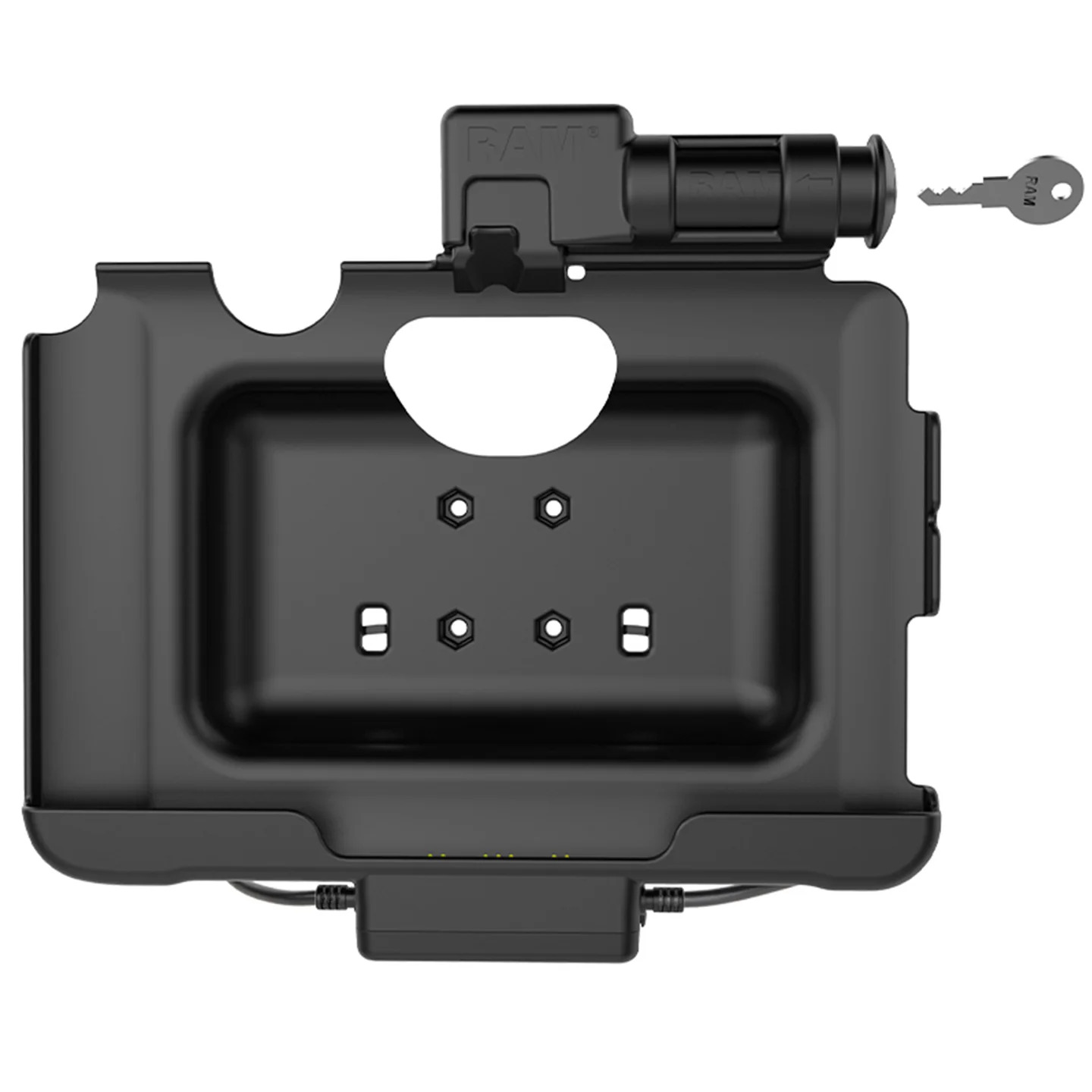

Locking USB-C Powered Dock with USB-C Data for Tab Active4 Pro (RAM-HOL-SAM57CPKL-CU)

The RAM Locking USB-C Powered Dock + USB-C Data for Tab Active4 Pro (RAM-HOL-SAM57CPKL-CU) is designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a key-lock that's compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties. Look to the RAM-GDS-CHARGE-V8CU hardwire charger or the RAM-GDS-CHARGE-CIGC cigarette vehicle charger for supplying power.

Key Features:

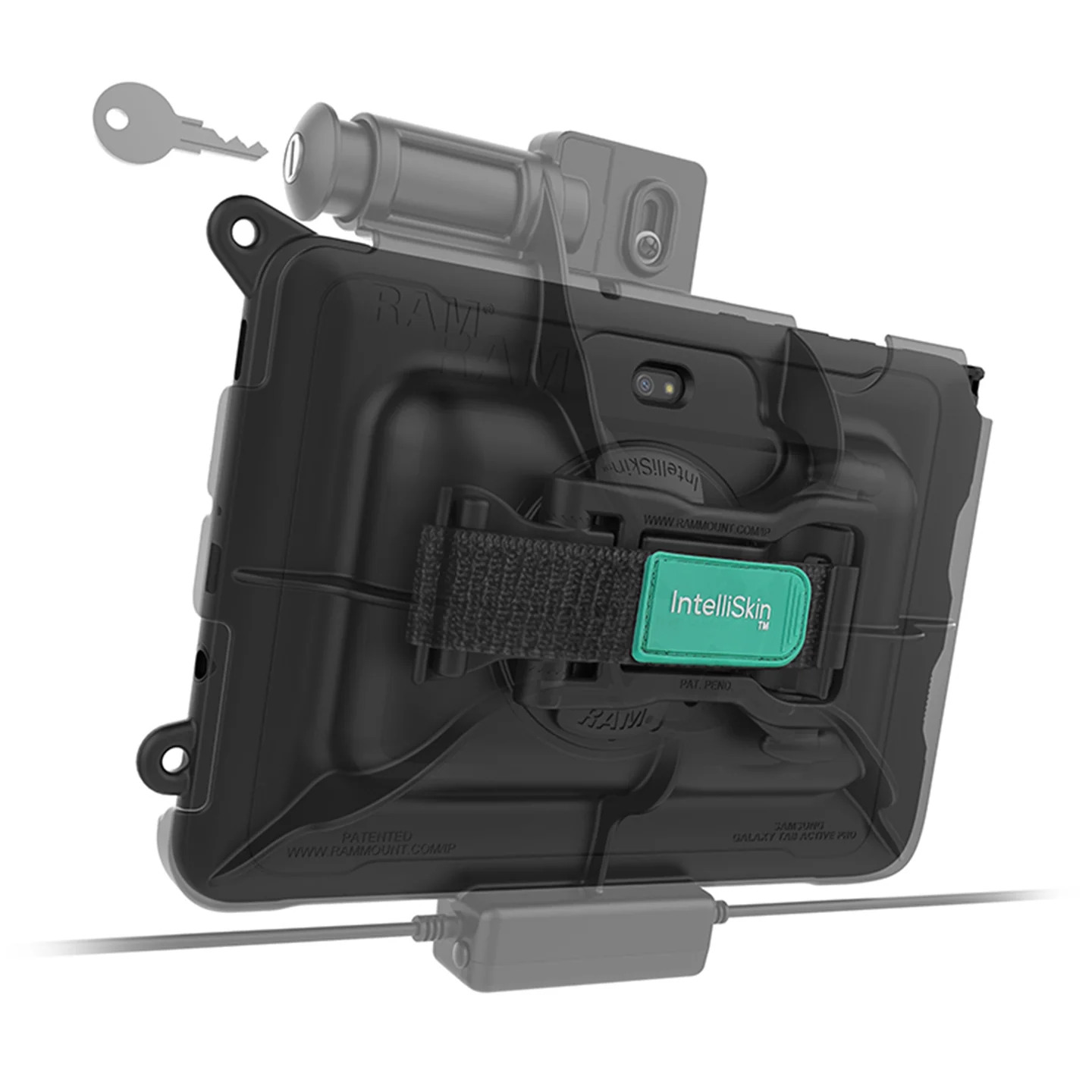

Key locking powered dock supports the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector (Non-Power Delivery charger required)
Connect one additional peripheral via USB Type-C cable
RAM® Mounts Compatible™ with AMPS 4-hole pattern components
Made of high-strength composite materials for durability and reliability in the most demanding environments
Backed by a 3-year warranty

(RAM-HOL-SAM57CPKL-CU)

Documents

Samsung Catalog

GDS Cable Clamp

RAM-GDS-CAB-CLAMP1U

Technical Specifications:

Hardware Included	(2) Keys (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nyloc Nuts (1) Cable Clamp (4) Large Cable Ties (10) Small Cable Ties
Hole Pattern	4-Hole AMPS: 1.181" x 1.496"
Materials	High strength composite
Packaging Type	Poly Bag
Input Voltage	5.3-5.4VDC
Output Voltage	5VDC
Power Output	500mA
Input Connector	USB Type-C Female
Input Cable Length	215mm
Output Connector	USB Type-C Female
Output Cable Length	215mm
Peripheral Output	500mA
Transfer Speed	480Mbps
