Skin Combo Lock USB-C Powered USB-A Data Cradle Tab Active4 Pro Tab Active Pro
RAM-HOL-SAM57CPCL-1AU
In Stock: 1

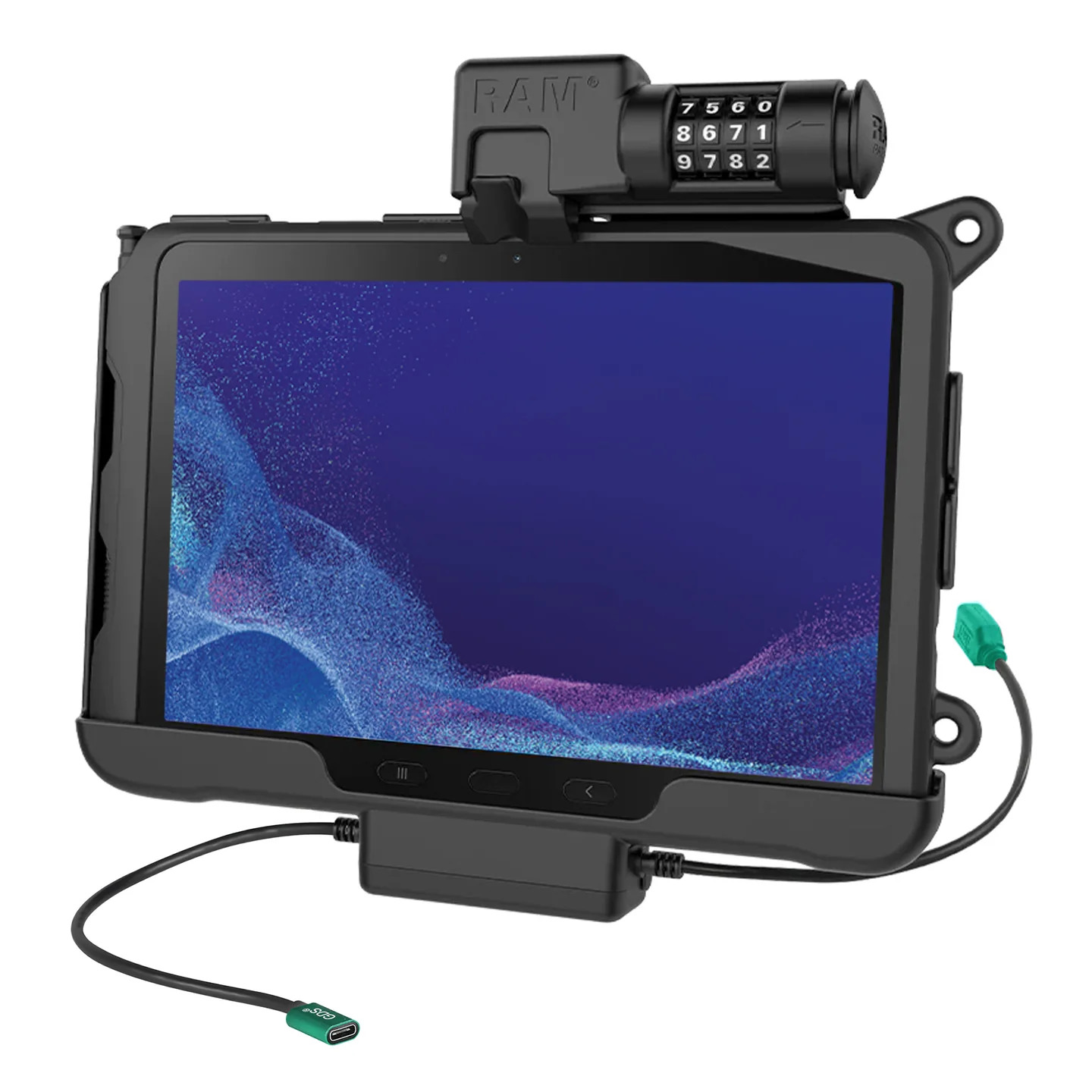

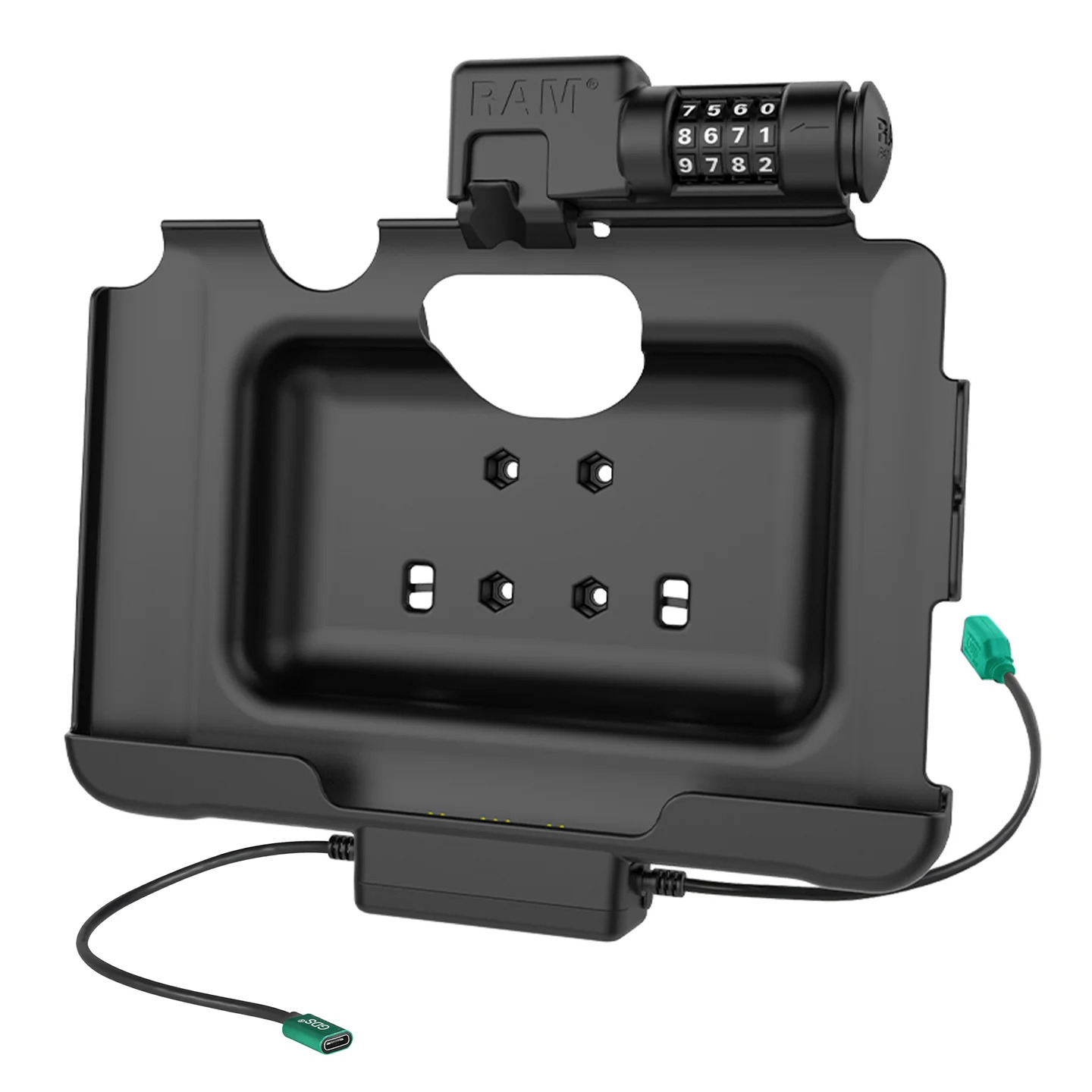

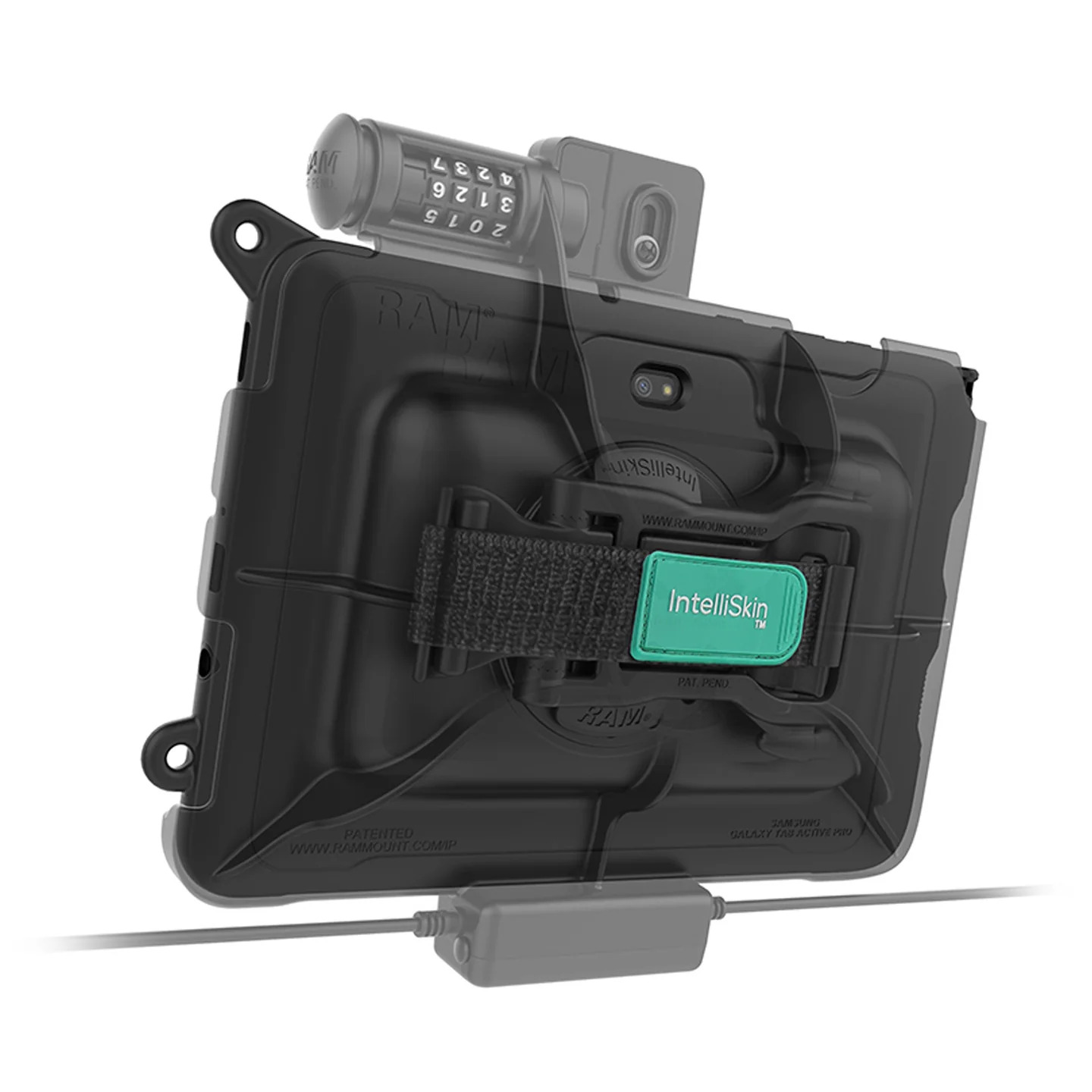

This USB-C power cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. USB-C power and USB-A data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a combination lock that's compatible with the RAM Skin or factory device skin, as well as GDS Hand-Stand and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal AMPS hole pattern. Also included is the USB Type-A female pigtail. This holder requires either the RAM SKIN for the Tab Active Pro, or the original supplied OEM case that came with your Tab Active Pro.
| This new SKU with USB-C replaces the existing SKU RAM-HOL-SAM57PDCLU which utilised microUSB for power |
- Combination locking powered dock supports the Samsung Galaxy Tab Active5 Pro & 4 Pro with factory Samsung case or with RAM® Skin™; powered through integrated pogo pin connector
- Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector
- RAM® Mounts Compatible™ with AMPS hole pattern components
- Made of high-strength composite materials for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
(RAM-HOL-SAM57CPCL-1AU)
Technical Specifications:
| Hardware Included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nyloc Nuts (1) Optional Cable Clamp Housing (2) Large Cable Ties (7) Small Cable Ties |
|---|---|
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" |
| Materials | High strength composite |
| Packaging Type | Poly Bag |
| Input Voltage | 5.3-5.4VDC |
| Output Voltage | 5VDC |
| Power Output | 500mA |
| Input Connector | USB Type-C Female |
| Input Cable Length | 250mm |
| Output Connector | USB 1.1 Type A |
| Output Cable Length | 250mm |
| Peripheral Output | 500mA |
| Transfer Speed | 12Mbps |
Product Information
| SKU | RAM-HOL-SAM57CPCL-1AU |
|---|---|
| Barcode | 793442022128 |
| Brand | RAM Mounts |
| Weight | 0.6100 kg |
