USB-C Power and USB-A Data Cradle Galaxy Tab Active 5 Pro and Tab Active 4 Pro
RAM-HOL-SAM52CP-1AU
In Stock: 100+
The RAM EZ-Roll'r powered/data cradle for the Samsung Galaxy Tab Active4 Pro and Tab Active Pro features integrated pogo pins that power the device through USB-C. These pogo pins are compatible with both the RAM Skin for the Galaxy Tab Active4 Pro and Tab Active Pro and the factory Samsung skin that's included with the device. In addition, this cradle works perfectly with the RAM Skin while utilizing the GDS Hand-Stand or GDS shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM EZ-Roll'r powered cradle also leaves the device's speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM round ball bases. Includes a Type-A female pigtail connector for data or to connect a USB peripheral such as a scanner.
| This new SKU with USB-C replaces the existing SKU RAM-HOL-SAM52PDU which utilised microUSB for power |
- Powered dock provides charging and data transfer capabilities for Samsung GalaxyTab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
- Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector
- Easily insert and remove the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, or Tab Active Pro with one hand
- Compatible with factory skin and RAM® Skin™
- Backed by a 3-year warranty
(RAM-HOL-SAM52CP-1AU)
Documents
Samsung Catalog
Technical Specifications:

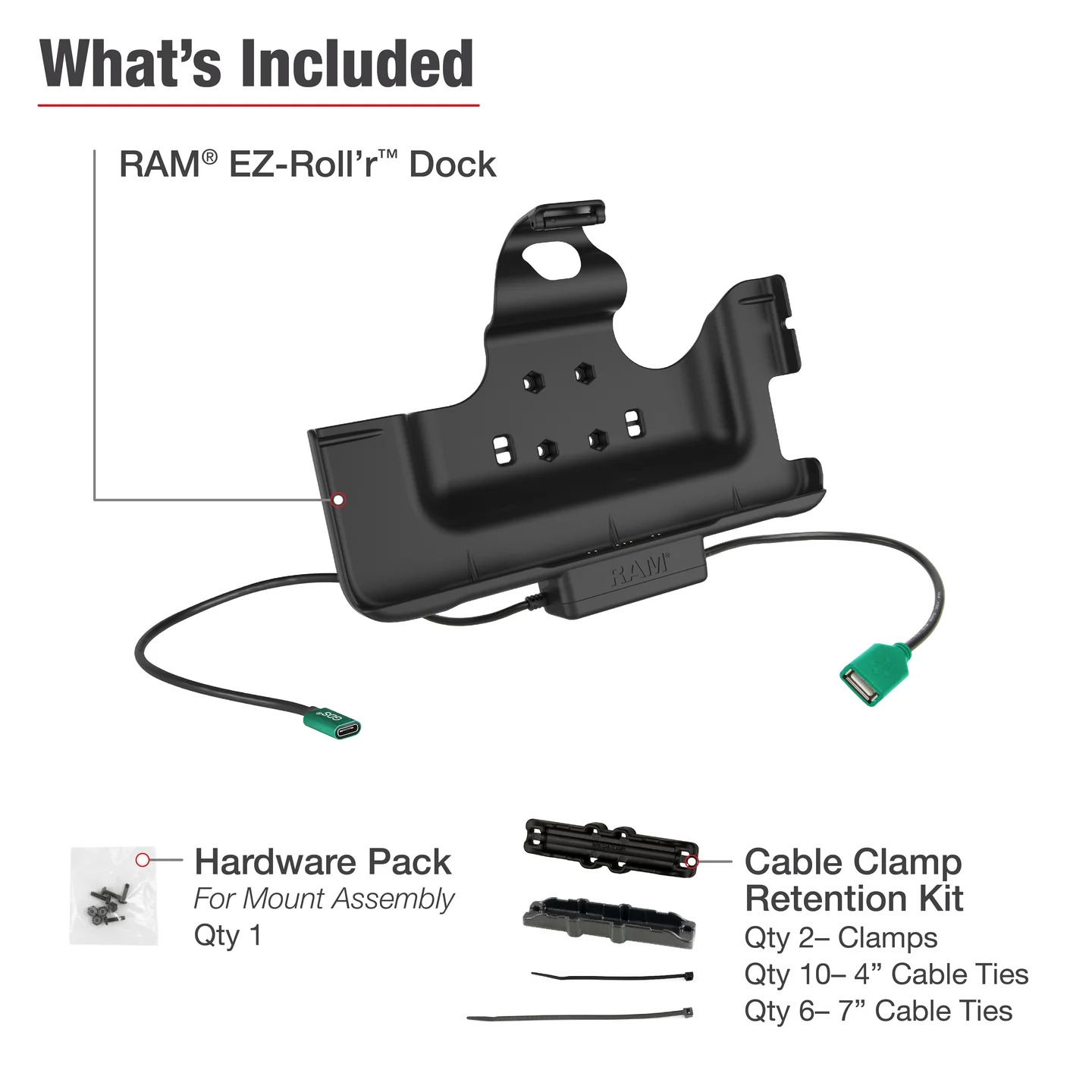

| Hardware Included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nyloc Nuts (1) Optional Cable Clamp Housing (2) Large Cable Ties (5) Small Cable Ties |
|---|---|
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" |
| Materials | High strength composite |
| Packaging Type | Poly Bag |
| Input Voltage | 5.3-5.4VDC |
| Output Voltage | 5VDC |
| Power Output | 500mA |
| Input Connector | USB Type-C Female |
| Input Cable Length | 250mm |
| Output Connector | USB 1.1 Type A |
| Output Cable Length | 250mm |
| Peripheral Output | 500mA |
| Transfer Speed | 12Mbps |
Product Information
| SKU | RAM-HOL-SAM52CP-1AU |
|---|---|
| Barcode | 793442022142 |
| Brand | RAM Mounts |
| Weight | 0.50 kg |
| Warranty | 3 year warranty |
