GDS Uni-Conn Powered 14" Locking Pedestal Dock with USB-C Grey (RAM-GDS-DOCKL-D11-14-U5C-GRY)

The GDS Uni-Conn Powered 14" Locking Pedestal Dock with USB-C - Gray (RAM-GDS-DOCKL-D11-14-U5C-GRY) is a free-standing, 14" pedestal dock for devices enclosed in an IntelliSkin Thin-Case with Rear Pogo Pads. This solution can swivel 180 degrees and allows devices to tilt 180 degrees, which is ideal for customer-centric industries like retail, hospitality, food service, and more. Keep your device safe in high-traffic environments with the key lock, integrated to provide additional theft deterrence. Easily dock and undock your device with the assistance of the release button mechanism. Power is provided to the pogo pins integrated into the GDS Uni-Conn adapter via USB-C connection. This dock features a drill-down attachment style, providing a stable base for the tall dock. The light gray aesthetic is ideal for sophisticated, bright workplaces.

Key Features:

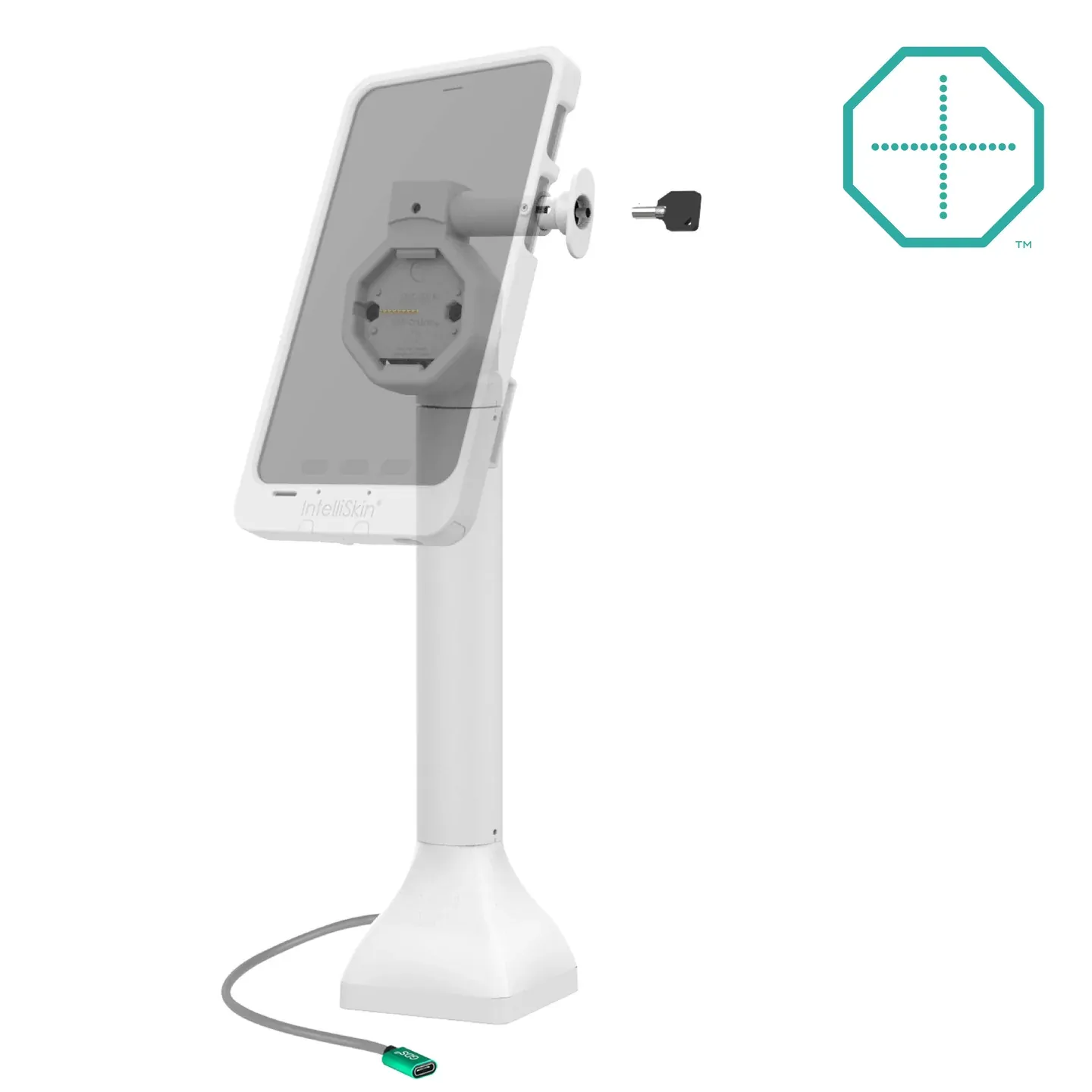

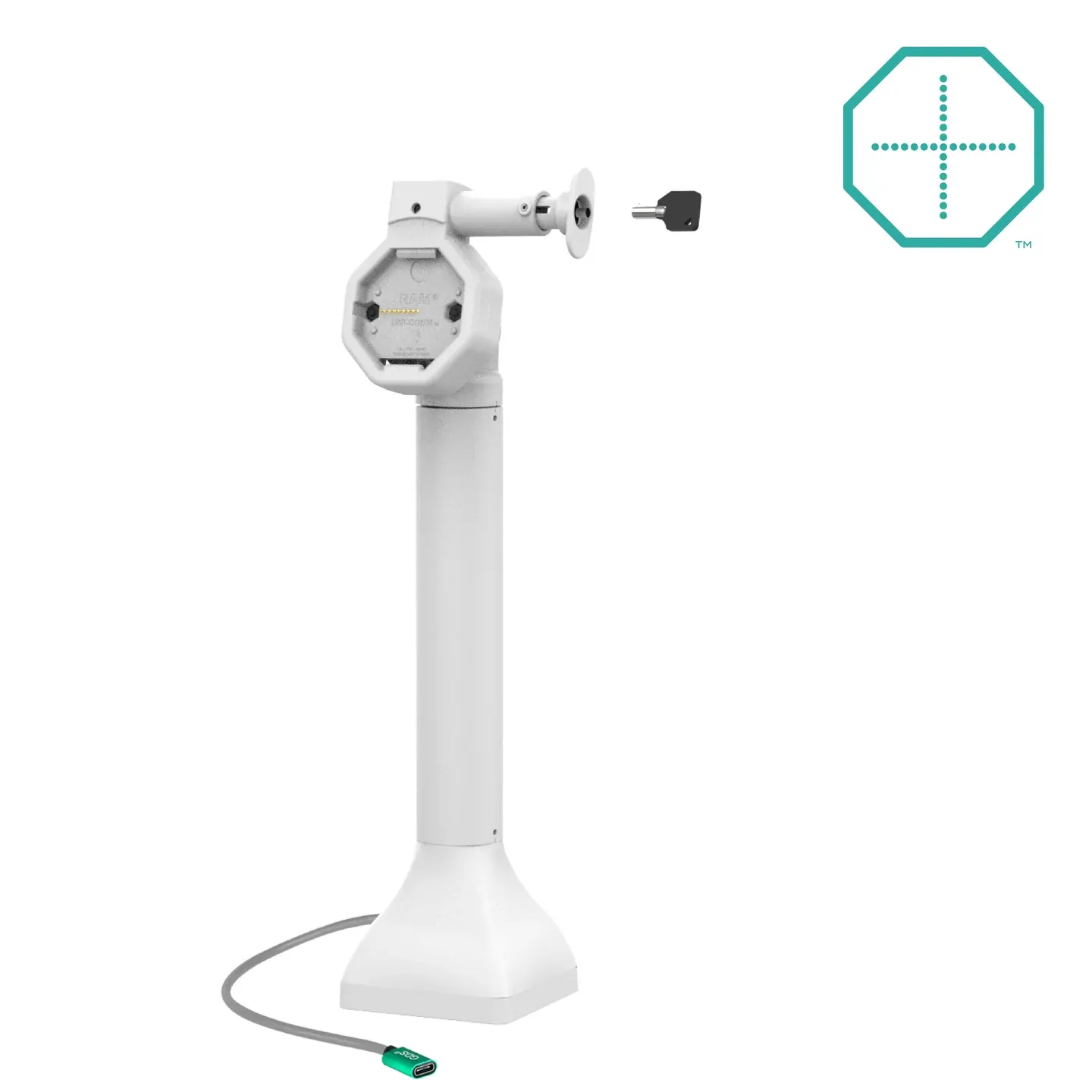

Light gray, key-locking 14" pedestal dock for devices enclosed in an IntelliSkin® Thin-Case™ with Rear Pogo Pads
GDS® connector and pogo pins provide charging via USB-C; Release button mechanism allows for quick docking and undocking

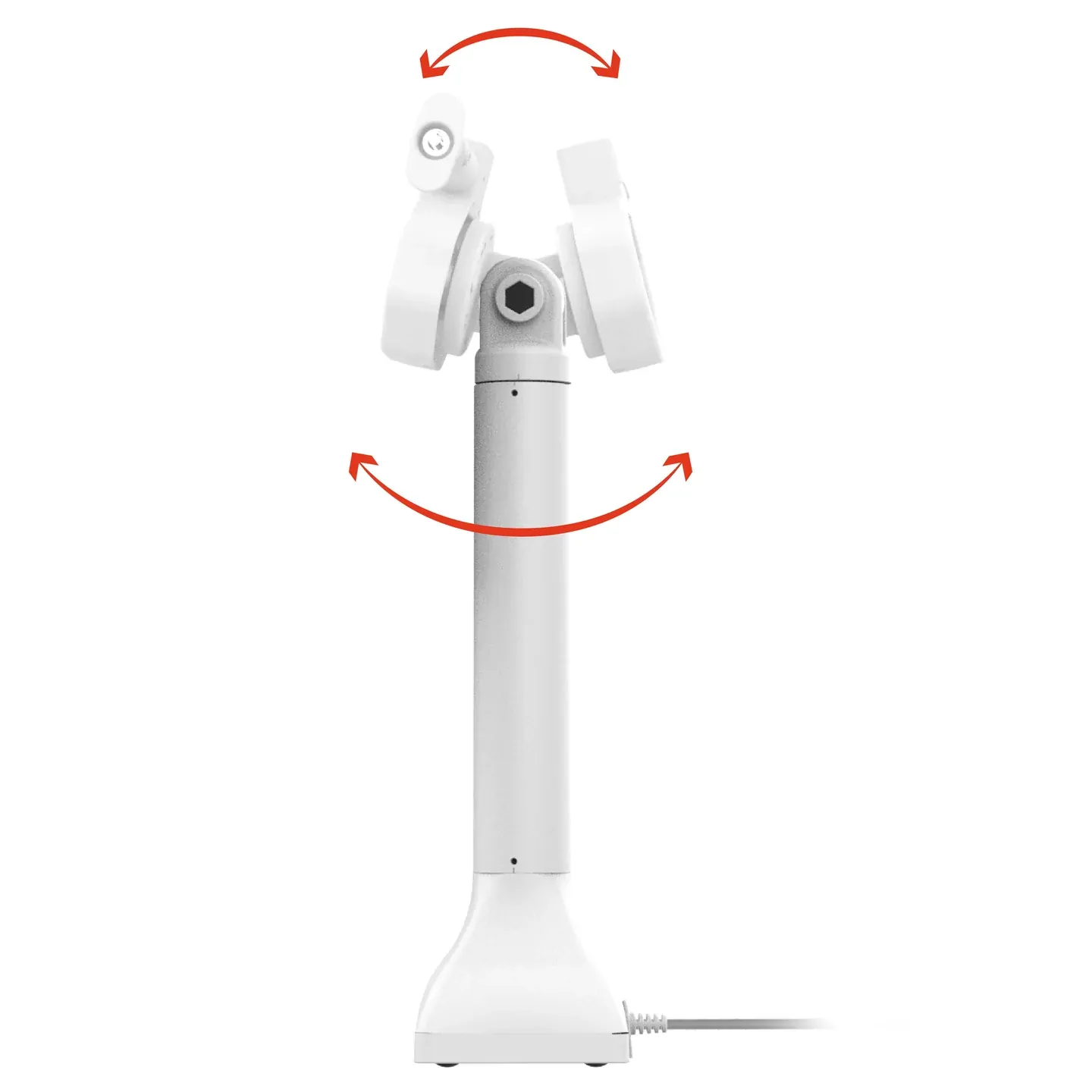

Dock swivels 180 degrees and enables connected devices to tilt 180 degress
Install dock to any surface with drill-down base
Backed by a 3-year warranty

(GDS-DOCKL-D11-14-U5C-GRY)

Instructions

Assembly Instructions for Pedestal Dock

Documents

GDS® Tech™ Catalog Retail Catalog

Technical Specifications:

Hardware Included	(2) Keys (1) 1 Meter USB-C 2.0 Male to Male Cable

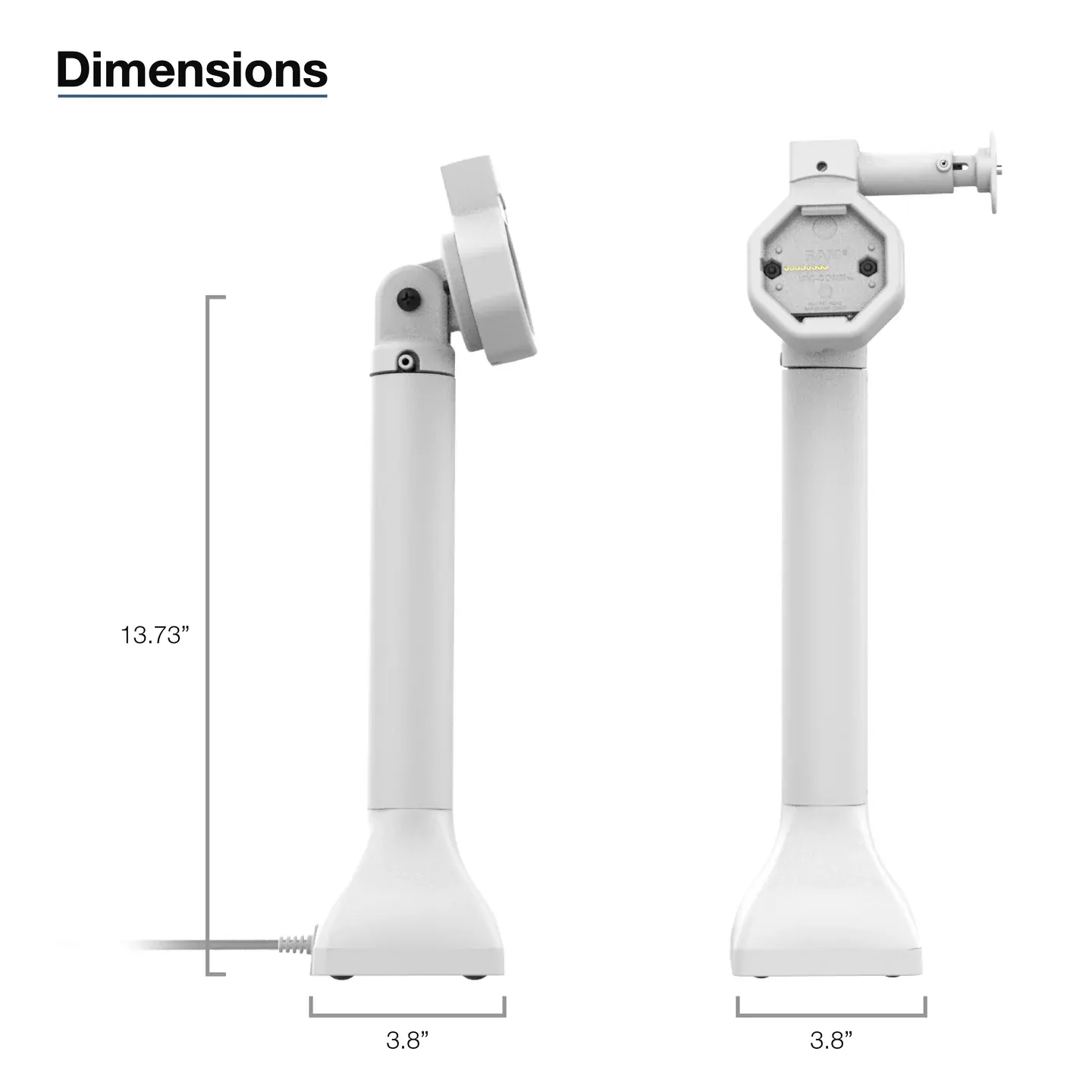

Product Dimensions	Height from Base to Tilt Bolt: 7.24" (18.39 cm) Base Width: 3.8" (9.65 cm) Base Depth: 3.8" (9.65 cm)
Materials	Powder coated steel High strength composite
Packaging Type	Box
Output Voltage	USB-C Tablets: 5V - 20V @ 3A Max mUSB Tablets: 9V @ 1.67A Max
Power Output	60W Max
Input Connector	USB Type-C Female
Input Cable Length	1.5 Meters
