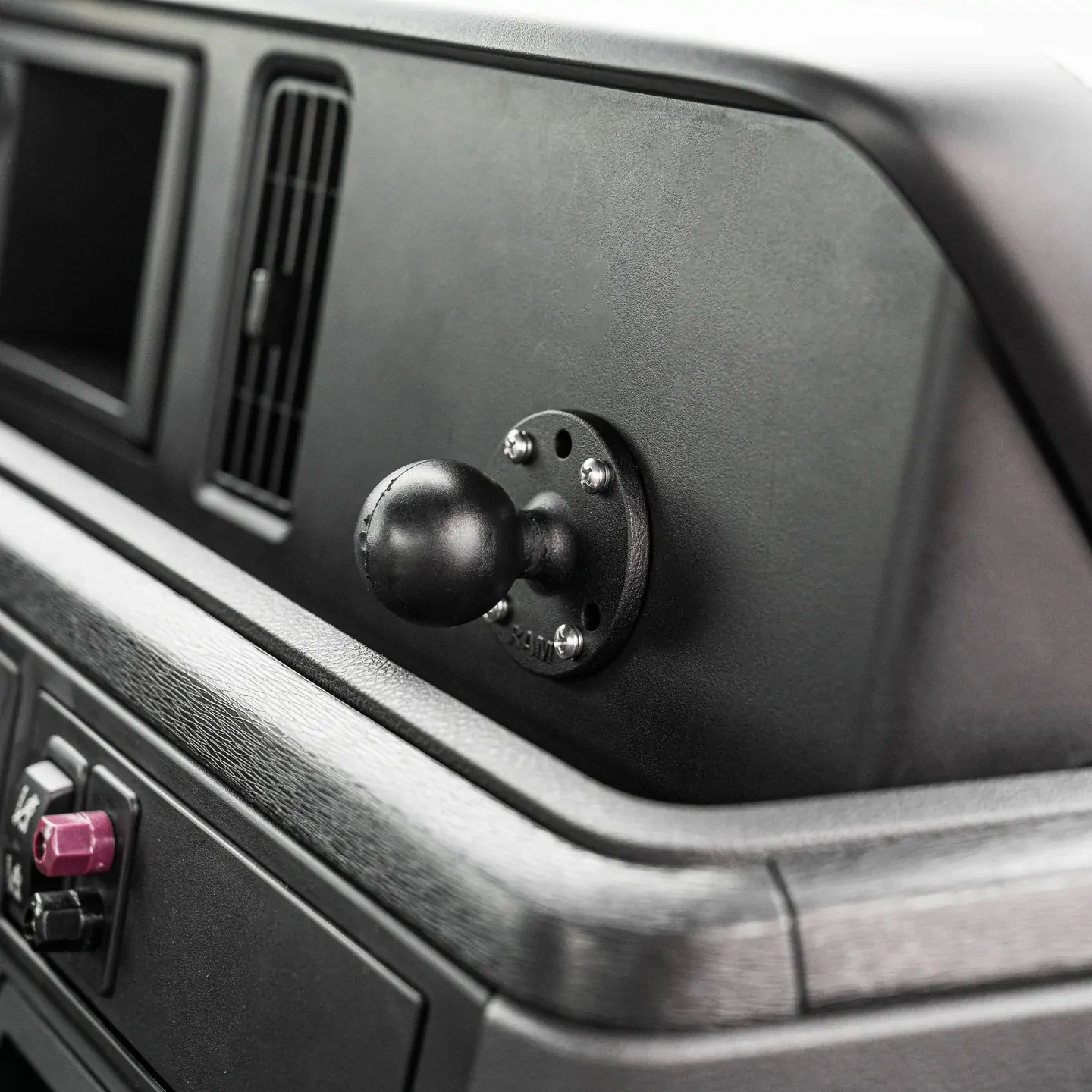

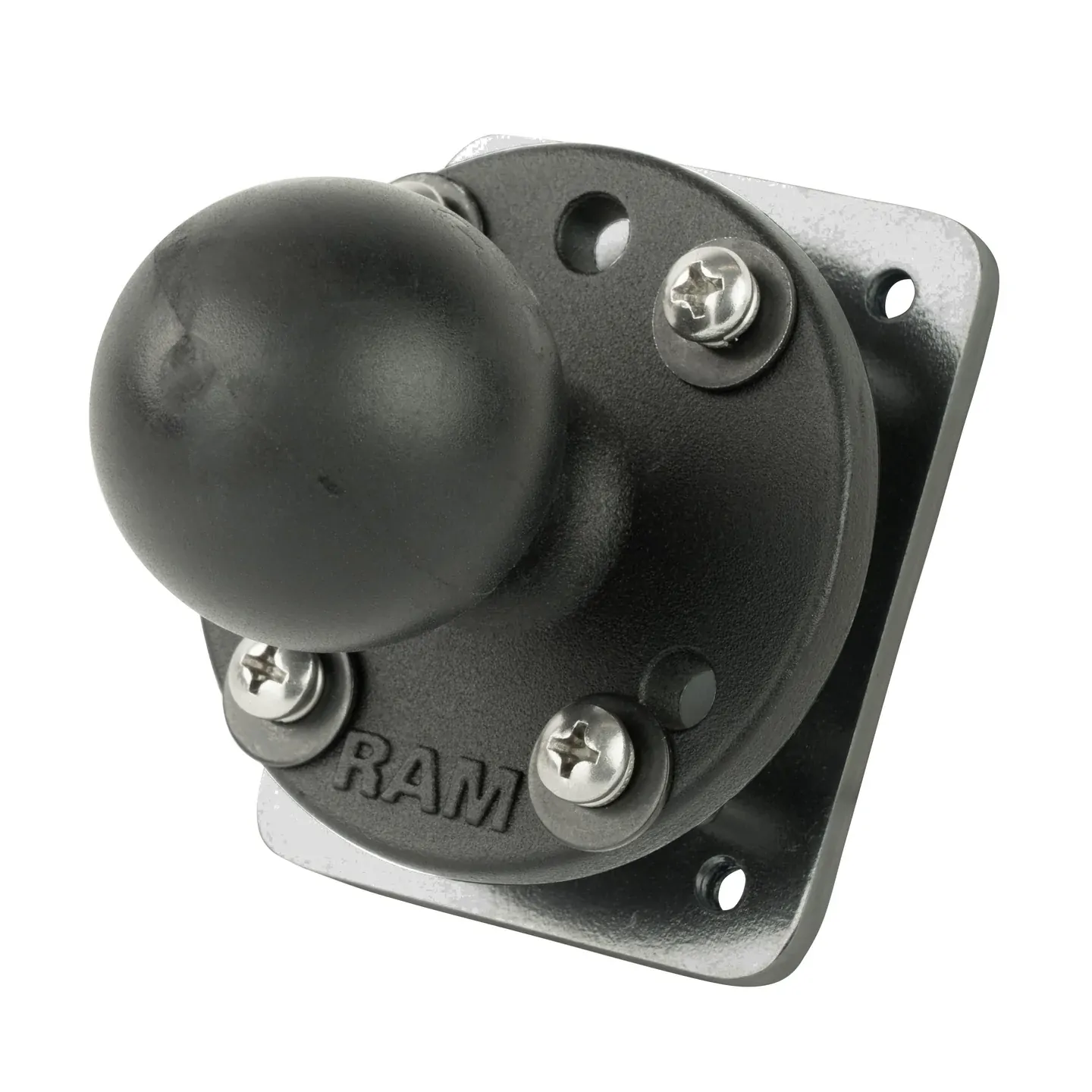

Meet your new go-to mount and component option for pairing any holder or dock with a dashboard drill-down mount. The RAM-202-225-2U consists of a 1.5" C size rubber ball connected to a 2.5" diameter round plate with the universal AMPS hole pattern and one 2.10" x 2.60" steel backing plate (hardware included). Connect a C size RAM double socket arm and device holder that's perfect for your use-case. RAM's patented rubber ball and socket technology dampens shock and vibration and allows for near-infinite adjustment, enabling perfect viewing and operating angle of your device.

Key Features:

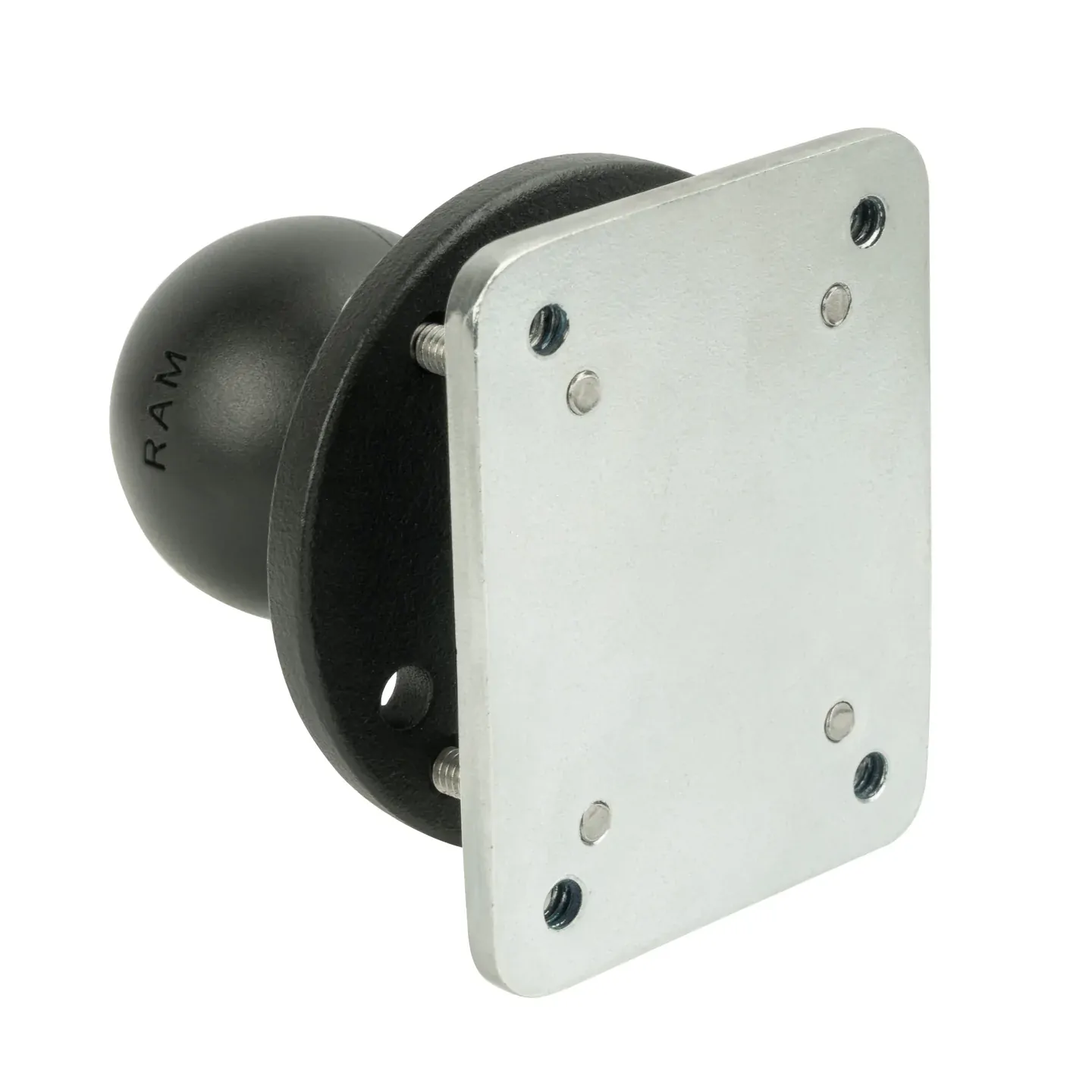

  • 2.5" round plate with C size 1.5" rubber ball connects to included 2.10" x 2.60" steel backing plate that connects to RAM® components containing the universal AMPS hole pattern
  • Connect a C size RAM® double socket arm and device holder for your use-case; ball and socket technology allows for near-infinite adjustability
  • Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

(RAM-202-225-2U)

Technical Specifications:

Hardware Included(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Machine Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
Hole PatternRound Plate:
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
Ball SizeC Size (1.5")
Weight CapacityStandard Use: 4 lbs (1.81 kg)
Heavy-Duty Use: 3 lbs (1.36 kg)
MaterialsMarine-grade aluminum
Steel
Packaging TypePoly Bag

Product Information

SKU RAM-202-225-2U
Barcode 793442848995
Brand RAM Mounts
Weight 0.28 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
