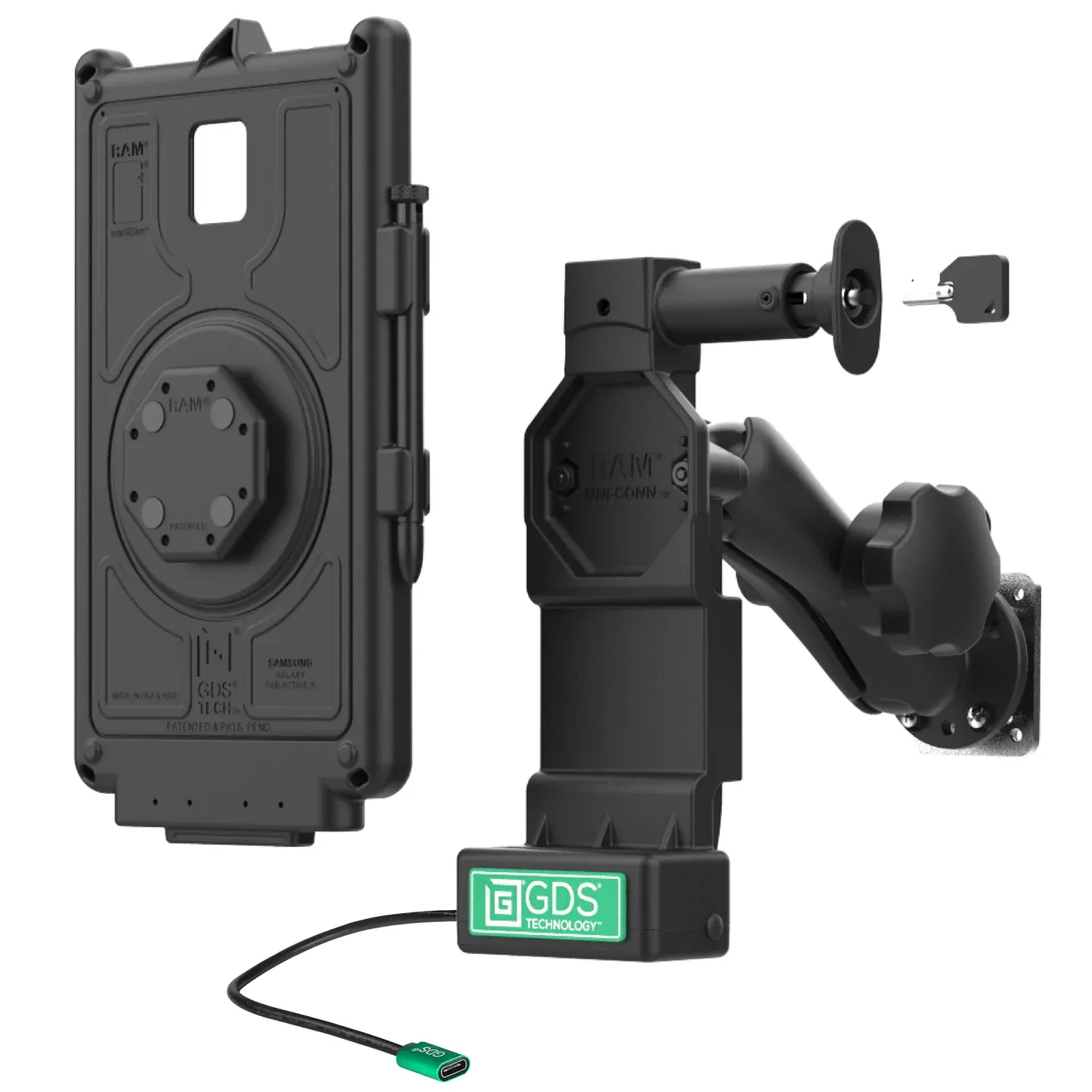

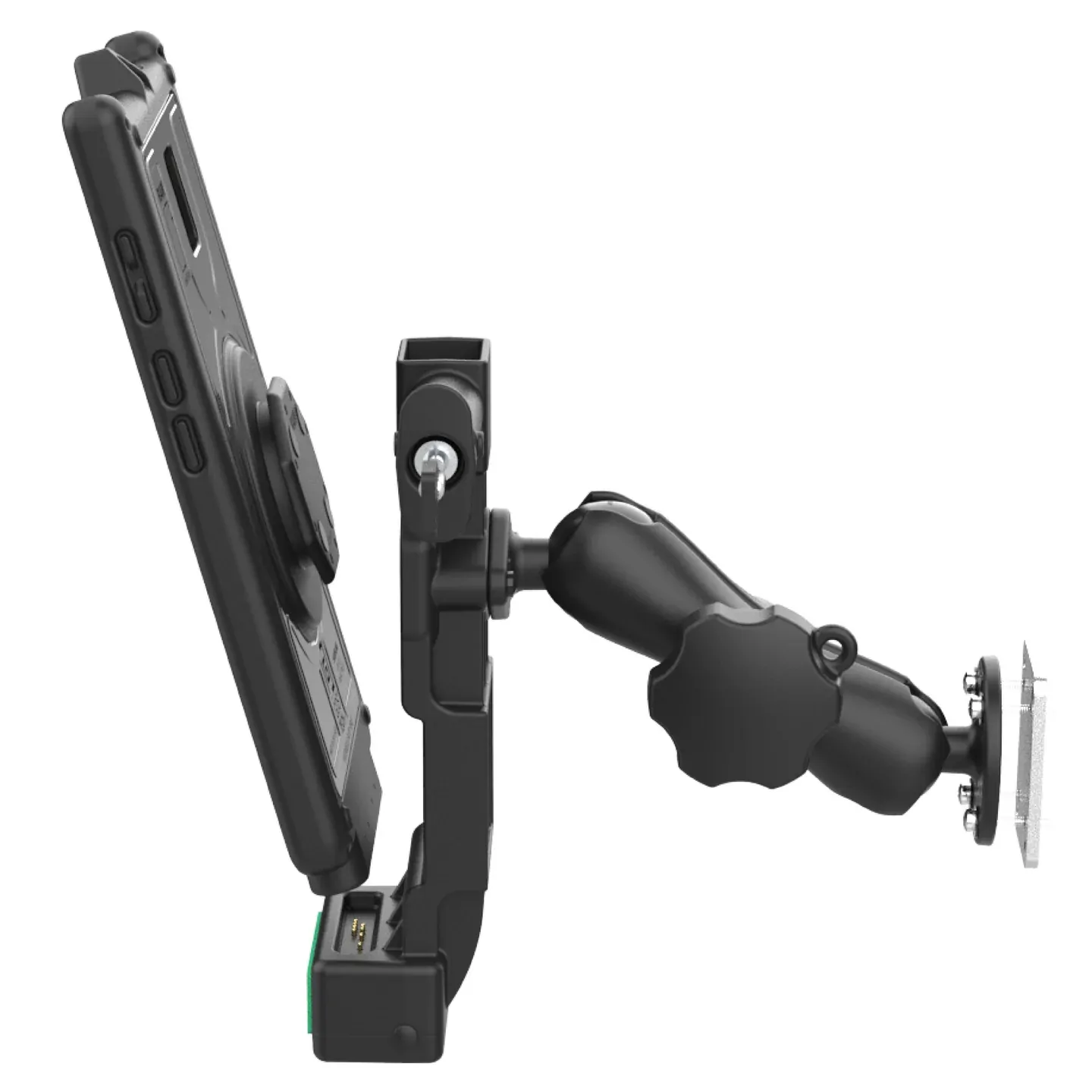

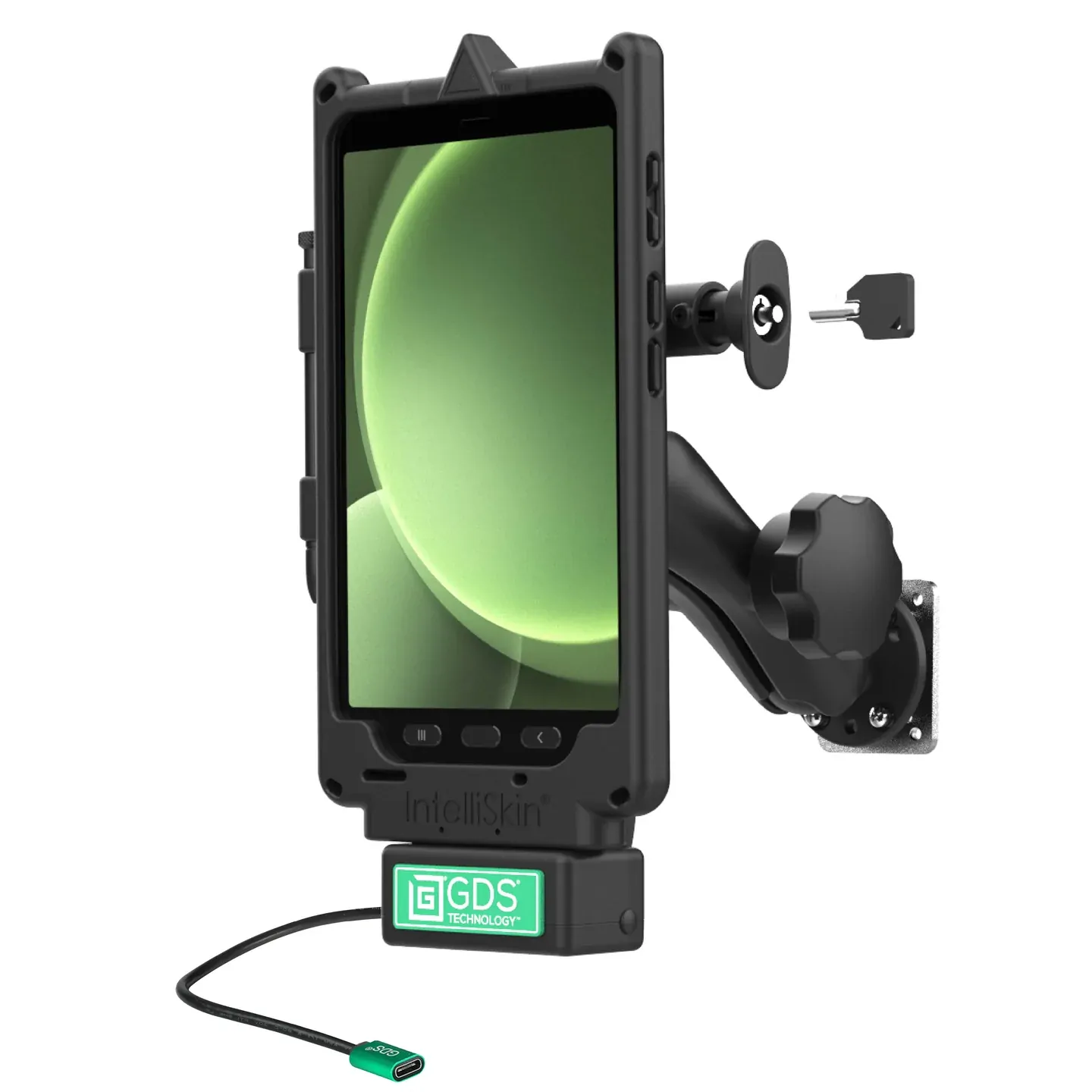

The GDS Uni-Conn Locking Vehicle Bundle for Samsung Tab Active5 (RAM-GDS-U4-SAM90-KIT2) is a comprehensive kit of everything needed to deploy the Tab Active5 in your fleet. It contains one GDS Uni-Conn locking dock with right lock, Uni-Conn adapter, IntelliSkin for the Tab Active5, and double ball mount with backing plate and locking knob. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of the quick-release button frees the tablet. The GDS Uni-Conn is backed by a 3-year warranty.

Key Features:

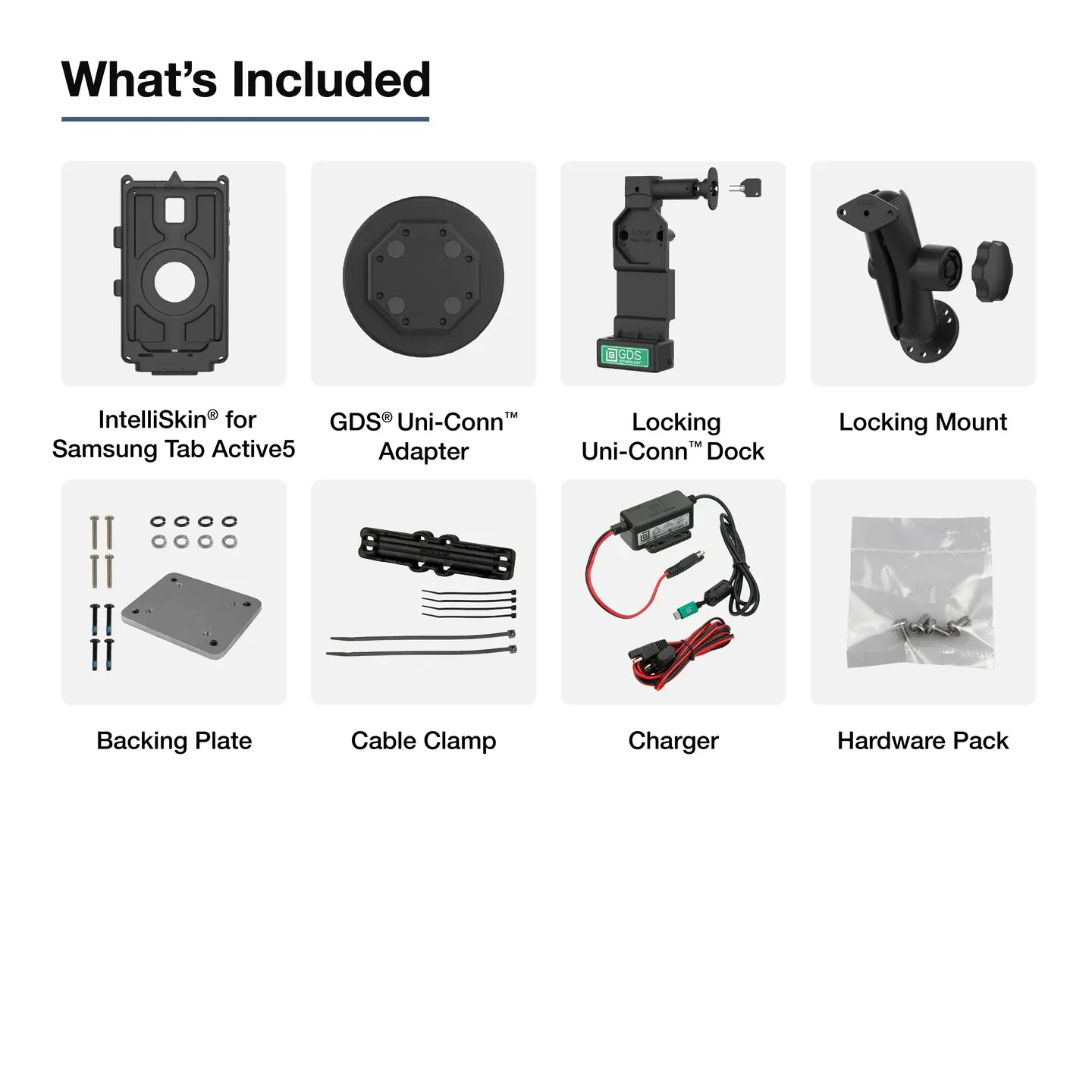

  • Bundle includes GDS® Uni-Conn™ key-locking dock with quick-release button, Uni-Conn™ adapter, IntelliSkin® Next Gen for Samsung Tab Active5, C size double ball mount with medium arm and locking knob, backing plate adapter, 10-30V hardwire charger with USB-C connector, and cable clamp
  • Dock features GDS® Technology™ for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power

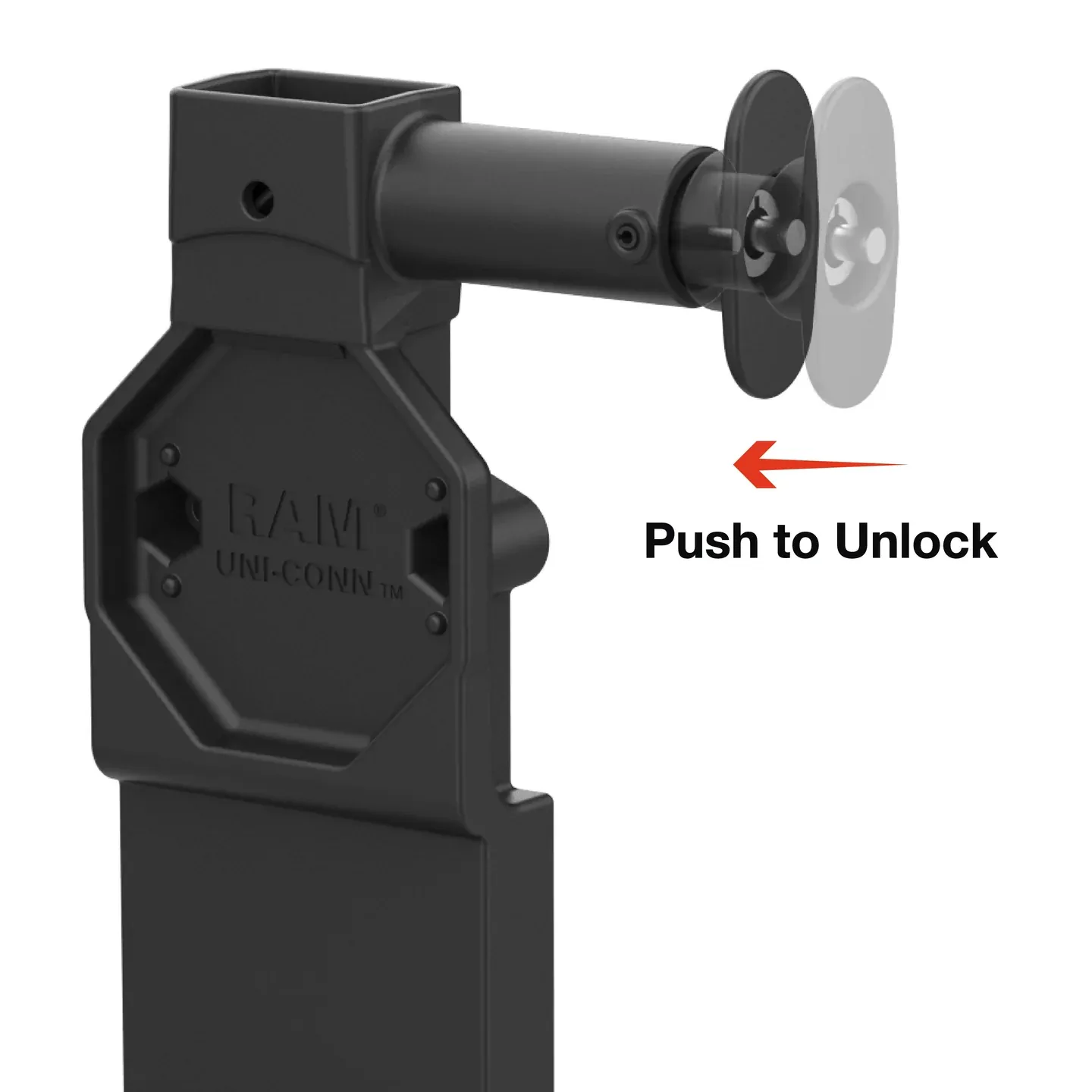

  • Uni-Conn™ dock features a quick-release button for easy device insertion and removal

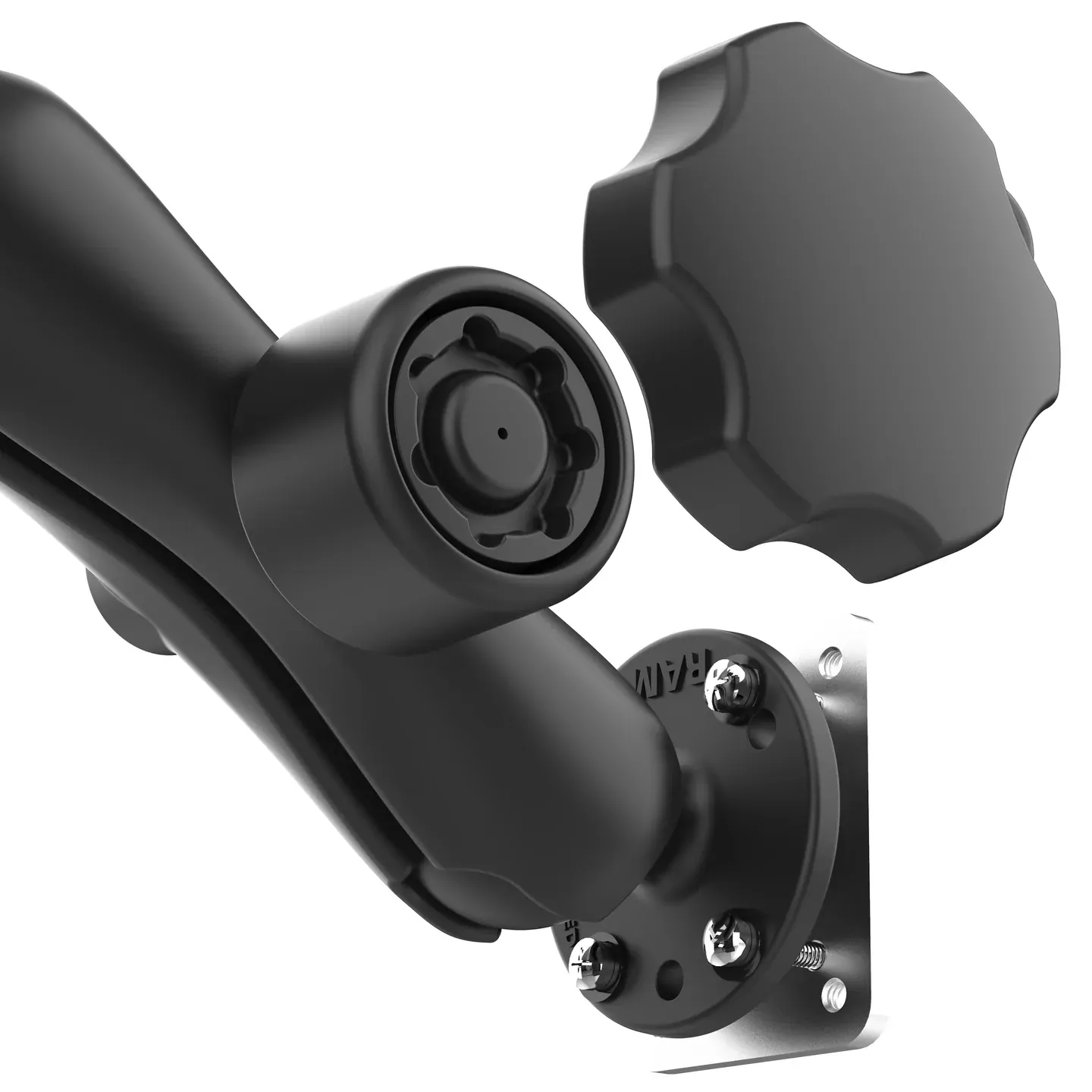

  • Uni-Conn™ dock's key-lock and locking knob on arm provide additional theft deterrence
  • Backed by a 3-year warranty

(RAM-GDS-U4-SAM90-KIT2)

Technical Specifications:

Hardware IncludedAssembly Hardware
(2) Keys
(1) 2.10" x 2.60" Steel Backing Plate
(4) #8-32 x 1" Screws
(4) #8 Split Lock Washers
(4) #8 Flat Washers
(2) Cable Clamps
(1) Vehicle Hardwire Charger
Socket To Socket Length4.66" (11.84 cm)
Ball SizeC Size (1.5")
MaterialsSteel
Marine-grade aluminum
High strength composite
Packaging TypePoly Bag
Output Voltage12VDC
Power Output25W

Product Information

SKU RAM-GDS-U4-SAM90-KIT2
Barcode 793442034749
Brand RAM Mounts
Weight 1.65 kg
Warranty 3 year warranty
