GDS Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger
RAM-GDS-CHARGE-V21CU

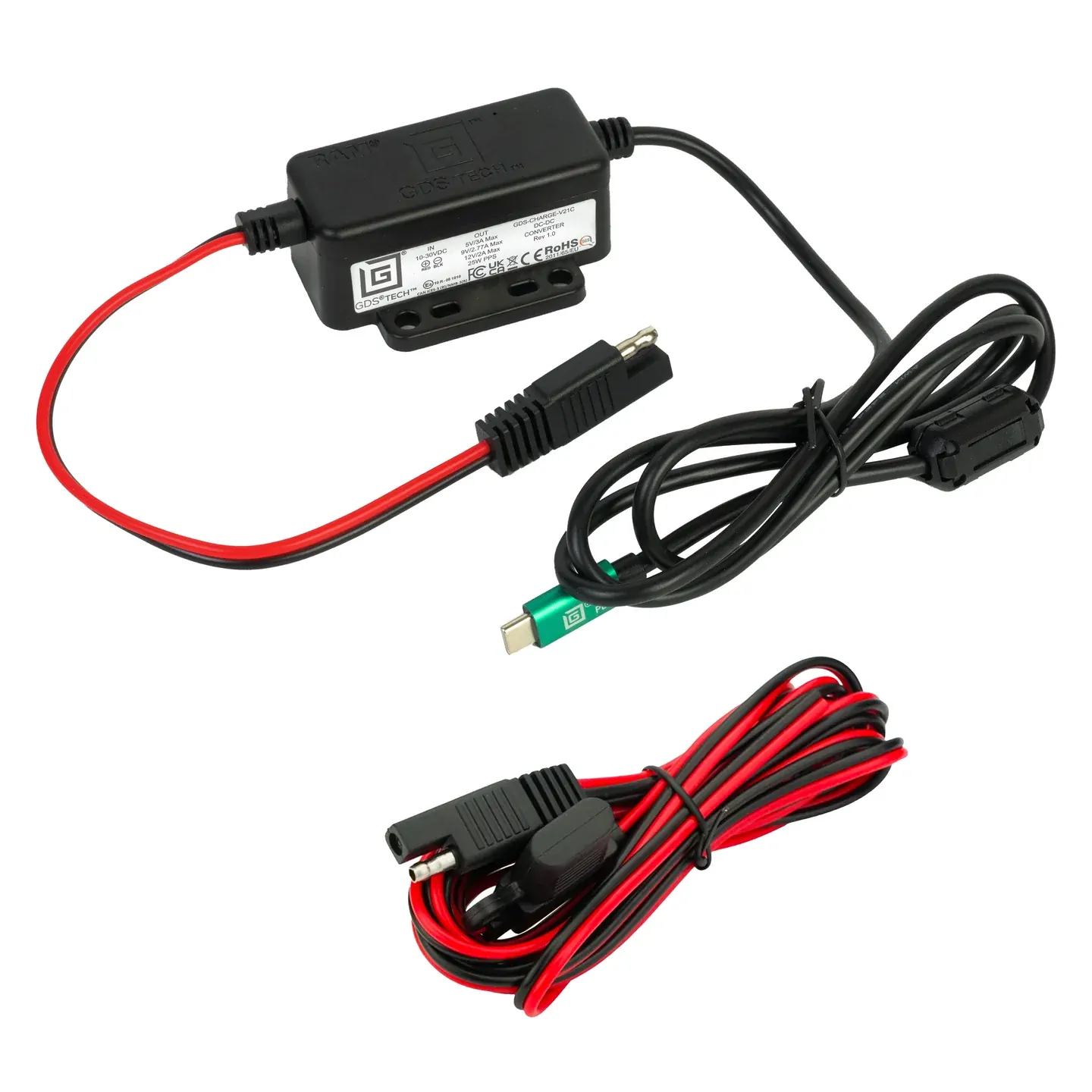

The GDS Modular 10-30V Power Delivery (25W) Male USB-C Hardwire Charger (RAM-GDS-CHARGE-V21CU) is the ideal solution for providing power to any USB Type-C GDS vehicle solution. By connecting directly to the power source of your vehicle, the GDS Charger delivers up to 12V of USB Type-C power to your device. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This charger supports Power Delivery.
- Hardwire charger includes USB Type-C male connection with input of 10-30VDC and output of 5-12VDC
- Supports Power Delivery
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
Kits containing this part Need this component urgently? View complete kits that include this component
(RAM-GDS-CHARGE-V21CU)
Instructions
Instructions for Modular Hardwire ChargerDocuments
Hardwire Charger Compatibility GuideTechnical Specifications:
| Packaging Type | Poly Bag |
|---|---|
| Input Voltage | 10-30VDC |
| Output Voltage | 12VDC |
| Power Output | 25W |
| Output Current | 2.5A max |
| Input Connector | Bare Wire |
| Input Cable Length | .2 Meters |
| Output Connector | USB Type-C Male |
| Output Cable Length | 1 Meter |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Regulatory | Over Voltage Protection Over Current Protection Short Circuit Protection SAE J-1113-5a Load Dump (Transient Voltage) WEEE Compliance RoHS Compliance |
| Certifications | FCC, CSA, CE, UKCA, RCM, e-Mark |
Product Information
| SKU | RAM-GDS-CHARGE-V21CU |
|---|---|
| Barcode | 793442033155 |
| Brand | RAM Mounts |
| Weight | 0.25 kg |
| Warranty | 3 year warranty |
