Dashboard Mount C-Size with Backing and Diamond Plate (Short Arm) (RAM-138-B-225B2U)

Description
Specifications

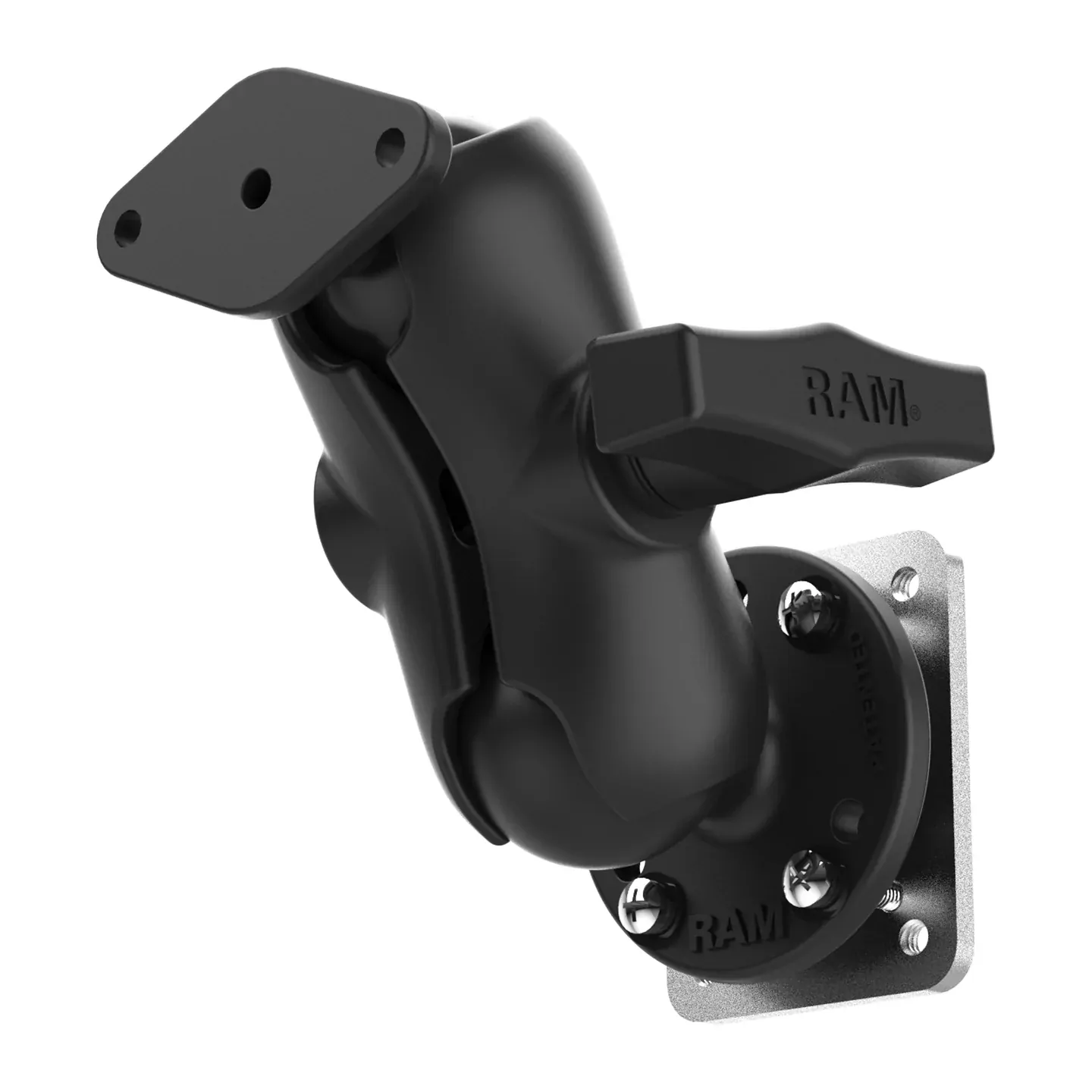

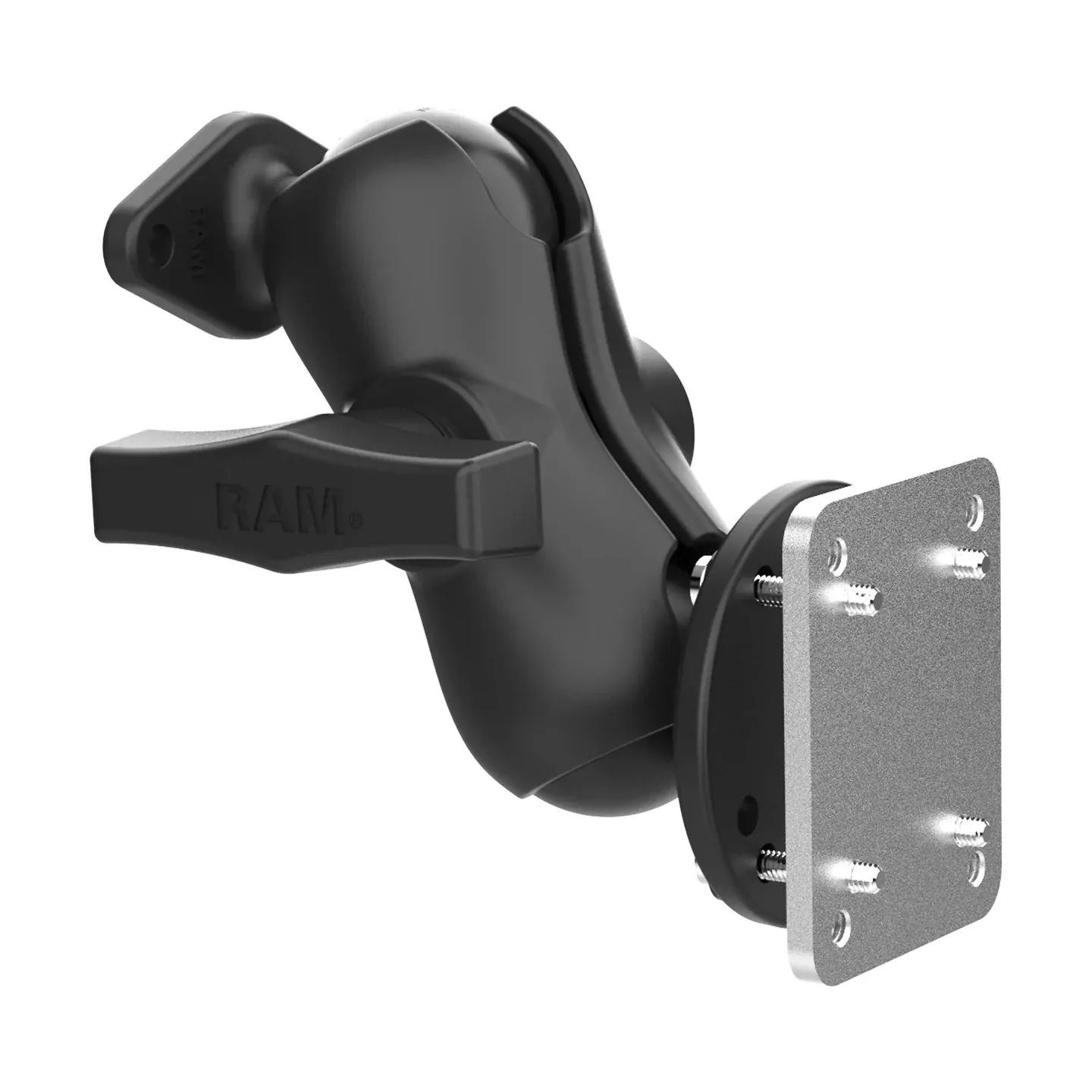

The RAM Dashboard Mount with Backing Plate & Diamond Plate - C Size Short (RAM-138-B-225B2U) consists of a short double socket arm, one 2.5" diameter round base, one 2.43" x 1.31" diamond base, one 2.10" x 2.60" backing plate, and mounting hardware. Each base features the universal AMPS hole pattern, making them compatible with all RAM device holders. The mount is designed with a 1" diameter rubber ball and socket system that features adjustment points at both ends of the double socket arm, allowing for near-infinite adjustability for ideal viewing angles.

Key Features:

2.43" x 1.31" diamond base with C size 1.5" RAM® rubber ball connects to RAM® device holders containing the universal AMPS hole pattern; includes C size short length double socket arm
2.10" x 2.60" steel backing plate provide support for mount when drilling in and securing to thin surfaces, like dashboards
Ball and socket technology allows for near-infinite adjustability
Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
Backed by a lifetime warranty

(RAM-138-B-225B2U)

Technical Specifications:

Product Dimensions	Overall Height: 5.225" (13.27 cm)
Socket To Socket Length	2.5" (6.35 cm)
Hole Pattern	2-Hole AMPS 1.912"
Ball Size	C Size (1.5")
Weight Capacity	Standard Use: 4 lbs (1.81 kg) Heavy-Duty Use: 3 lbs (1.36 kg)
Materials	Marine-grade aluminum Steel
Packaging Type	Poly Bag
