Tele-Pole with 8" and 9" Poles Single Swing Arm and Round Plate
RAM-VP-SW2-89
RRP $300.00
In Stock: 1

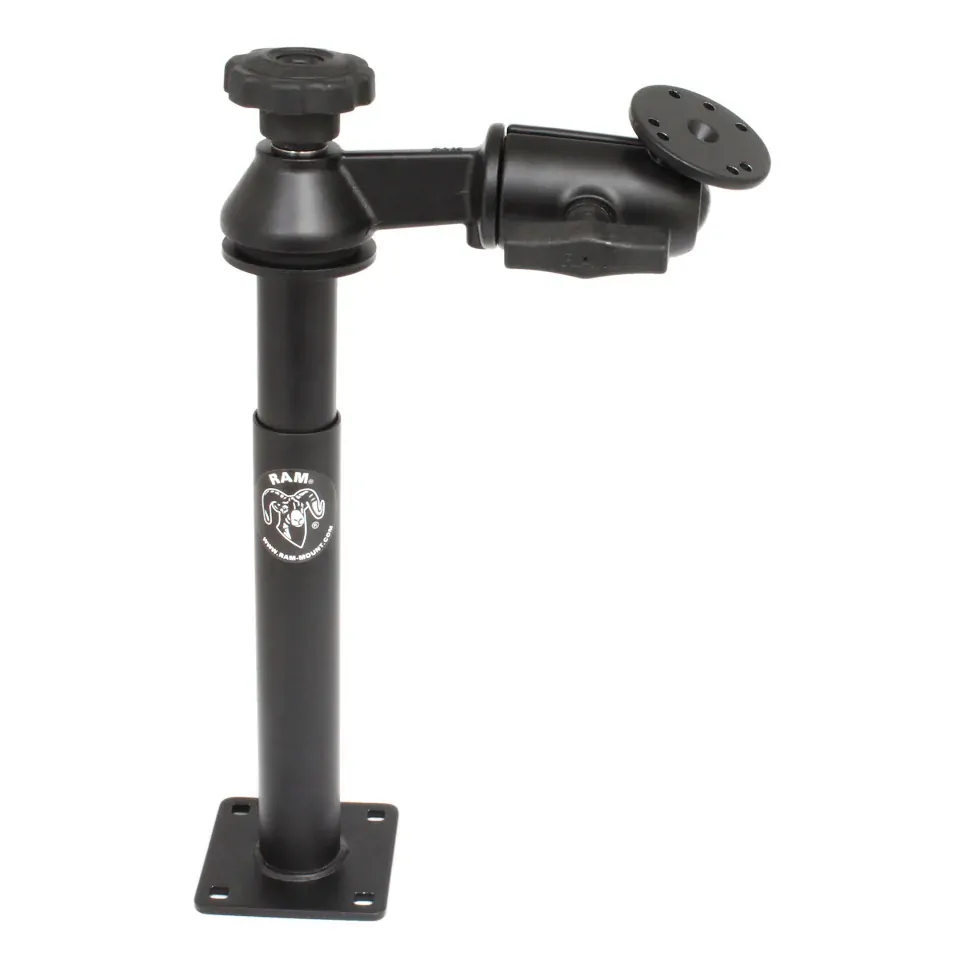

The RAM-VP-SW2-89 consists of a 9" lower female Tele-Pole, 8" upper male Tele-Pole, single swing arm and 2.5" round base that contains the universal AMPs hole pattern. The lower female Tele-Pole will attach to all RAM vehicles bases that do not contain a welded female Tele-Pole. The height of the Tele-Poles, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles.
(RAM-VP-SW2-89)
Instructions
Upper Tele-Pole Assembly Guide
Long Upper Tube 9 Inch Sq Base
RAM-VP-TBF9U
Long Upper Tube 8 Inch
RAM-VP-TTM8U
RAM-VB-110-5U
RAM-VB-110-5U
Not sold separately
Technical Specifications:
| Hardware Included | Assembly Hardware (4) 5/16"-18 x 1" Carriage Bolts (4) 5/16"-18 Hex Nuts (4) 5/16" Flat Washers (4) 5/16" Split Lock Washers (4) Rubber Caps |
|---|---|
| Product Dimensions | Minimum Height: 16.3" (41.40 cm) Maximum Height: 21.3" (54.10 cm) |
| Hole Pattern | Tele-Pole: 2.625" x 2.625" Round Plate: 4-Hole AMPS: 1.181" x 1.496" & 3-Hole 120-Degree: 1.812" Diameter |
| Ball Size | C Size (1.5") |
| Materials | Powder coated steel Marine-grade aluminum |
| Packaging Type | Box |
Product Information
| SKU | RAM-VP-SW2-89 |
|---|---|
| Barcode | 793442924637 |
| Brand | RAM Mounts |
| Weight | 3.01 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
