Tele-Pole with 12" and 18" Poles and 75mm VESA Mount
RAM-VP-1218F-D-101-2461U
RRP $504.00
In Stock: 2

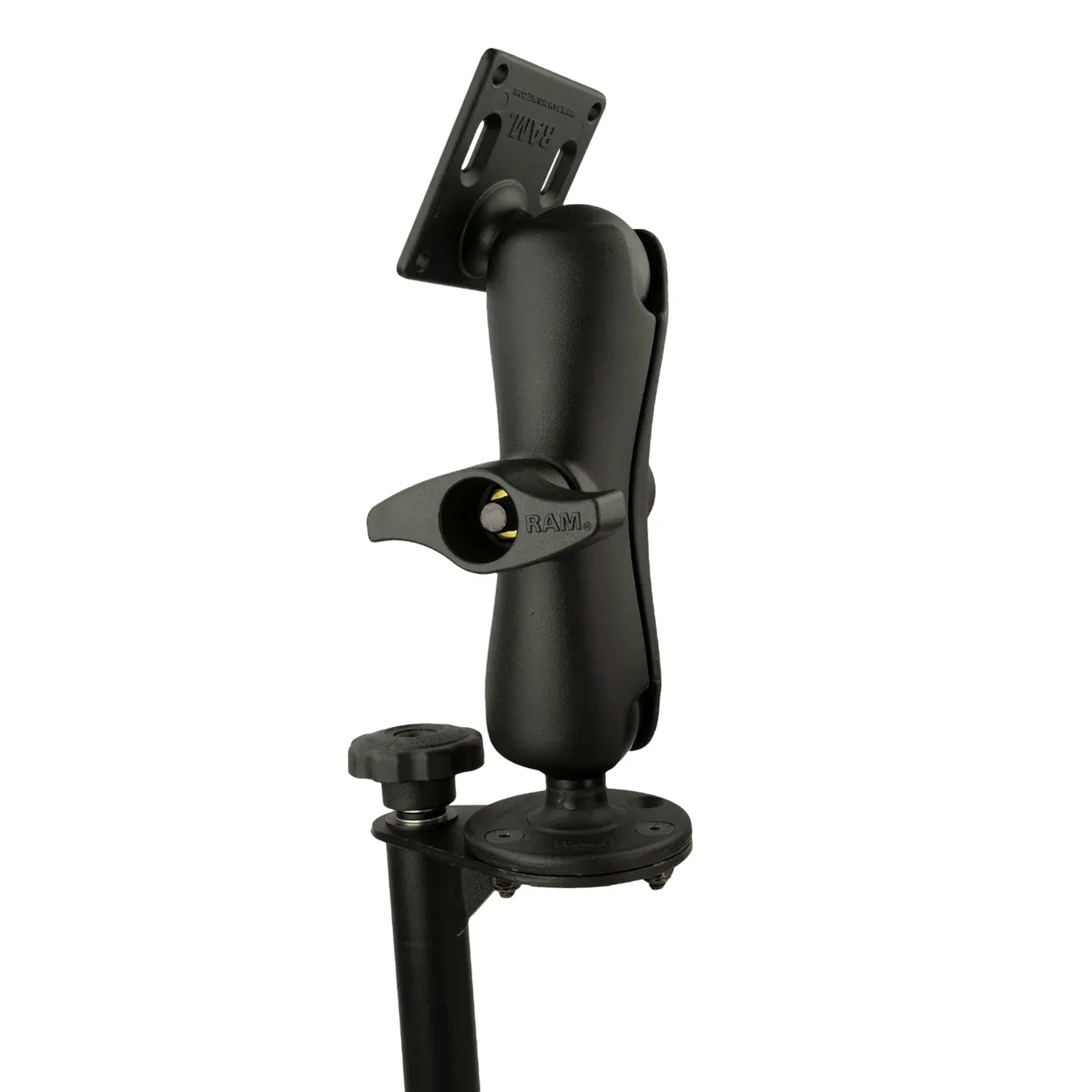

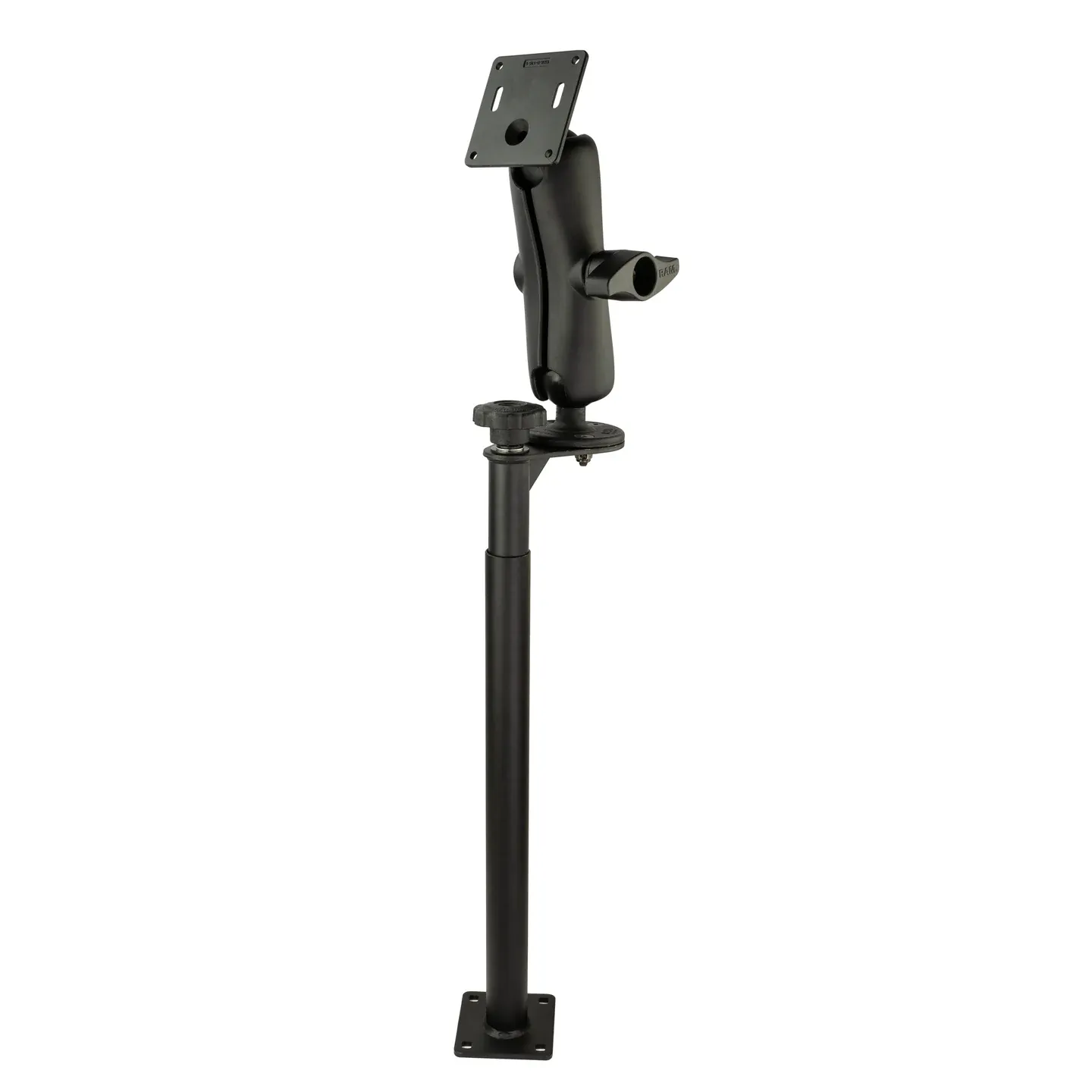

This RAM Tele-Pole consists of an 18" lower pole, a 12" upper pole, double swing arm, and 75x75mm VESA Plate. The lower Tele-Pole will attach to all RAM vehicle bases that do not contain a welded female Tele-Pole. The height of the Tele-Poles, combined, can easily be adjusted by turning the knob at the top of the post. Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices, allowing you to twist and tilt the viewing and operating angle of your connected device.
Key Features:
- Pair this RAM® Tele-Pole™ with a RAM® vehicle base that does not contain a welded female Tele-Pole™
- Easily adjust the height of the Tele-Poles™ with the turn of a knob, allowing you to twist and tilt the viewing and operating angle of your connected device
- Consists of D size mounting components, including a 75x75mm VESA Mount for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Backed by a lifetime warranty
(RAM-VP-1218F-D-101-2461U)
Instructions
Upper Tele-Pole and Flange Assembly GuideDocuments
Drawing File: D Size 75 x 75mm VESA Plate On Road CatalogRAM-VP-TTMF12-D-101-2461U
RAM-VP-TTMF12-D-101-2461U
Not sold separately
Tele-Pole 18 Inch Square Base
RAM-VP-TBF18U
Technical Specifications:
| Hardware Included | Assembly Hardware (4) 5/16"-18 x 1" Carriage Bolts (4) 5/16"-18 Hex Nuts (4) 5/16" Flat Washers (4) 5/16" Split Lock Washers (4) Rubber Caps |
|---|---|
| Socket To Socket Length | 6.88" (17.48 cm) |
| Hole Pattern | Tele-Pole: 2.625" x 2.625" VESA Plate: 75 x 75mm VESA |
| Ball Size | D Size (2.25") |
| Weight Capacity | Standard Use: 6 lbs (2.72 kg) Heavy-Duty Use: 5 lbs (2.27 kg) |
| Materials | Powder coated steel Marine-grade aluminum |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-VP-1218F-D-101-2461U |
|---|---|
| Barcode | 793442802867 |
| Brand | RAM Mounts |
| Weight | 5.35 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
