GDS Uni-Conn Spring Loaded Power and Single USB-C Dock
RAM-GDS-DOCK-V12-U1CP-CU
RRP $382.00
In Stock: 1

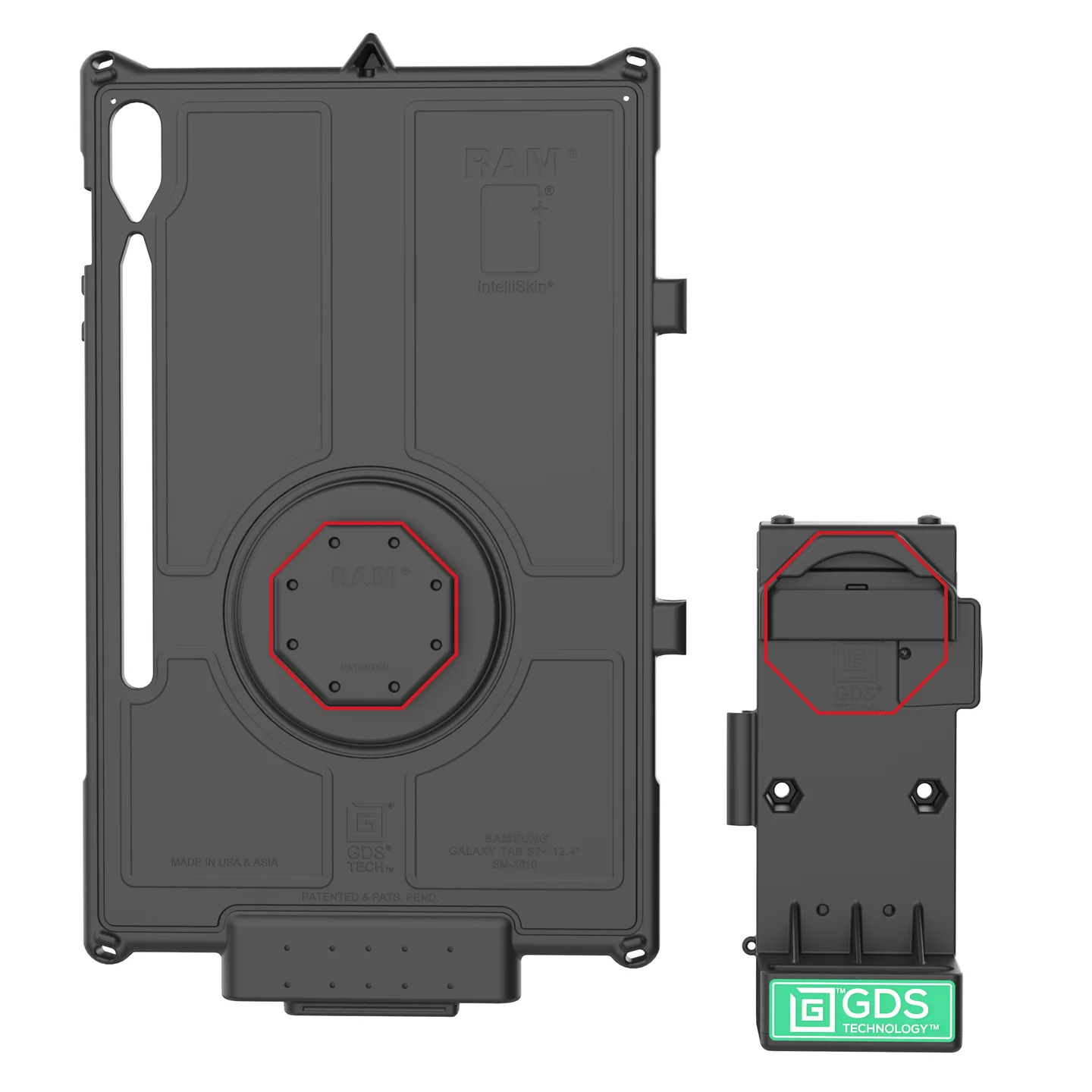

The GDS Uni-Conn Spring Loaded Power + Single USB-C Dock (RAM-GDS-DOCK-V12-U1CP-CU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. It features an easy docking and undocking process, simply place the GDS Uni-Conn adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Integrate up to one peripheral device into your solution with the USB-C female connector. The GDS Uni-conn dock is backed by a 3-year warranty.
Key Features:
- Spring-loaded dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
- USB Type-C Female connector provides high-speed charging and USB Type-C connects one peripheral device
- RAM® Mounts Compatible™
- Backed by a 3-year warranty
(RAM-GDS-DOCK-V12-U1CP-CU)
Technical Specifications:
| Hardware Included | (2) #8-32 x 5/8" Machine Screws (2) #8-32 Nyloc Nuts |
|---|---|
| Hole Pattern | 2-Hole AMPS: 1.912" |
| Materials | High strength composite |
| Packaging Type | Poly Bag |
| Input Connector | USB Type-C USB Type-C for 1 Peripheral |
| Input Cable Length | 1 Meter |
| Peripheral Output | 500mA |
Product Information
| SKU | RAM-GDS-DOCK-V12-U1CP-CU |
|---|---|
| Barcode | 793442020353 |
| Brand | RAM Mounts |
| Weight | 0.30 kg |
| Warranty | 3 year warranty |
