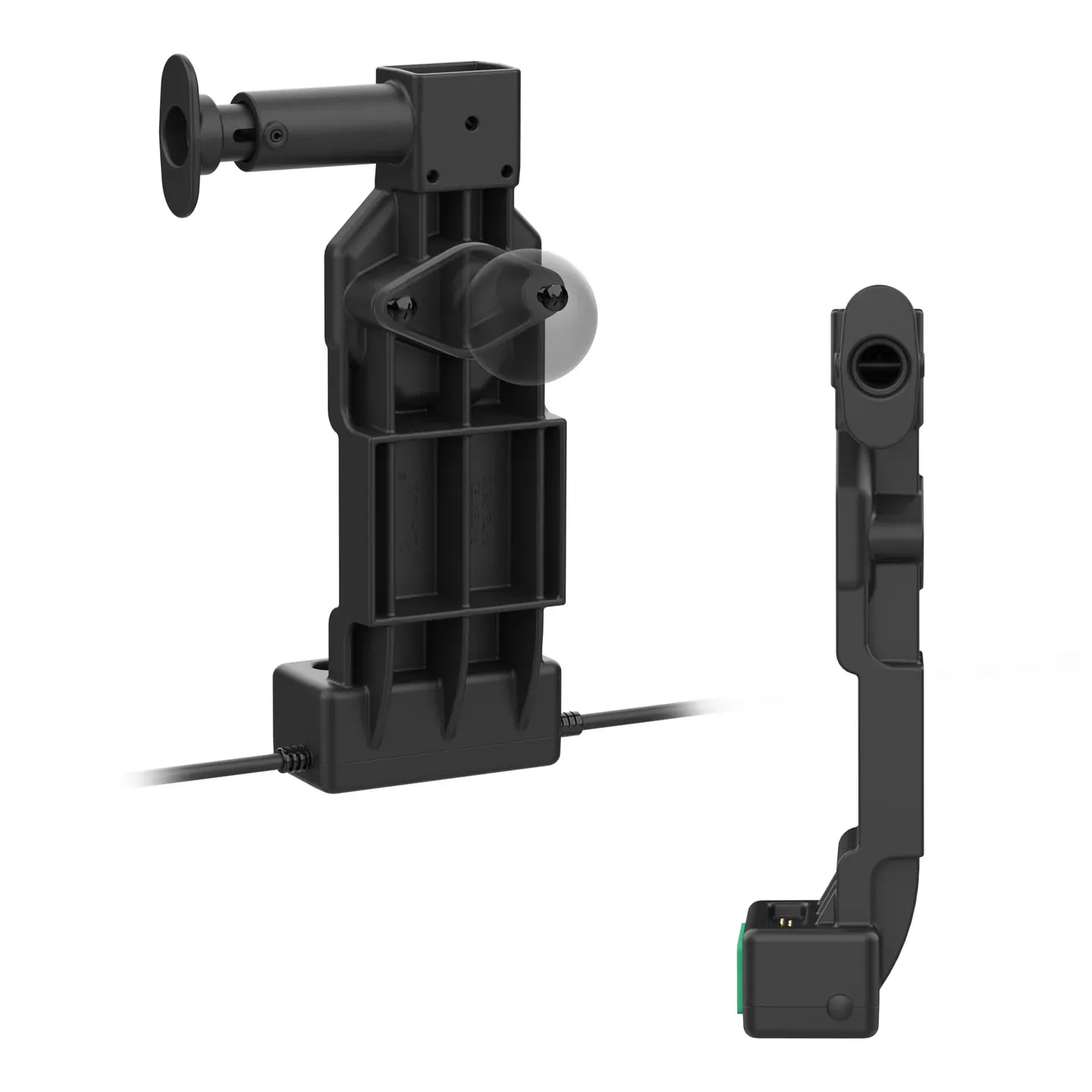

GDS Uni-Conn Dock with Single USB-A with Release Button (RAM-GDS-DOCK-U4CDU)

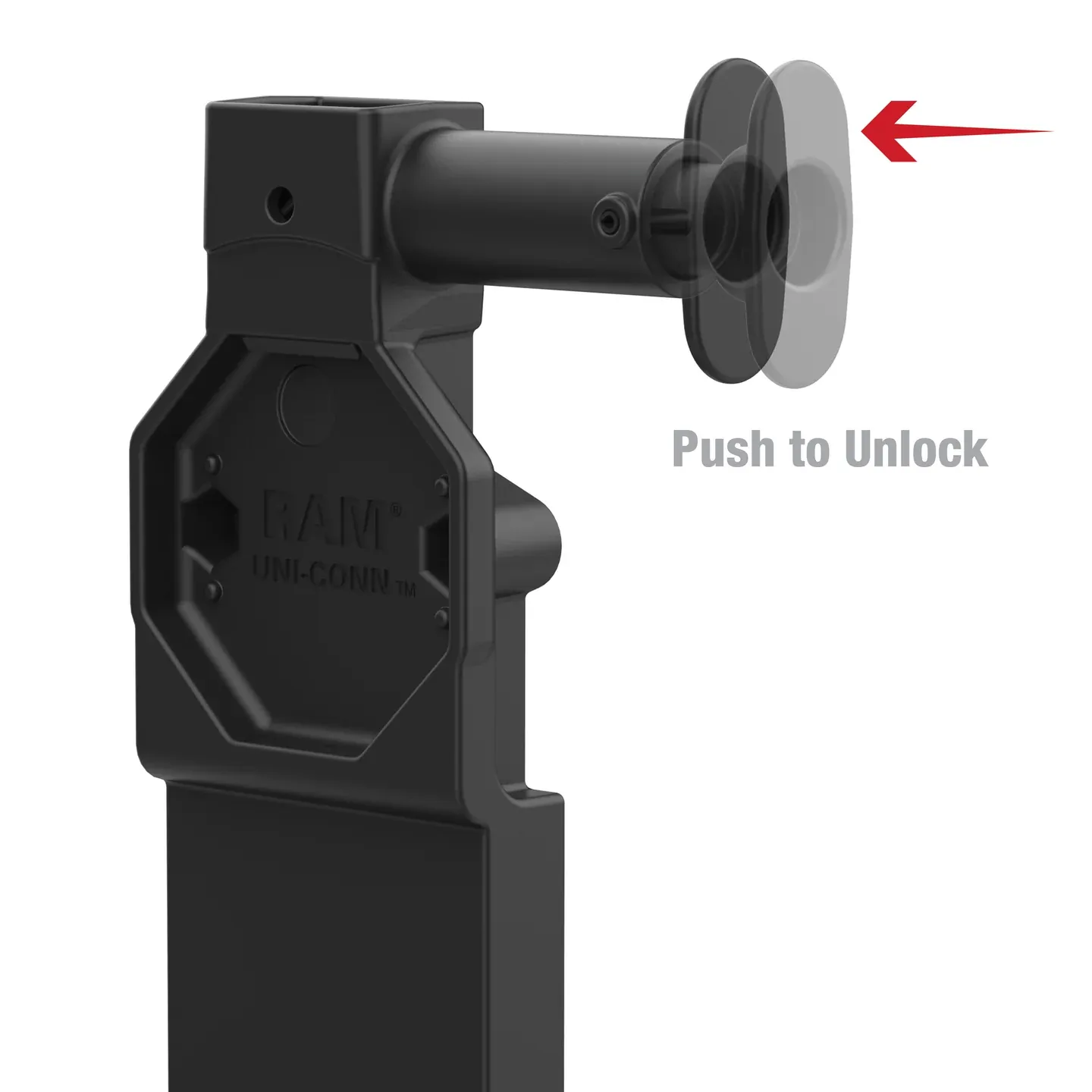

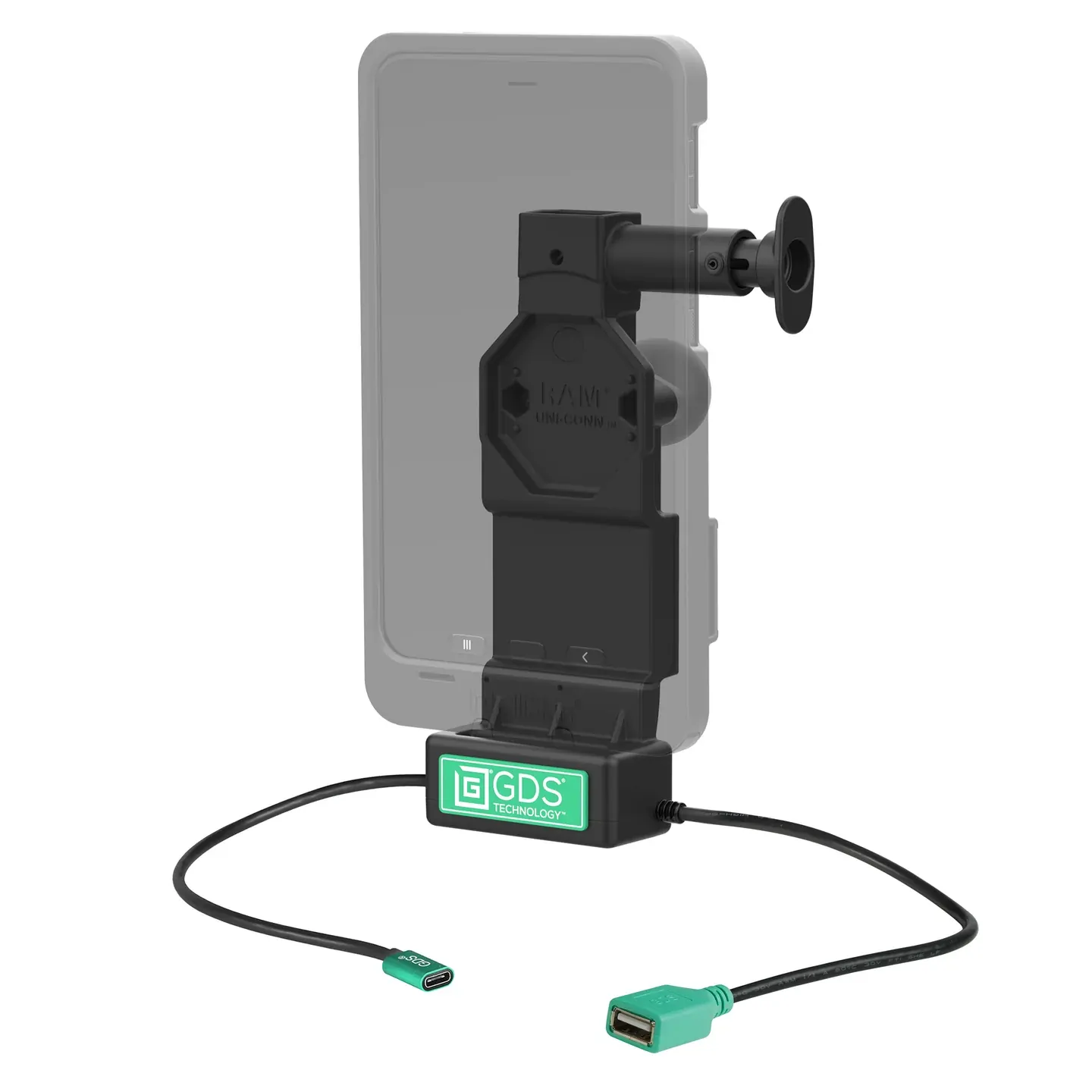

The GDS Uni-Conn Dock + Single USB-A with Release Button (RAM-GDS-DOCK-U4CDU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to one peripheral device into your solution with the USB-A female connector. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a release button frees the tablet. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. The GDS Uni-conn dock is backed by a 3-year warranty.

Key Features:

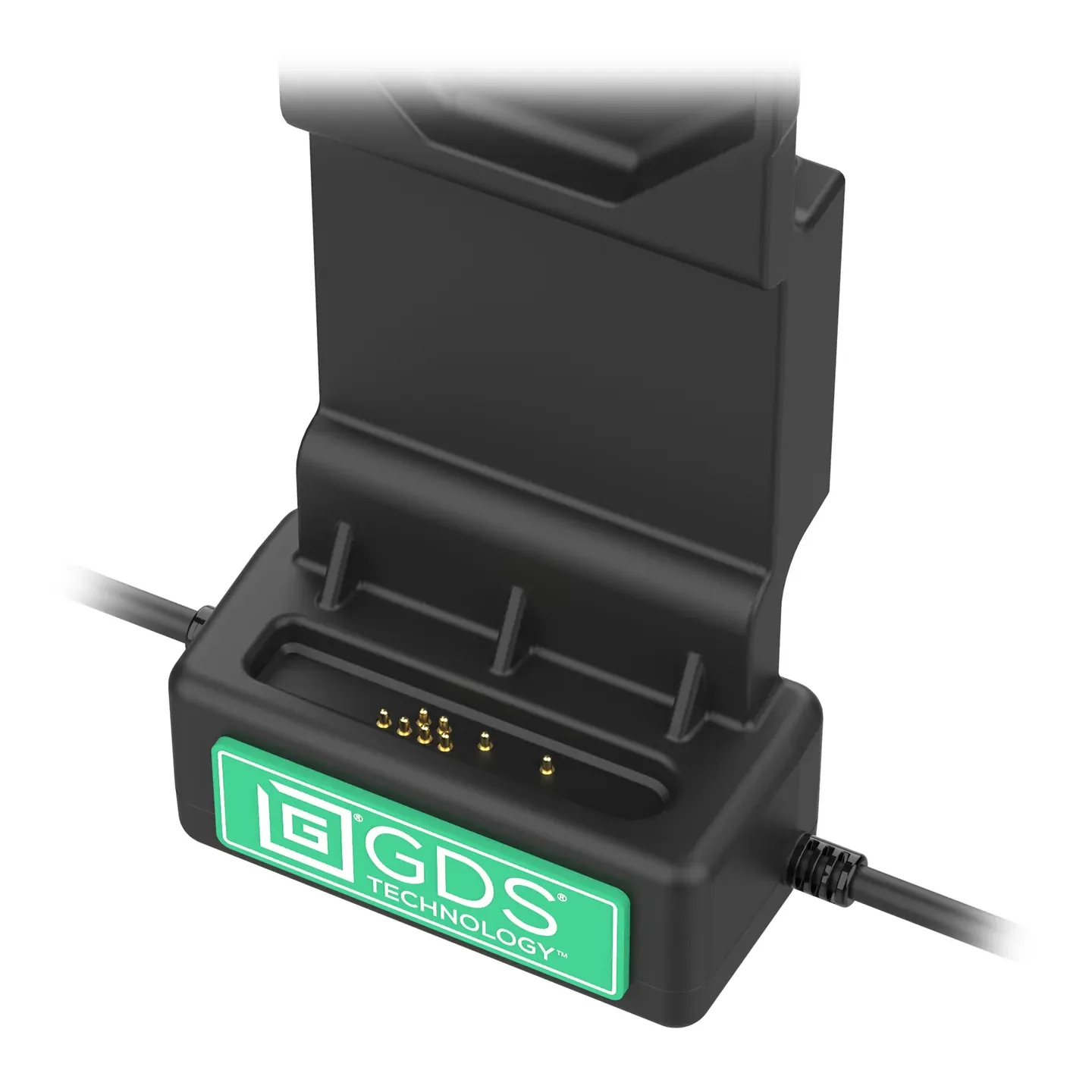

Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging

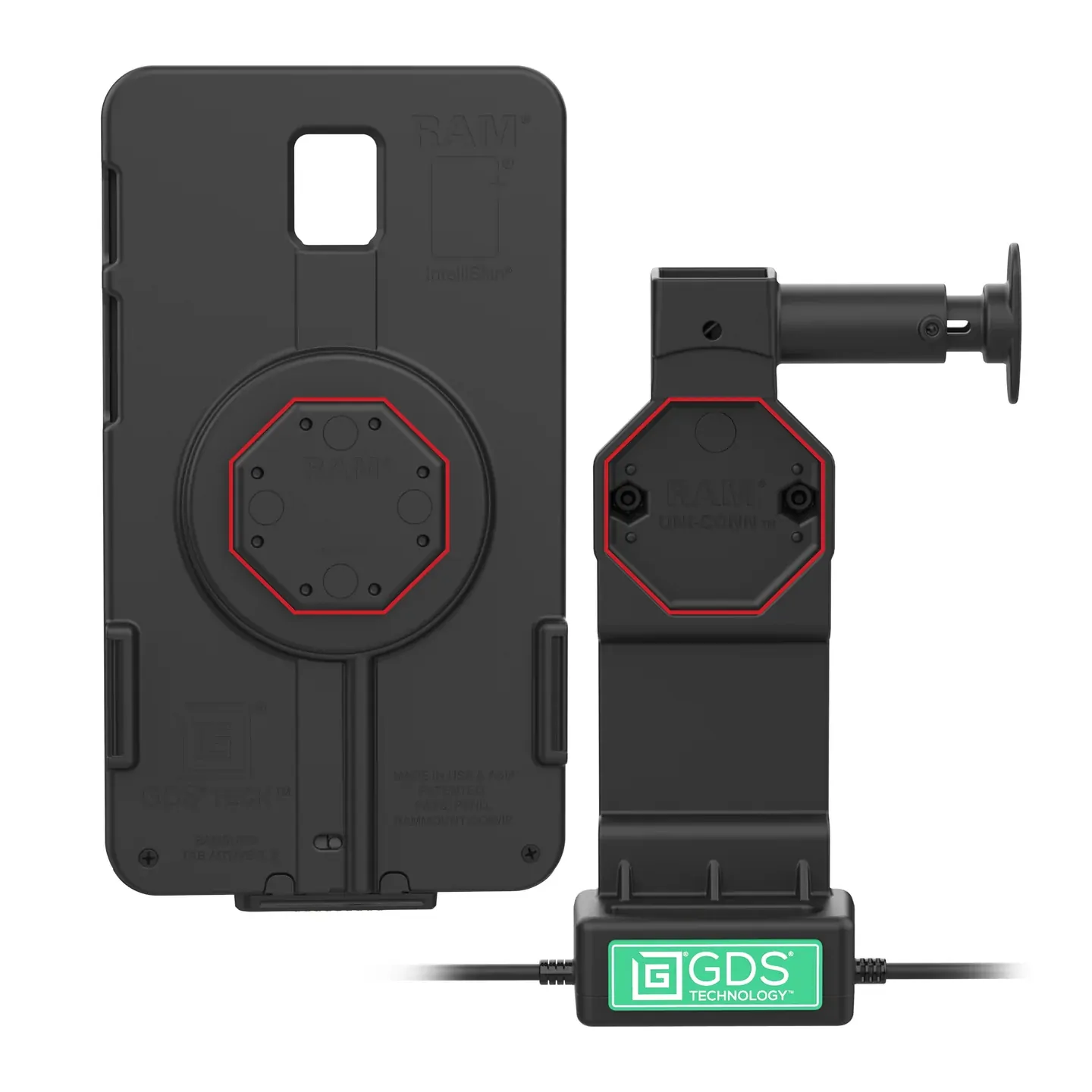

Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed

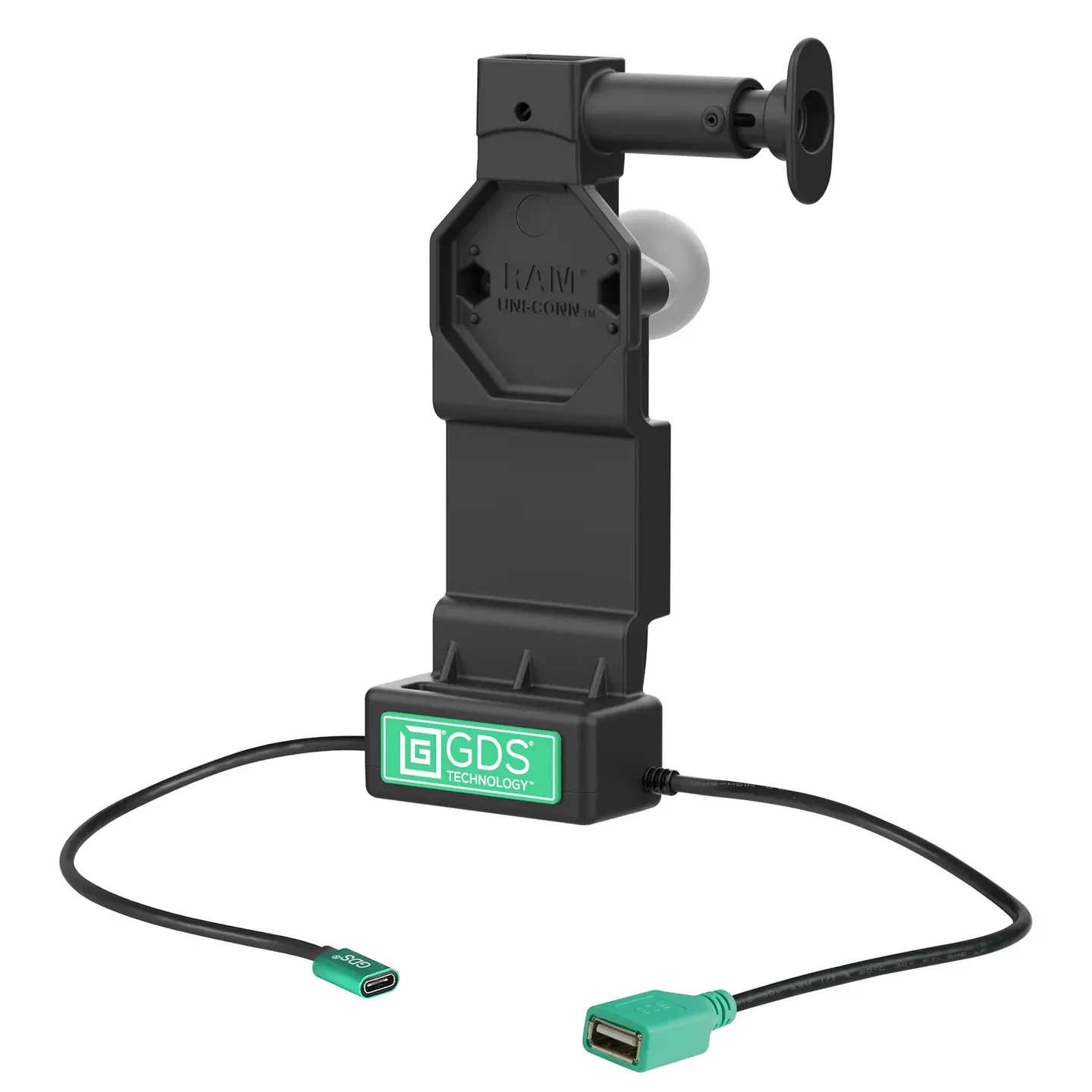

USB Type-C Female connector provides high-speed charging and USB Type-A connects one peripheral device
RAM® Mounts Compatible™
Backed by a 3-year warranty

(RAM-GDS-DOCK-U4CDU)

Instructions

Assembly Instructions for GDS® Uni-Conn™ Dock

Documents

GDS® Tech™ Catalog

Technical Specifications:

Hardware Included	(2) #8-32 x 5/8" Machine Screws (2) #8-32 Nyloc Nuts (1) Cable Clamp Kit
Hole Pattern	2-Hole AMPS: 1.912"
Materials	High strength composite
Packaging Type	Poly Bag
Output Voltage	5V - 20V @ 3A
Power Output	60W
Input Connector	USB Type-C USB Type A for 1 Peripheral
Input Cable Length	215mm
Output Cable Length	215mm
Peripheral Output	500mA
