GDS Hardwire USB Type-C Power Delivery Charger (No Cable)
RAM-GDS-CHARGE-V3FC-2U-NC
In Stock: 20+

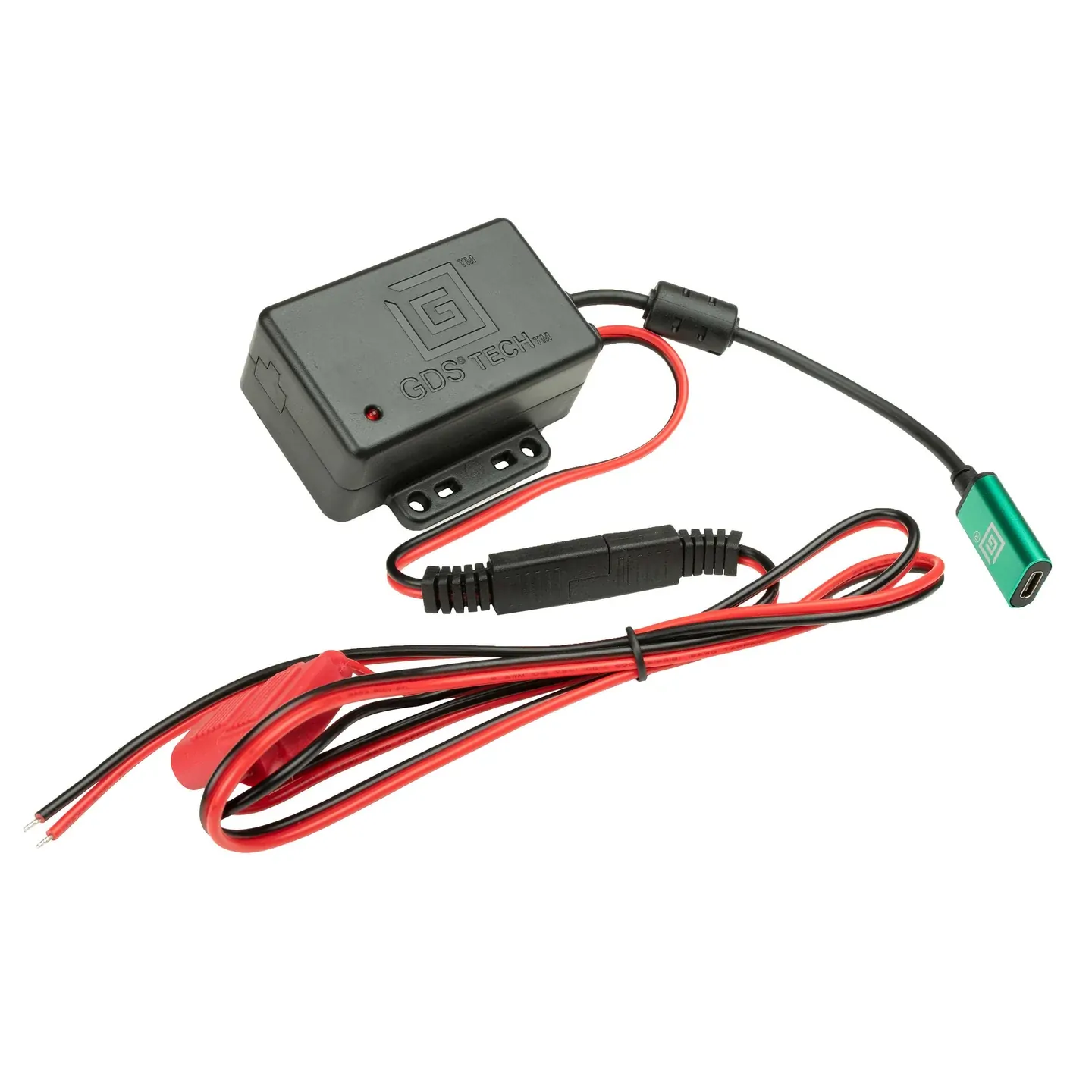

The GDS Modular Hardwire Charger with USB Type-C Female Connector is the ideal solution for providing power to any USB Type-C GDS vehicle solution. By connecting directly to the power source of your vehicle, the GDS Modular Hardwire Charger delivers USB Type-C power to your device with an input voltage of 10-28V. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing the new charger.
- Hardwire charger includes USB Type-C female connection with an input voltage of 10-30V
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
(RAM-GDS-CHARGE-V3FC-2U-NC)
Documents
Hardwire Charger Compatibility GuideTechnical Specifications:
| Packaging Type | Poly Bag |
|---|---|
| Input Voltage | 10-30VDC |
| Output Voltage | 5V @ 1A (5W) 9V @ 2A (18W) 12V @ 2A (24W) |
| Output Current | 3A max |
| Input Connector | Female USB Type-C |
| Input Cable Length | 1.2 Meters including 2 Pole Flat Marine Connector |
| Output Cable Length | 150mm |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Regulatory | Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP) |
| Certifications | FCC, IC, CE RCM, WEEE, RoHS Compliant USB Power Delivery 2.0 and 3.0 Support |
Product Information
| SKU | RAM-GDS-CHARGE-V3FC-2U-NC |
|---|---|
| Barcode | 793442028649 |
| Brand | RAM Mounts |
| Weight | 0.3000 kg |
| Warranty | 3 year warranty |
