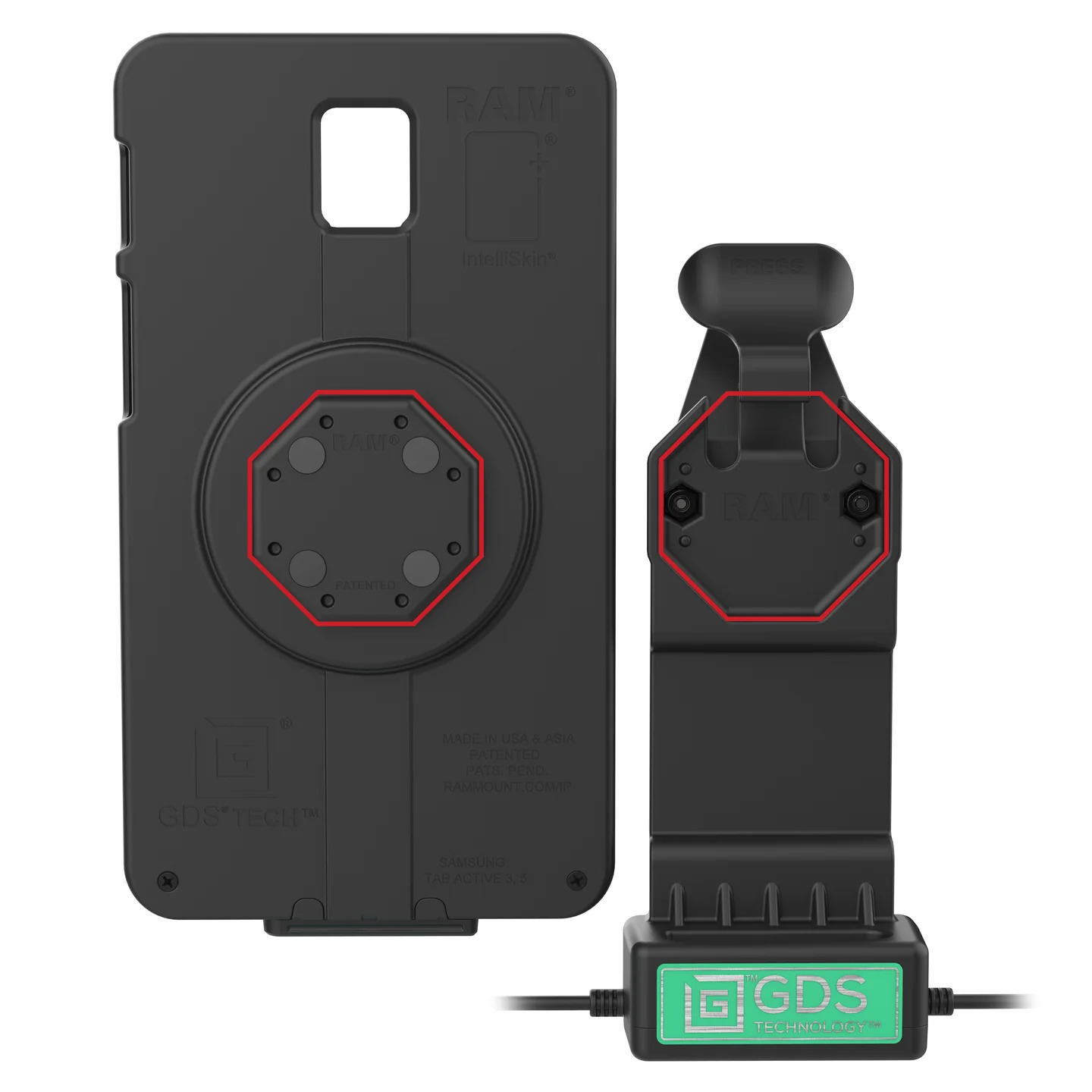

GDS Uni-Conn Power and Single USB-C Dock (RAM-GDS-DOCK-U1CP-CU)

The GDS Uni-Conn Dock + Single USB-C (RAM-GDS-DOCK-U1CP-CU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate one peripheral device into your solution with the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS Uni-conn dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed.

Key Features:

Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
USB Type-C Female connector provides high-speed charging and USB Type-C connects one peripheral device
RAM® Mounts Compatible™
Backed by a 3-year warranty

(RAM-GDS-DOCK-U1CP-CU)

Instructions

Assembly Instructions for GDS® Uni-Conn™ Dock

Documents

Compatibility Guide: GDS® Uni-Conn™ Snap-in Docks GDS® Tech™ Catalog

Technical Specifications:

Hardware Included	(1) Lever Stop (2) #8-32 x 1" Machine Screws (2) #8-32 Nyloc Nuts (1) Cable Clamp Kit
Product Dimensions	Overall Width: 3.16" (8.03 cm) Overall Height: 8.44" (21.44 cm) Overall Depth: 3.03" (7.70 cm)
Hole Pattern	2-Hole AMPS: 1.912"
Materials	High strength composite
Packaging Type	Poly Bag
Output Voltage	5V - 20V @ 3A
Power Output	60W
Input Connector	USB Type-C USB Type-C for 1 Peripheral
Input Cable Length	215mm
Output Cable Length	215mm
Peripheral Output	500mA
