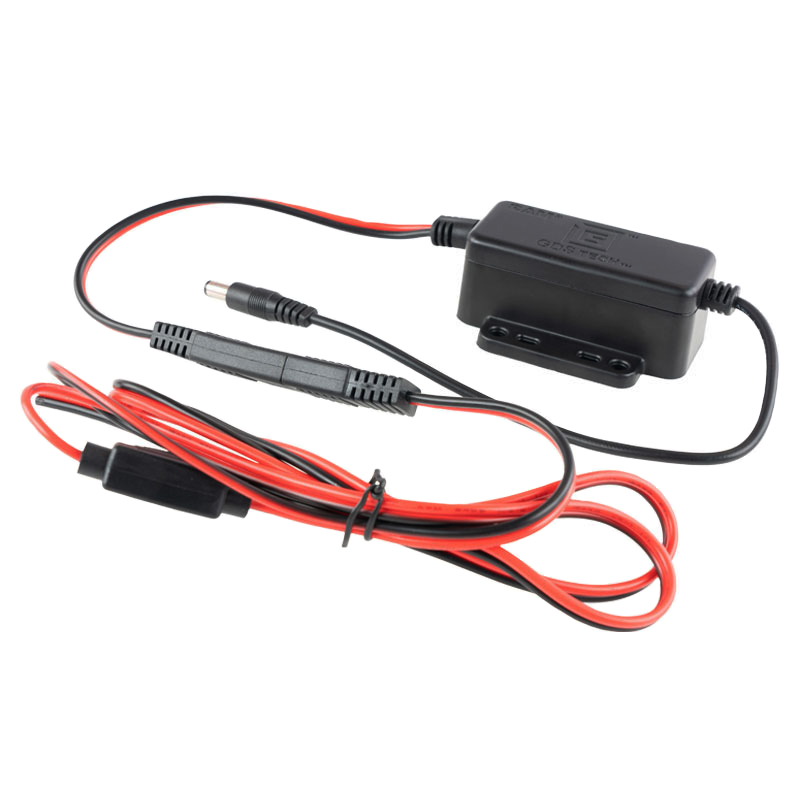

GDS Hardwire Charger 10-32VDC Input 19V DC 5.5mm Output
RAM-GDS-CHARGE-V11U
In Stock: 5
The GDS Modular Hardwire Charger with 5.5mm Male DC cable is the ideal solution for providing power to any RAM or GDS DC powered docking station. When it comes time to upgrade, avoid any rewiring by simply unplugging the power connector and attaching the new charger components. This hardwire charger has an input of 10-32VDC input, 19VDC output making it ideal for most any vehicle applications.
- Hardwire charger includes male 5.5mm barrel connector; 10V-32V DC input range, 19VDC output
- When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
- Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
- Backed by a 3-year warranty
(RAM-GDS-CHARGE-V11U)
Technical Specifications:
| Packaging Type | Poly Bag |
|---|---|
| Input Voltage | 10-32VDC |
| Output Voltage | 19V (+/- 300mV) |
| Output Current | 3.5A max |
| Input Connector | Male 5.5mm OD x 2.5mm ID Barrel Connector |
| Input Cable Length | 1.2 Meters including 2 Pole Flat Marine Connector |
| Output Cable Length | .2 Meters |
| Operating Temperature | -10°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Regulatory | Over Voltage Protection Short Circuit Protection Reverse Polarity Protection RoHS Compliance WEEE Compliance SAE J-1113-5 Load Dump (Transient Voltage) Moisture Resistant FCC, CE, UKCA, IC 3A Inline ATC Fuse 18AWG Copper Wire IP66 |
| Certifications | E-Mark Certification RCM Certification |
Product Information
| SKU | RAM-GDS-CHARGE-V11U |
|---|---|
| Barcode | 793442905490 |
| Brand | RAM Mounts |
| Weight | 0.1450 kg |
