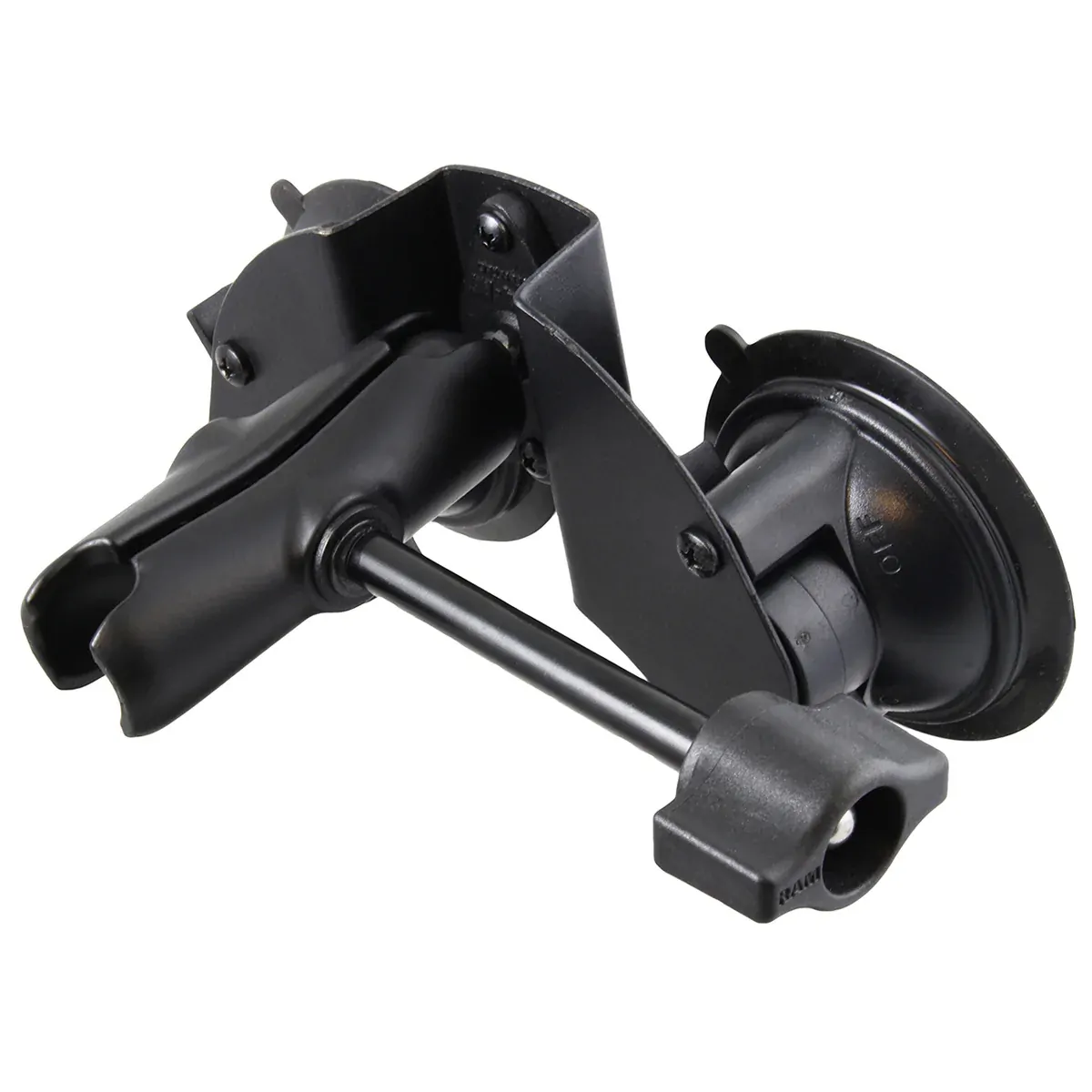

The RAM-B-189B-201-ALA1-KRU consists of a double 3.3" twist lock suction cup base that is connected to the diamond base with 1" rubber ball. The suction cup is designed to have an extra strong hold on any smooth non-porous surface, but for best result, mount the suction cup on a glass or non-porous plastic surface. The ball on this base connects to the standard length double socket arm with retention knob. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. The knob extension allows for easy adjustment of the mount and prevents over loosening of the knob. This socket technology allows for almost infinite adjustment and perfect viewing angles.

Kits containing this part Need this component urgently? View complete kits that include this component

(RAM-B-189B-201-ALA1-KRU)

RAM-189BB-ALA1U
RAM-189BB-ALA1U
Not sold separately
Standard Arm Extension Knob
Standard Arm Extension Knob
RAM-B-201-ALA1-KRU

Technical Specifications:

Hardware IncludedAssembly Hardware
Suction Size(2) 3.3" (83.8 mm) Diameter Bases, Total Width 7.95" (201.9 mm)
Socket To Socket Length3" (7.62 cm)
Ball SizeB Size (1")
Weight CapacityStandard Use: 2 lbs (0.91 kg)
Heavy-Duty Use: 1 lb (0.45 kg)
MaterialsPowder coated steel
Marine-grade aluminum
High strength composite
Packaging TypePoly Bag

Product Information

SKU RAM-B-189B-201-ALA1-KRU
Barcode 793442124662
Brand RAM Mounts
Weight 0.57 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
