Tab-Tite Dual Suction Mount for iPad Pro 9.7 with Case
RAM-B-189-TAB8U

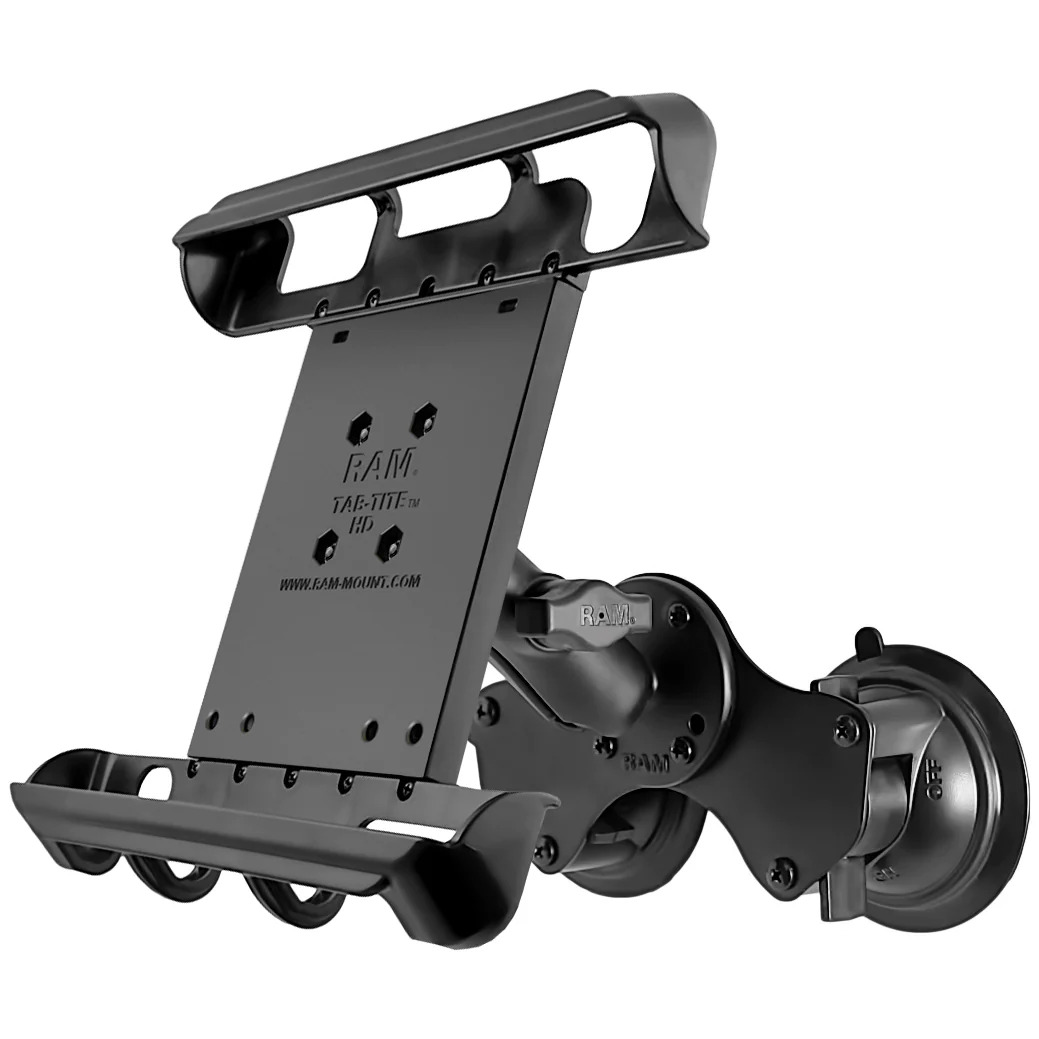

The RAM-B-189-TAB8U consists of a double 3.3" twist lock suction cup base, double socket arm, round base adapter and Tab-Tite universal clamping cradle. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The included Tab-Tite cradle includes a spring loaded back plate and custom support cups for 10" screen tablets WITH heavy duty cases. The spring loaded design makes it easy to load and unload your tablet, along with keeping it secure while on the go. Interchangeable cup ends are designed to optimize the functionality of your tablet, allowing access to audio jacks, usb, power, and other ports, your tablet can be used just as it was intended. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
(RAM-B-189-TAB8U)
Instructions
RAM® Tab-Tite™ Assembly Guide RAM® Twist-Lock™ Suction Cup Assembly GuideDocuments
Aviation Catalog
Technical Specifications:
| Hardware Included | Assembly Hardware |
|---|---|
| Holder Dimensions | Height Range: 9" (22.86 cm) - 11.5" (29.21 cm) Width Range: 6.38" (16.21 cm) - 8.31" (21.11 cm) Depth Range: .13" (0.33 cm) - 1.12" (2.84 cm) |
| Suction Size | (2) 3.3" (83.8 mm) Diameter Bases, Total Width 7.95" (201.9 mm) |
| Socket To Socket Length | 3" (7.62 cm) |
| Ball Size | B Size (1") |
| Weight Capacity | Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg) |
| Materials | Marine-grade aluminum High strength composite |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-B-189-TAB8U |
|---|---|
| Barcode | 793442939648 |
| Brand | RAM Mounts |
| Weight | 0.9210 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
