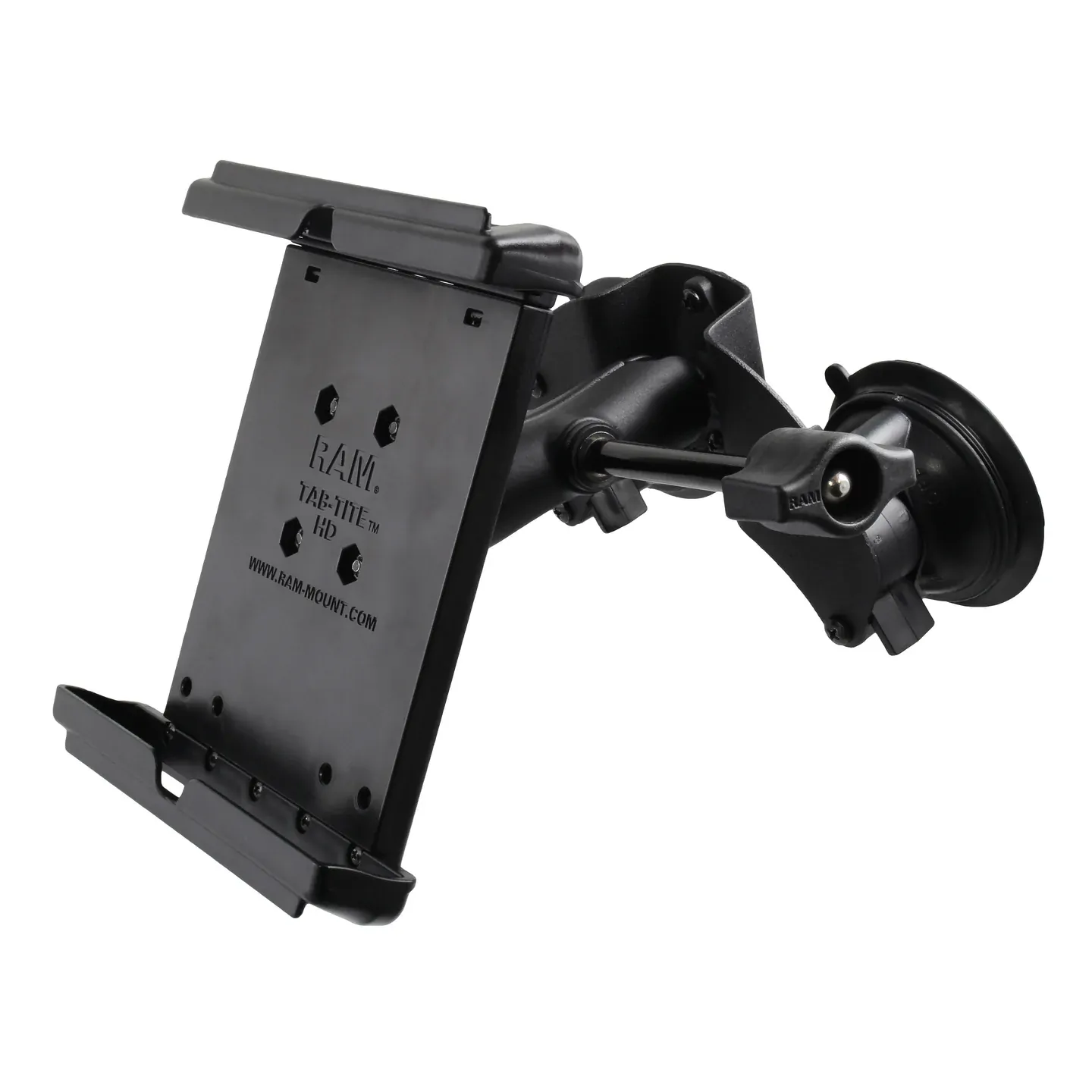

The RAM-B-189-TAB12-ALA1-KRU consists of a double twist lock suction cup base, diamond base adapter in a recessed pocket for a lower profile, double socket arm with aviation extended retention knob, and Tab-Tite universal clamping cradle. The Tab-Tite backplate features interchangeable end cups, making it modular making it compatible with numerous tablet models. The Tab-Tite cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
(RAM-B-189-TAB12-ALA1-KRU)
Instructions
RAM® Tab-Tite™ Assembly Guide RAM® Twist-Lock™ Suction Cup Assembly GuideDocuments
Aviation CatalogTechnical Specifications:
| Hardware Included | Assembly Hardware |
|---|---|
| Holder Dimensions | Height Range: 7.125" (18.10 cm) - 9.5" (24.13 cm) Width Range: 5.06" (12.85 cm) - 5.68" (14.43 cm) Depth Range: .13" (0.33 cm) - 1" (2.54 cm) |
| Suction Size | (2) 3.3" (83.8 mm) Diameter Bases, Total Width 7.95" (201.9 mm) |
| Socket To Socket Length | 3" (7.62 cm) |
| Ball Size | B Size (1") |
| Weight Capacity | Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg) |
| Materials | Powder coated steel Marine-grade aluminum High strength composite |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-B-189-TAB12-ALA1-KRU |
|---|---|
| Barcode | 793442102554 |
| Brand | RAM Mounts |
| Weight | 0.94 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
