Handlebar U-Bolt Double C-Size Ball Mount with Round Plate (Short Arm)
RAM-149Z-B-202U
In Stock: 1

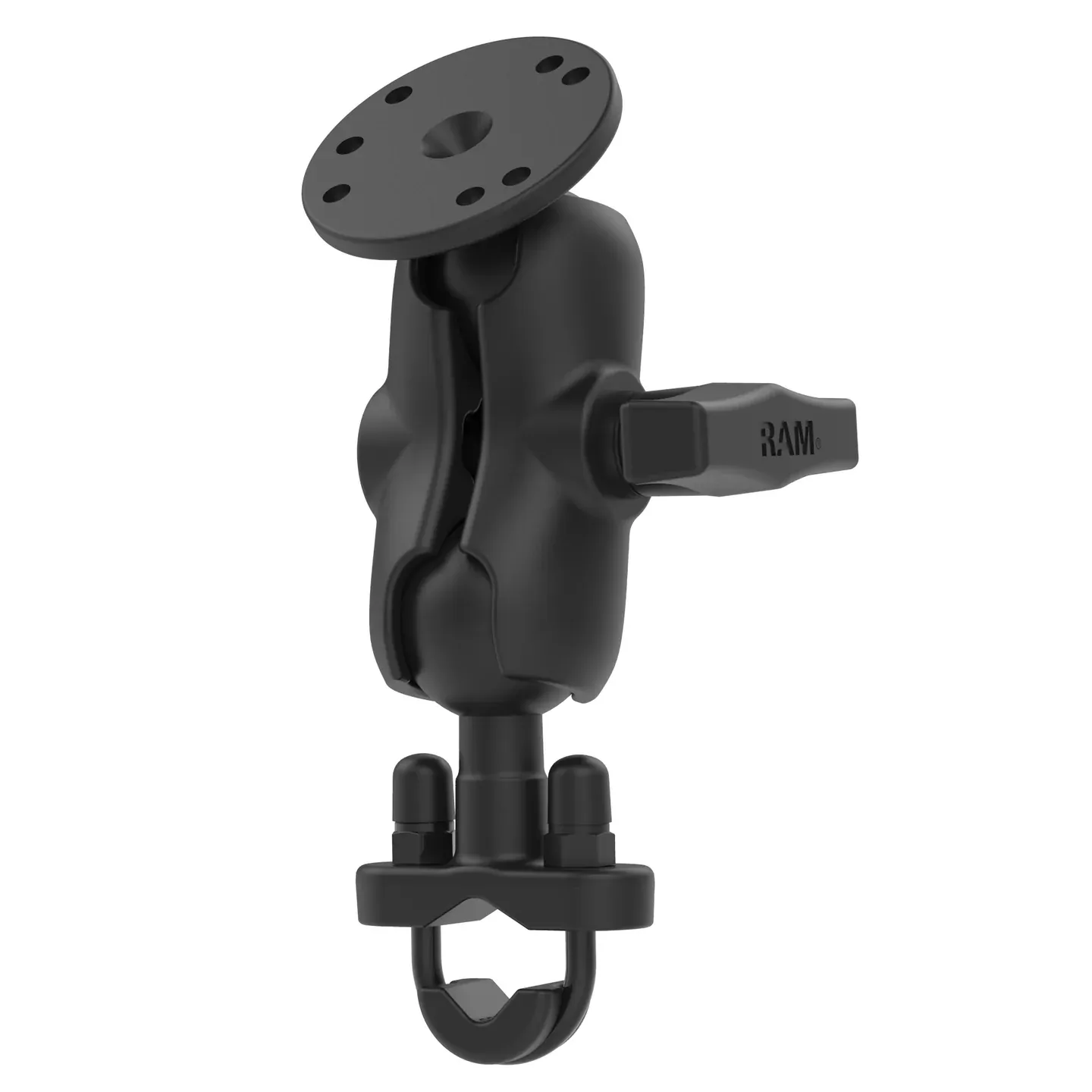

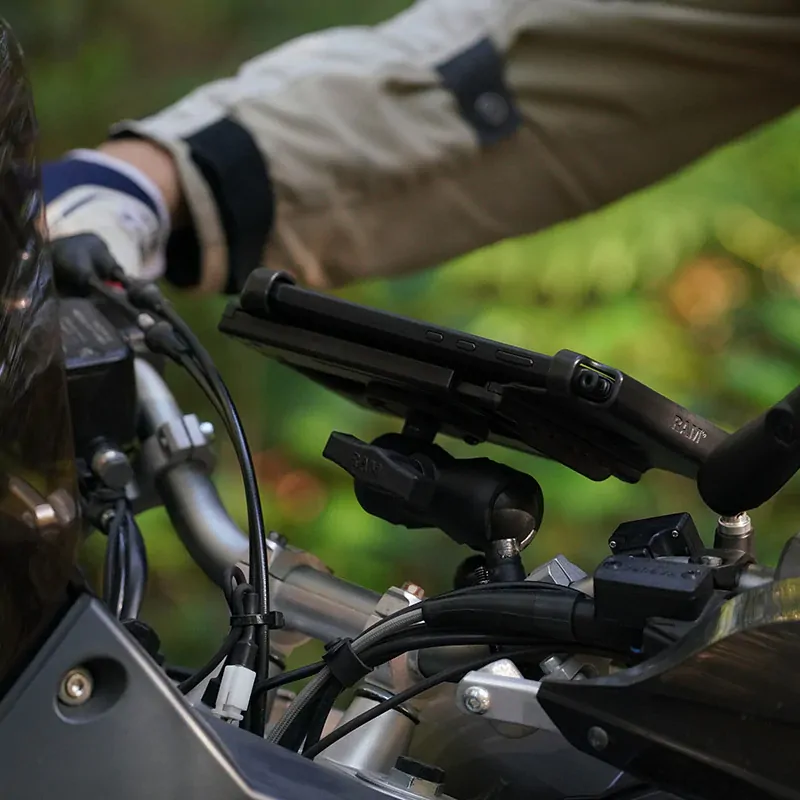

The RAM Handlebar U-Bolt Double Ball Mount with Round Plate consists of a C size (1.5") zinc coated u-bolt base, short C size double socket arm and C size RAM round base adapter for attaching a tablet holder. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and/or third party tablet holders. Included in this package is hardware that will accommodate handlebars and rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM C size 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. This mount is ideal for securely mounting a tablet to a motorcycle or ATV/UTV vehicle.
- Motorcycle or ATV/Side By Side handlebar/rail mount ideal for attaching a tablet holder; connects to RAM® device holders containing the universal AMPS hole pattern

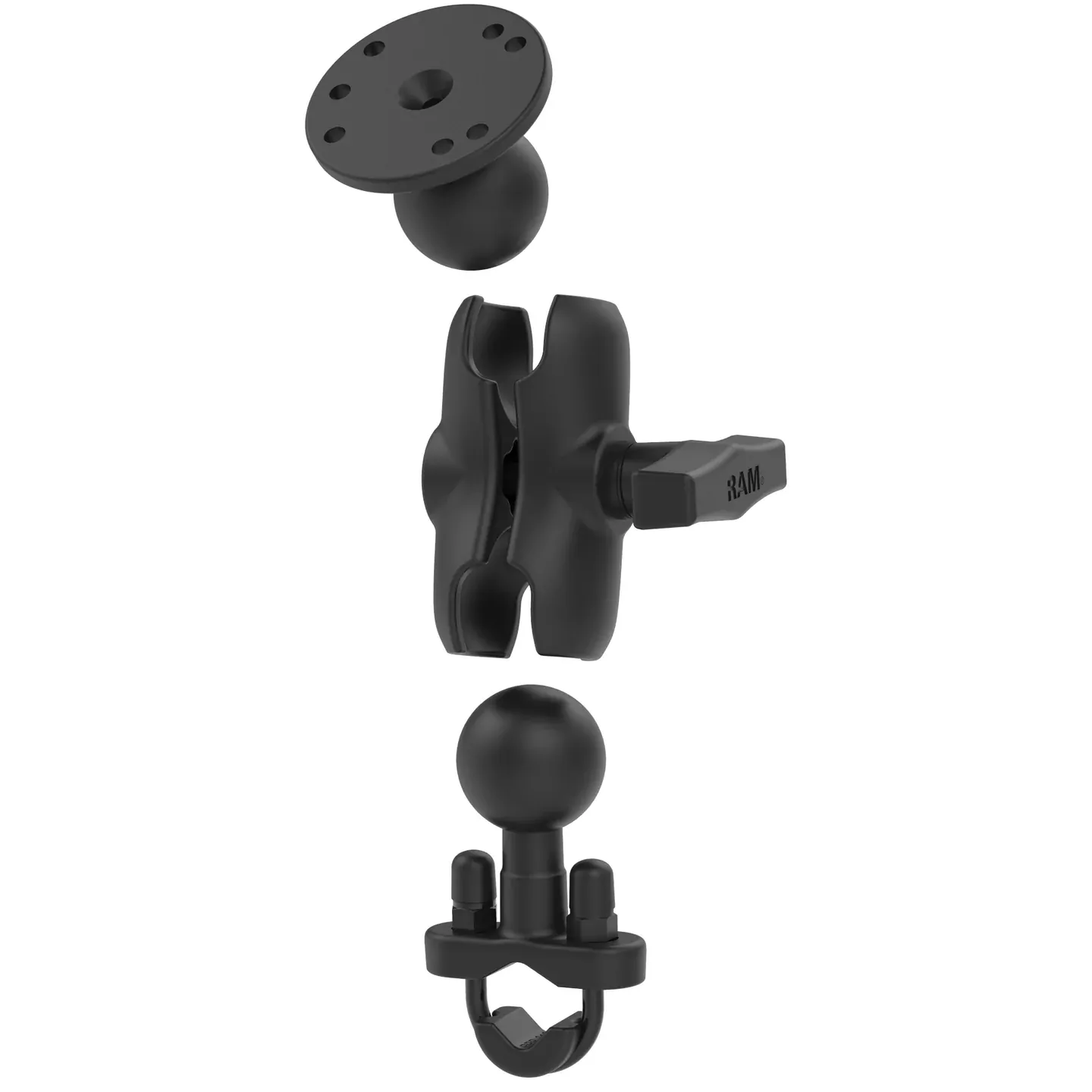

- Includes, C size (1.5") 4-hole round RAM® ball adapter, U-bolt base that accommodates rails from .5" to 1.25" in diameter and a short length double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum components for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
(RAM-149Z-B-202U)
Technical Specifications:
| Hardware Included | (1) 1/4"-20 U-Bolt for .5" - 1" Rails (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nyloc Nuts (2) Rubber Caps (1) U-Bolt Spacer |
|---|---|
| Clamp Range | .5" (12.7 mm) - 1.25" (31.8 mm) diameter |
| Socket To Socket Length | 2.5" (6.35 cm) |
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter |
| Ball Size | C Size (1.5") |
| Weight Capacity | Standard Use: 4 lbs (1.81 kg) Heavy-Duty Use: 3 lbs (1.36 kg) |
| Materials | Marine-grade aluminum |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-149Z-B-202U |
|---|---|
| Barcode | 793442020155 |
| Brand | RAM Mounts |
| Weight | 0.5500 kg |
