Rectangular Plate Adapter for Swing Arm Mounts
RAM-111BTU
In Stock: 7

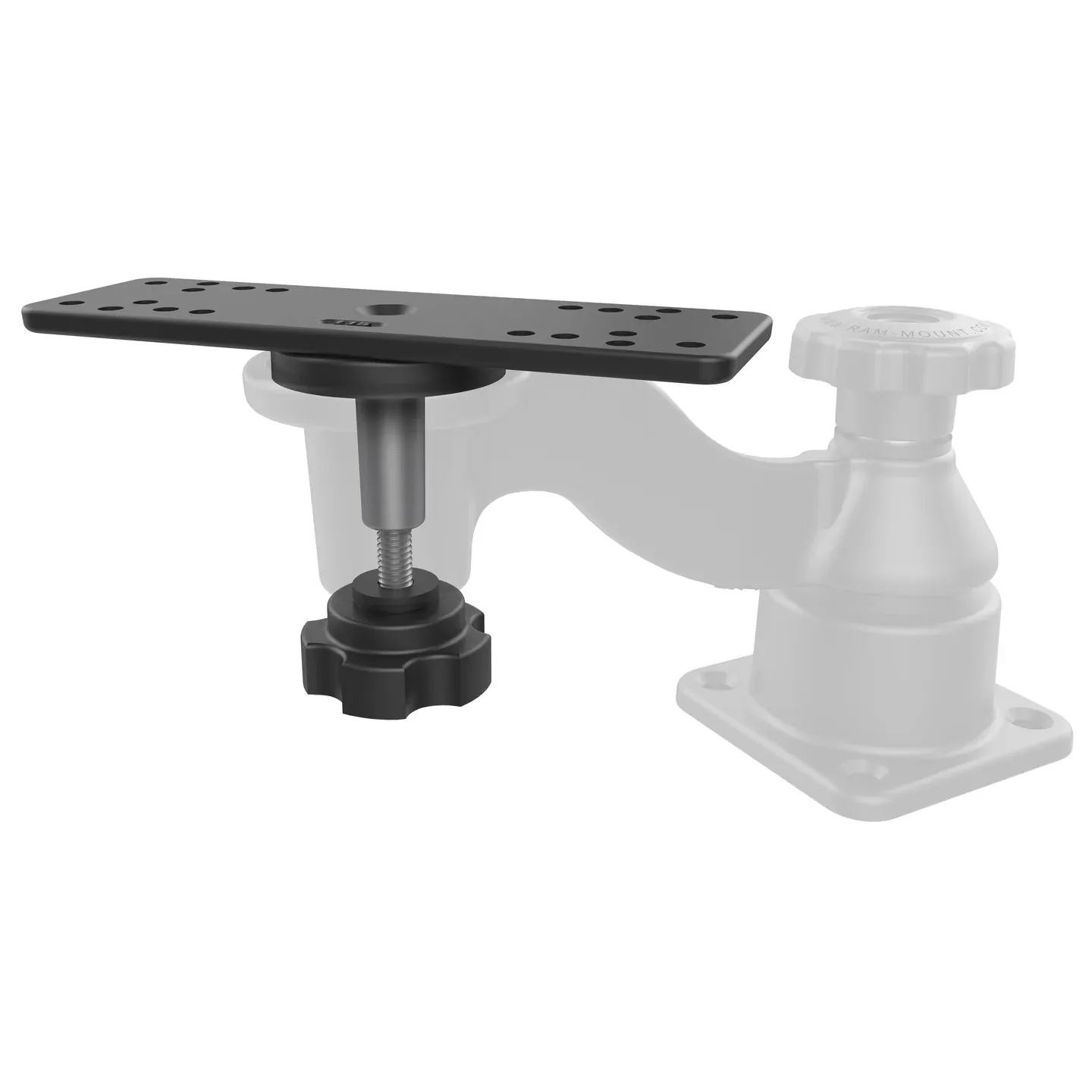

The RAM-111BT universal base has a short post connected at right angles to a flat 6.25 x 2 inch rectangular base. The base has many different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. The small post on the base is designed to connect to the RAM-109 series arms. Included on the end of the post is a tightening knob for use when installed on the compatible RAM-109 series arm.
- 6.25" x 2" fish finder and chartplotter plate adapter for RAM® marine swing arm mount
- Adapter plate compatible with select Garmin, Lowrance, Raymarine and Humminbird Fish finders and GPS chartplotters
- Plate adapter works with CB radios, Ham radios and other gimbal brackets for radio mounting
- Backed by a lifetime warranty
Kits containing this part Need this component urgently? View complete kits that include this component
(RAM-111BTU)
Technical Specifications:

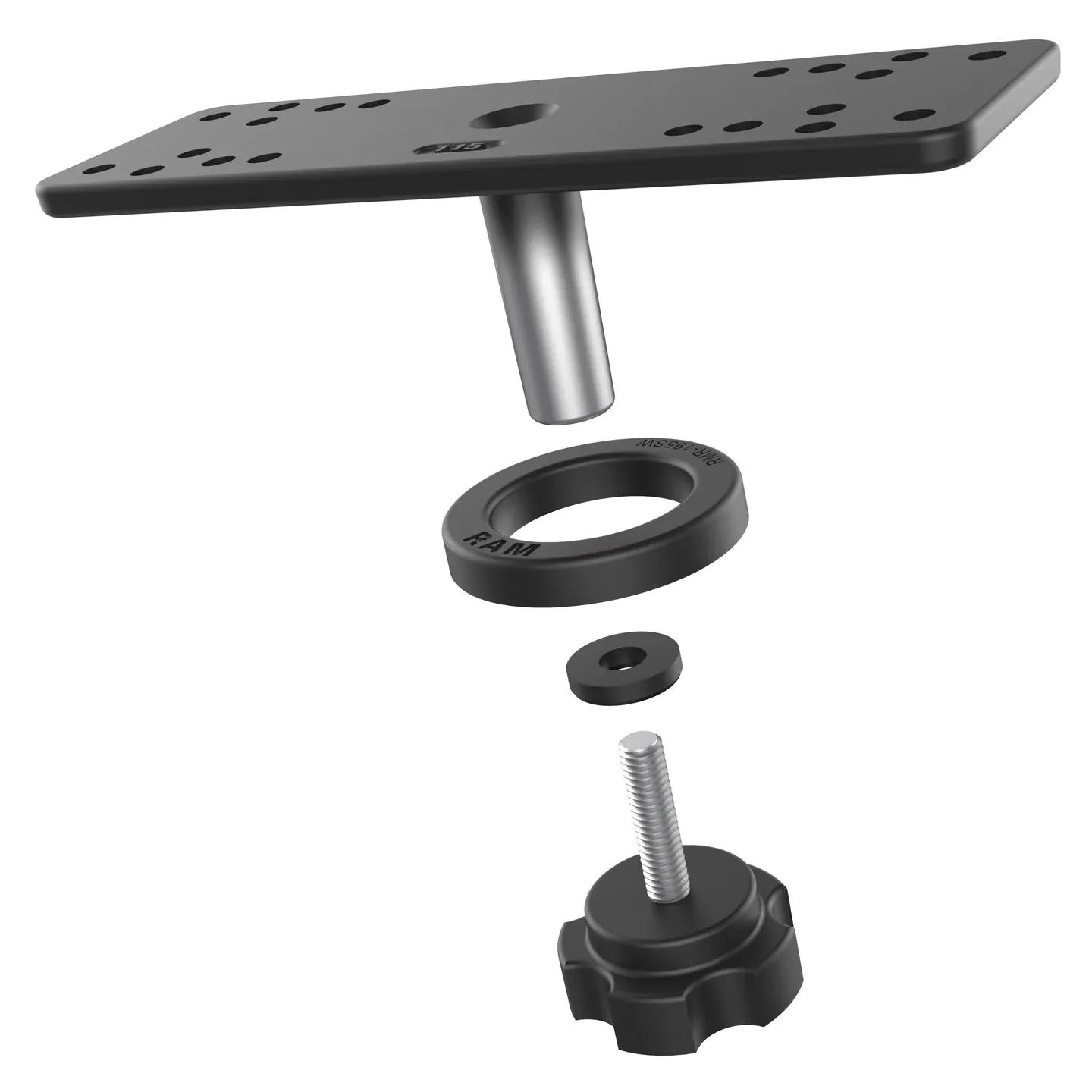

| Hardware Included | (1) 2" Nylon Washer (1) 1.7" Nylon Washer (1) 5/16" Stainless Steel Washer (1) .77" Nylon Washer (1) 5/16"-18 x 1.25" Knob |
|---|---|
| Hole Pattern | See Drawing |
| Plate Size | 6.25" (158.8 mm) x 2" (50.8 mm) |
| Materials | Marine-grade aluminum |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-111BTU |
|---|---|
| Barcode | 793442901713 |
| Brand | RAM Mounts |
| Weight | 0.20 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
