The RAM Single Pivot Mount (RAP-101-PV4-NKU) is a low-profile, drill-down mounting solution. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM holder or GDS dock and secure the mount to any surface. This solution uses tooth-lock washers to allow users to pivot their device up to 180-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments.

Key Features:
  • Low-profile, drill-down mounting solution for heavy-duty environments
  • Single articulation joint pivots up to 180-degrees; barrel nut provide tamper resistance

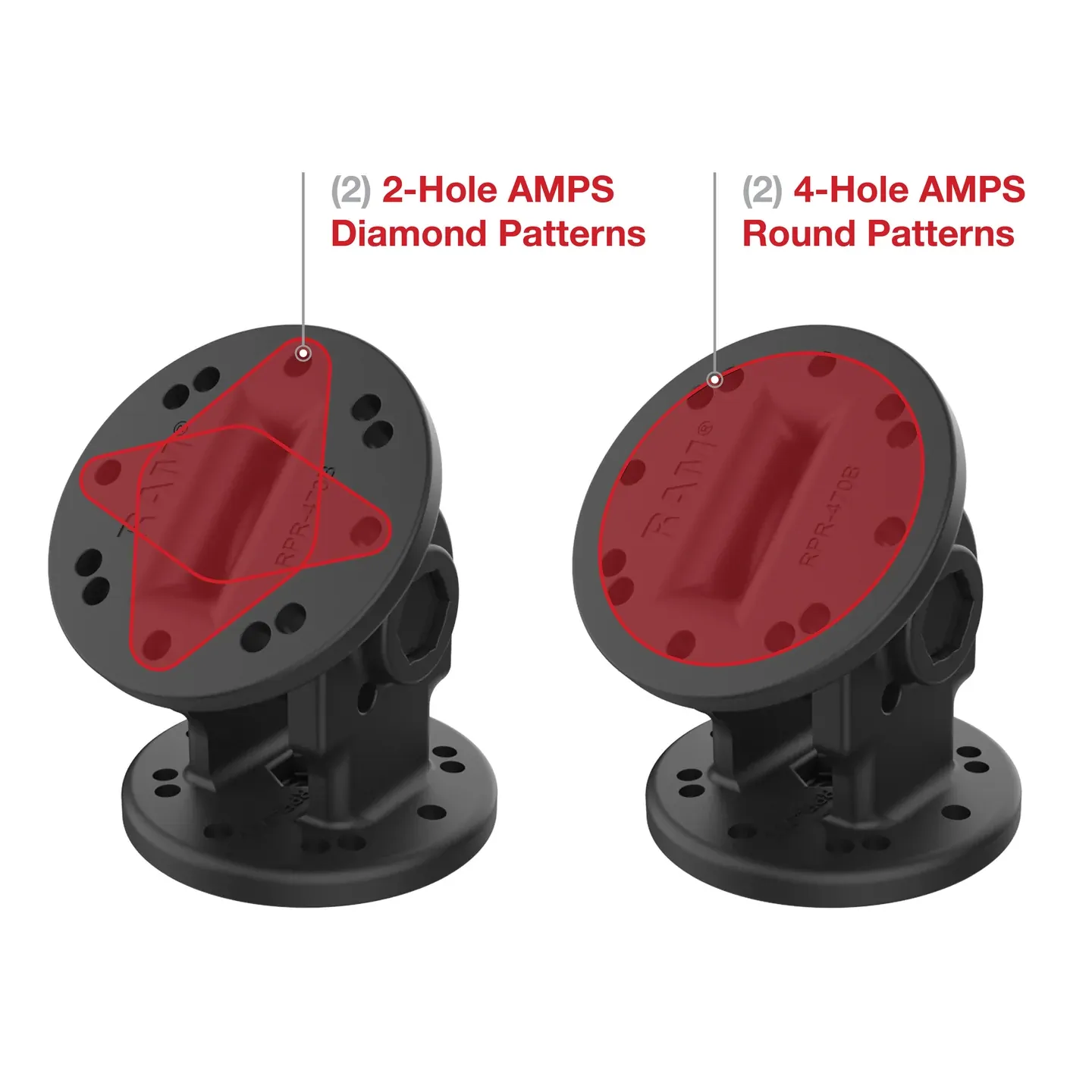

  • Each end features two 2-hole AMPS and two 4-hole AMPS patterns; secure your device to one end and the other to your preferred surface
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

(RAP-101-PV4-NKU)

Technical Specifications:

Product DimensionsOverall Height: 2.68" (6.81 cm)
Hole Pattern4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"
Plate Size2.5" (63.5 mm) Diameter
MaterialsHigh strength composite
Packaging TypePoly Bag

Product Information

SKU RAP-101-PV4-NKU
Barcode 793442025440
Brand RAM Mounts
Weight 0.2300 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
