Dual 90-Degree Pivot Mount with Knob
RAP-101-PV4-2PU
RRP $91.00
In Stock: 1

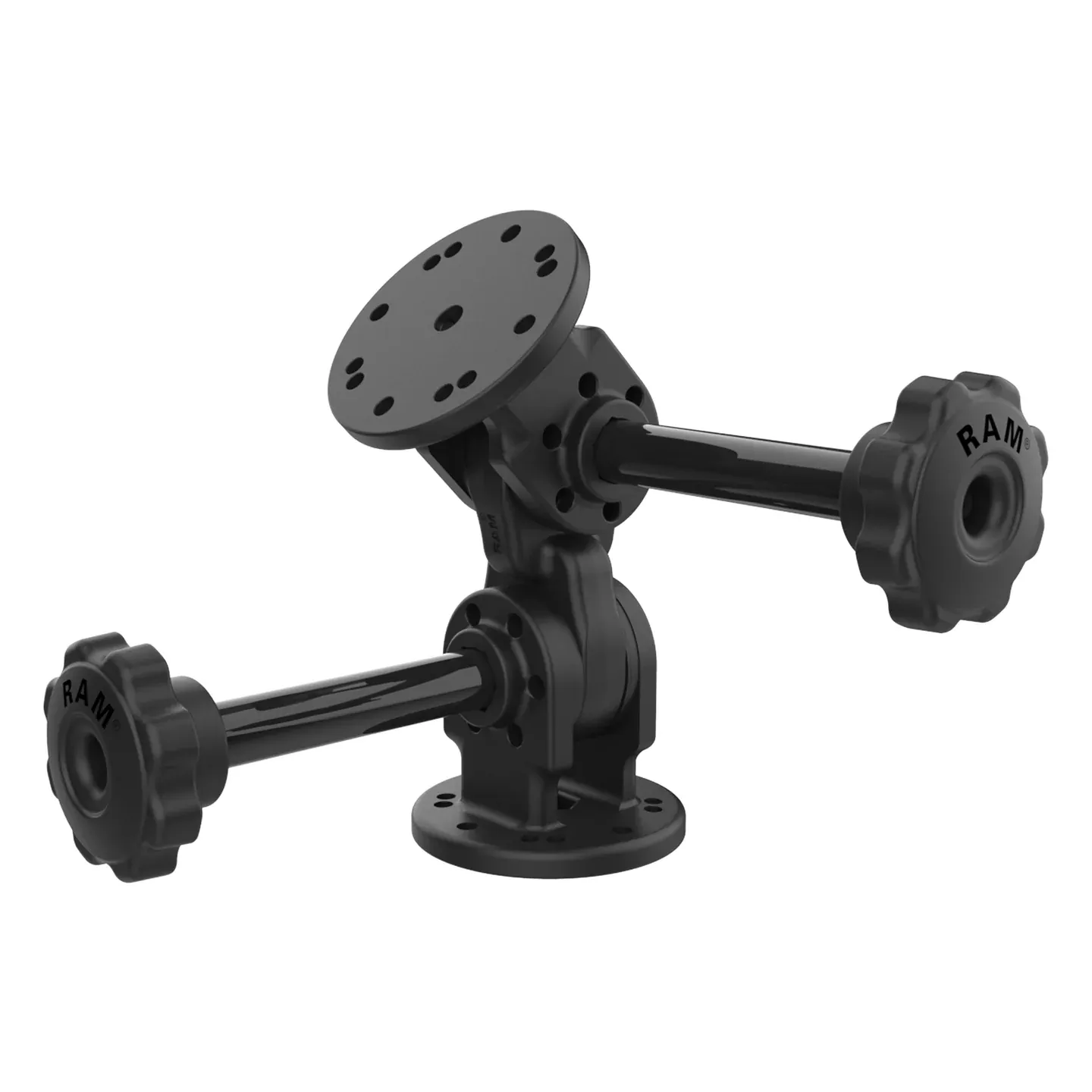

The RAM Dual 90-Degree Pivot Mount with Knob (RAP-101-PV4-2PU) is a low-profile, drill-down mounting solution with two articulation hinges in opposing directions so users can easily pivot their device up to 180-degrees in each direction. Each end features 2-hole and 4-hole AMPS patterns to easily install any RAM holder or GDS dock and secure the mount to any surface. This solution uses tooth-lock washers and extended knobs at each joint to allow users to adjust their device to achieve the ideal viewing angle.
Key Features:
- Low-profile, drill-down mounting solution for heavy-duty environments

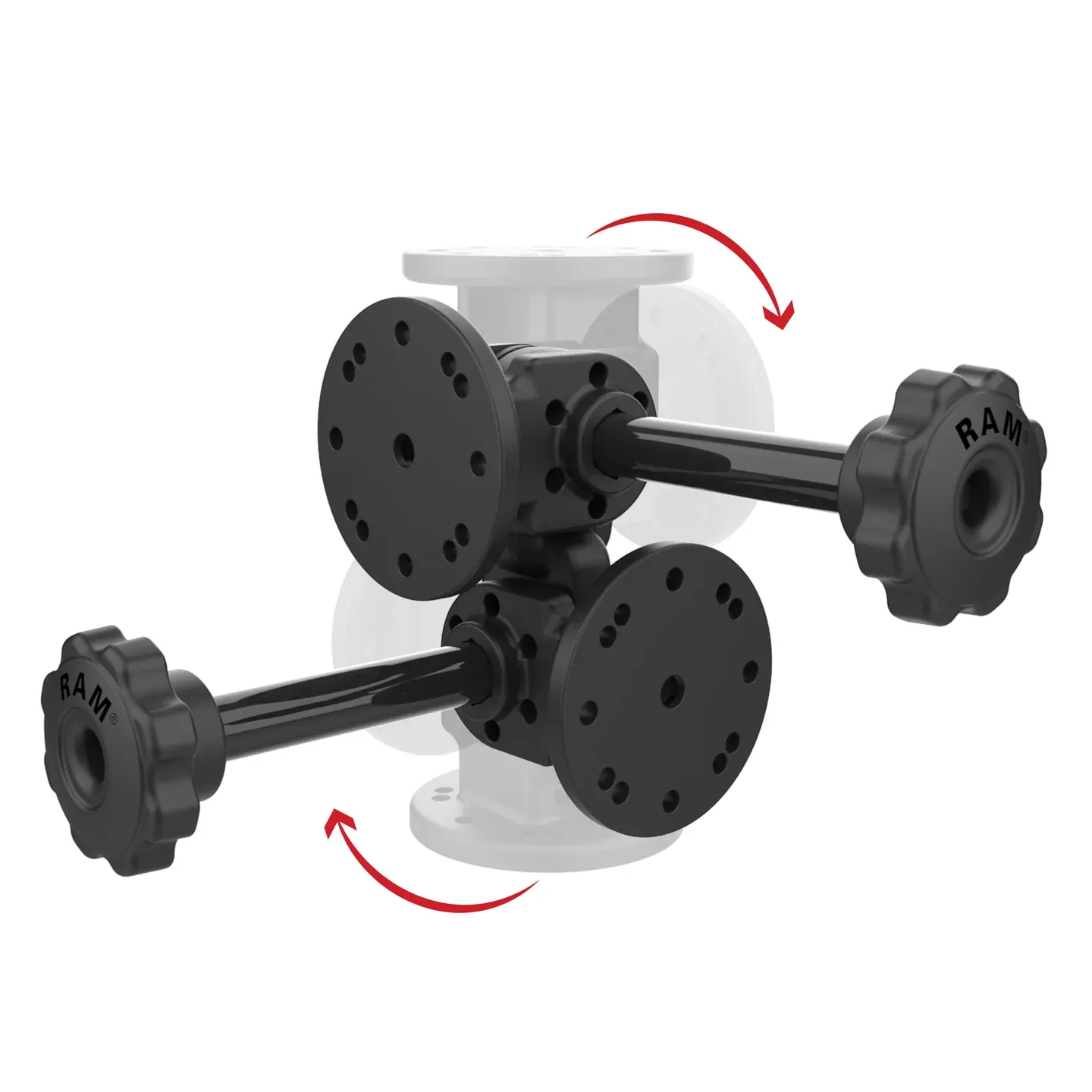

- Dual articulation joints pivot up to 180-degrees in each direction; extended knobs for easy adjustments

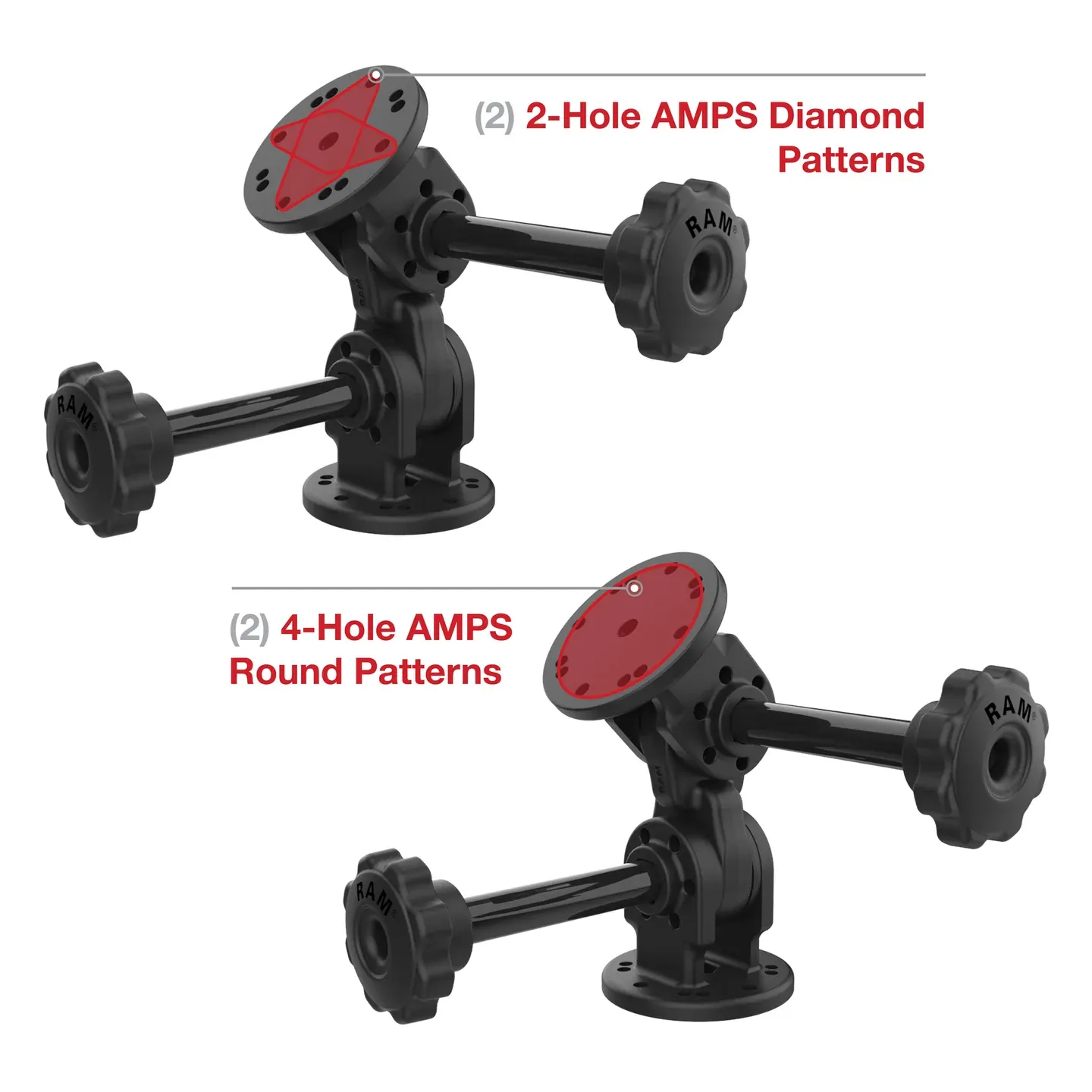

- Each end features two 2-hole AMPS and two 4-hole AMPS patterns; secure your device to one end and the other to your preferred surface
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
(RAP-101-PV4-2PU)
Technical Specifications:

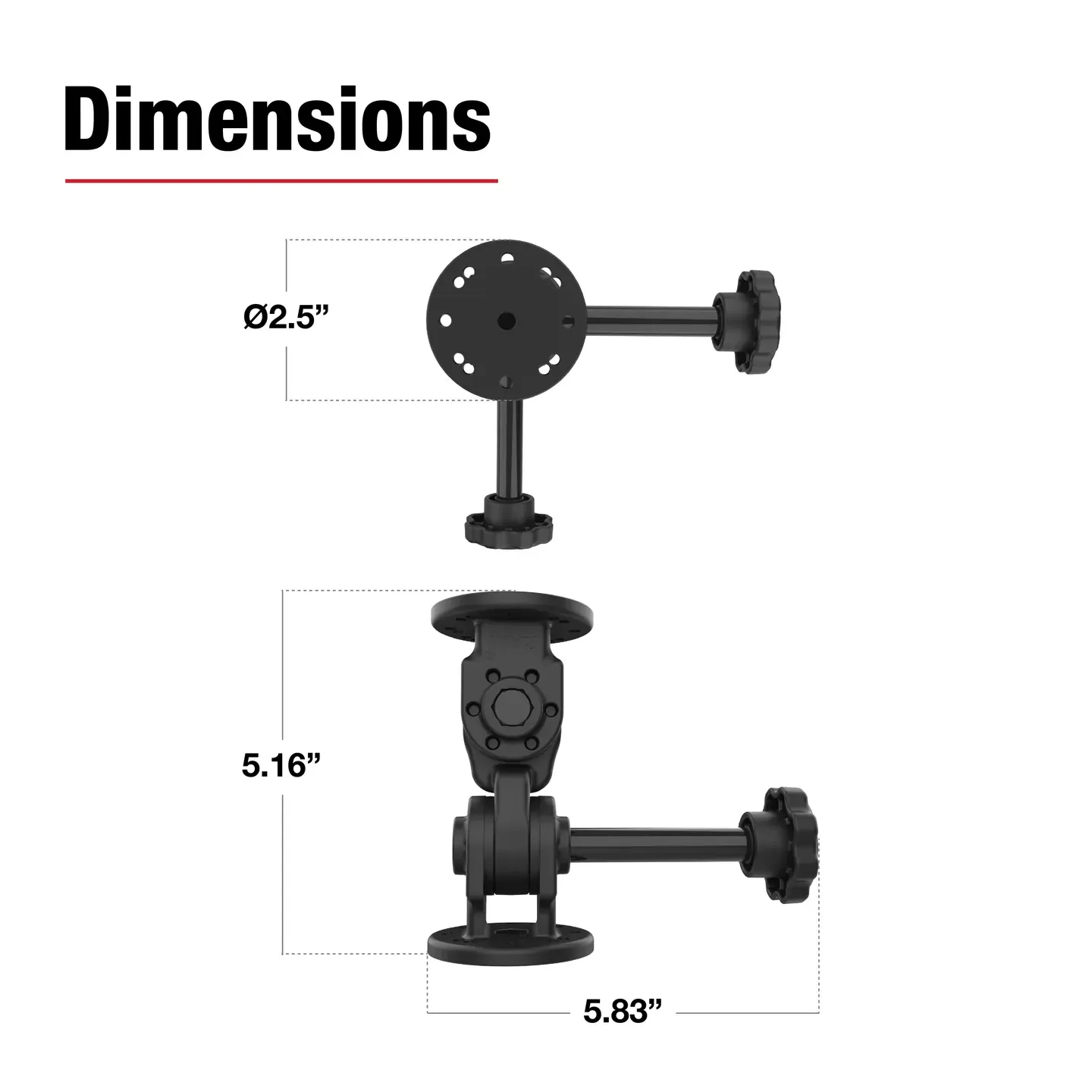

| Product Dimensions | Overall Height: 5.16" (13.11 cm) Overall Width with Knobs: 5.83" (14.81 cm) |
|---|---|
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" 2-Hole AMPS: 1.912" |
| Plate Size | 2.5" (63.5 mm) Diameter |
| Materials | High strength composite |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAP-101-PV4-2PU |
|---|---|
| Barcode | 793442025501 |
| Brand | RAM Mounts |
| Weight | 0.3330 kg |
| Warranty | Lifetime Warranty |
