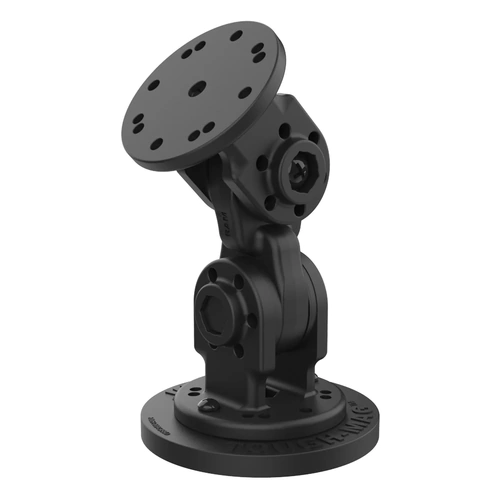

The RAM Dual 90-Degree Pivot Magnetic Mount with Knob (RAP-101-PV4-2P-MAG88U) is a low-profile, magnetic mounting solution with two articulation hinges in opposing directions so users can easily pivot their device up to 180-degrees in all directions One end features both 2-hole and 4-hole AMPS patterns to easily install any RAM holder or GDS dock while the other end features the RAM Tough-Mag magnetic base. This solution uses tooth-lock washers to allow users to pivot their device up to 270-degrees and utilizes a barrel nut instead of traditional adjustment knobs to provide tamper resistance, ideal for high-traffic environments. The RAM Tough-Mag base features 10 industrial-strength N52 grade magnets that magnetize to any ferrous metal surface and rubber coating that protects the metal surface you're attaching to.

Key Features:
  • Low-profile, magentic mounting solution for heavy-duty environments

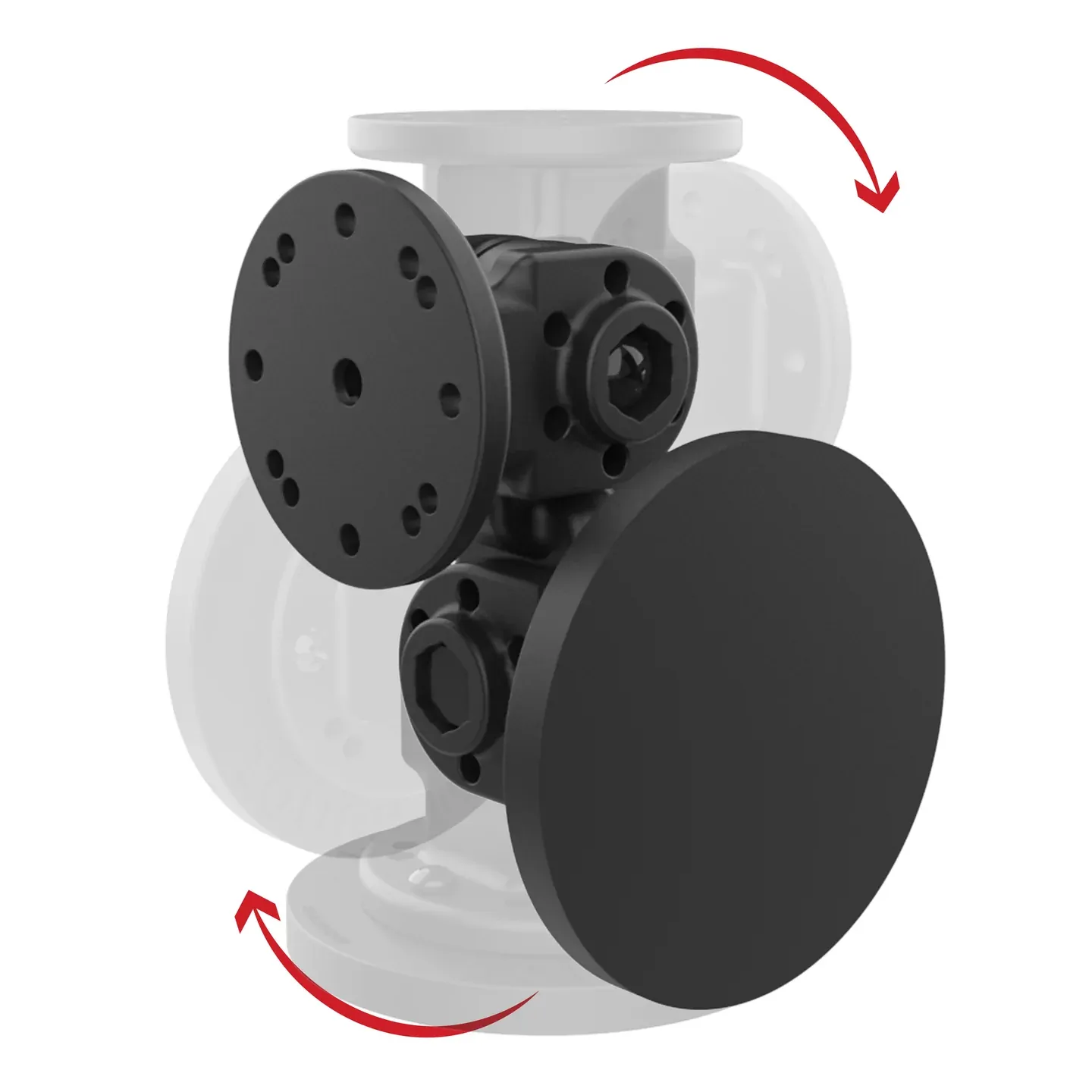

  • Dual articulation joints pivot up to 180-degrees in each direction; barrel nut provide tamper resistance
  • One end features two 2-hole AMPS and two 4-hole AMPS patterns, second end features the RAM® Tough-Mag™ 88mm base
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

(RAP-101-PV4-2P-NK-MAG88U)

Technical Specifications:

Product DimensionsOverall Height: 5.47" (13.89 cm)
Hole Pattern4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS: 1.912"
Plate SizeTop Plate: 2.5" (63.5 mm) Diameter
Magnetic Base: 3.46" (87.9 mm) Diameter
MaterialsHigh strength composite
N52 Magnets (Qty 10)
Packaging TypePoly Bag

Product Information

SKU RAP-101-PV4-2P-NK-MAG88U
Barcode 793442025532
Brand RAM Mounts
Weight 0.39 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
