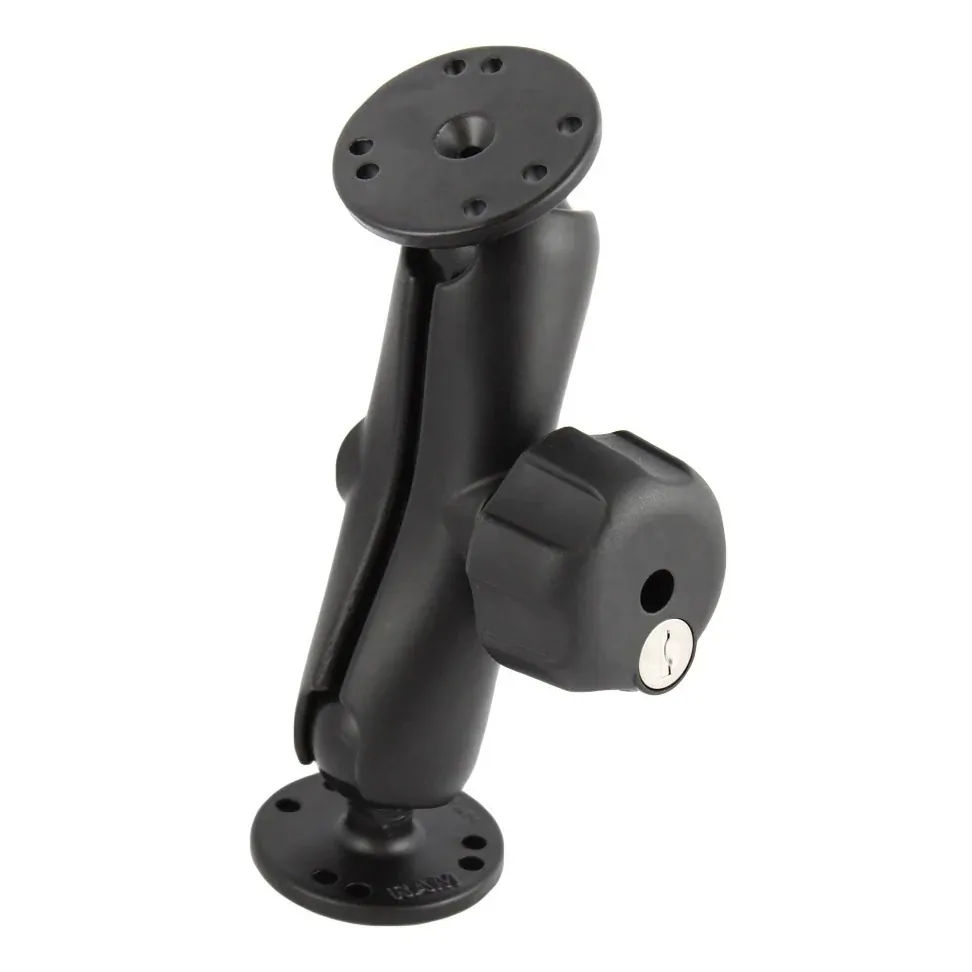

Double Medium Ball Mount with Key Lock Knob C-Size (RAM-101U-L)

The RAM-101U-L consists of a medium length C size double socket arm and two round plates with the 1.5" diameter C size ball. The round plates each have the industry standard 4 hole AMPS hole pattern, as well as a 3 hole 120 degree offset pattern. The tightening knob has been replaced with a keyed locking knob on the double socket arm. standard AMPS four hole pattern and a three hole 120 degree hole pattern.

(RAM-101U-L)

Instructions

RAM Locking Knob Instructions

38mm Ball with Round Base

RAM-202U

RAM-201LU

RAM-201LU

Not sold separately

The component list identifies the parts included in the kit but does not specify the quantity of each part. Based on the product description, this kit may include 2 x RAM-202U. Please check with us if you need to confirm, or inspect the image.

Technical Specifications:

Hardware Included	(2) Keys
Product Dimensions	Overall Height: 7.35" (18.67 cm)
Socket To Socket Length	4.66" (11.84 cm)
Hole Pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
Ball Size	C Size (1.5")
Weight Capacity	Standard Use: 4 lbs (1.81 kg) Heavy-Duty Use: 3 lbs (1.36 kg)
Materials	Marine-grade aluminum
Packaging Type	Poly Bag

Product Information

SKU	RAM-101U-L
Barcode	793442005565
Brand	RAM Mounts
Weight	0.6130 kg
Warranty	RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
