Handlebar C-Size U-Bolt Base for Rails 1" to 1.25" in Diameter
RAM-231-1U

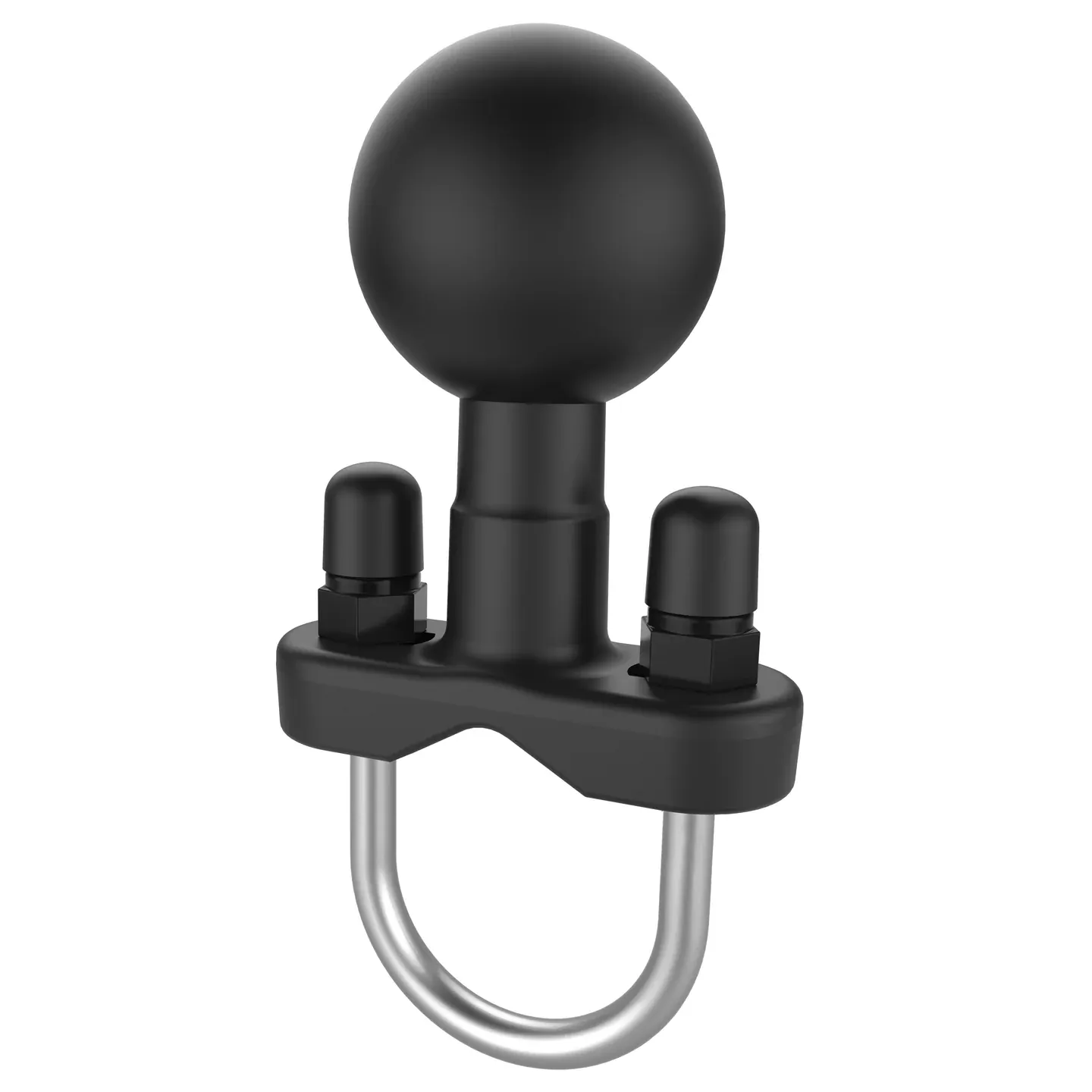

The RAM motorcycle handlebar base contains a 1.5" rubber ball designed to sit at right angles to the mounting rail. The rust proof metal u-bolt accommodates rails in 1" to 1.25" in diameter. The base also includes black cover caps to be placed over the exposed ends of the u-bolt.
(RAM-231-1U)
Documents
Knowledge Base: Ball Sizes
RAM-231U-AC1
RAM-231U-AC1
Not sold separately
Technical Specifications:
| Hardware Included | (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails (2) 1/4"-20 Nyloc Nuts (2) Rubber Caps (1) U-Bolt Spacer |
|---|---|
| Clamp Range | 1" (25.4 mm) - 1.25" (31.8 mm) diameter |
| Ball Size | C Size (1.5") |
| Weight Capacity | Standard Use: 4 lbs (1.81 kg) Heavy-Duty Use: 3 lbs (1.36 kg) |
| Materials | Marine-grade aluminum |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-231-1U |
|---|---|
| Barcode | 793442023118 |
| Brand | RAM Mounts |
| Weight | 0.1340 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
