X-Grip 12"-13" Tablet Mount with No-Drill Universal Base (RAM-VB-196-UN11)

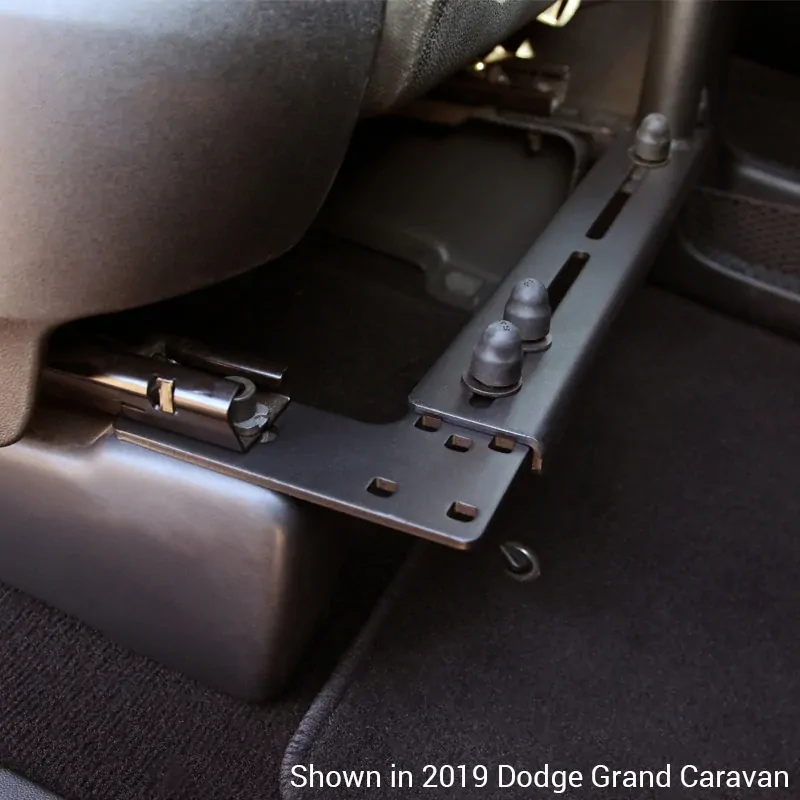

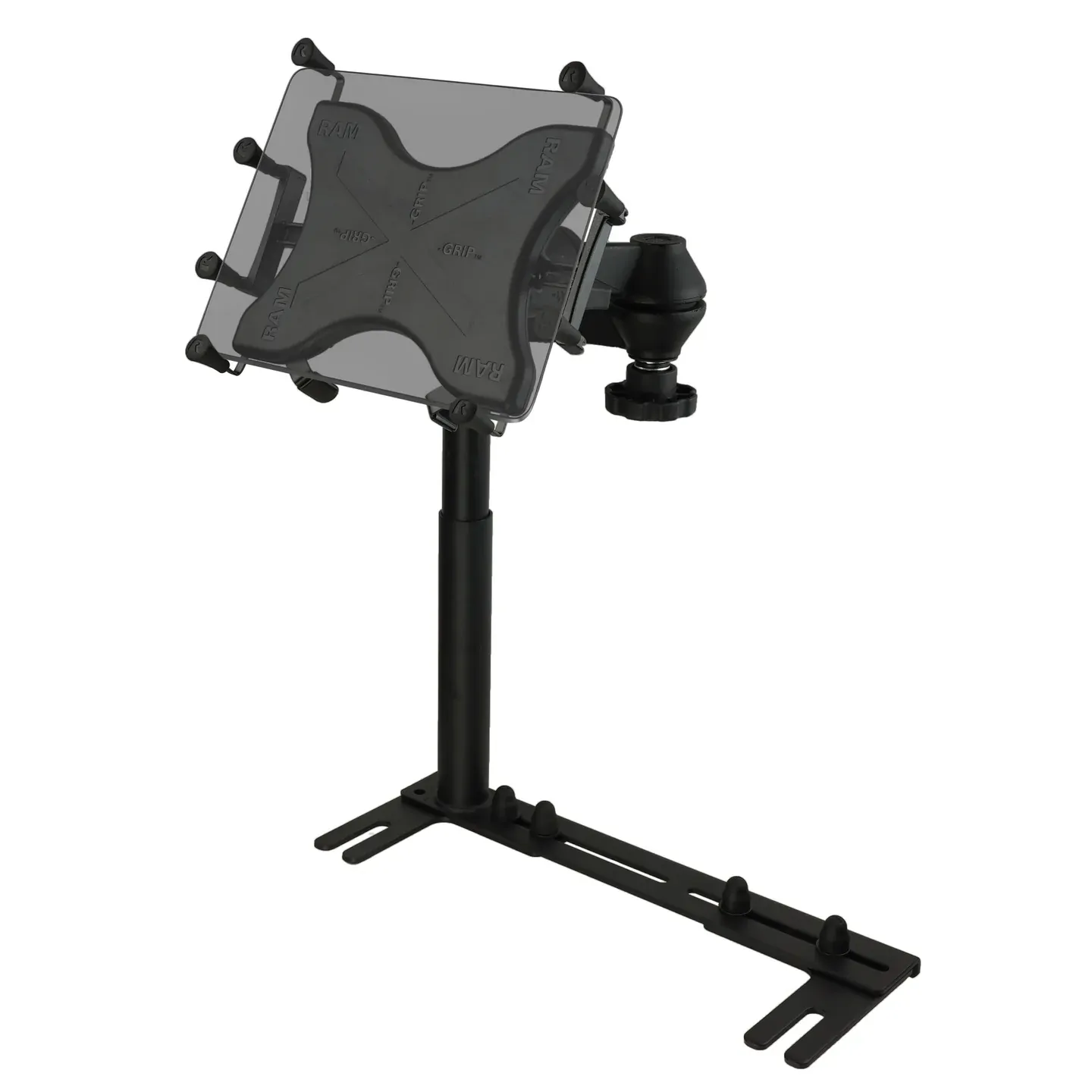

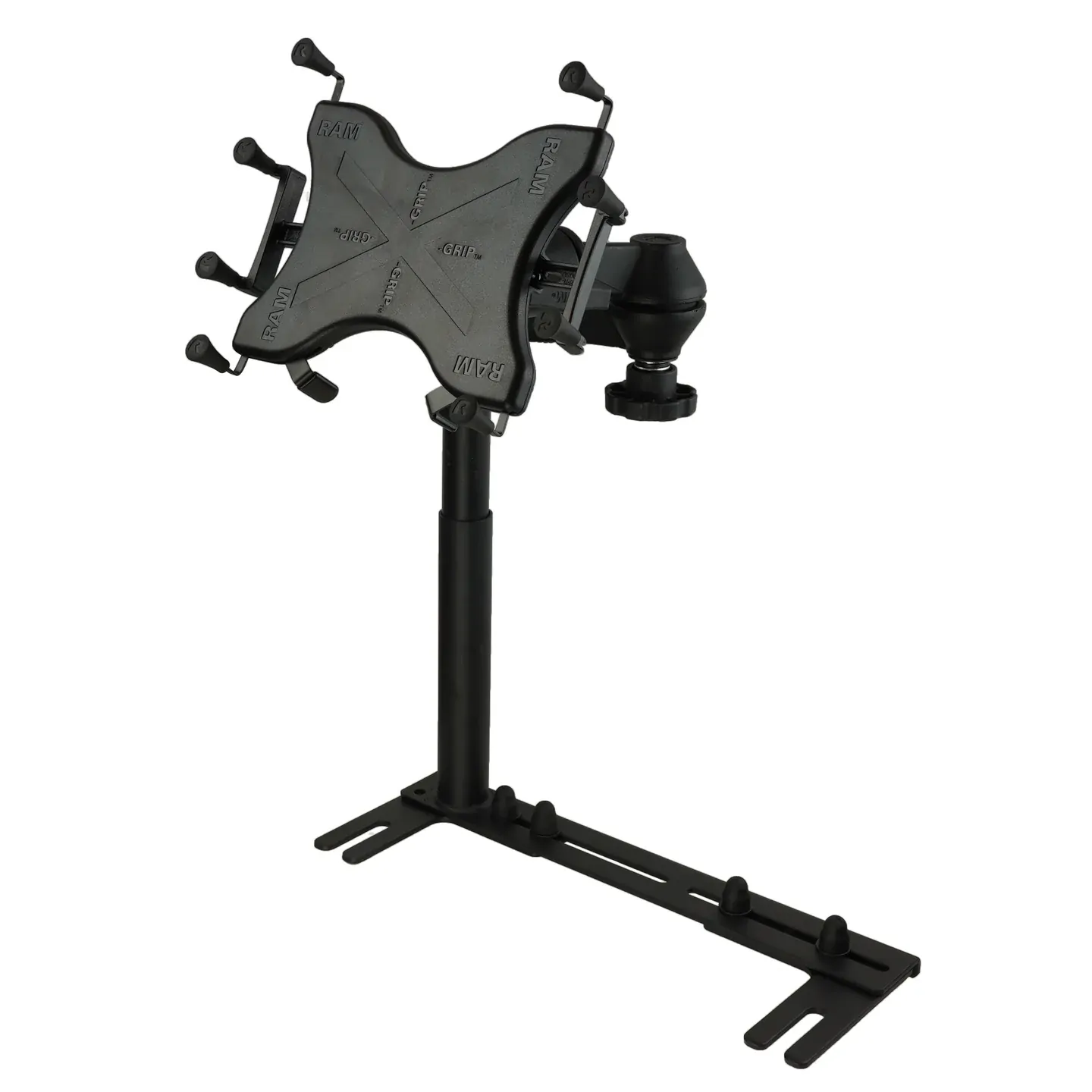

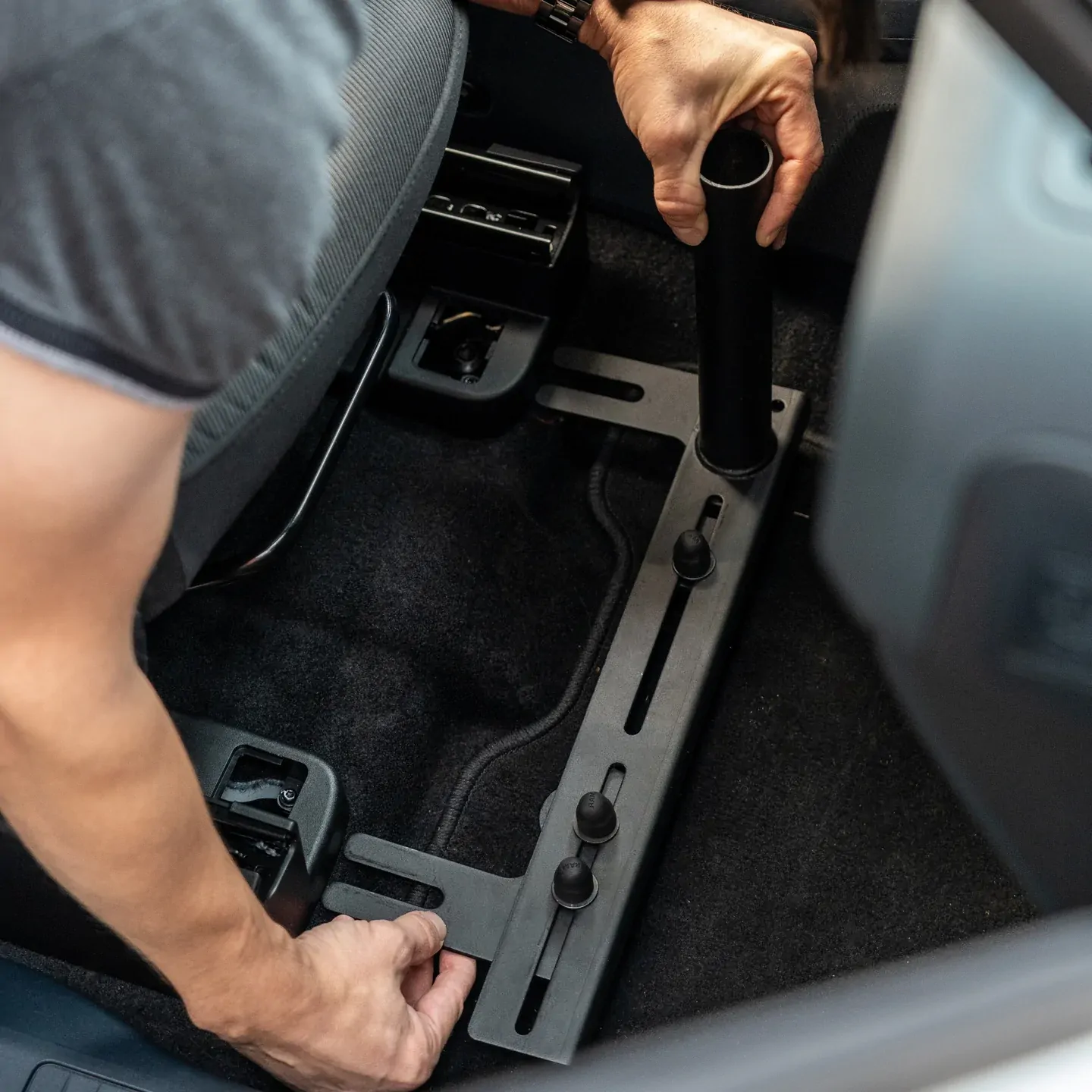

This vehicle bundle consists of the RAM No-Drill mounting system and the RAM X-Grip universal holder for 12" tablets. Designed to install quickly and easily into a range of vehicles using the existing hardware of the passenger side seat rails. This configuration provides a telescoping feature that ranges from 12" to 18". Dual swing arms provide articulation and 12" of reach for passenger and driver access to the mounted device. The RAM X-Grip features an 'X' design that expands and contracts to provide a perfect fit for your device - even if it's in a case. Included are easy access grip knobs located on the back of the cradle for quick release of your tablet. This version of the RAM X-Grip holder is compatible with tablets that will fit the dimensions listed below. It is important to verify the dimensions of device with its case, sleeve, or skin when determining the overall size.

Key Features:

Spring-loaded 'X' design with rubber caps sports great holding power without hiding your tablet; fits most 12" - 13" tablets
RAM® No-Drill™ base offers low-profile mounting; telescoping pole allows for height adjustments

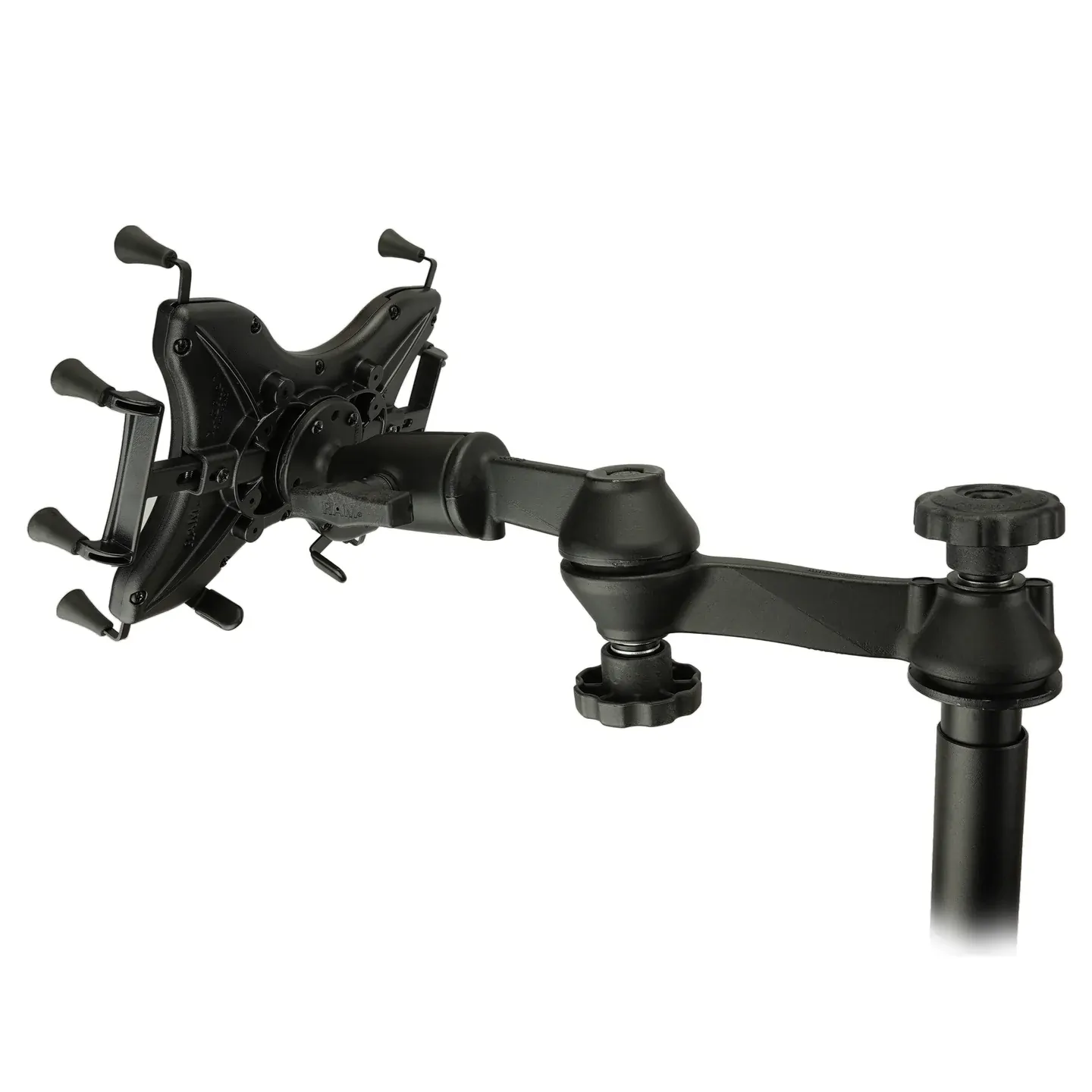

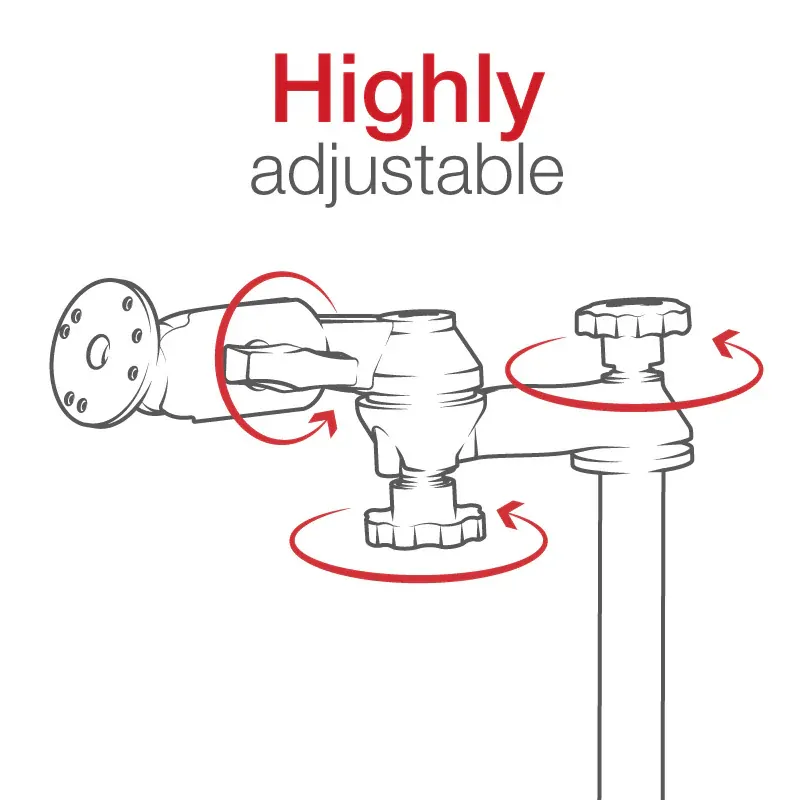

Dual articulating swing arm allows for ideal device placement
Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

(RAM-VB-196-UN11)

Instructions

Large RAM® X-Grip® Assembly Guide RAM-VB-196 Upper Tele-Pole Assembly Guide

Documents

Vehicle Compatibility Guide On Road Catalog Transportation Catalog

Technical Specifications:

Hardware Included	Assembly Hardware Stabilizer Foot

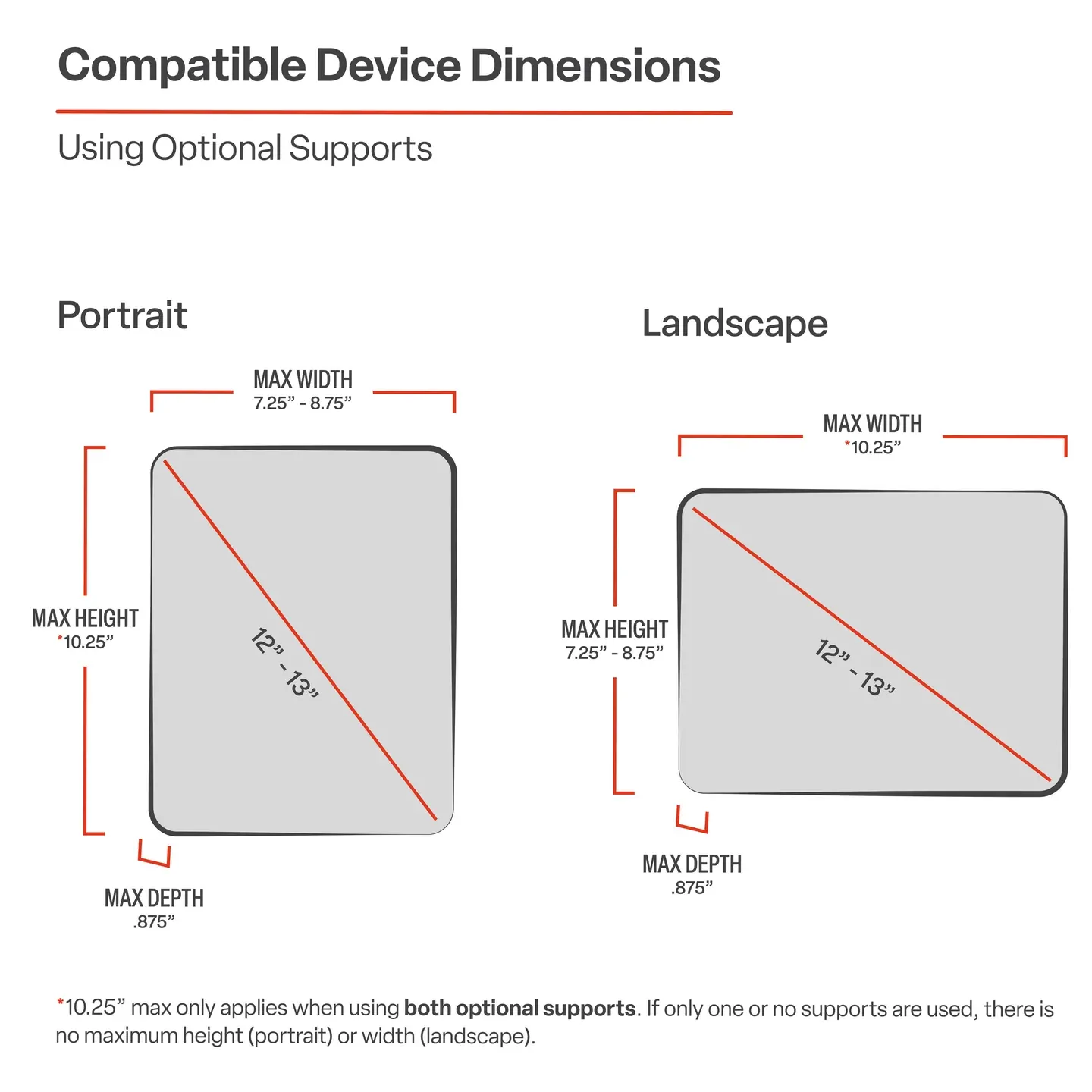

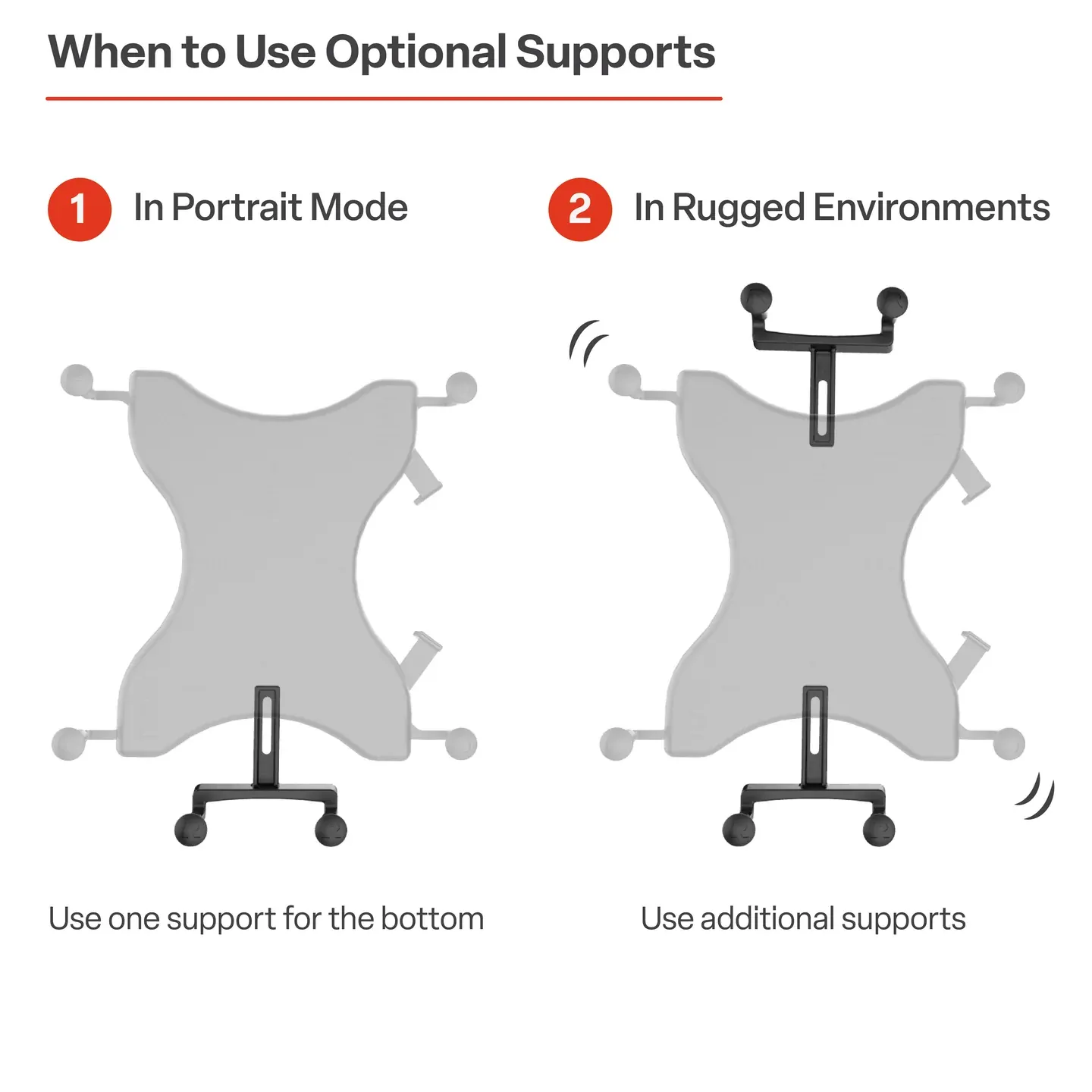

Holder Dimensions	Max Height: 10.25" (26.04 cm) (using optional supports) Width Range: 7.25" (18.42 cm) - 8.75" (22.23 cm) Max Depth: .875" (2.22 cm)
Hole Pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter Seat Bolt Distance: 9"-18.875" center to center
Ball Size	C Size (1.5")
Weight Capacity	Standard Use: 4 lbs (1.81 kg) Heavy-Duty Use: 3 lbs (1.36 kg)
Materials	Powder coated steel Marine grade-aluminum High strength composite
Packaging Type	Box
