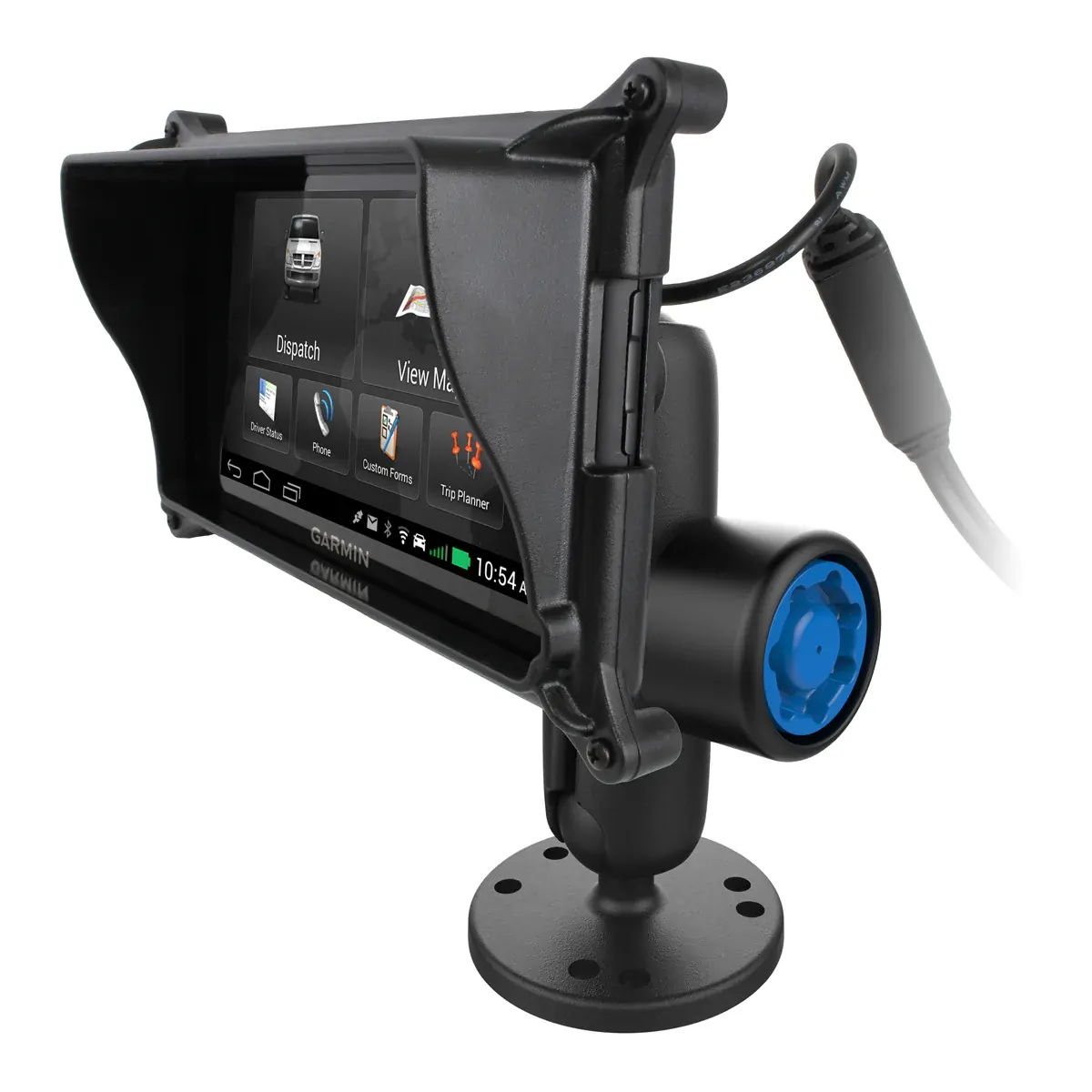

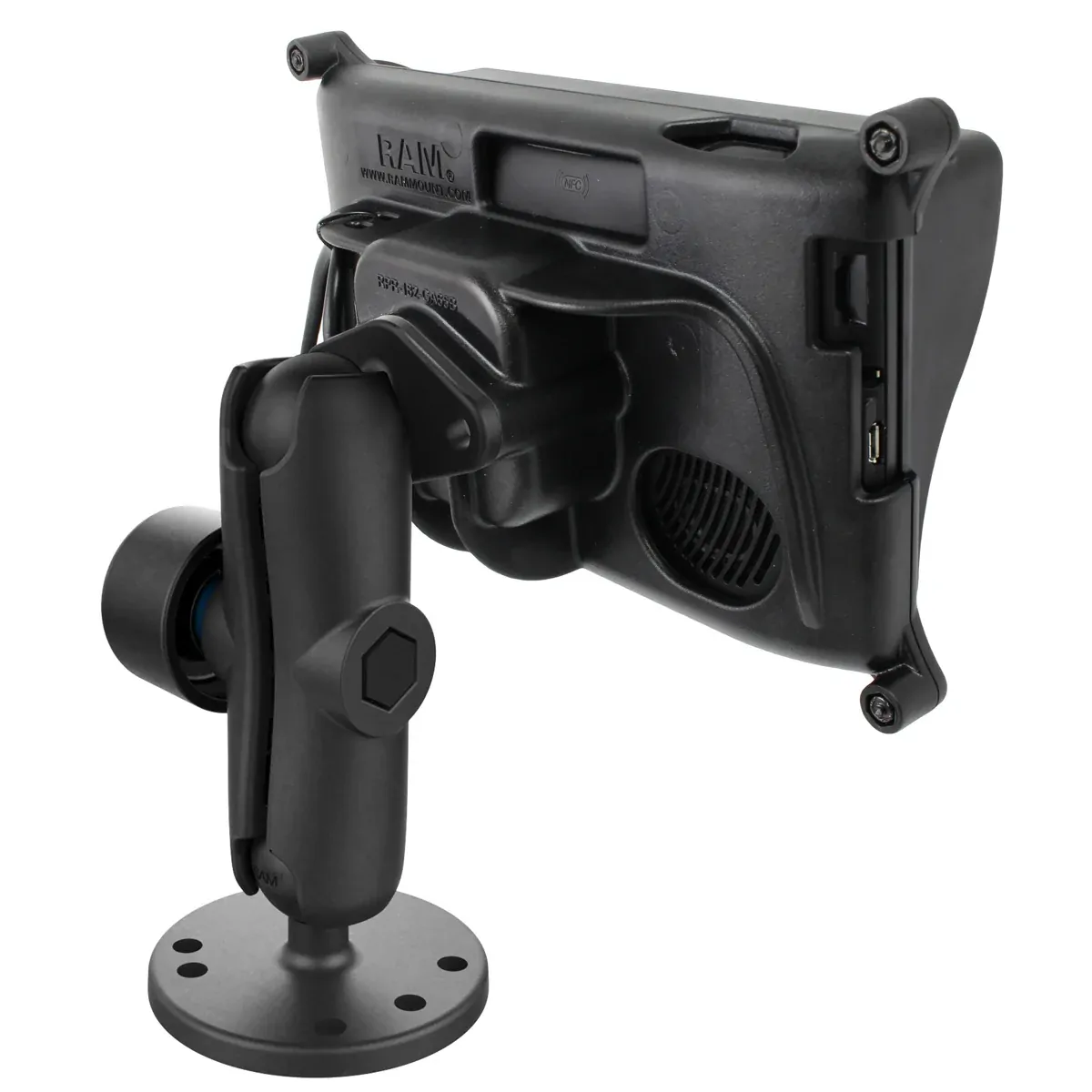

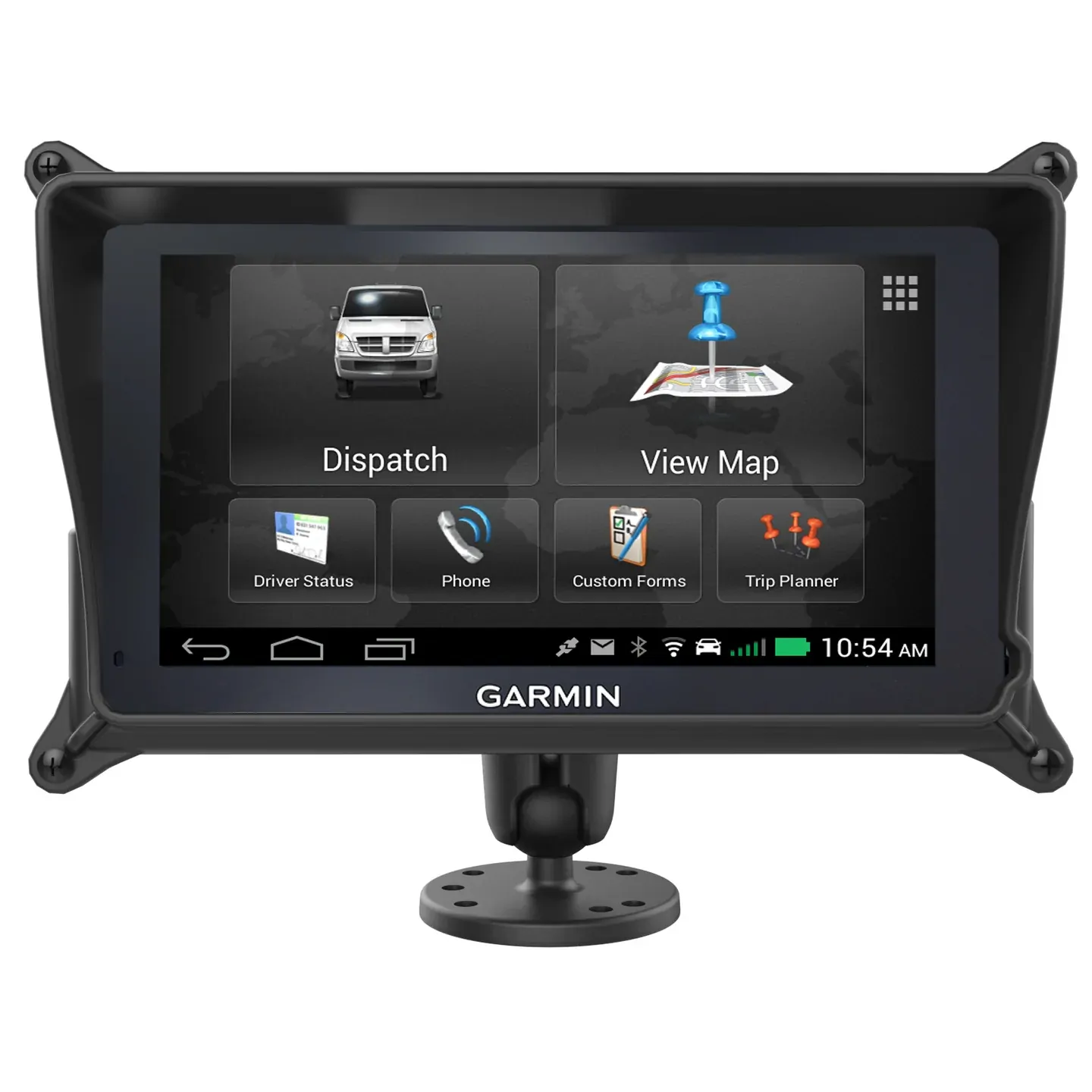

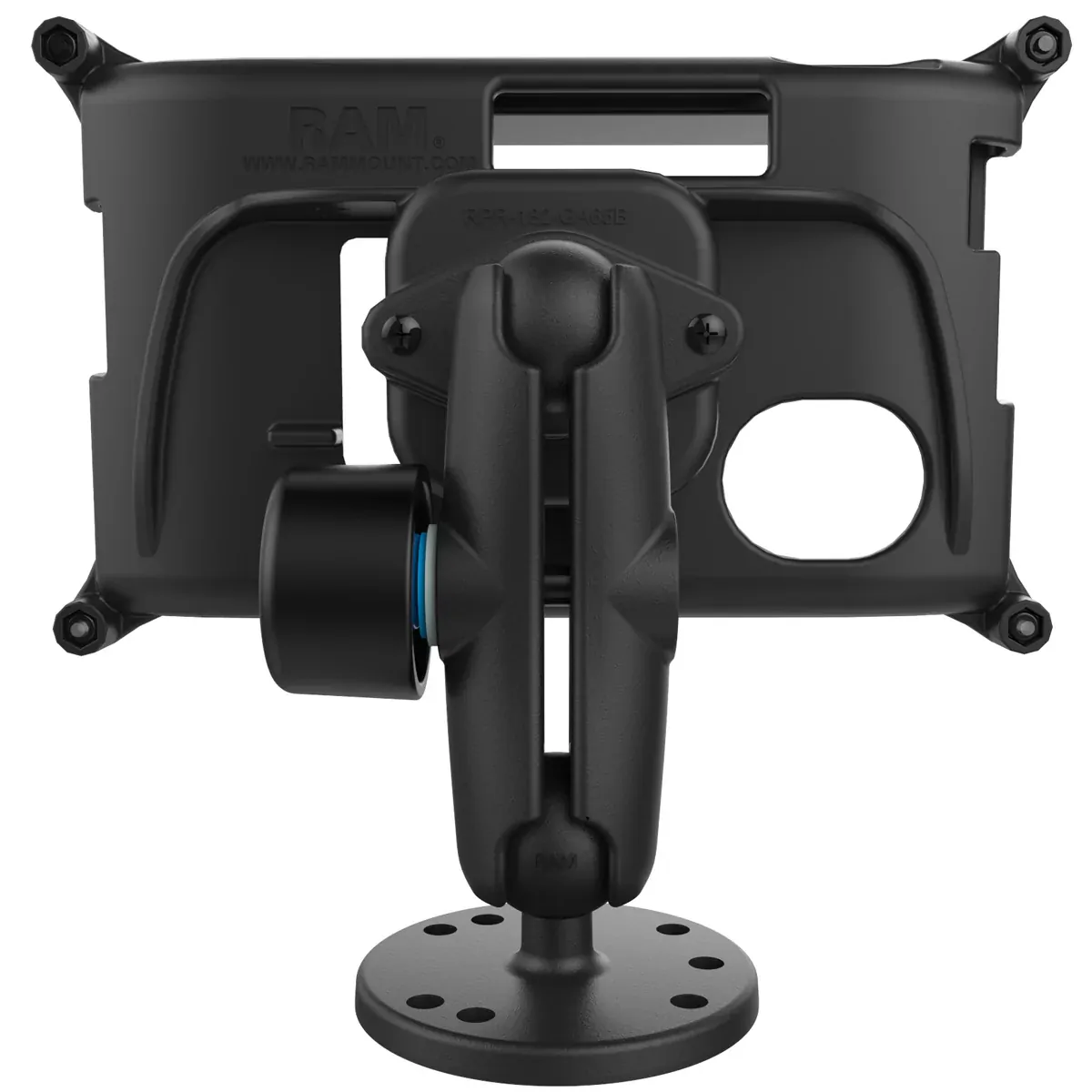

The RAM-B-138-GA66LU consists of a double socket arm, Pin-Lock security knob/key knob, 2.5" diameter round base with the universal AMPS hole pattern, diamond adapter base and custom high strength composite locking case for the Garmin fleet 660/670. The locking case features the ability to secure your Garmin fleet 660/670 in place adding much needed protection and enables full access to the screen, power plug, and memory card slot. The case consists of a front and back cover that can be secured together using standard pop rivets or security screws. The locking case also features a unique cable retention system that prevents accidental unplugging of the USB cable. Paired with a RAM Pin-Lock security knob/key knob, this solution is the ideal accessory for deterring theft or accidental removal of the mounted GPS device.
(RAM-B-138-GA66LU)
Instructions
Installation InstructionsTechnical Specifications:
| Hardware Included | Assembly Hardware (1) RAM Pin-Lock Security Key |
|---|---|
| Socket To Socket Length | 3" (7.62 cm) |
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter |
| Plate Size | 2.5" (63.5 mm) Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg) |
| Materials | Marine-grade aluminum High strength composite |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-B-138-GA66LU |
|---|---|
| Barcode | 793442947391 |
| Brand | RAM Mounts |
| Weight | 0.50 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
