Locking RAM Thin-Dock for Zebra ET401 and ET4x 10" (RAM-HOL-ZE47PLU)

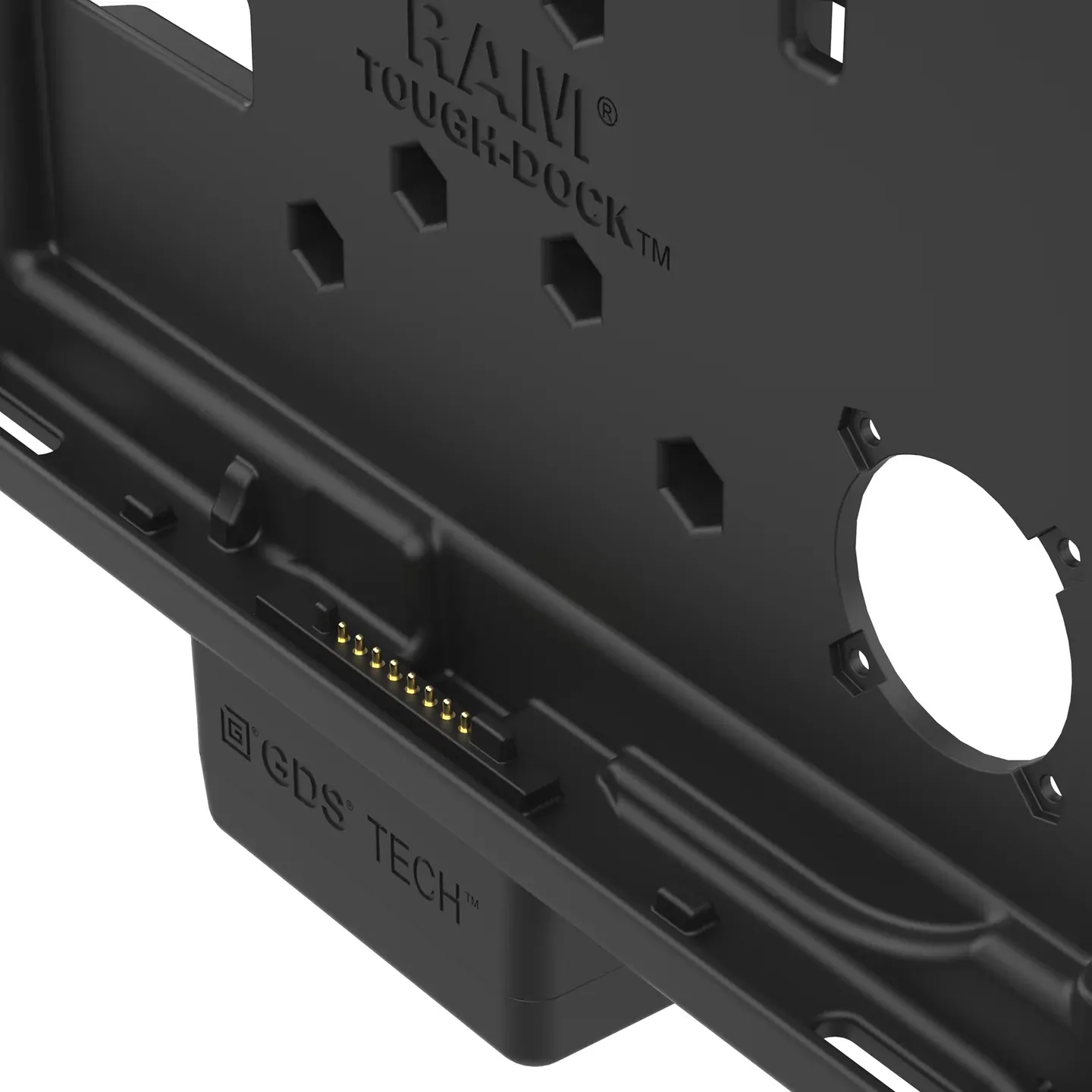

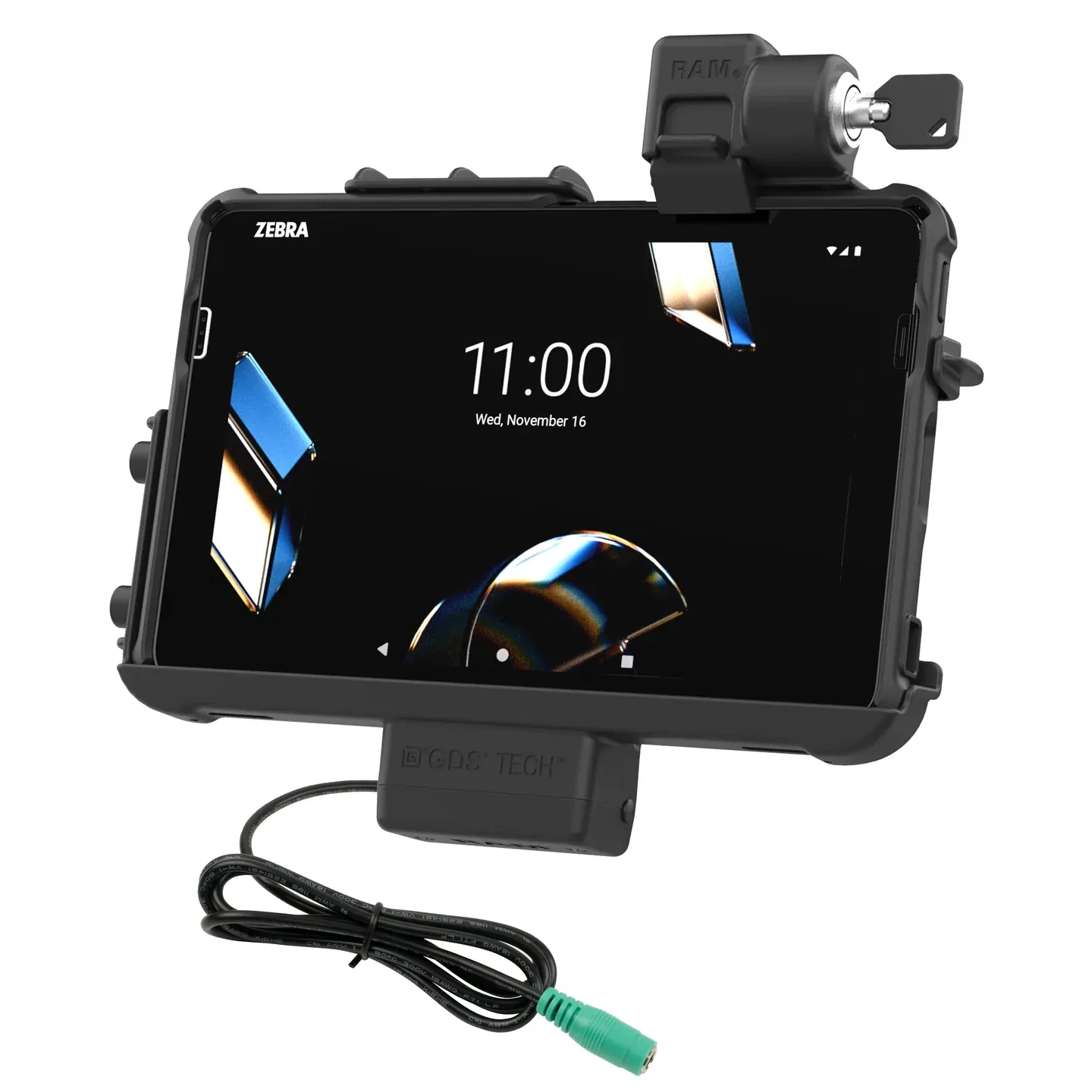

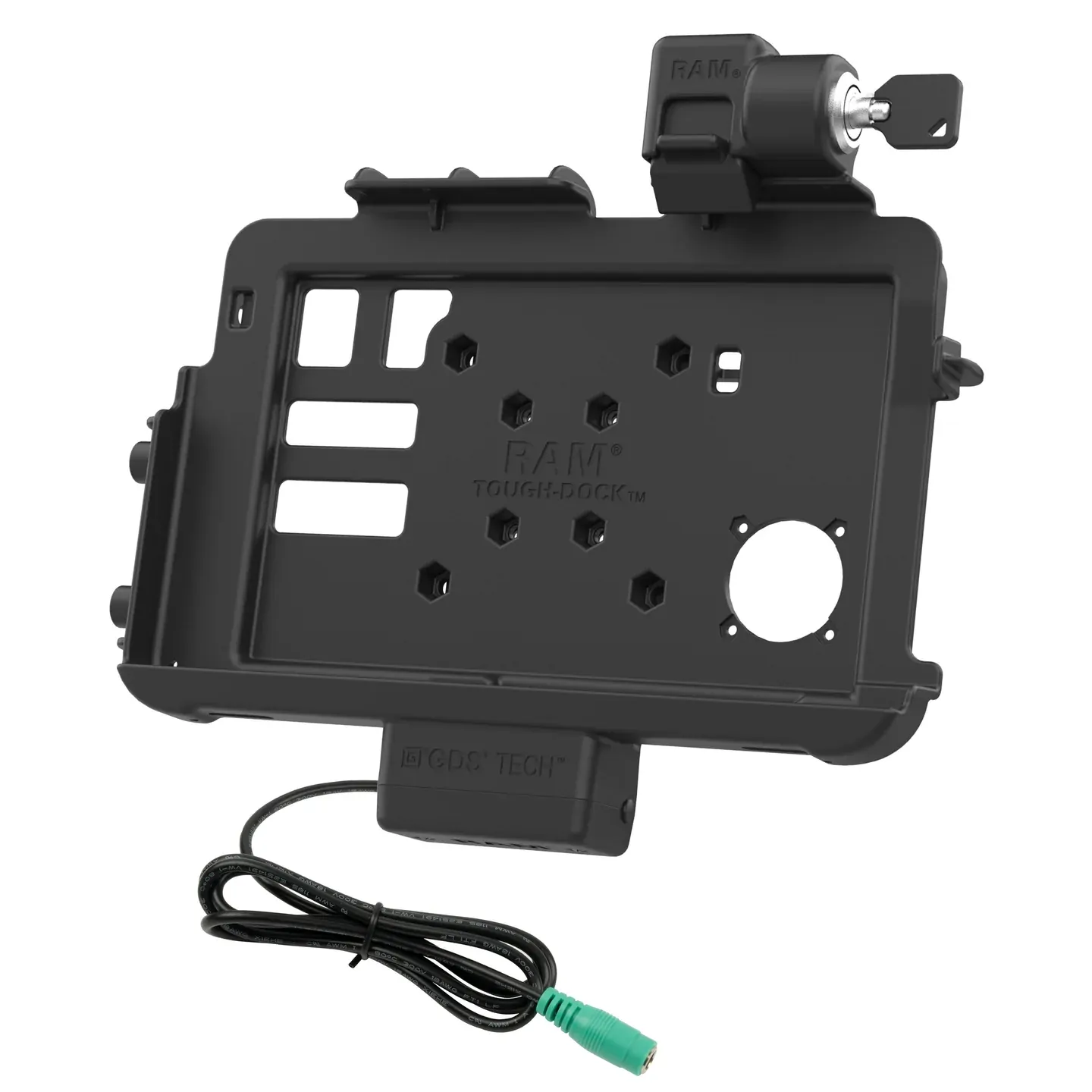

The Locking RAM Thin-Dock for Zebra ET401 & ET4x 10" (RAM-HOL-ZE47PLU) delivers a low-profile, 2.45"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets, connecting directly to the tablet's integrated pogo pins to ensure a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock’s USB Type-C connector. The design also maintains access to the tablet’s side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM Vent-Temp, a temperature control accessory, and the RAM NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories.

Key Features:

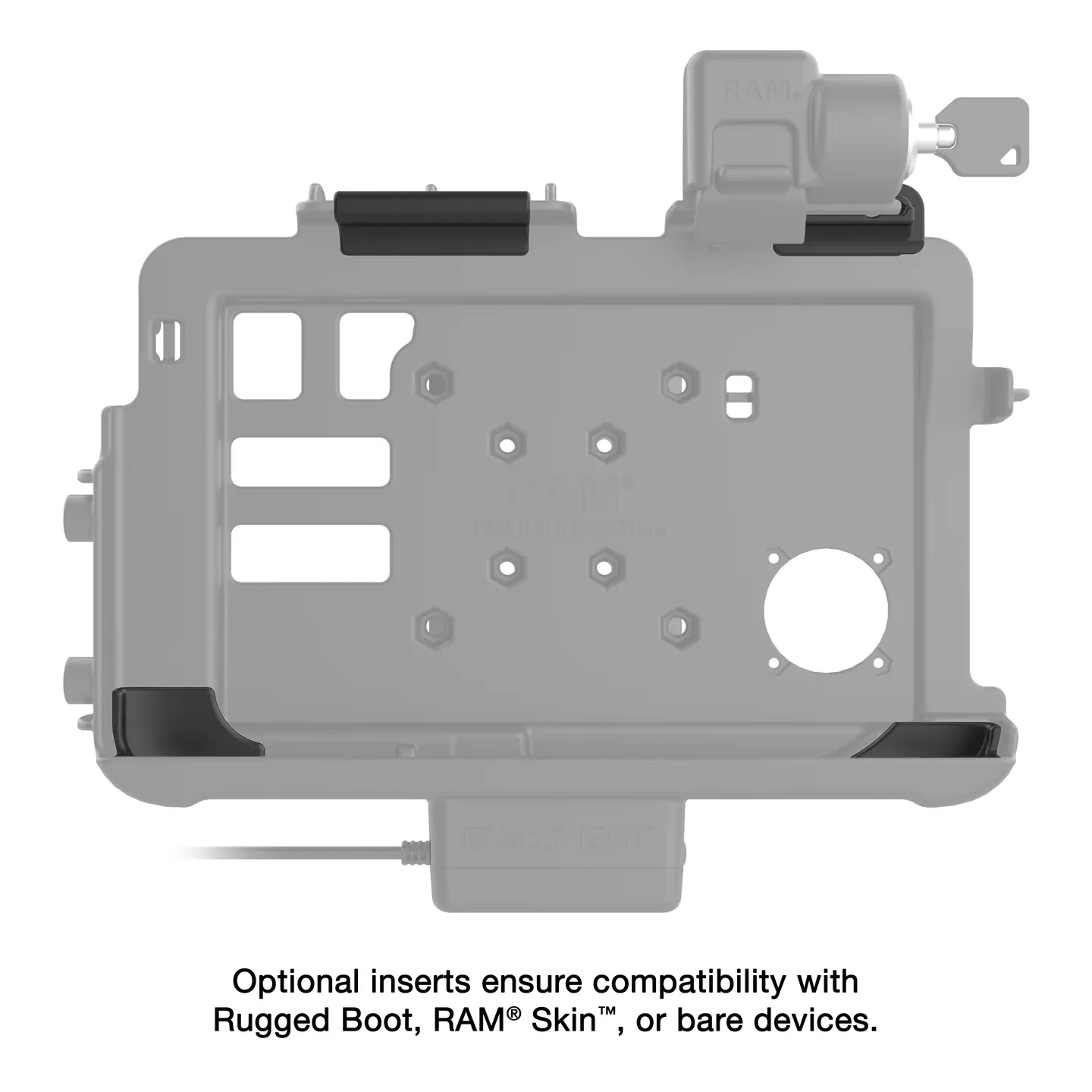

Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45; included inserts allow for compatibility with rugged boot, RAM® Skin™, and bare device

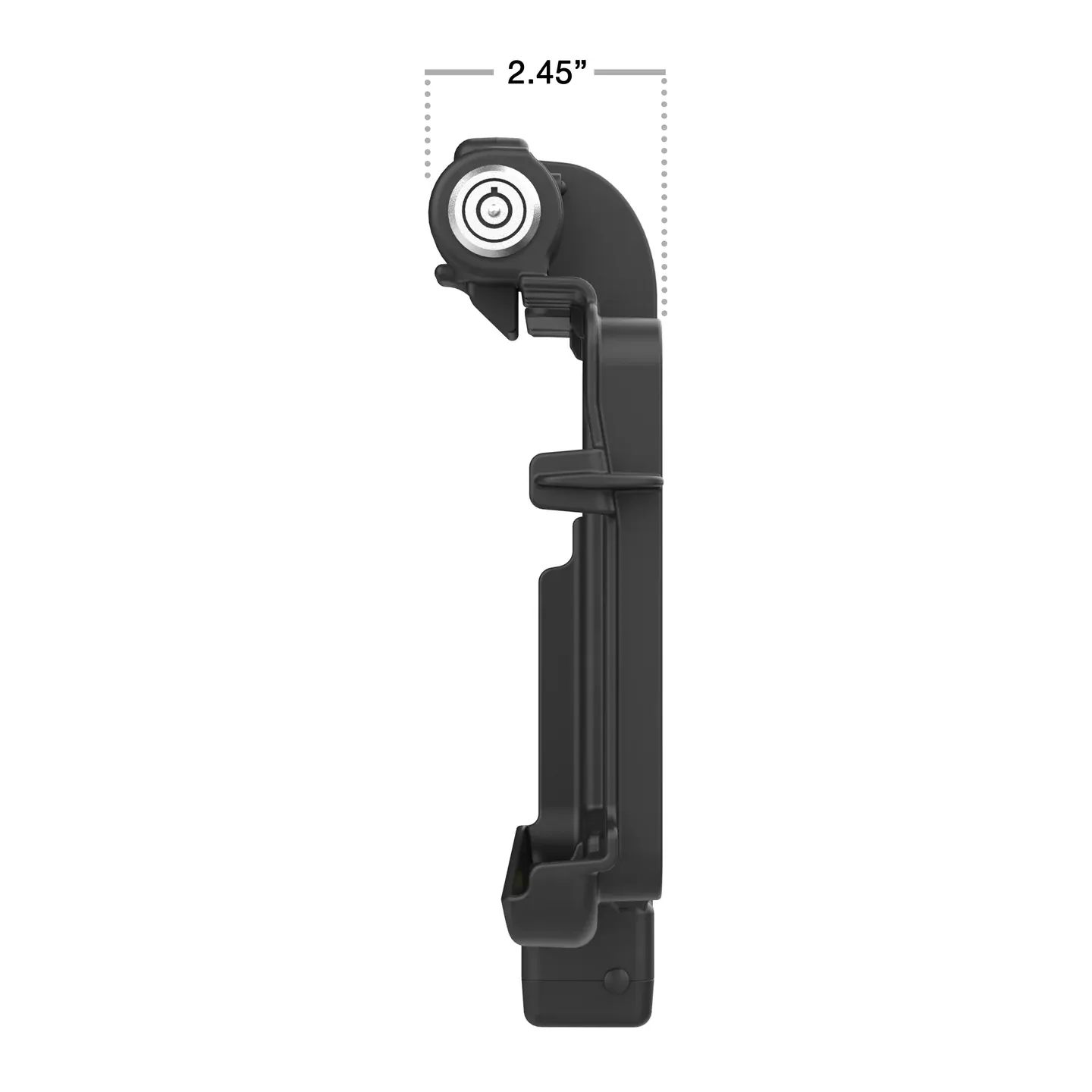

Slim-profile design at 2.45" depth with metal reinforcement plate

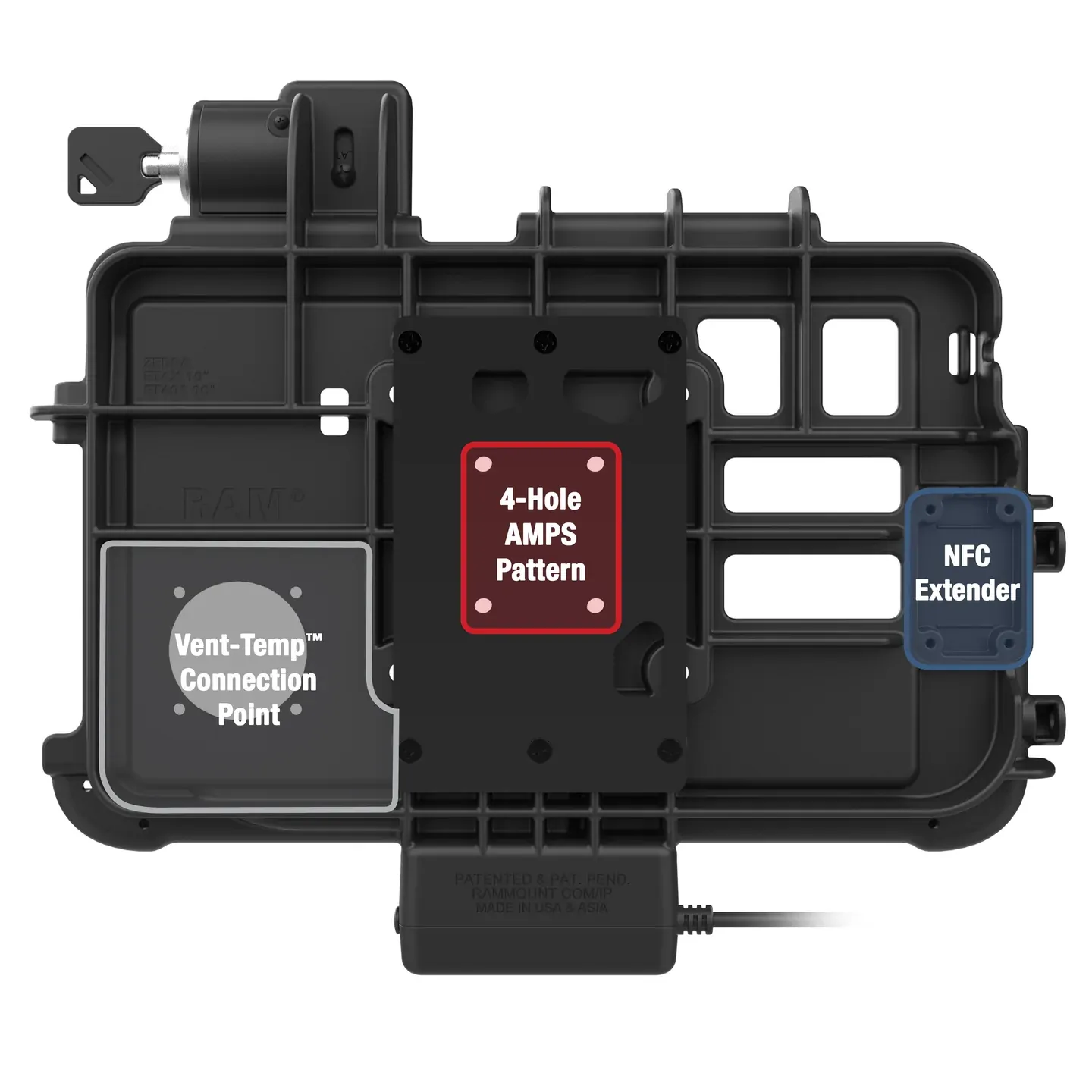

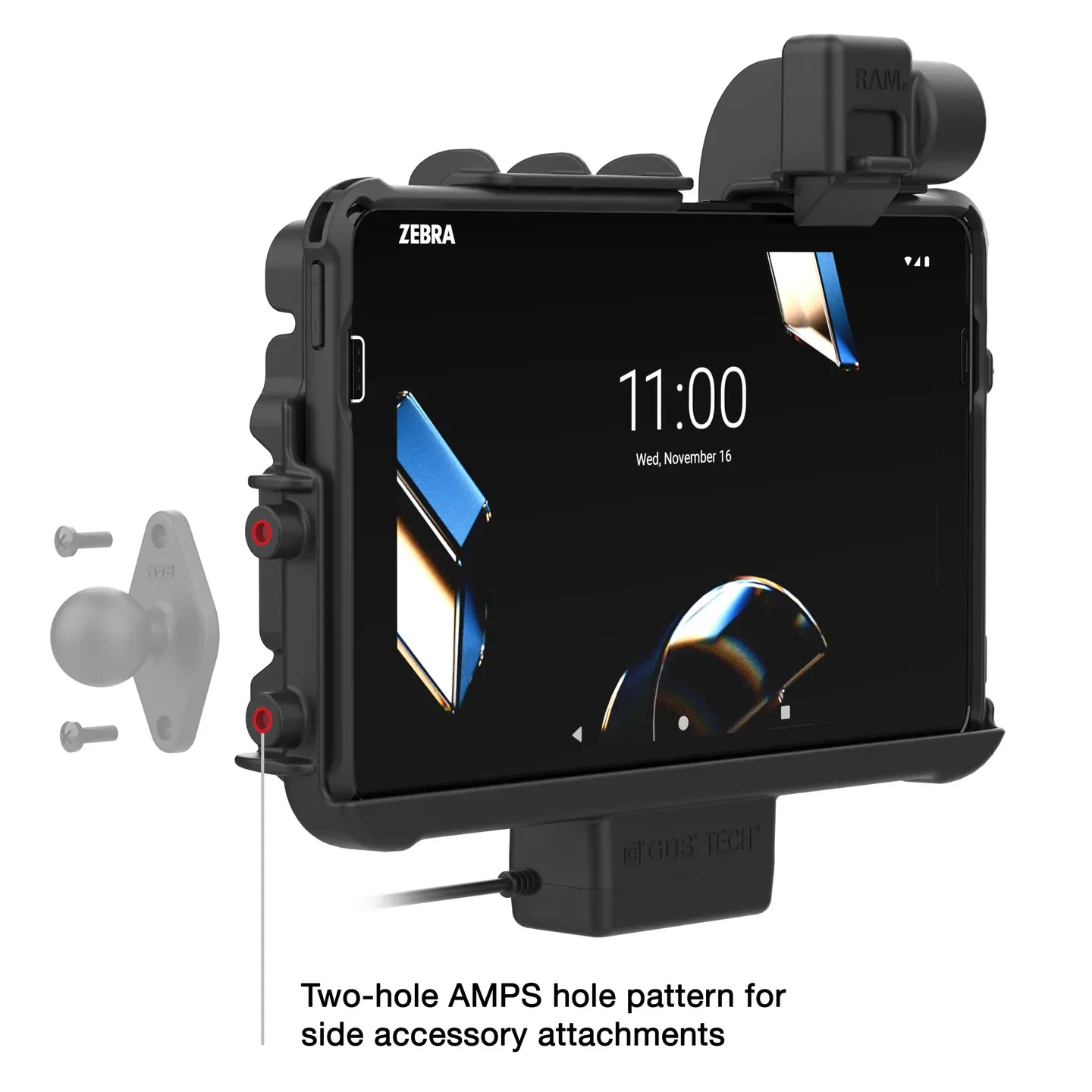

Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Compatible with RAM® Vent-Temp™ and NFC Extender
Backed by a 3-year warranty

(RAM-HOL-ZE47PLU)

Documents

Zebra Catalog

Technical Specifications:

Hardware Included	(2) Keys (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nyloc Nuts (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nyloc Nuts (1) Cable Clamp
Hole Pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
Materials	High strength composite
Packaging Type	Poly Bag
Output Voltage	12V @ 2A
Power Output	24W
Input Connector	5.5mm DC Connector
Input Cable Length	1 Meter
Certifications	RoHS WEEE CE FCC IC RCM
