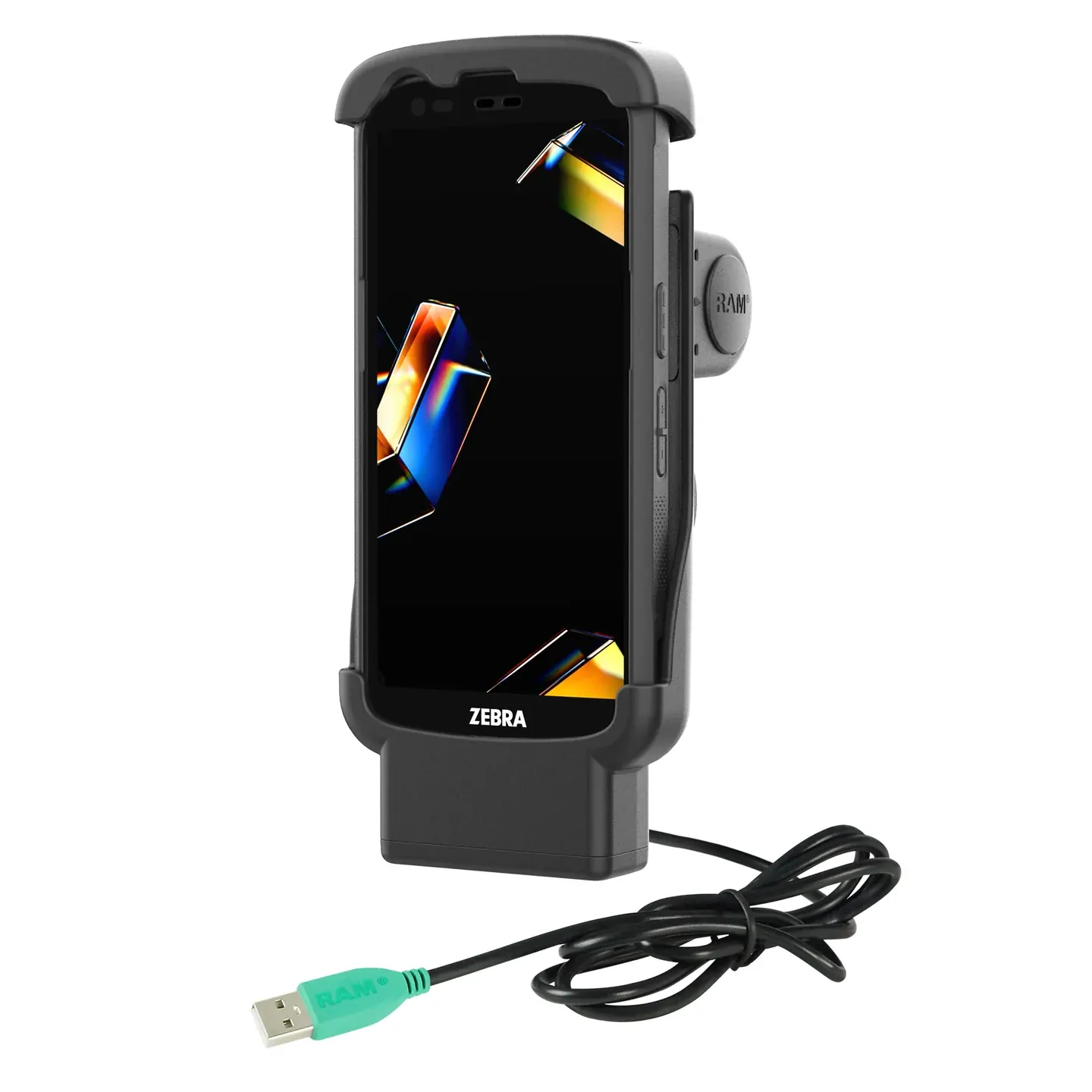

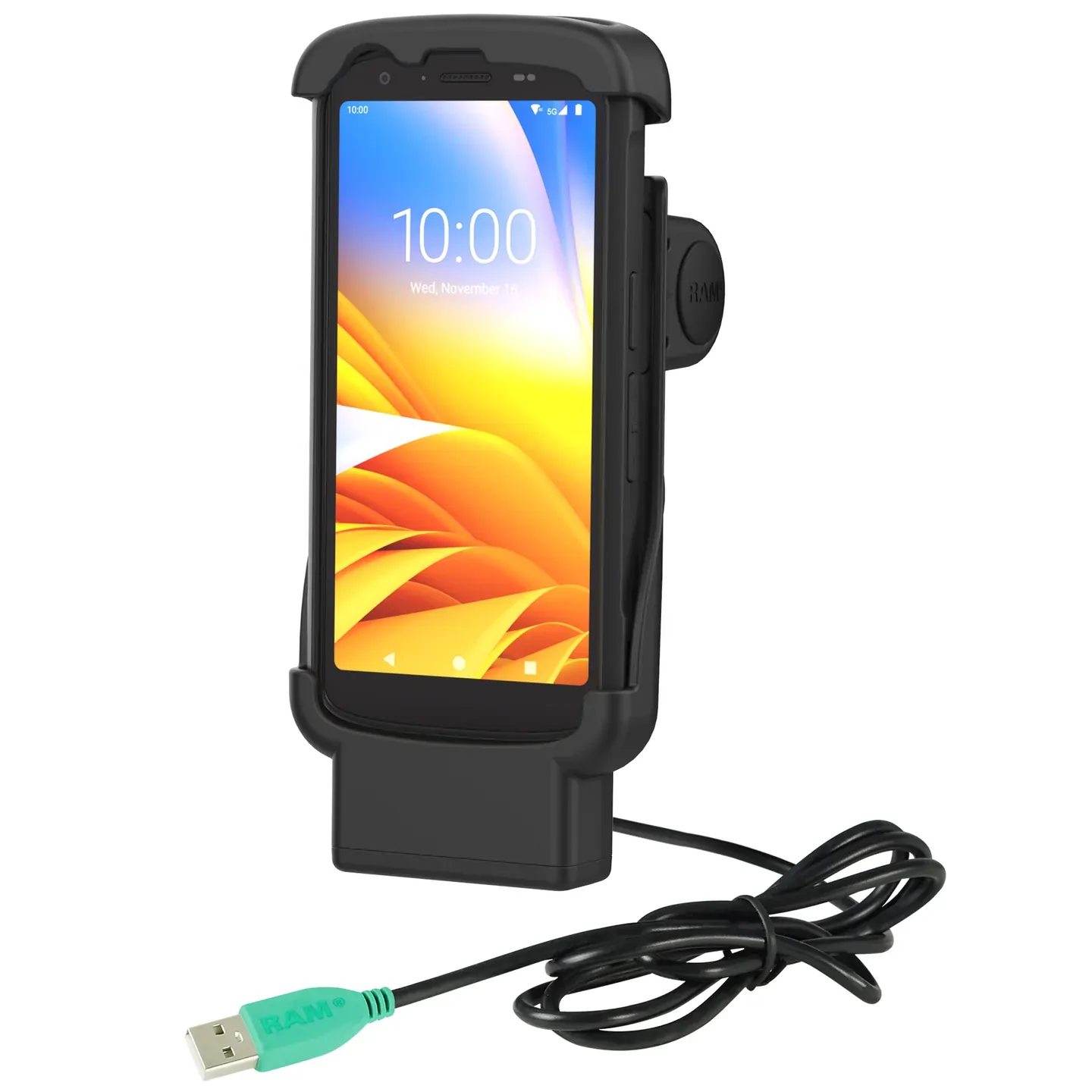

This spring-loaded, form-fit powered dock (RAM-HOL-ZE24PU) allows you to secure the Zebra TC201 or TC22/TC27 handheld computer with the Rugged Boot installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap as well as the extended battery pack. Complete your solution by adding a compatible RAM two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

Key Features:
  • Spring-loaded form-fit powered dock perfectly secures the Zebra TC201 and TC22/TC27 handheld computer with Rugged Boot; provides power through 1.25-meter long USB Type-A connector
  • Utilizies pogo pin docking contacts to provide charging capabilities to the device
  • Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty

(RAM-HOL-ZE24PU)

Technical Specifications:

Hardware Included(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nyloc Nuts
Product DimensionsOverall Height: 7.72" (19.61 cm)
Overall Width: 3.66" (9.30 cm)
Overall Depth: 2.54" (6.45 cm)
Hole Pattern2-Hole AMPS: 1.912"
MaterialsHigh strength composite
Packaging TypePoly Bag
Input ConnectorUSB Type A
Input Cable Length1.25 Meters
CertificationsRoHS
WEEE
CE
UKCA

Product Information

SKU RAM-HOL-ZE24PU
Barcode 793442016677
Brand RAM Mounts
Weight 0.40 kg
Warranty 3 year warranty
