Locking Powered Dock Zebra TC22 TC27 TC201 without Boot (RAM-HOL-ZE24PL-1U)

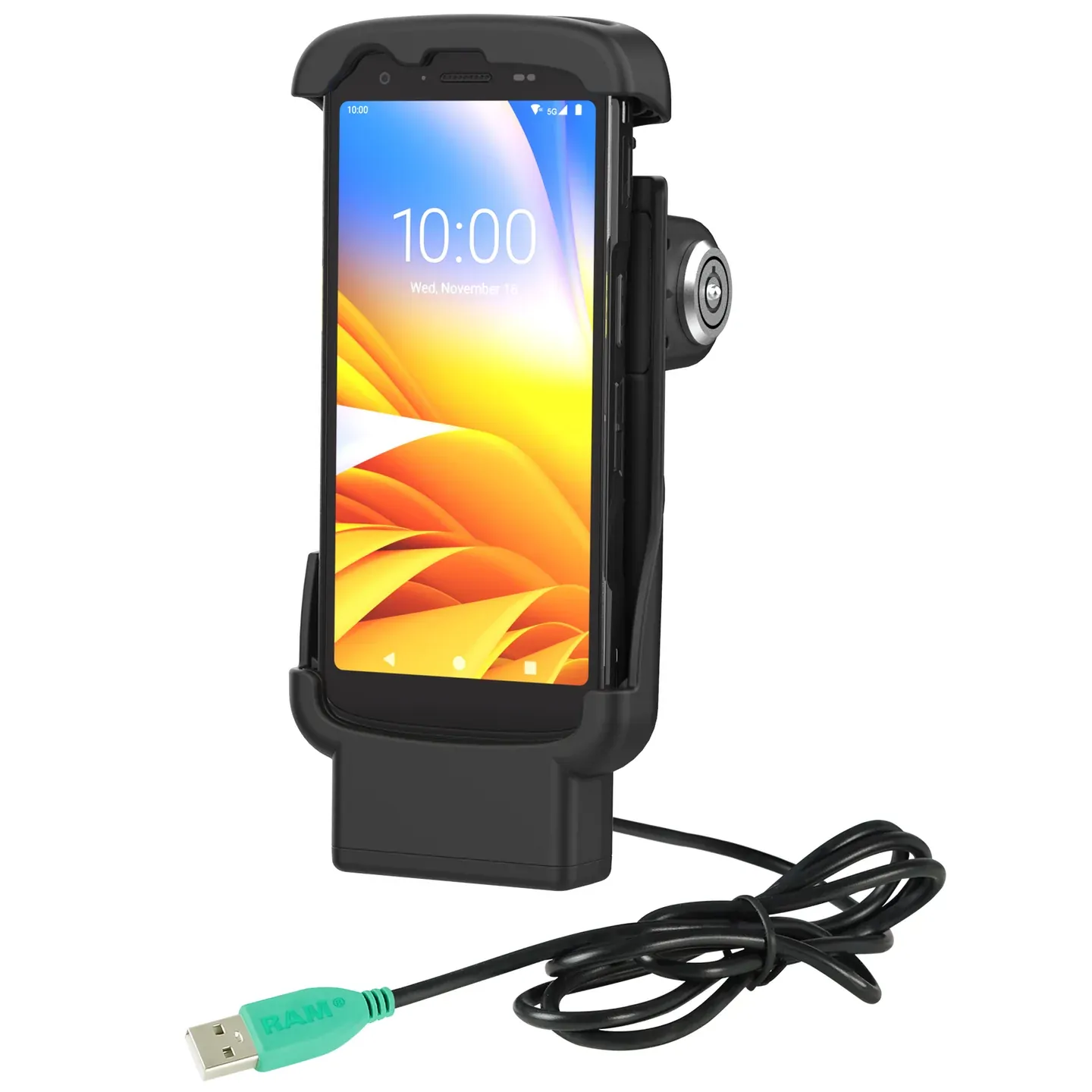

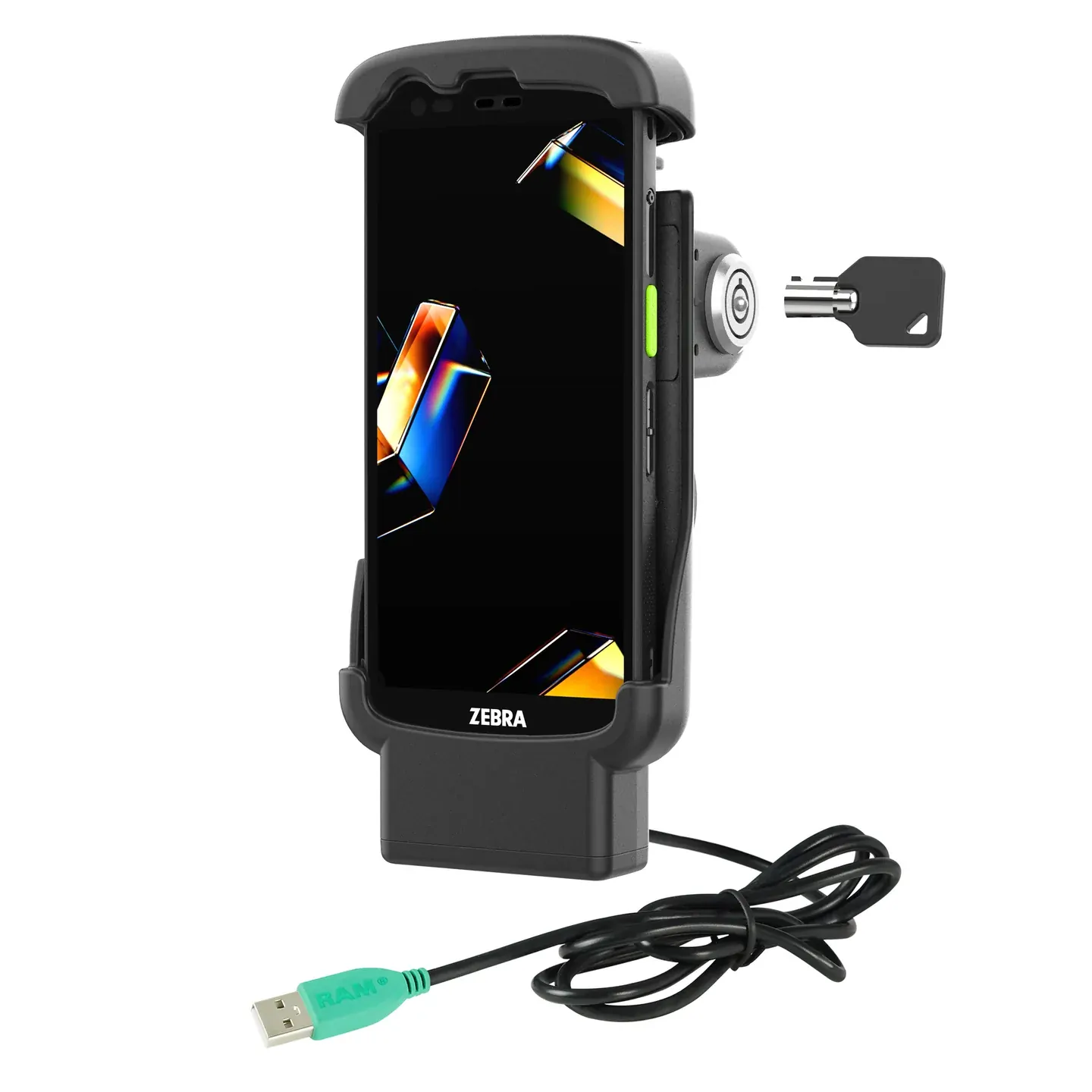

This key-locking, spring-loaded, form-fit powered dock (RAM-HOL-ZE24PL-1U) allows you to secure the Zebra TC201 or TC22/TC27 handheld computer without the Rugged Boot installed. Included with this dock are top and bottom shims to allow a form-fit when docking the device without the Rugged Frame installed. Power to the device is delivered via a 1.2m long USB Type-A connector and pogo pin docking pins. This dock includes an integrated stylus holder that snaps your stylus into place while not in use, and will accommodate the Zebra hand strap. Complete your solution by adding a compatible RAM two-hole AMPS pattern diamond bases and a B or C size ball mount, allowing for a wide variety of mounting options (hardware included).

Key Features:

Spring-loaded key-locking form-fit powered dock perfectly secures the Zebra TC201 and TC22/TC27 handheld computer without Rugged Boot; provides power through 1.25-meter long USB Type-A connector
Includes top and bottom shim inserts for a form-fit docking experience when using the TC201 or TC22/TC27 without the Rugged Boot
Utilizies pogo pin docking contacts to provide charging capabilities to the device
Compatible with B and C size RAM® 2-hole diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Backed by a 3-year warranty

(RAM-HOL-ZE24PL-1U)

Documents

Buyer Guide: Powered Docks for Zebra TC201 & TC22/TC27 Zebra Catalog

Technical Specifications:

Hardware Included	(2) Keys (2) #8-32 x 5/8" Machine Screws (2) #8-32 x 3/4" Machine Screws (2) #8-32 Nyloc Nuts
Product Dimensions	Overall Height: 7.72" (19.61 cm) Overall Width: 3.66" (9.30 cm) Overall Depth: 2.54" (6.45 cm)
Hole Pattern	2-Hole AMPS: 1.912"
Materials	High strength composite
Packaging Type	Poly Bag
Input Connector	USB Type A
Input Cable Length	1.25 Meters
Certifications	RoHS WEEE CE UKCA
