Low-Profile USB-C Power and Single USB-A Dock for Tab Active3 Active5
RAM-HOL-SAM58CPT-1AU
In Stock: 1
The low-profile RAM USB-C Power + Data Dock for Samsung Tab Active3 Active5 offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. USB-C power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active3's pogo pad docking contacts -simply dock the device for a seamless charging experience. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: RAM Vent-Temp, NFC Reach, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern.
| This new SKU with USB-C replaces the existing SKU RAM-HOL-SAM58PDTU which utilised microUSB for power |
- Form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™

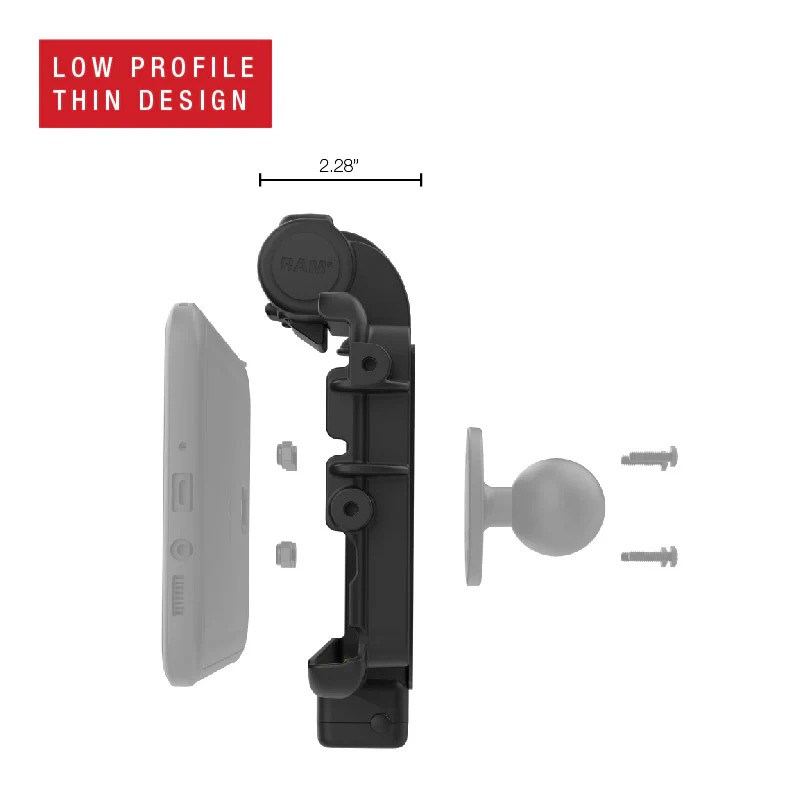

- Slim-profile design at 2.28" depth with metal reinforcement plate
- Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
- Powered via USB-C connector (Non-Power Delivery charger required); connect a single input device via USB-A connector
- Backed by a 3-year warranty
(RAM-HOL-SAM58CPT-1AU)
Instructions
Assembly Instructions for Tab Active3 DockDocuments
Cleaning Guide: Device Pogo Pads Samsung CatalogTechnical Specifications:
| Hardware Included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nyloc Nuts (1) GDS® Genuine USB 2.0 Straight Cable (2) Optional Cable Clamp Housings (4) Large Cable Ties (10) Small Cable Ties |
|---|---|
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" |
| Materials | High strength composite |
| Packaging Type | Poly Bag |
| Input Voltage | 5.3-5.4VDC |
| Output Voltage | 5VDC |
| Power Output | 500mA |
| Input Connector | USB Type-C Female |
| Input Cable Length | 250mm |
| Output Connector | USB 1.1 Type A |
| Output Cable Length | 250mm |
| Peripheral Output | 500mA |
| Transfer Speed | 12Mbps |
Product Information
| SKU | RAM-HOL-SAM58CPT-1AU |
|---|---|
| Barcode | 793442021954 |
| Brand | RAM Mounts |
| Weight | 0.60 kg |
| Warranty | 3 year warranty |
