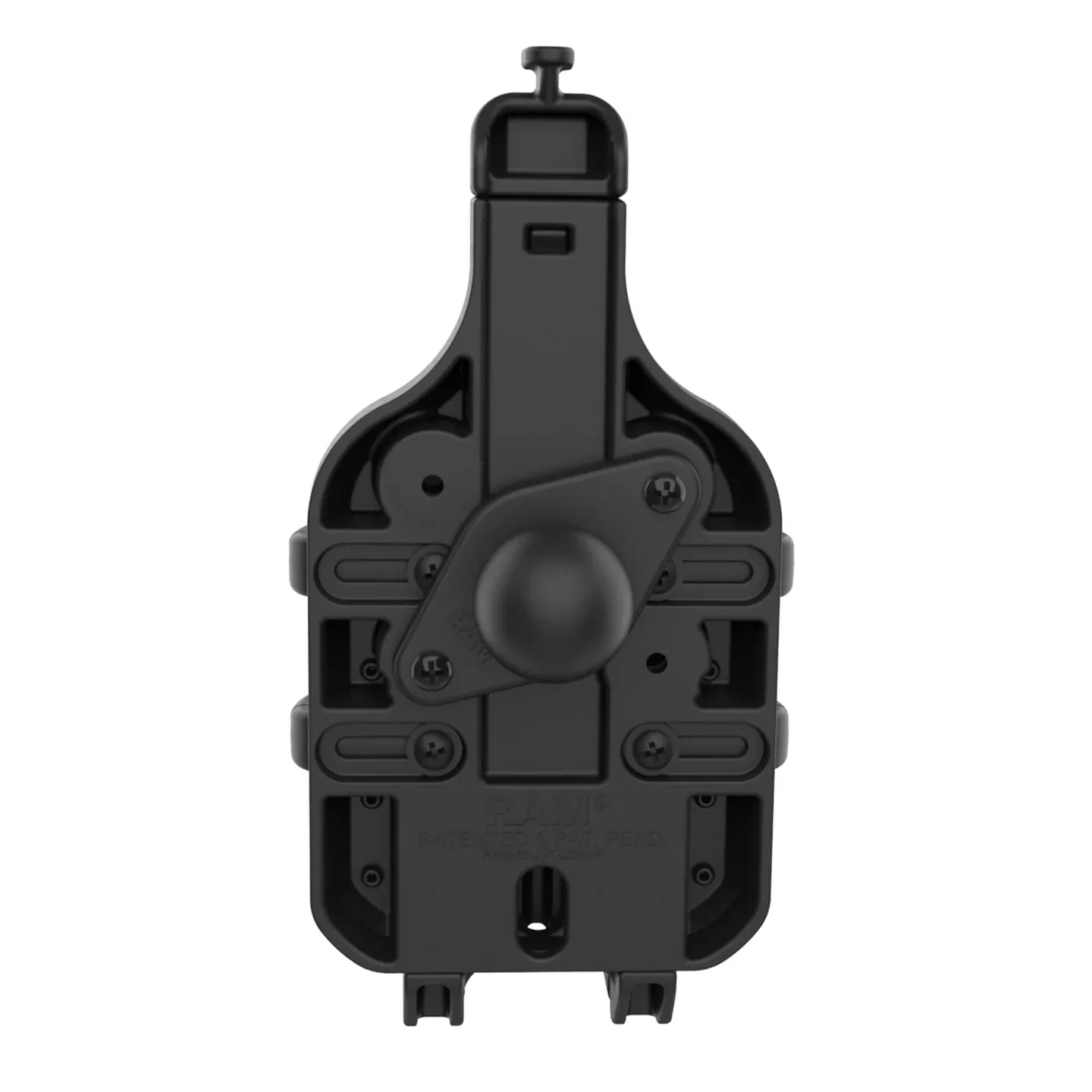

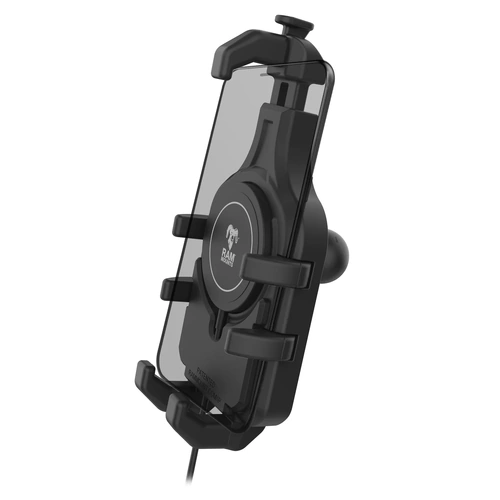

The RAM Quick-Grip Pro with Ball & Qi2 15W Wireless Charger (RAM-HOL-PD5B-W2MU) is the next evolution of the RAM Quick-Grip series. Re-designed with a new, sleek look and integrated rubber side arms to provide a secure, no-slip hold on your phone. This phone holder comes with the RAM Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM Quick-Grip Pro features a spring-loaded design that allows easy one-handed insertion and removal of your phone. The adjustable side arms ensure that your phone will remain secured in the holder without blocking any ports or buttons. Complete the solution by building your mount-this holder is RAM Compatible and includes a B size diamond ball to be installed on the 2-hole AMPS pattern. RAM recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

Key Features:

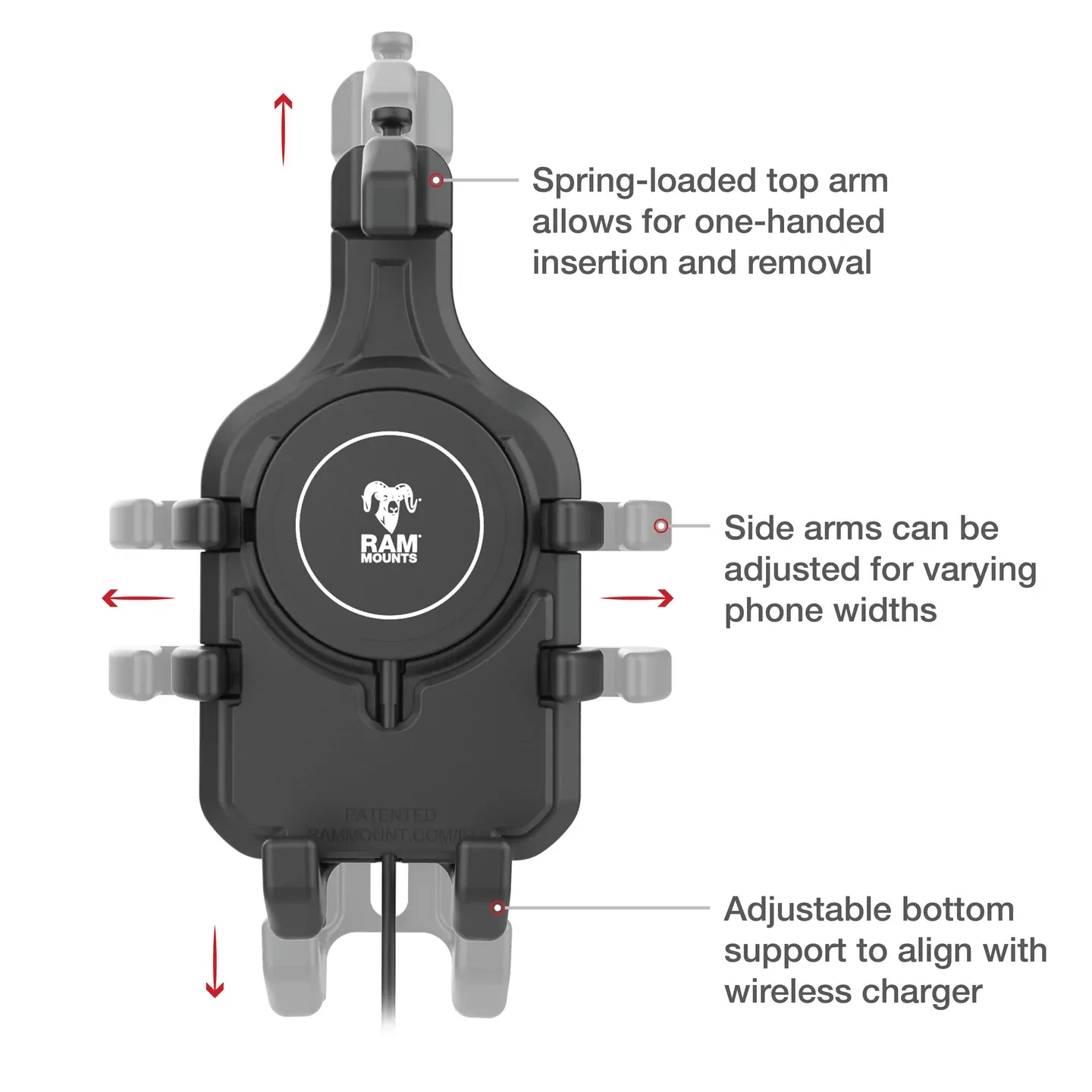

  • Spring-loaded holder features adjustable side supports overmolded with a soft rubber that provide a secure hold for a variety of phones; easily insert and remove your phone with one hand

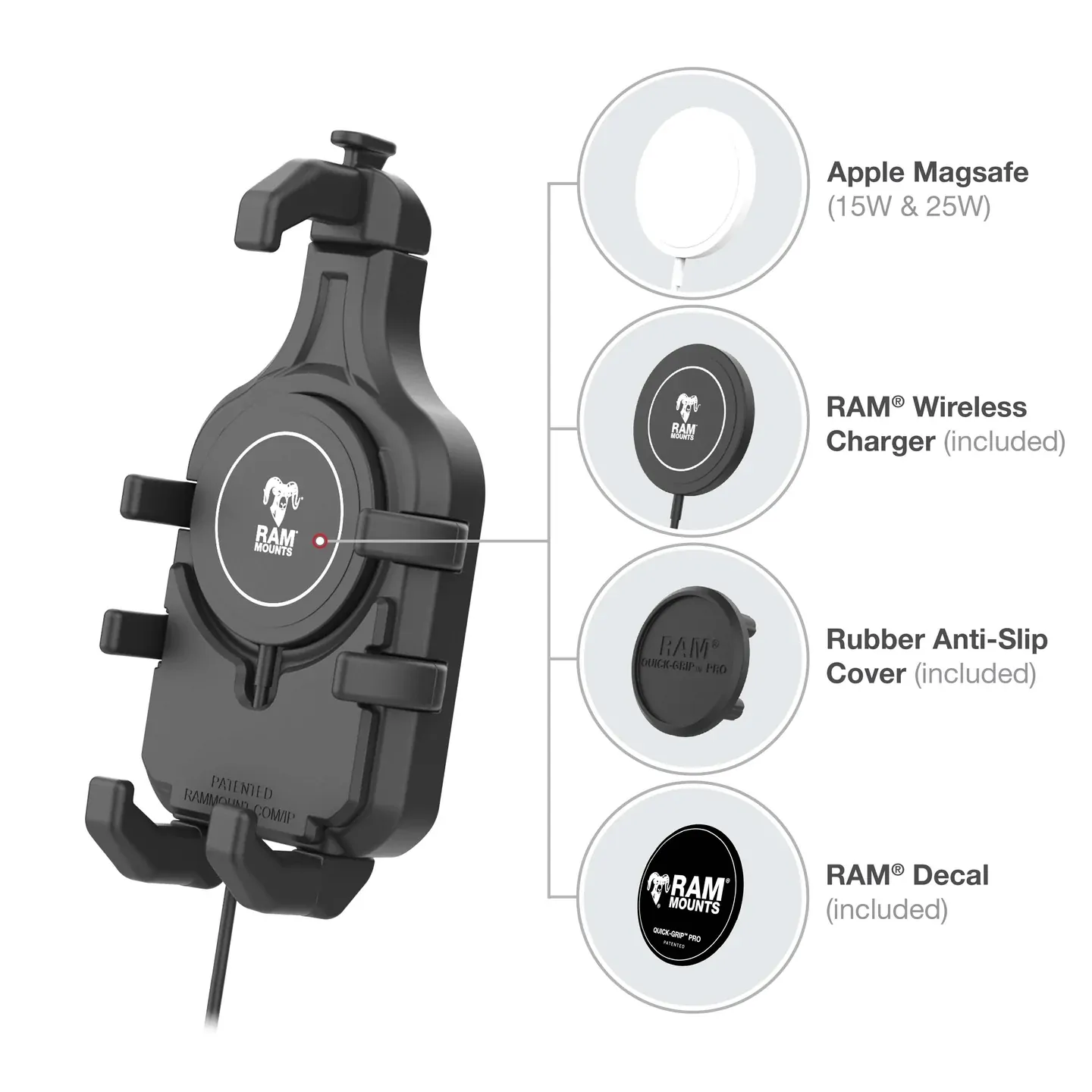

  • Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
  • Comes with an optional device tether for open cockpit environments
  • Made of high-strength composite for durability and reliability in the most demanding environments
  • Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty
Kits containing this part Need this component urgently? View complete kits that include this component

(RAM-HOL-PD5B-W2MU)

Technical Specifications:

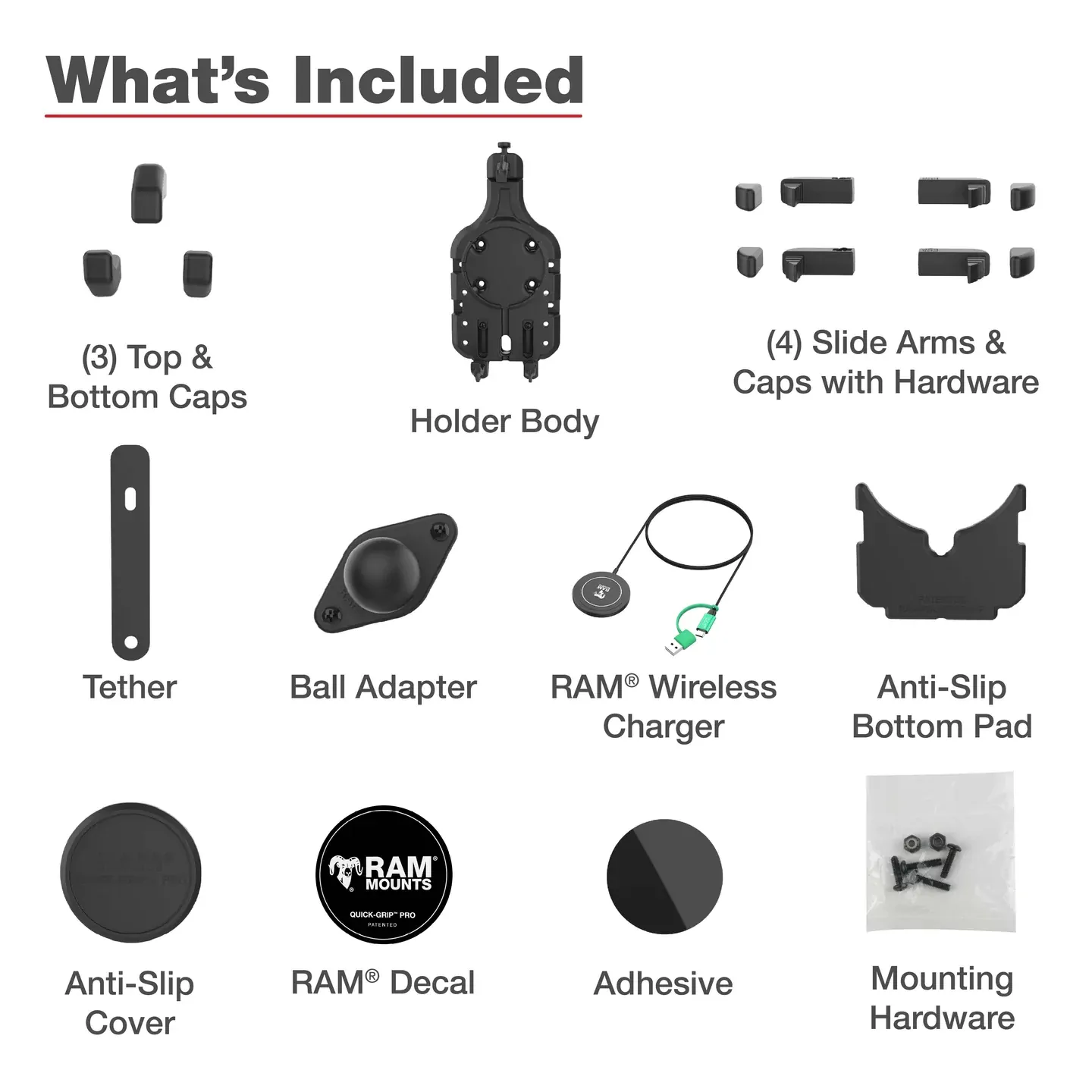

Hardware IncludedAssembly Hardware
Holder DimensionsHeight Range: 5.5" (13.97 cm) - 7.75" (19.69 cm)
Width Range: 2.625" (6.67 cm) - 3.75" (9.53 cm)
Max Depth: .67" (1.70 cm)
Ball SizeB Size (1")
Weight CapacityStandard Use: 2 lbs (0.91 kg)
Heavy-Duty Use: 1 lb (0.45 kg)
MaterialsHigh strength composite
Packaging TypePoly Bag
Power SpecificationsOperating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
80% Wireless Power Transfer Efficiency or Greater
Supports USB 2.0 BC1.2 Power Supply (5V)
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
Input VoltageUSB 5V @ 3A
QC2.0 9V @ 2.22A
USB PD 2.0 5-15V @ 2A
Power OutputBPP - 5W
EPP - 7.5W
MPP - 15W
Output ConnectorUSB Type-C Male with USB-A Adapter
Output Cable Length1 Meter
Operating Temperature0°C to +40°C
Storage Temperature-20°C to +80°C
RegulatoryOver Current Protection
Short circuit Protection
Over Temperature Protection
RoHS Compliance
WEEE Compliance
CertificationsIP67
SAE J1455
FCC Certification
CE Certification
E-Mark Certification
RCM Certification

Product Information

SKU RAM-HOL-PD5B-W2MU
Barcode 793442026577
Brand RAM Mounts
Weight 0.32 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
