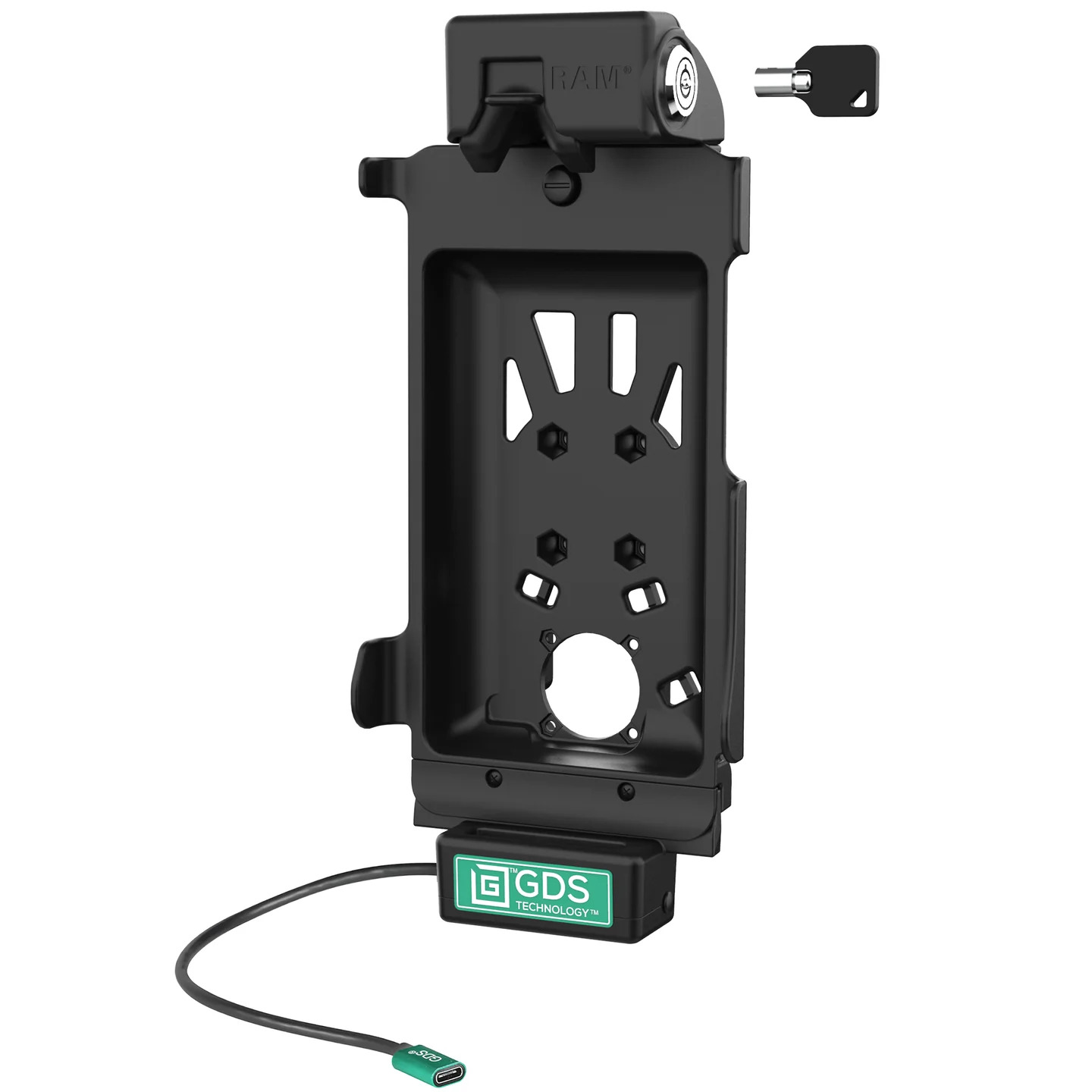

GDS Locking Tough-Dock Samsung Tab Active3 Active5 USB Type-C (RAM-GDS-DOCKL-SAM62CPU)

The GDS Tough-Dock is the newest vehicle dock in the GDS Tech line of vehicle docks with a keyed locking system designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS Tough-Dock supports high speed charging capabilities for the Samsung Galaxy Tab Active5, 3 and 2. The GDS Tough-Dock is compatible with RAM ball and socket systems and requires a 4-hole AMPS pattern ball adapter. The GDS Tough-Dock is backed by a 3-year warranty. Always Protected. Always Connected.

Key Features:

Spring-loaded key-locking vehicle dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high speed charging
Designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 wrapped in an IntelliSkin® Next Gen protective sleeve
Incorporated into the bottom docking cup is a USB Type-C Female connector for providing high speed charging to the dock
RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
Backed by a 3-year warranty

Kits containing this part Need this component urgently? View complete kits that include this component

GDS Locking Cool-Dock Samsung Tab Active3 Active5 USB Type-C

RAM-GDS-DOCKLF-SAM62CPU

(RAM-GDS-DOCKL-SAM62CPU)

Documents

GDS® Tech™ Catalog Samsung Catalog

Tough-Dock and Cool-Dock Locking Top Latch (2023 Version)

RAM-GDS-DOCKLH2U

RAM-GDS-DOCKB-SAM62U

RAM-GDS-DOCKB-SAM62U

Not sold separately

GDS Power USB-C Data Dock Cup for IntelliSkin

RAM-GDS-DOCK-V10C-CU

GDS Cable Clamp

RAM-GDS-CAB-CLAMP1U

Technical Specifications:

Hardware Included	(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nyloc Nuts (2) Keys
Hole Pattern	4-Hole AMPS: 1.181" x 1.496"
Materials	High strength composite
Packaging Type	Poly Bag
Output Voltage	5V - 20V @ 3A
Power Output	60W
Input Connector	USB Type-C
