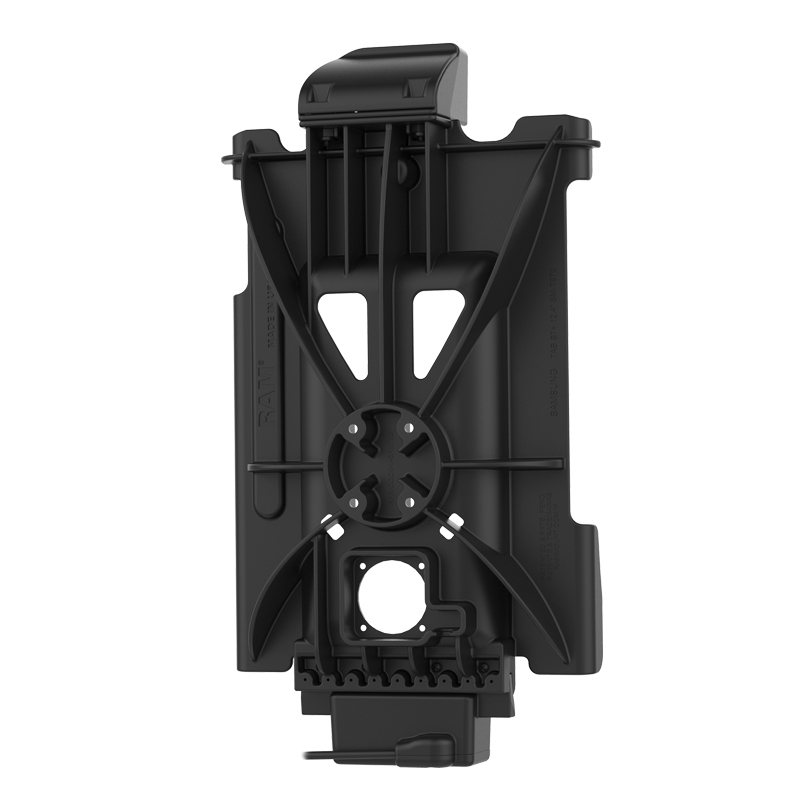

GDS Tough-Dock USB Type-C + Data Sync Samsung Tab S7+ S7 FE 12.4" (RAM-GDS-DOCK-SAM78CU)

The GDS Tough-Dock is the newest vehicle dock in the GDS Tech line of vehicle docks designed to support the Samsung Tab S7+ 12.4" SM-T970 and S7 FE SM-T736B in an IntelliSkin Next Gen protective sleeve for your fleet. Using a USB Type-C power connector, the GDS Tough-Dock supports data syncing and charging capabilities for the Samsung Tab S7+ 12.4" SM-T970 and S7 FE SM-T736B. The GDS Tough-Dock is compatible with RAM ball and socket systems using the integrated 4-hole AMPS pattern. The GDS Tough-Dock is backed by a 3-year warranty.

Key Features:

Spring-loaded vehicle dock featuring GDS® Technology™ for charging capabilities; uses USB Type-C power cord to enable the GDS® Tough-Dock™
Designed specifically for the Samsung Galaxy Tab S10+, S9+, 9 FE+, Tab S8+, S7+ 12.4" (SM-T970) and S7 FE (SM-T736B) wrapped in an IntelliSkin® Next Gen protective sleeve
RAM® Mounts Compatible™ and compatible with the GDS® Hand-Stand™ Hand Strap and Kickstand attachment
Backed by a 3-year warranty

(RAM-GDS-DOCK-SAM78CU)

Documents

GDS® Tech™ Catalog Samsung Catalog

Tough-Dock and Cool-Dock Top Latch (2023 Version)

RAM-GDS-DOCKH2U

GDS Tough-Dock Body Samsung Tab S7+ S7 FE 12.4"

RAM-GDS-DOCKB-SAM78U

GDS Next Gen Dock Bottom Cup USB Type-C

RAM-GDS-DOCK-V9BCU

GDS Cable Clamp

RAM-GDS-CAB-CLAMP1U

Technical Specifications:

Hardware Included	(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nyloc Nuts
Hole Pattern	4-Hole AMPS: 1.181" x 1.496"
Materials	High strength composite
Packaging Type	Poly Bag
Output Voltage	5V - 20V @ 3A
Power Output	60W
Input Connector	USB Type-C
Transfer Speed	5Gbps
