Fishfinder Deck Kit with Dual Humminbird Helix 8-10 and XPLORE Mount
RAM-FF1-D-202-25-202-2
In Stock: 1

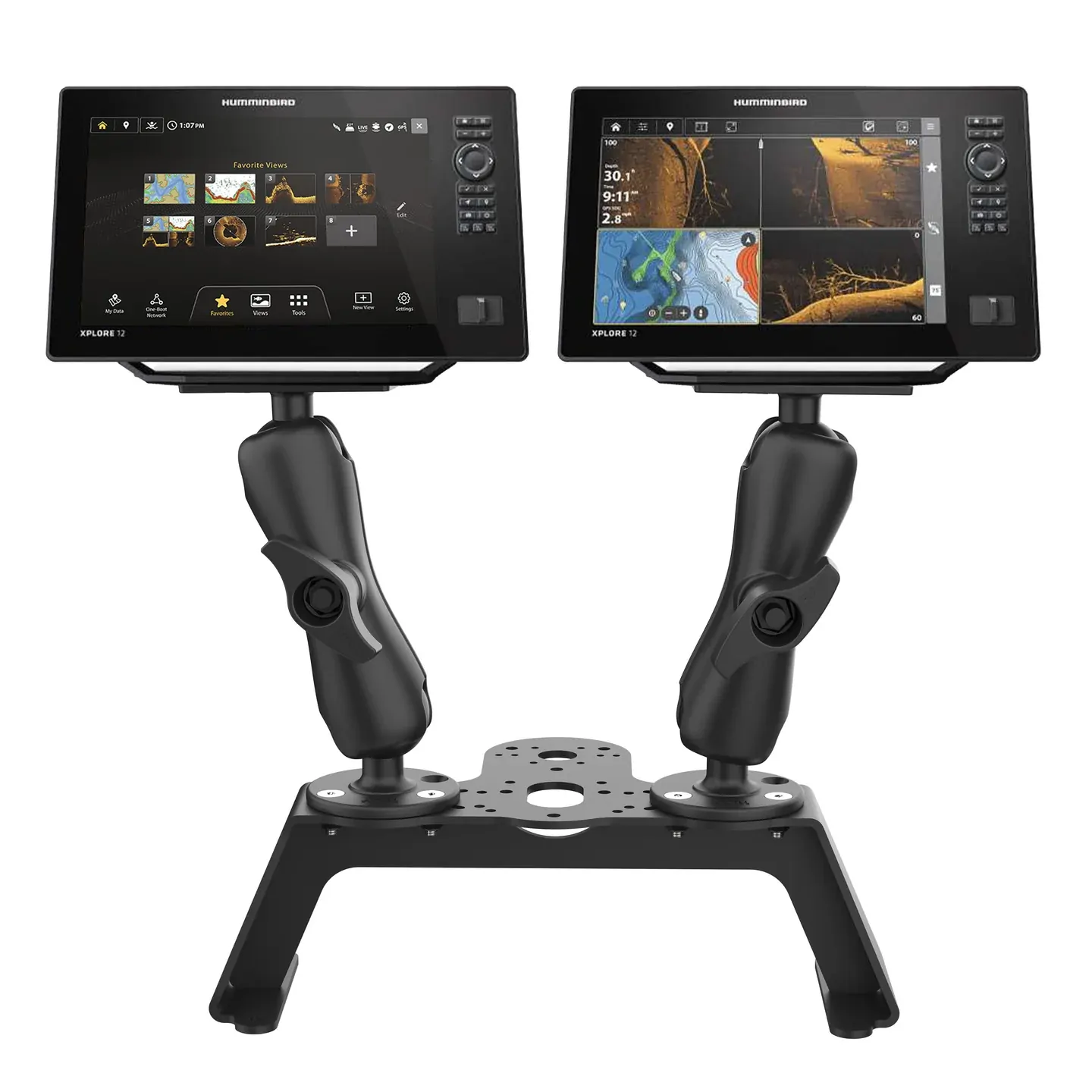

The RAM Fishfinder Deck Kit with Dual Humminbird Helix 8-10 & XPLORE Mount (RAM-FF1-D-202-25-202-2) is a robust, powder-coated aluminum bracket configured with two D size fishfinder mounts that allows you to mount two Humminbird fishfinders side-by-side. Whether you're trolling deep waters or scanning shallow coves, this heavy-duty mount helps you take in more data for smarter navigation and better results. Built for versatility, the Deck Mount features a wide array of pre-drilled hole patterns, including three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for seamless integration with RAM Mounts D size bases. This solution comes with the RAM Foot Stabilizer for added support and stability in rough waters. Crafted from marine-grade aluminum, this fishfinder mounting bracket is corrosion-resistant and engineered to withstand harsh marine environments - lasting longer than your boat and standing up to the roughest conditions. In fact, we guarantee it with a Lifetime Warranty for all RAM components.
- Supports up two fish finders for maximum data intake; ideal for bow or rear-mounted fish finder setups
- Compatible with Humminbird Helix 8-10 & XPLORE
- Includes AMPS and tri-hole patterns for RAM® D size bases
- Marine-grade aluminum construction with powder-coated finish
- Back by a Lifetime Warranty
(RAM-FF1-D-202-25-202-2)
Technical Specifications:

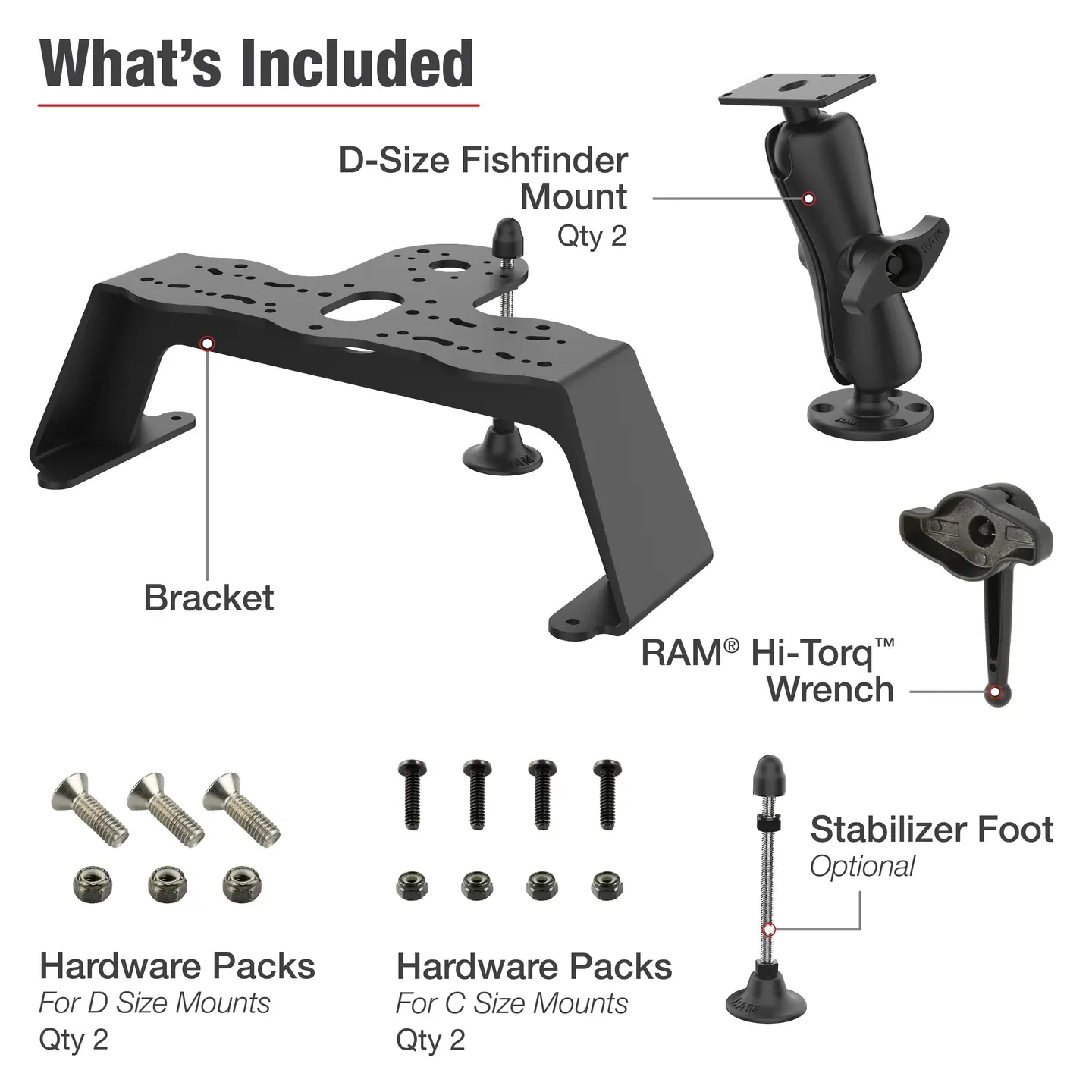

| Hardware Included | Mounting Hardware (1) RAM® Hi-Torq™ Wrench |
|---|---|

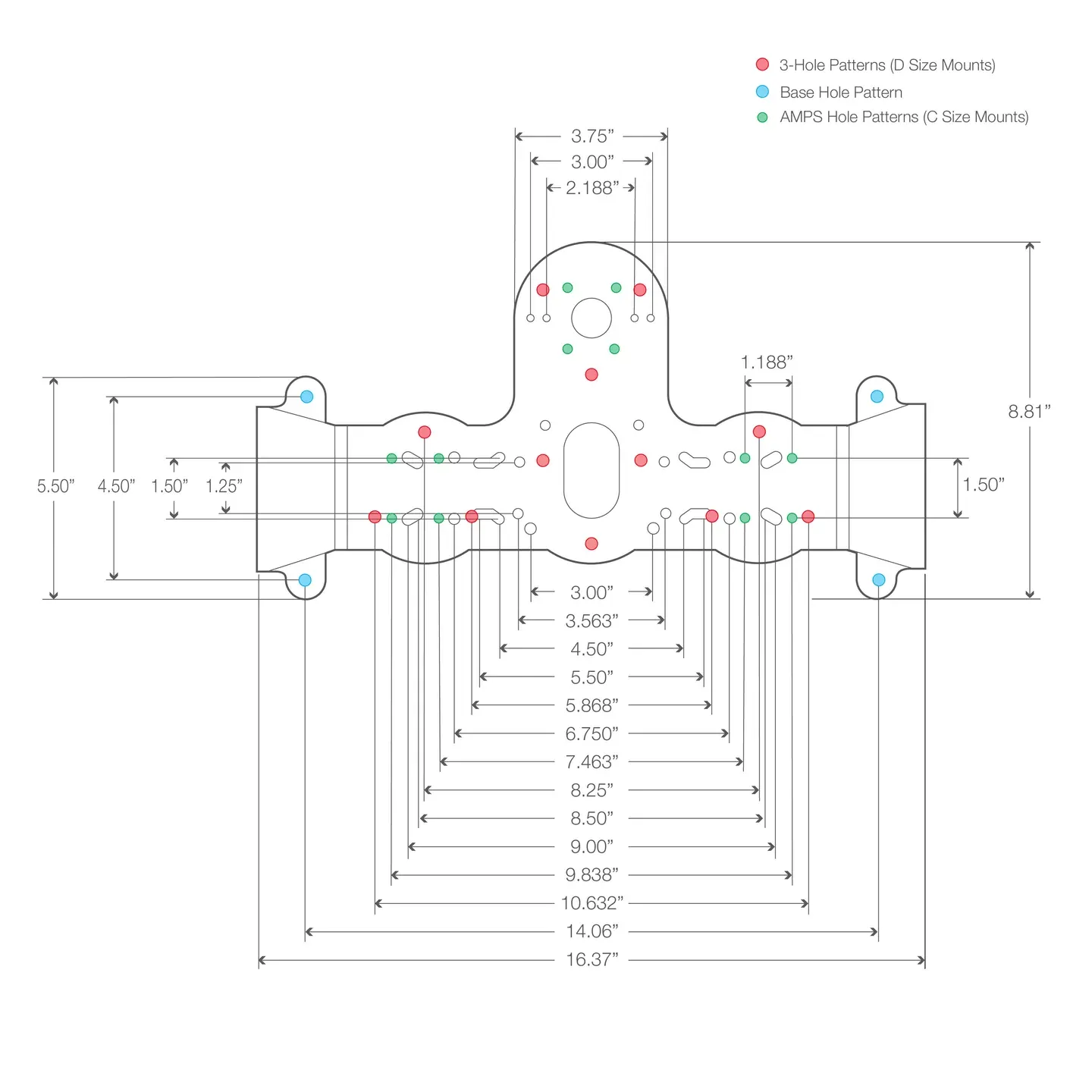

| Hole Pattern | See Drawing |
| Ball Size | D Size (2.25") |
| Weight Capacity | Standard Use: 6 lbs (2.72 kg) Heavy-Duty Use: 5 lbs (2.27 kg) |
| Materials | Marine-grade aluminum |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-FF1-D-202-25-202-2 |
|---|---|
| Barcode | 793442027352 |
| Brand | RAM Mounts |
| Weight | 6.5000 kg |
