Fishfinder Deck Kit with Humminbird Helix 8-10 and XPLORE Mount (RAM-FF1-D-202-25-202)

The RAM Fishfinder Deck Kit with Humminbird Helix 8-10 & XPLORE Mount (RAM-FF1-D-202-25-202) is a robust, powder-coated aluminum bracket configured with a single D size fishfinder mount that allows you to mount two Humminbird fishfinders simultaneously. Whether you're trolling deep waters or scanning shallow coves, this heavy-duty mount helps you take in more data for smarter navigation and better results. Built for versatility, the Deck Mount features a wide array of pre-drilled hole patterns, including three sets of 4-hole AMPS patterns and three sets of tri-hole patterns for seamless integration with RAM Mounts D size bases. This solution comes with the RAM Foot Stabilizer for added support and stability in rough waters. Crafted from marine-grade aluminum, this fishfinder mounting bracket is corrosion-resistant and engineered to withstand harsh marine environments - lasting longer than your boat and standing up to the roughest conditions. In fact, we guarantee it with a Lifetime Warranty for all RAM components.

Key Features:

Supports up two fish finders for maximum data intake; ideal for bow or rear-mounted fish finder setups
Compatible with Humminbird Helix 8-10 & XPLORE
Includes AMPS and tri-hole patterns for RAM® D size bases
Marine-grade aluminum construction with powder-coated finish
Back by a Lifetime Warranty

(RAM-FF1-D-202-25-202)

Technical Specifications:

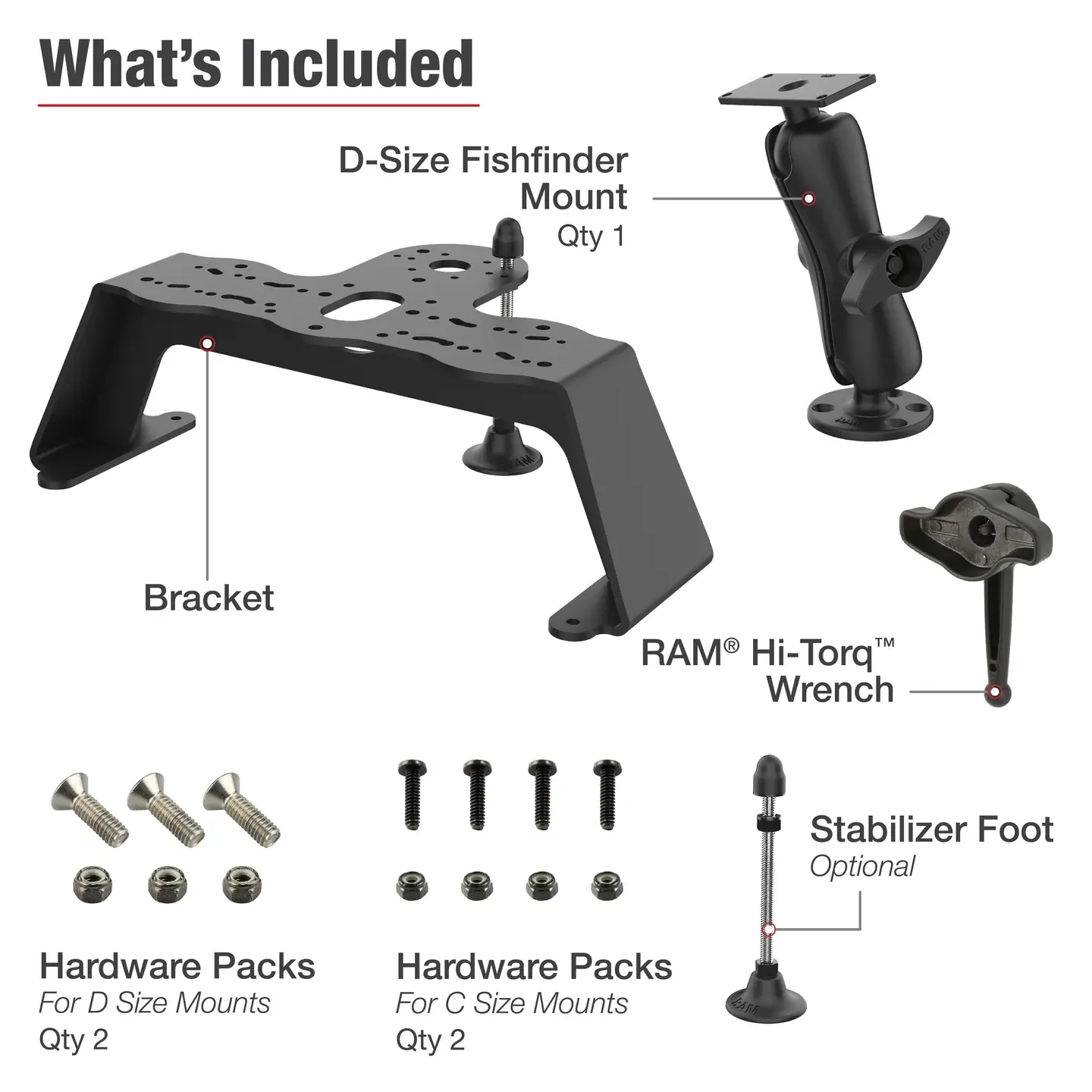

Hardware Included	Mounting Hardware (1) RAM® Hi-Torq™ Wrench (1) Foot Stabilizer

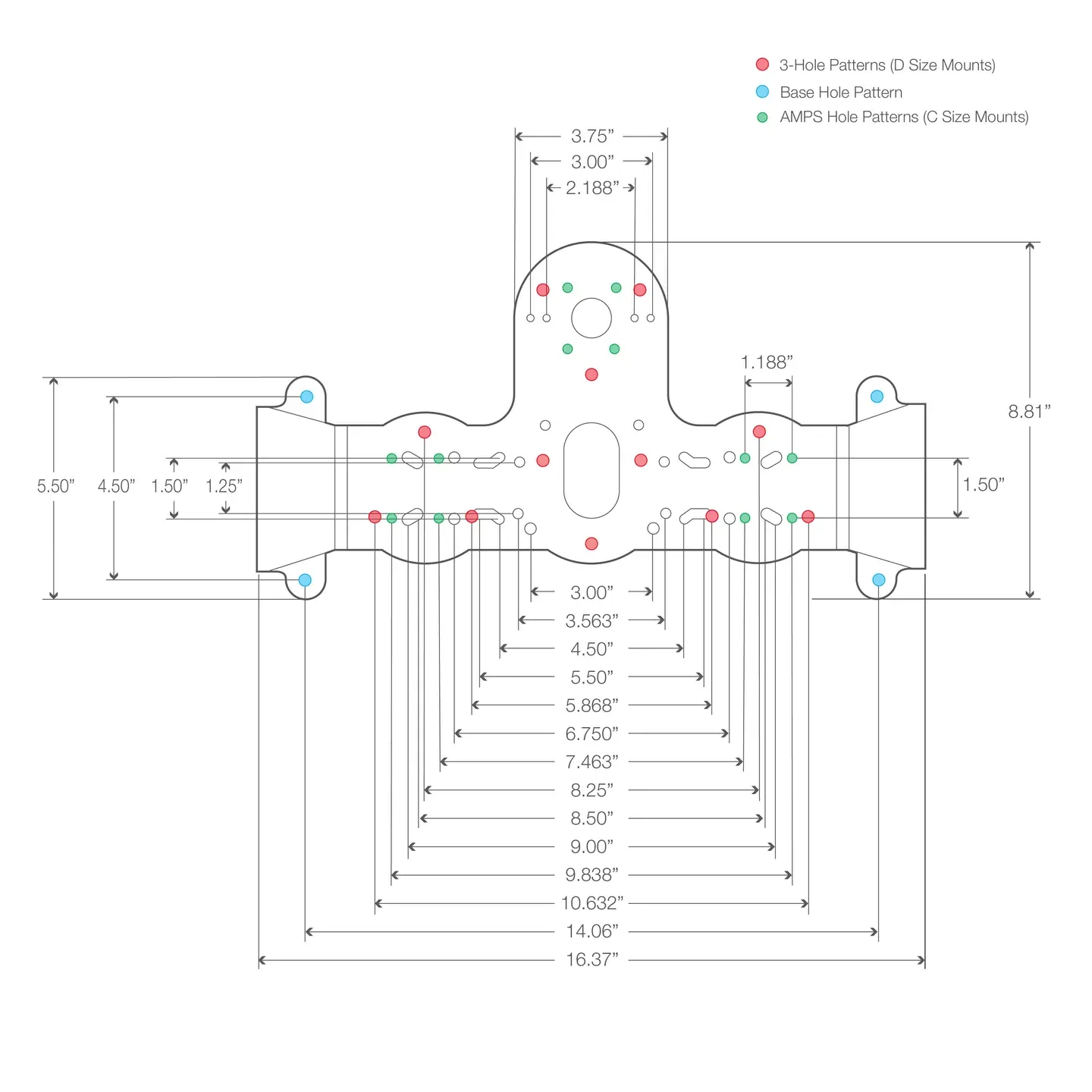

Hole Pattern	See Drawing
Ball Size	D Size (2.25")
Weight Capacity	Standard Use: 6 lbs (2.72 kg) Heavy-Duty Use: 5 lbs (2.27 kg)
Materials	Marine-grade aluminum
Packaging Type	Poly Bag
