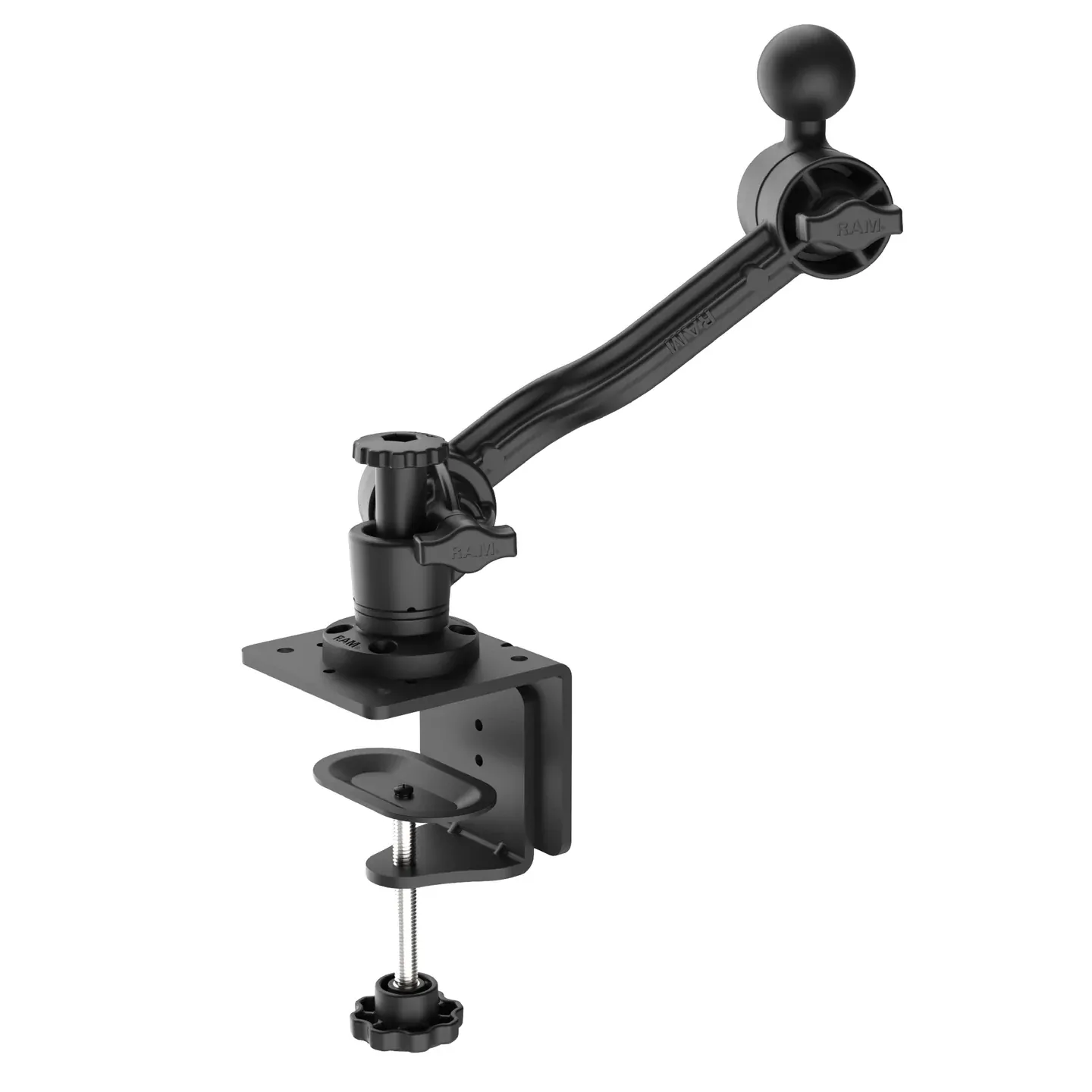

The RAM Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size (RAM-CC1-411D-114-PA-BGU) is a rugged, highly adjustable mounting solution designed for flexible, non-permanent device installation across a wide variety of workspaces. Ideal for desks, tables, carts, and mobile workstations, the heavy-duty clamp securely attaches to surfaces ranging from 0" to 4" thick with no minimum edge depth required. The included Swivel Ratchet Arm provides both height adjustment and rotational positioning, with knobs on either end to secure the arm at the desired height. Loosening the lower knob enables smooth swivel movement for additional positioning flexibility. Topped with a C size RAM ball, this mount integrates seamlessly with existing RAM components and leverages the RAM ball and socket system for secure, customizable device placement.

Key Features:

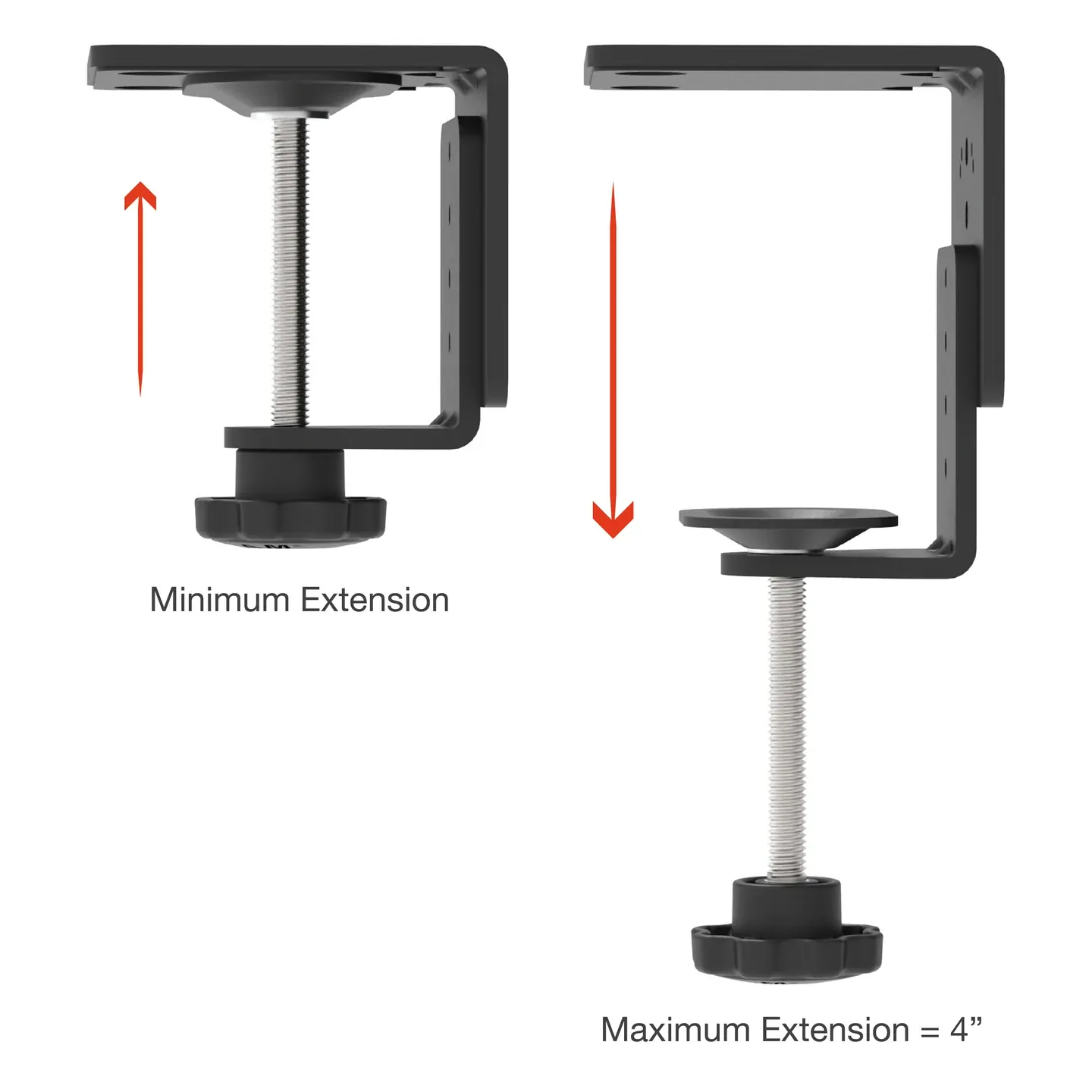

  • Clamp secures to surfaces 0–4” thick

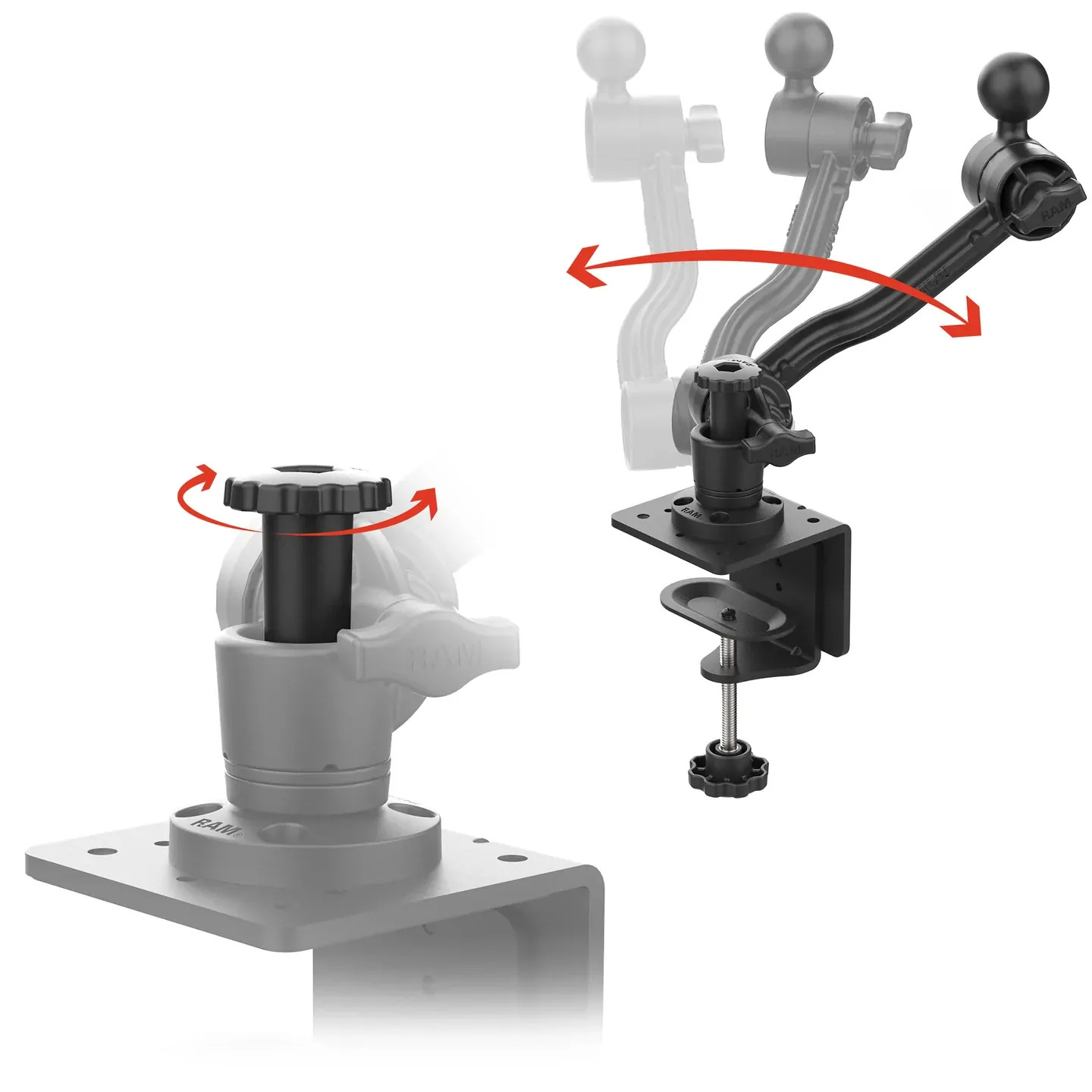

  • Swivel Ratchet Arm provides adjustable height positioning, as well as an integrated swivel functionality
  • Features a C size RAM® ball for compatibility with a wide range of RAM® socket arms, device holders, and mounting accessories
  • Non-permanent mounting solution delivers a stable, professional-grade installation without drilling
  • Backed by a lifetime warranty

(RAM-CC1-411D-114-PA-BGU)

Technical Specifications:

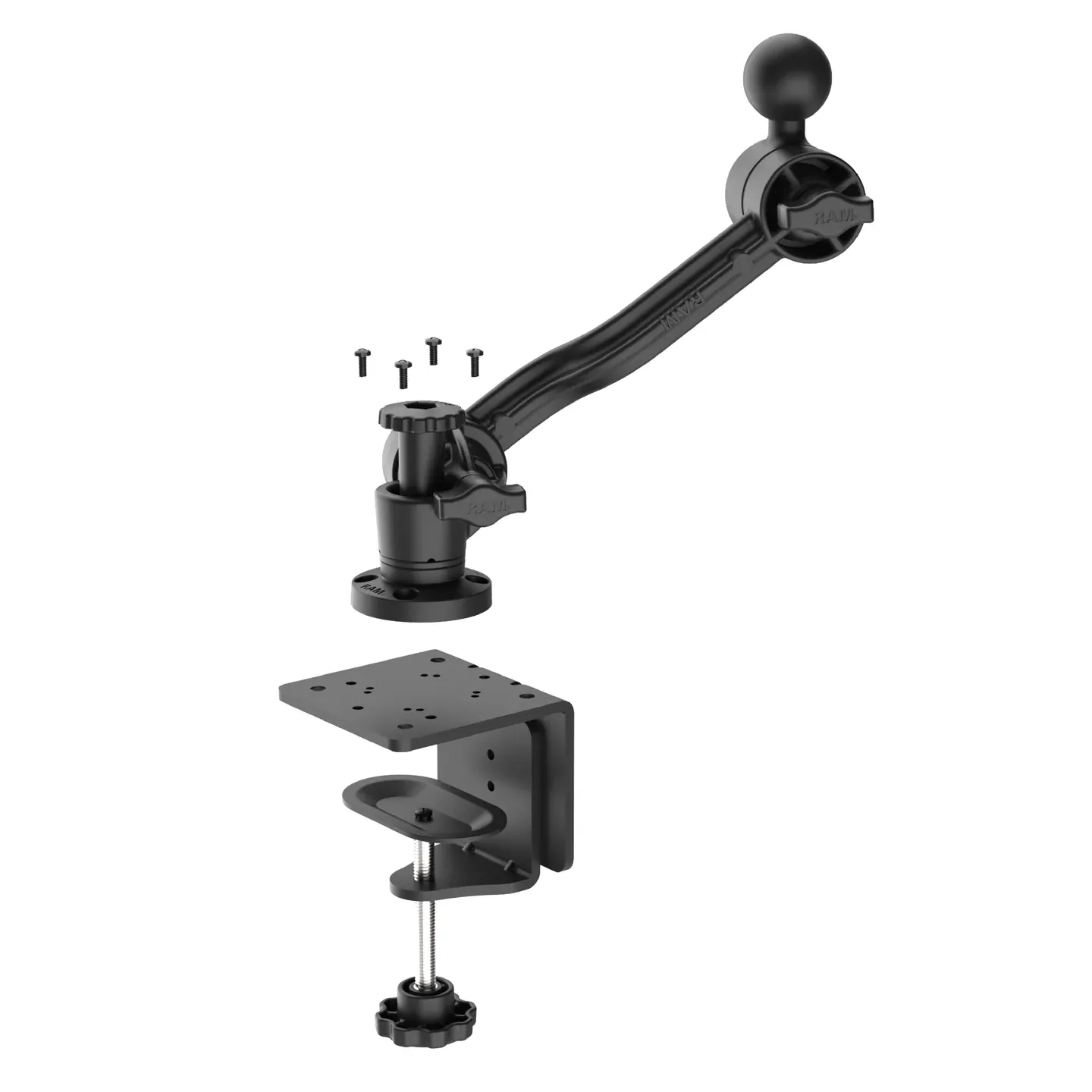

Hardware IncludedAssembly Hardware
Product DimensionsArm + Ball Length: 12.25" (31.12 cm)
Clamp Range0" (0.0 mm) - 4" (101.6 mm)
Ball SizeC Size (1.5")
MaterialsPowder coated steel
High strength composite
Packaging TypePoly Bag

Product Information

SKU RAM-CC1-411D-114-PA-BGU
Barcode 793442036132
Brand RAM Mounts
Weight 1.50 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
