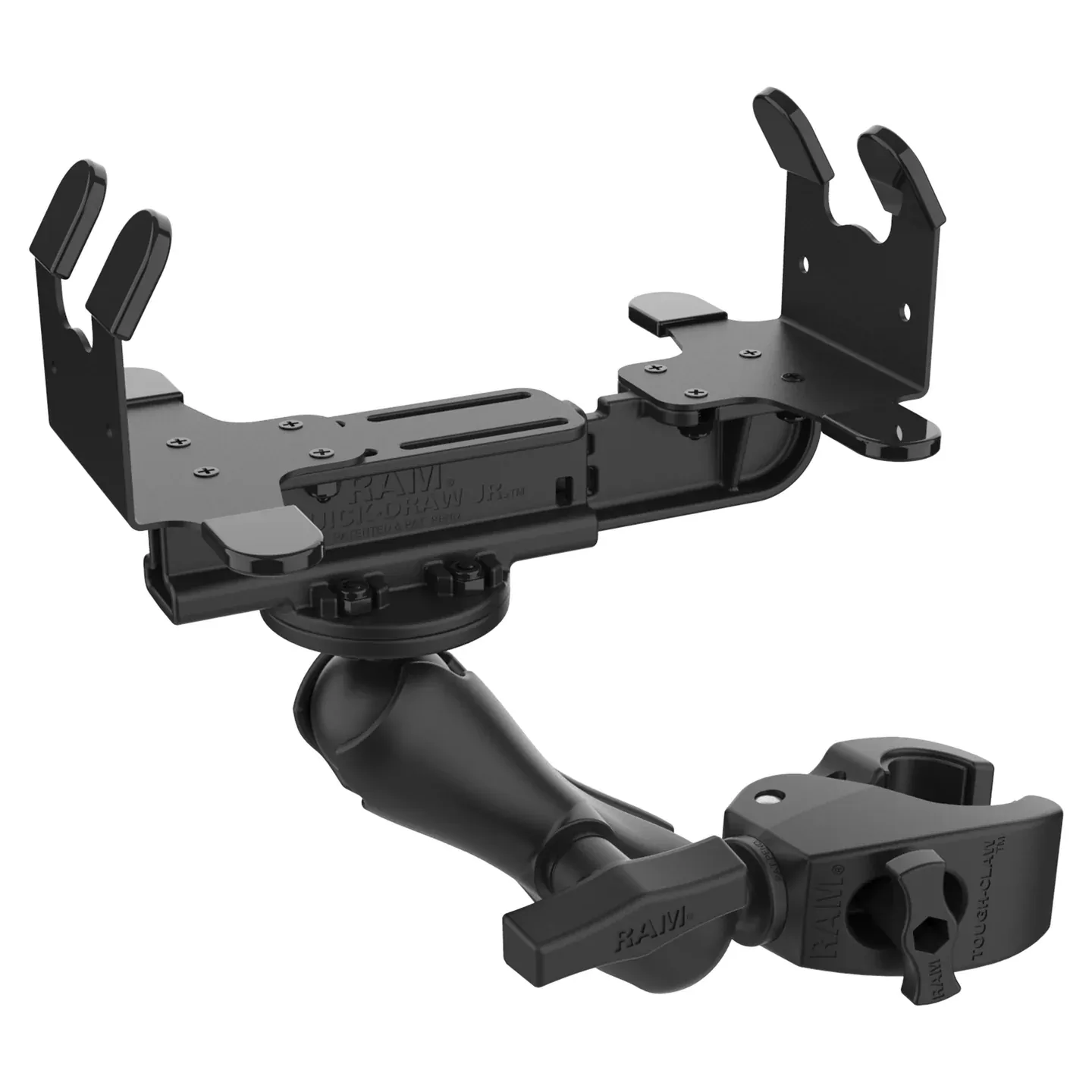

Quick-Draw Jr. Printer Mount with Medium Tough-Claw (RAM-404-VPR-104U)

The RAM Quick-Draw Jr. Printer Mount with Medium RAM Tough-Claw (RAM-404-VPR-104U) is a spring-loaded, rugged mounting solution that securely attaches to rails and bars. At each end of the spring loaded cradle, there are small side clamp plates that fit cleanly around the edges of the device. Paired with the Tough-Claw base, this mount installs quickly and tool-free on round, square, and irregular rails from 1" to 1.6" in diameter. The RAM double socket arm and ball-and-socket system deliver near-infinite adjustability, making it easy to position your printer exactly where you need it. Be sure to verify your printer’s dimensions, including any case or sleeve, to ensure proper fit.

Key Features:

Spring-loaded RAM® Quick-Draw™ holder provides easy removal of your printer; verify compatibility above
Medium Tough-Claw™ base accommodates round, square, and odd-shaped rails and bars from 1" to 1.6" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
Backed by a lifetime warranty

(RAM-404-VPR-104U)

Universal Small Printer Cradle

RAM-VPR-104

38mm Ball with Round Base

RAM-202U

Double Socket Arm C Size

RAM-201U

Medium Tough-Claw Clamp C-Size

RAP-404U

Technical Specifications:

Hardware Included	Assembly Hardware
Holder Dimensions	Max Height: 1.75" (4.45 cm) Width Range: 5.625" (14.29 cm) - 9.5" (24.13 cm)
Clamp Range	1" (25.4 mm) - 1.6" (40.6 mm) diameter
Socket To Socket Length	4.66" (11.84 cm)
Ball Size	C Size (1.5")
Weight Capacity	Standard Use: 4 lbs (1.81 kg)\r Heavy-Duty Use: 3 lbs (1.36 kg)
Materials	Marine-grade aluminum High strength composite Powder coated steel
Packaging Type	Poly Bag

Product Information

SKU	RAM-404-VPR-104U
Barcode	793442034039
Brand	RAM Mounts
Weight	1.75 kg
Warranty	RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
