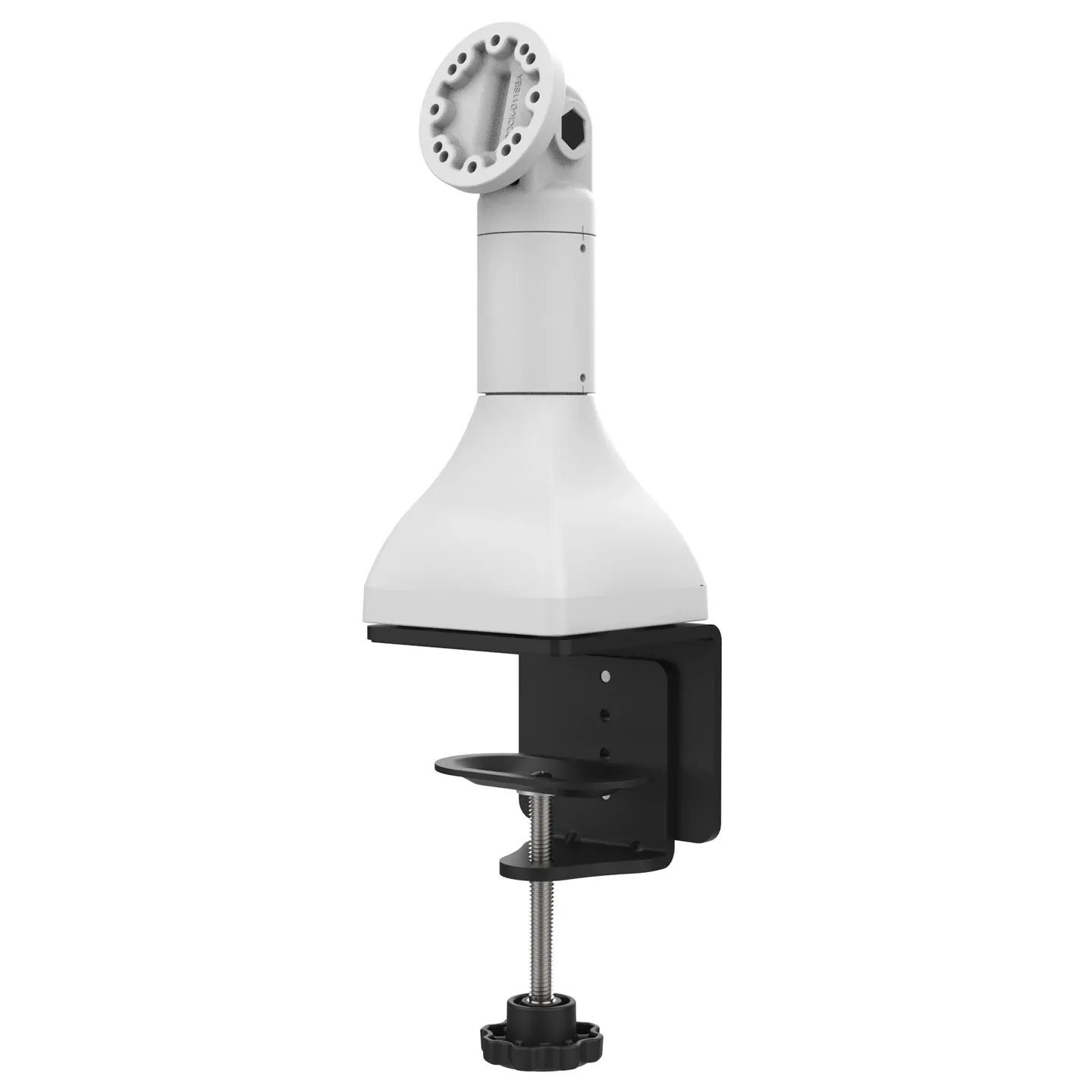

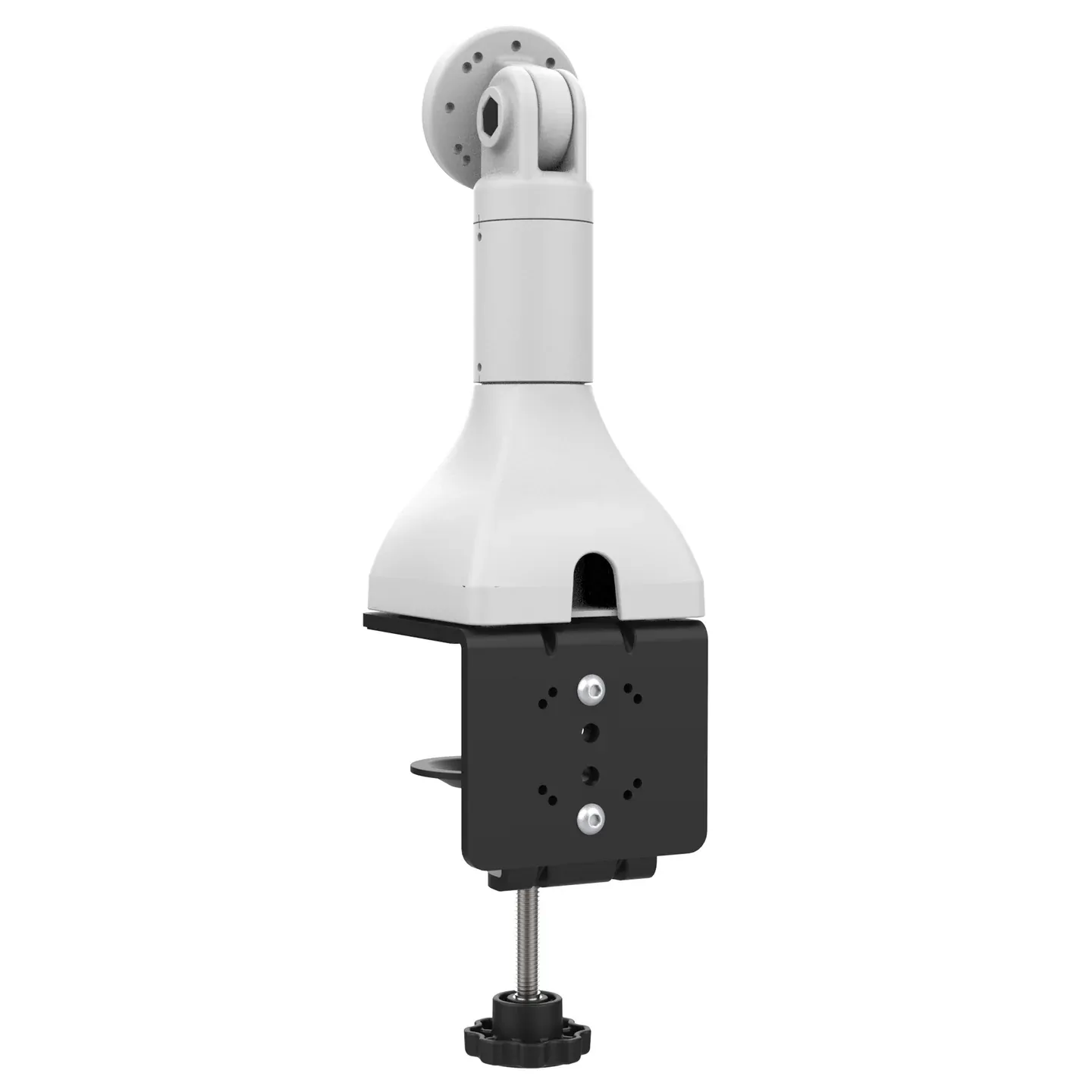

The RAM 7" Pedestal Mount with AMPS Pattern & C-Clamp Base - Gray (RAP-D11-7-SBA-GRY-CC1) is a free-standing, 7-inch pedestal that allows you to mount any RAM powered dock or passive holder to create a workstation that maintains the mobility of your tablet. Designed for flexibility and stability, this solution features a 180-degree swivel base and 180-degree device tilt, allowing for optimal viewing, positioning, and screen-sharing with co-workers or customers. Ideal for healthcare, retail, hospitality, food service, and other point-of-sale or customer-interaction environments, this mount supports 2-hole and 4-hole AMPS pattern for broad device compatibility alongside RAM docks and holders. The c-clamp base secures firmly to surfaces ranging from 0" up to 4" in thickness-no minimum edge depth required. The tool-less adjustment knob allows for fast installation and easy removal, making it perfect for temporary workstations, demo stations, or environments where adaptability is key. Made in a light gray color, the mount blends seamlessly into clean, modern, and aesthetic environments where subtlety and professional appearance matter.

Key Features:
  • 7-inch pedestal stand with 2-hole and 4-hole AMPS pattern
  • AMPS hole pattern supports connection to a wide variety of devices, RAM® docks, and RAM® holders

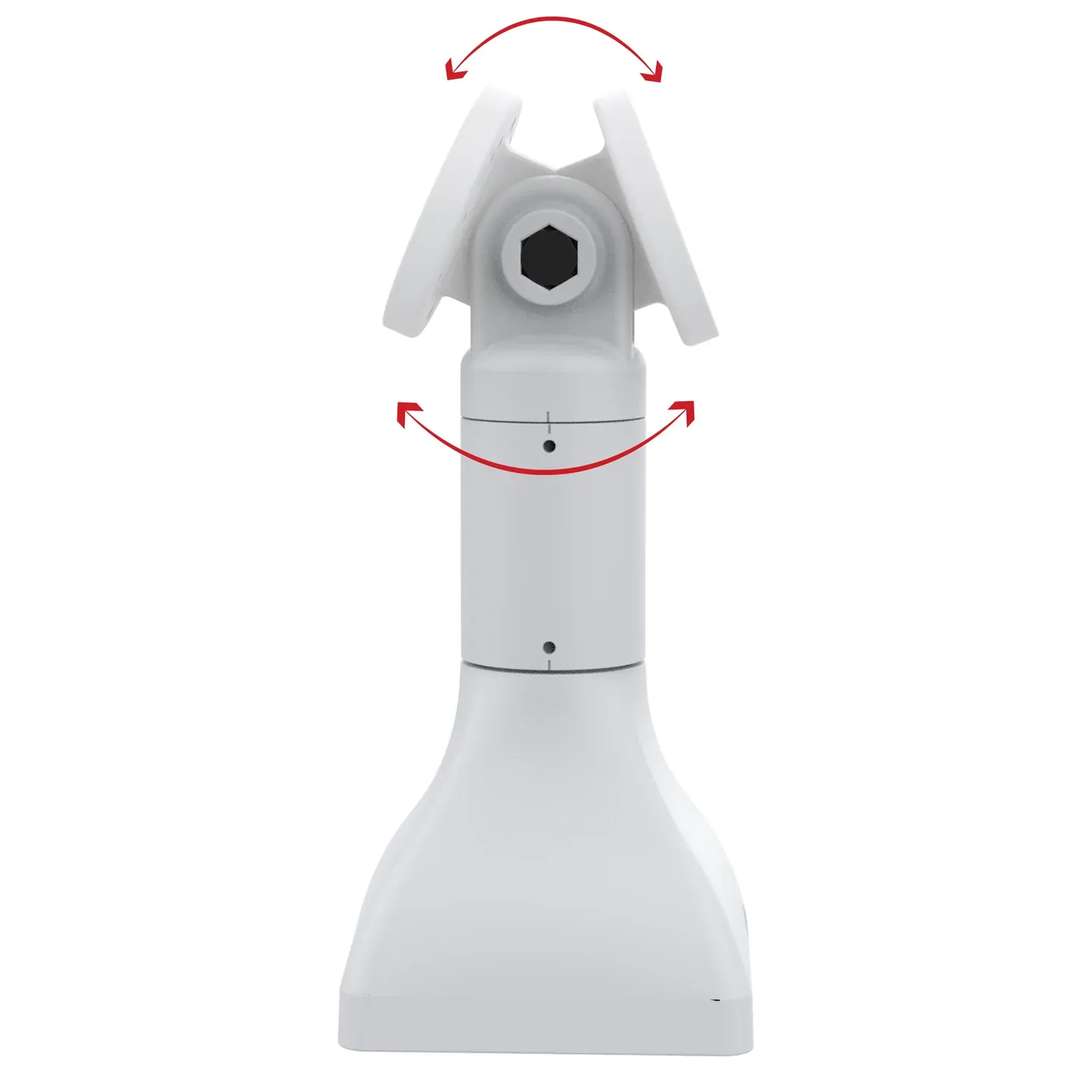

  • Dock swivels 180 degrees and enables connected devices to tilt 180 degrees

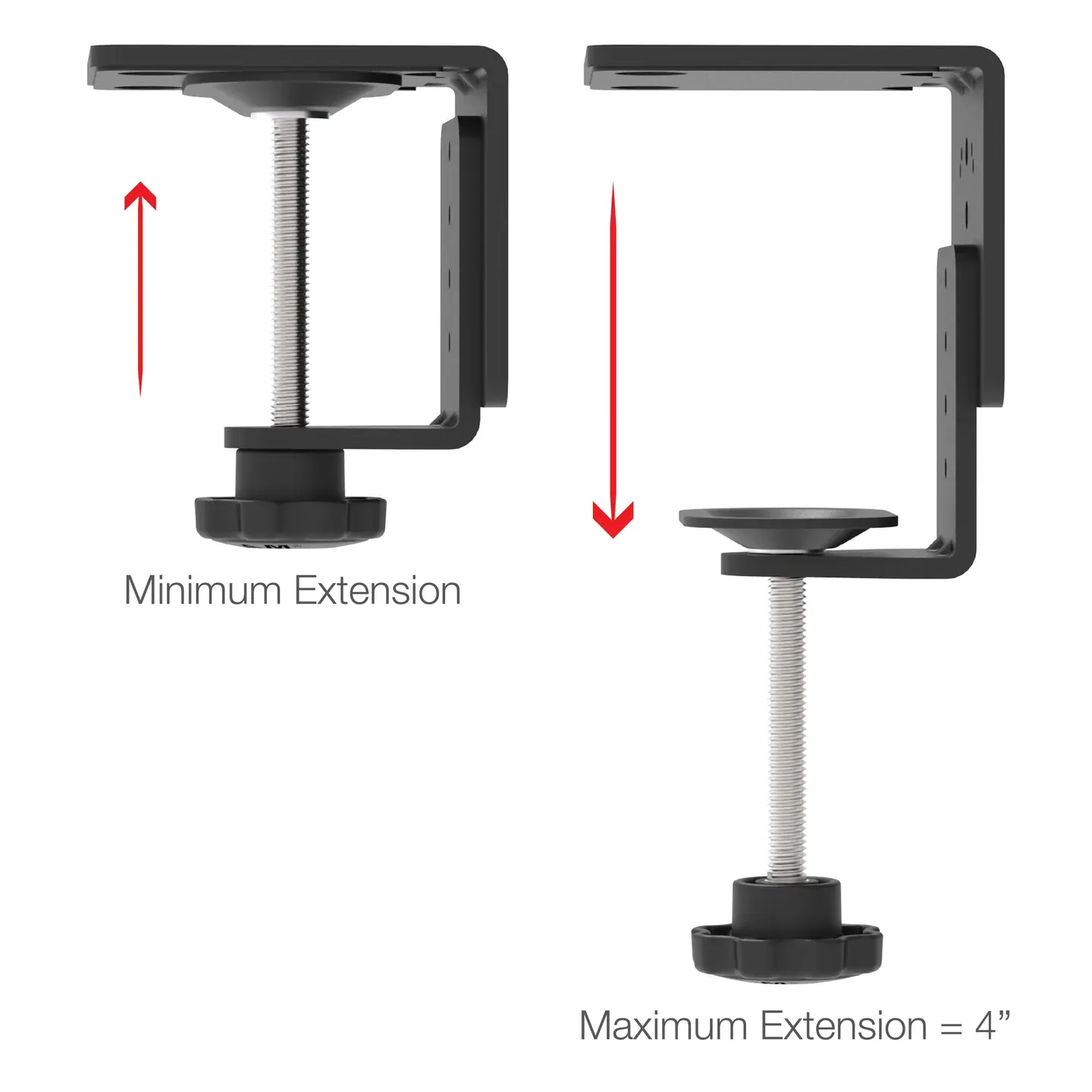

  • C-clamp base secures to surfaces 0–4” thick
  • Backed by a lifetime warranty

(RAP-D11-7-SBA-GRY-CC1)

Technical Specifications:

Hardware IncludedAssesmbly Hardware

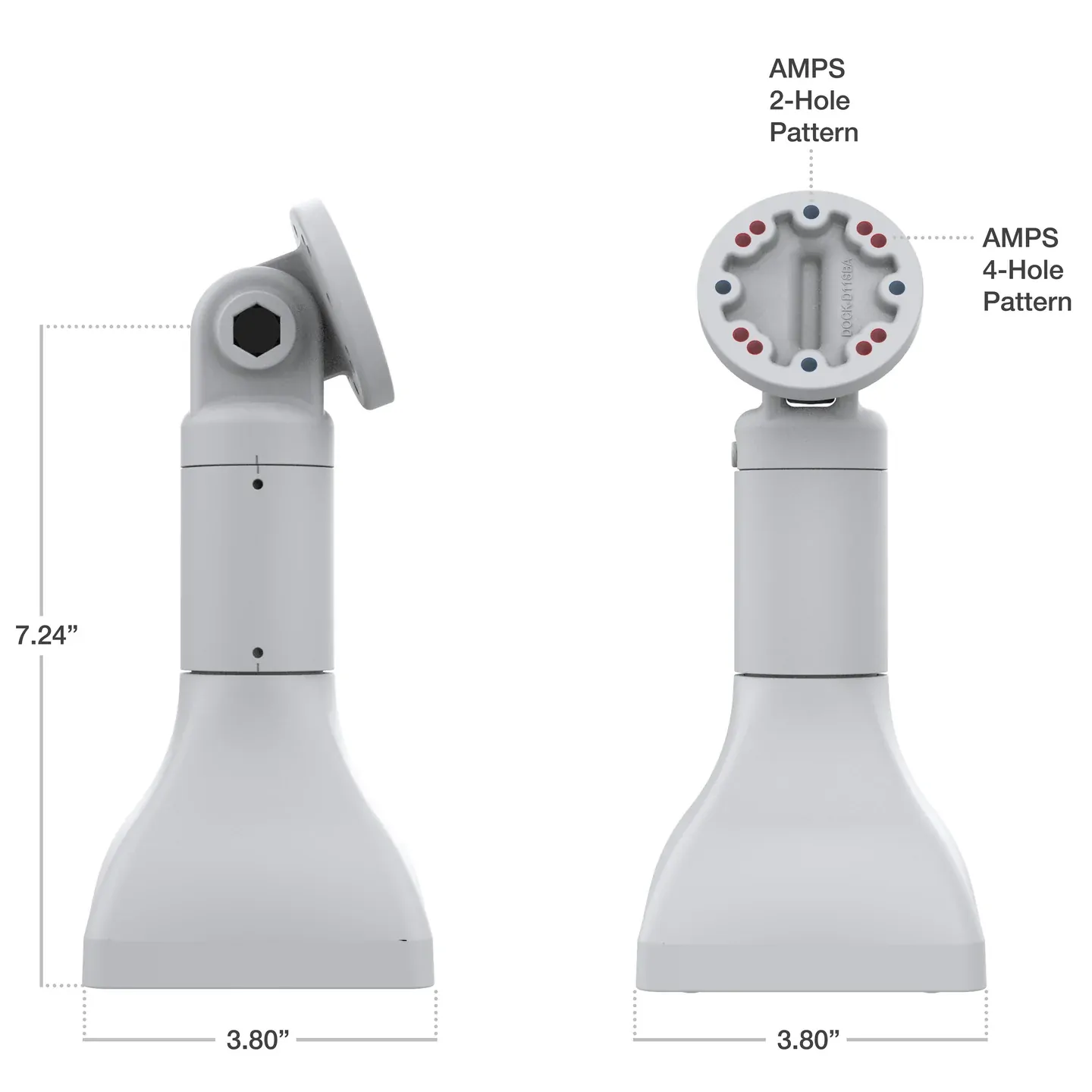

Product DimensionsHeight from Base to Tilt Bolt: 7.24" (18.39 cm)
Base Width: 3.8" (9.65 cm)
Base Depth: 3.8" (9.65 cm)
Clamp Range0" (0.0 mm) - 4" (101.6 mm)
Hole Pattern4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS 1.912"
MaterialsHigh strength composite
Powder-Coated Steel
Packaging TypeBox

Product Information

SKU RAP-D11-7-SBA-GRY-CC1
Barcode 793442033216
Brand RAM Mounts
Weight 1.92 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
