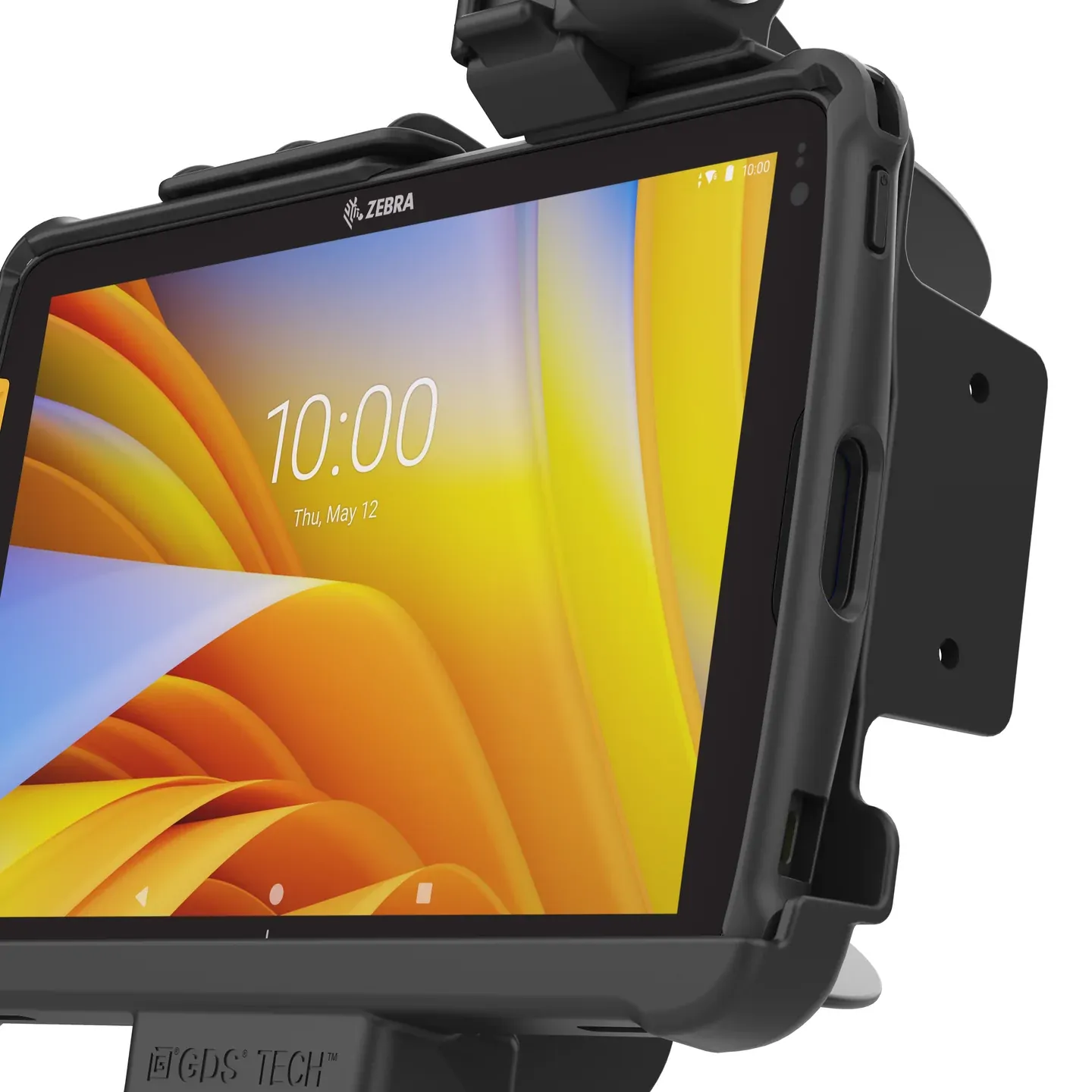

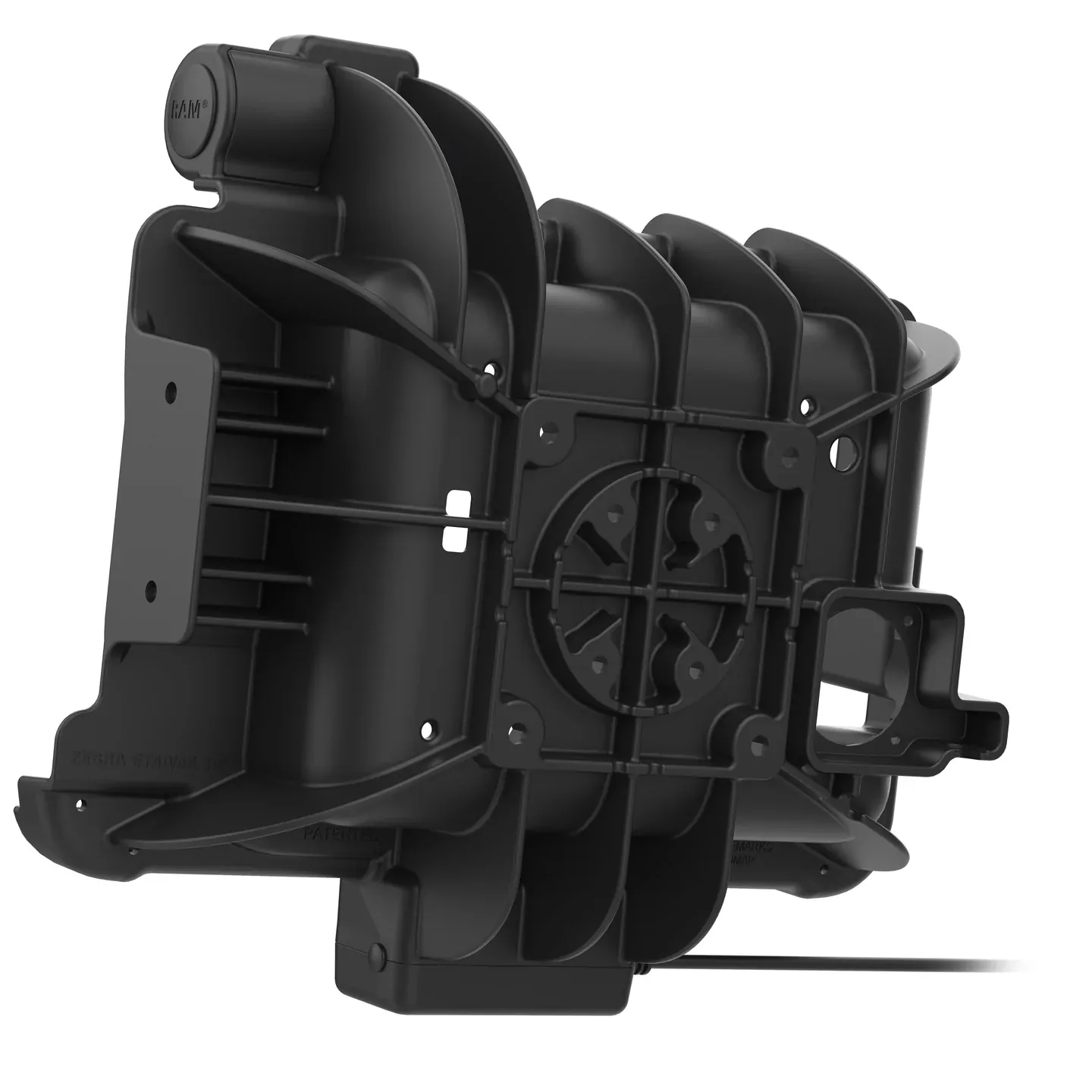

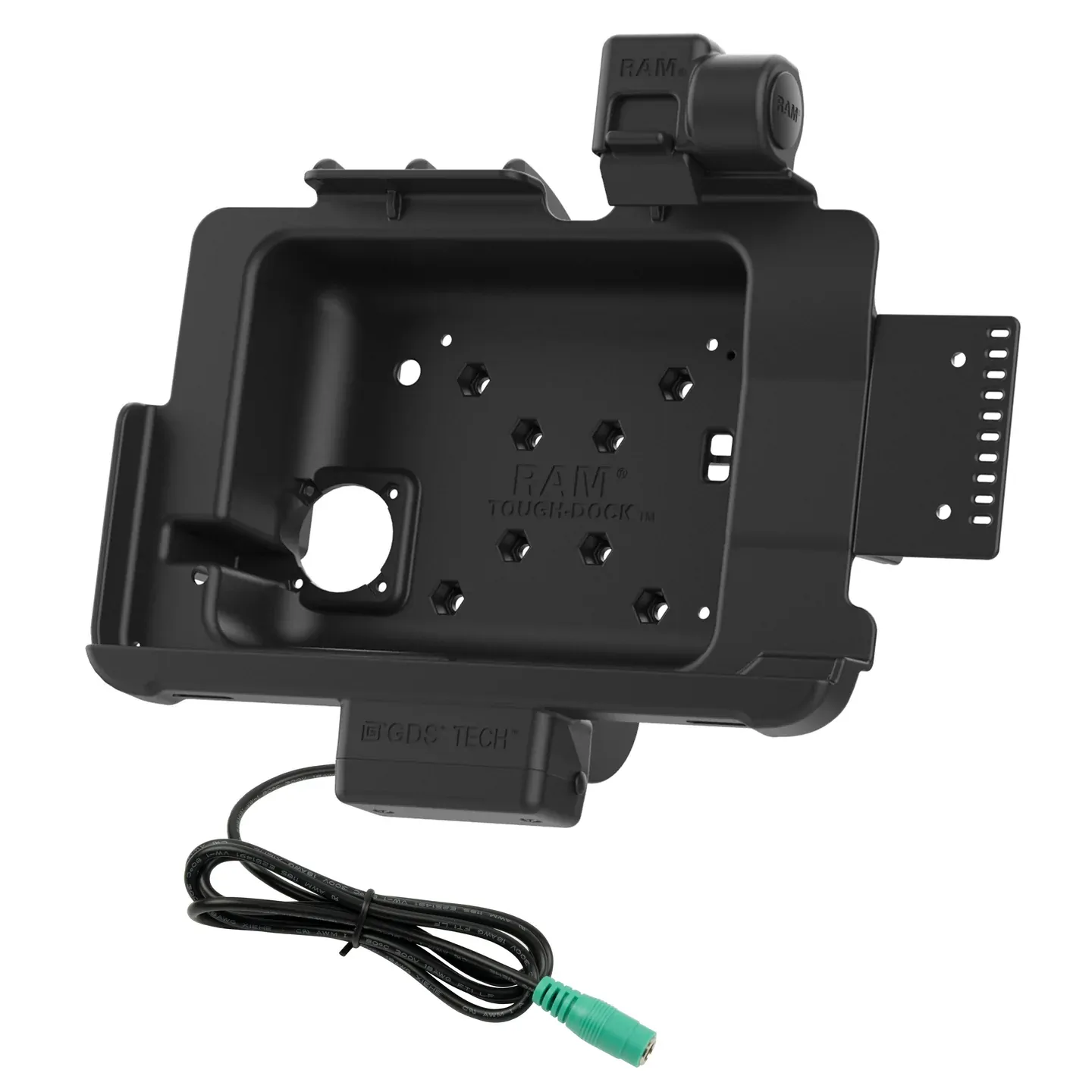

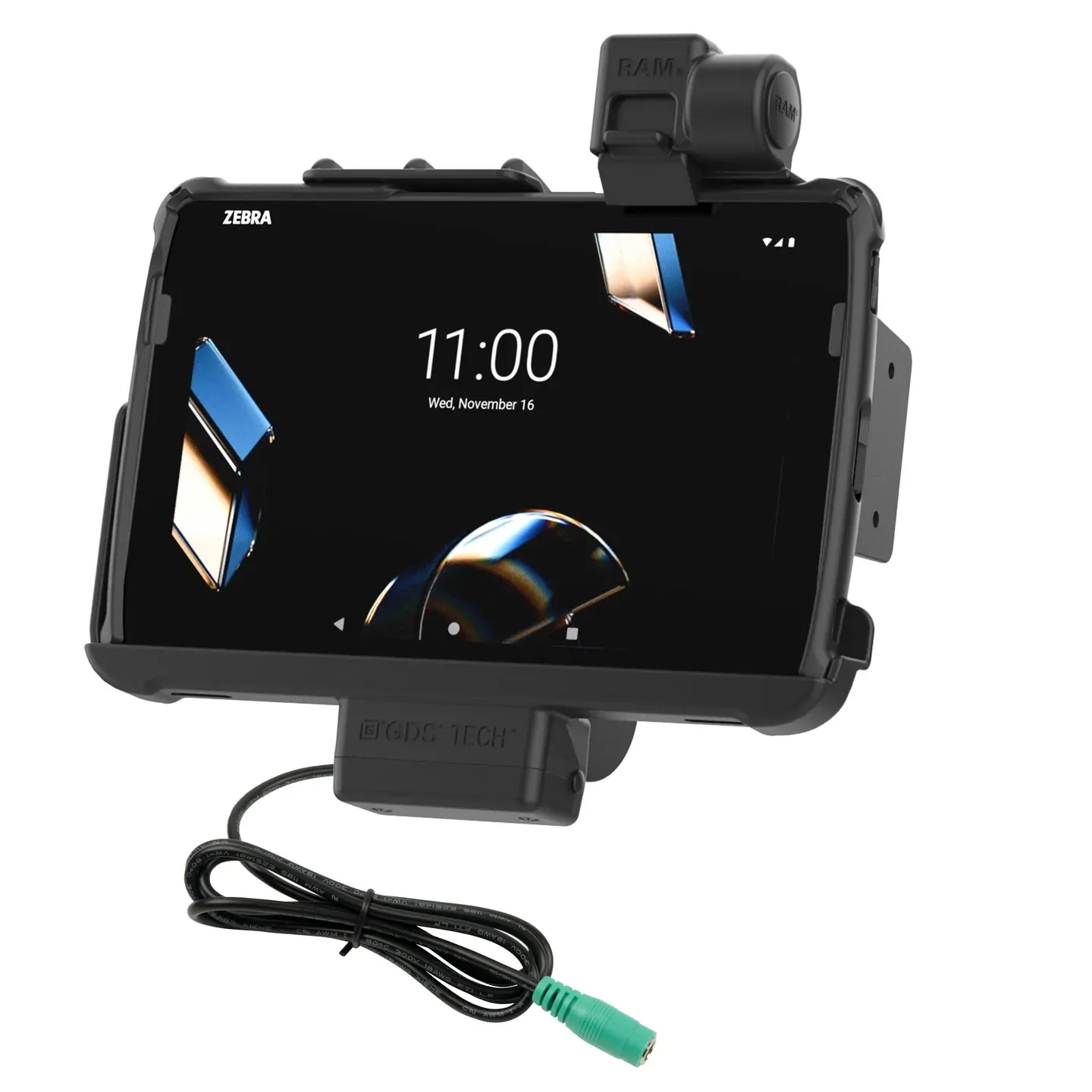

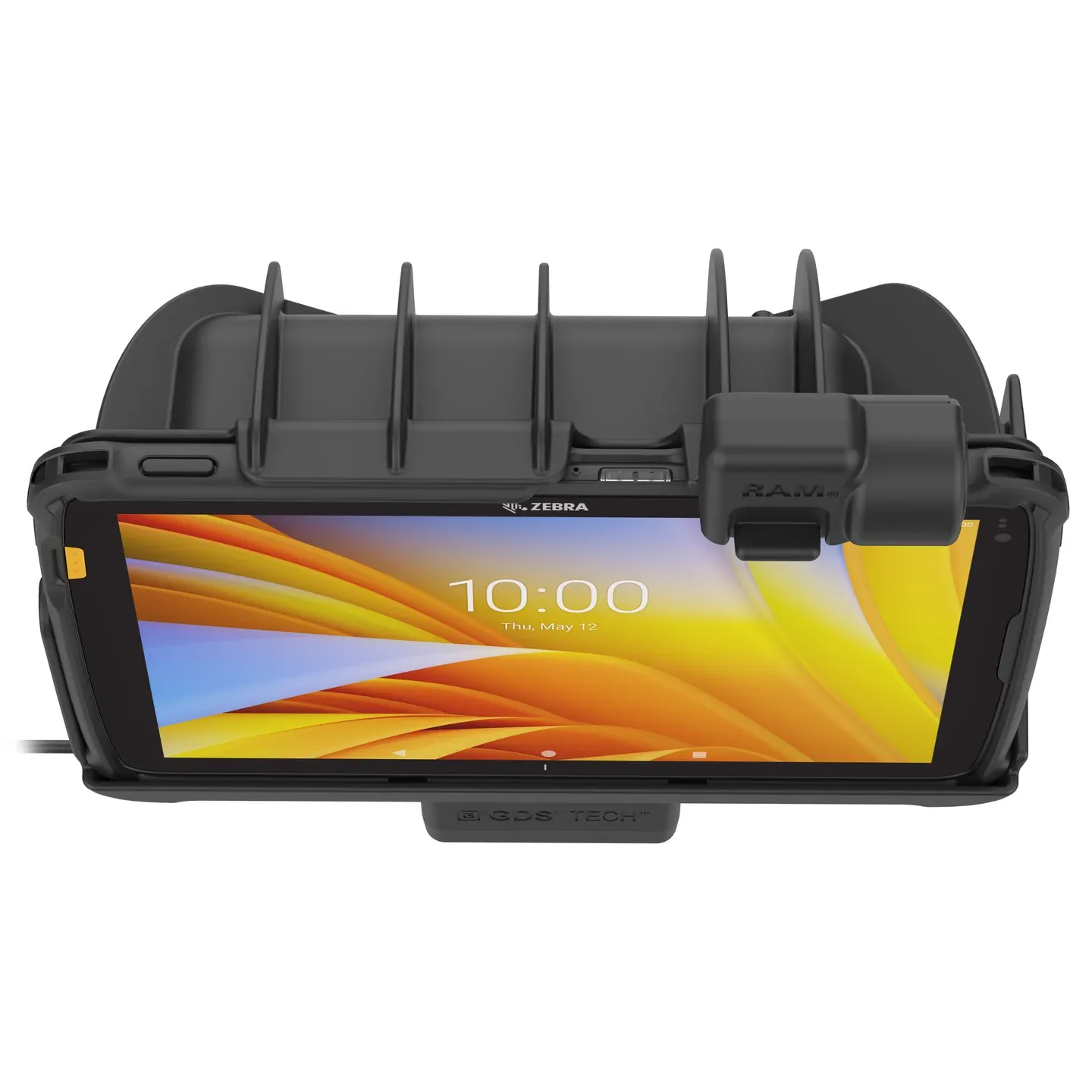

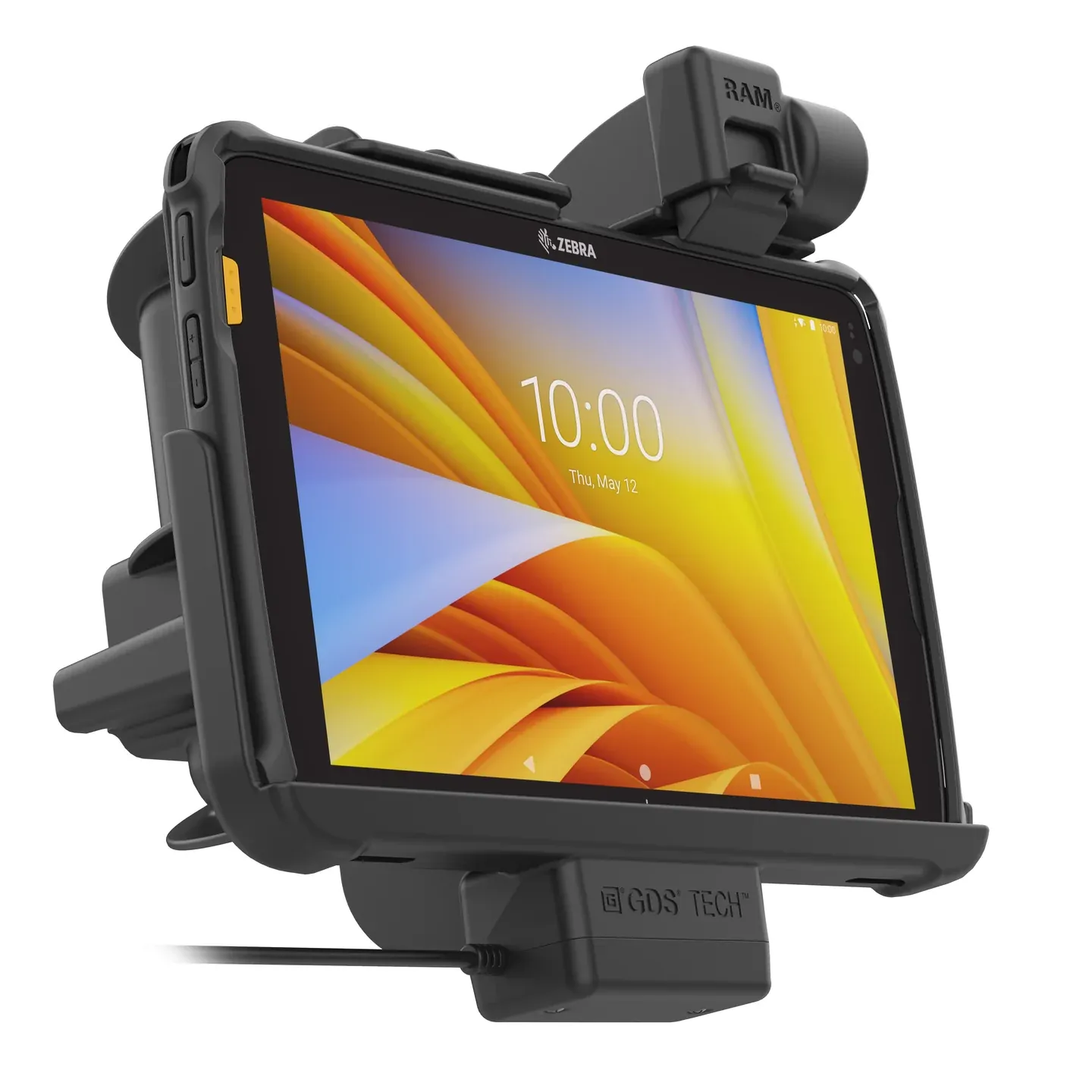

For frequent docking and undocking, this dock works with the Zebra ET401 10" with Rugged Boot or RAM Skin. This RAM Tough-Dock(RAM-HOL-ZE45PU) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any C and D size RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.

Key Features:
  • Form-fit dock designed specifically for the Zebra ET401 10" tablets with Rugged Boot, including a top latch design for frequent docking and undocking of the tablet
  • When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked
  • Compatible with RAM® Skin™, as well as C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm
  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® Ergo™ accessories
  • Backed by a 3-year warranty

(RAM-HOL-ZE45PU)

Technical Specifications:

Hardware Included(1) Side bracket for accessory mounting
(4) #8-32 x 5/8” Machine Screws
(2) #8-32 x 1/2” Machine Screws
(6) #8-32 Nyloc Nuts
(4) #10-24 x 5/8” Machine Screws
(4) #10-24 Nyloc Nuts
(2) Small Cable Ties
Hole Pattern75 x 75mm VESA
4-Hole AMPS: 1.181" x 1.496"
MaterialsHigh strength composite
Packaging TypePoly Bag
Input Connector5.5mm DC Connector
Input Cable Length1 Meter
CertificationsRoHS
WEEE
CE
UKCA

Product Information

SKU RAM-HOL-ZE45PU
Barcode 793442032899
Brand RAM Mounts
Weight 1.05 kg
Warranty 3 year warranty
