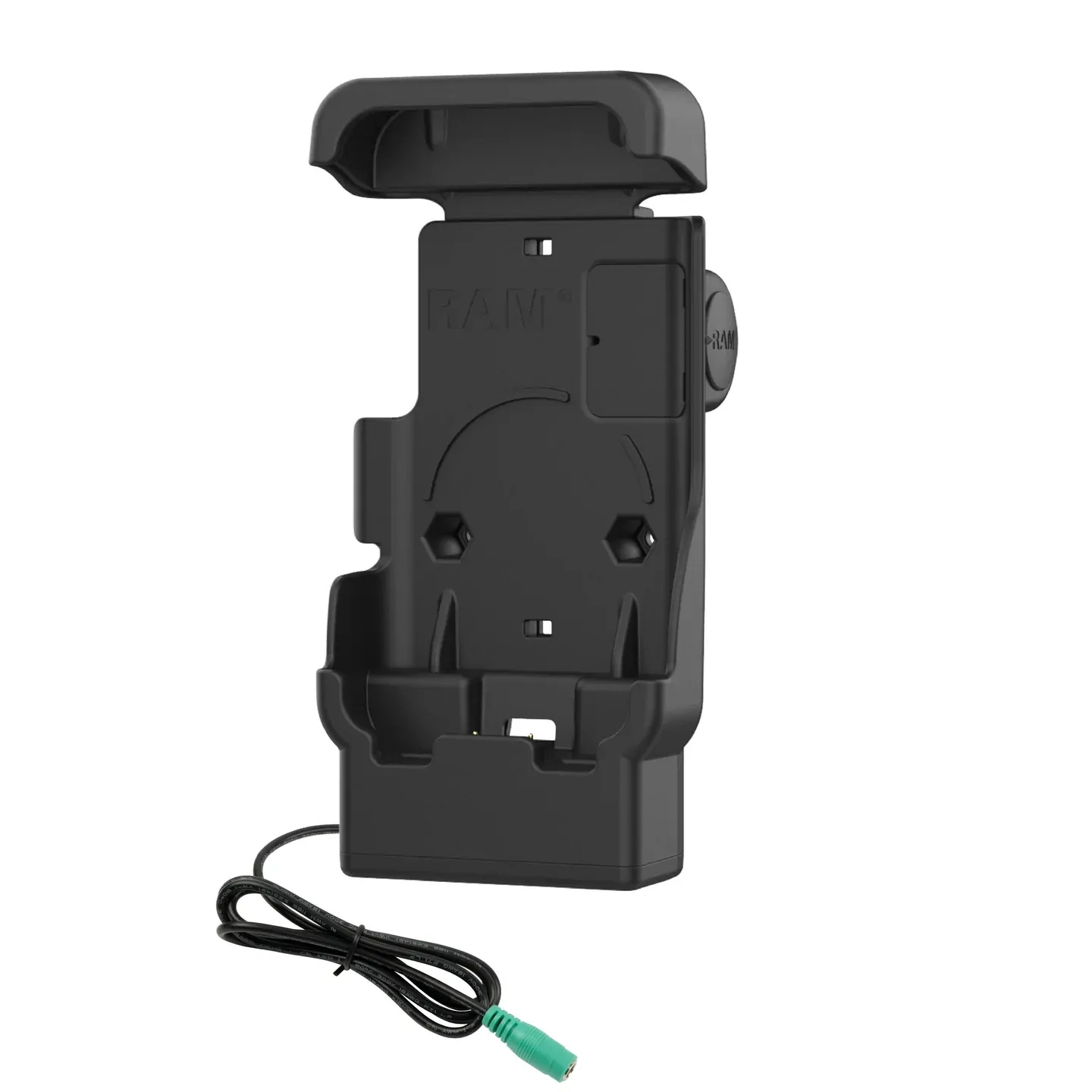

Powered Dock with Pogo Pins for Zebra TC501 (RAM-HOL-ZE41-2U)

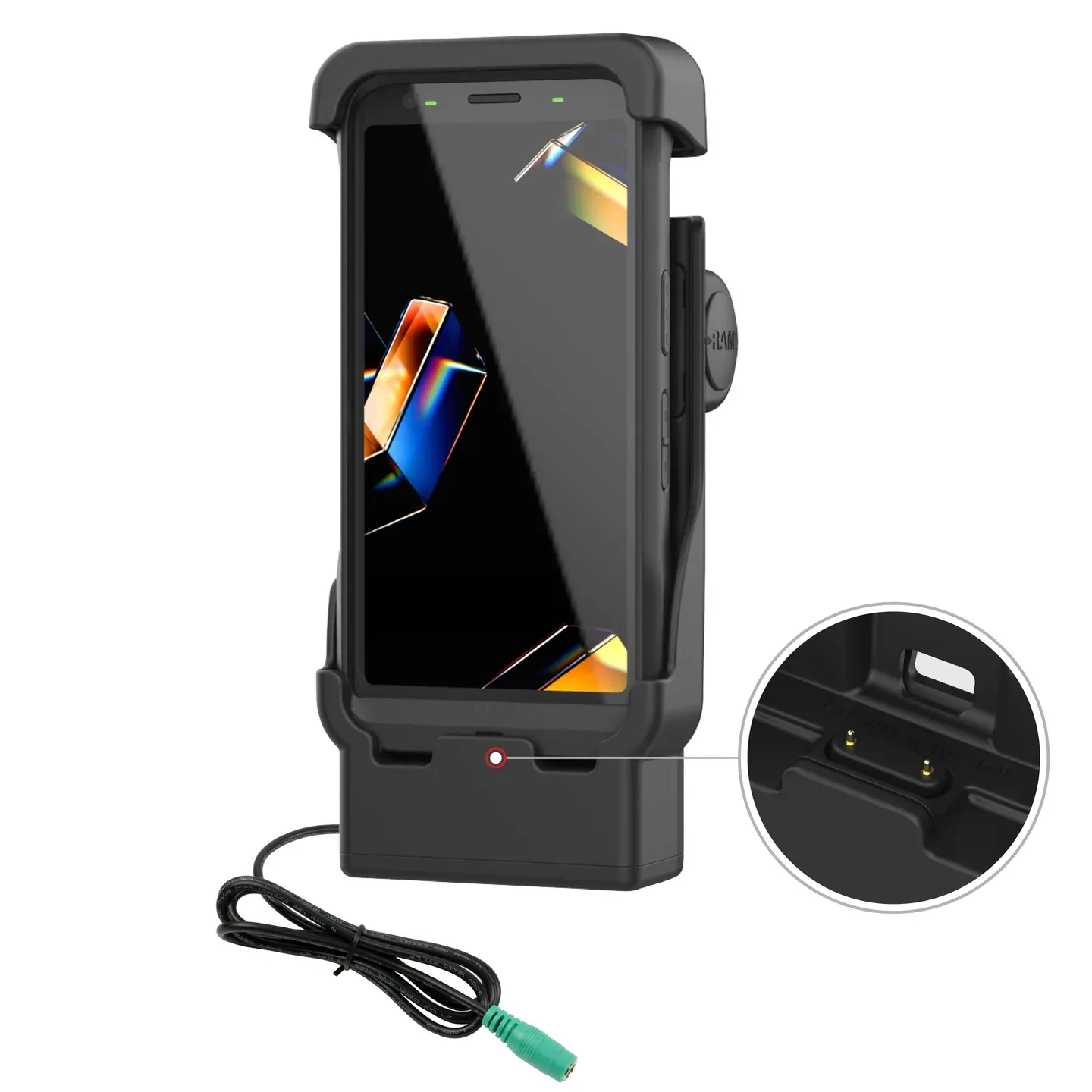

The RAM Powered Dock with Pogo Pins for Zebra TC501 (RAM-HOL-ZE41-2U) is built to perform in demanding, real-world workflows. By charging through the device’s pogo pad docking contacts, the pogo pin design protects the TC501’s charge port while enhancing overall durability. A spring-loaded mechanism enables quick, one-handed docking and removal, keeping operators efficient on the move. The integrated top-cup cutout allows access to buttons, ports, and scanners without removing the device, so productivity never slows down. Complete your mounting solution with confidence-this holder is RAM Compatible and features a 2-hole AMPS pattern for seamless integration with a diamond ball adapter.

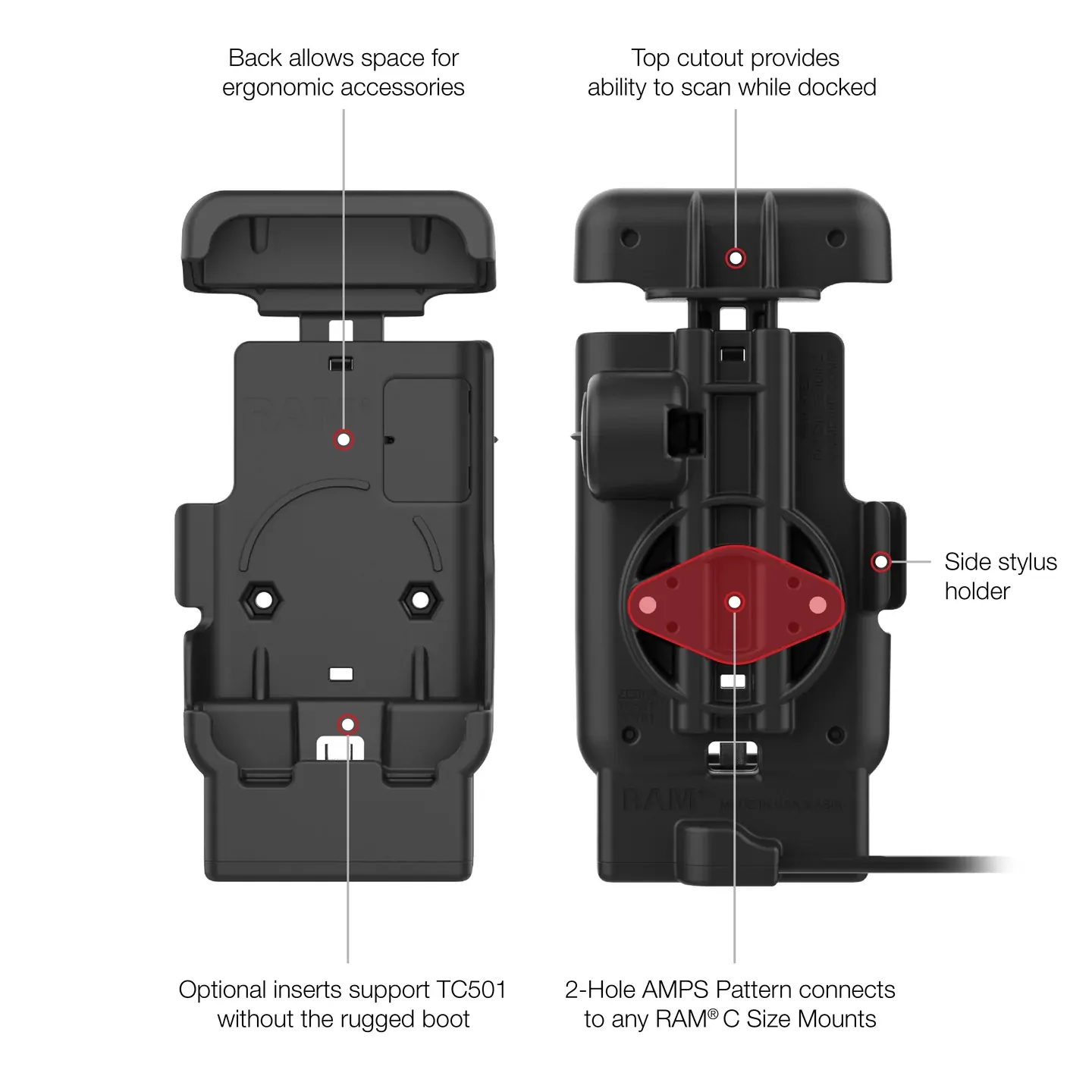

Key Features:

Spring-loaded powered dock for Zebra TC501

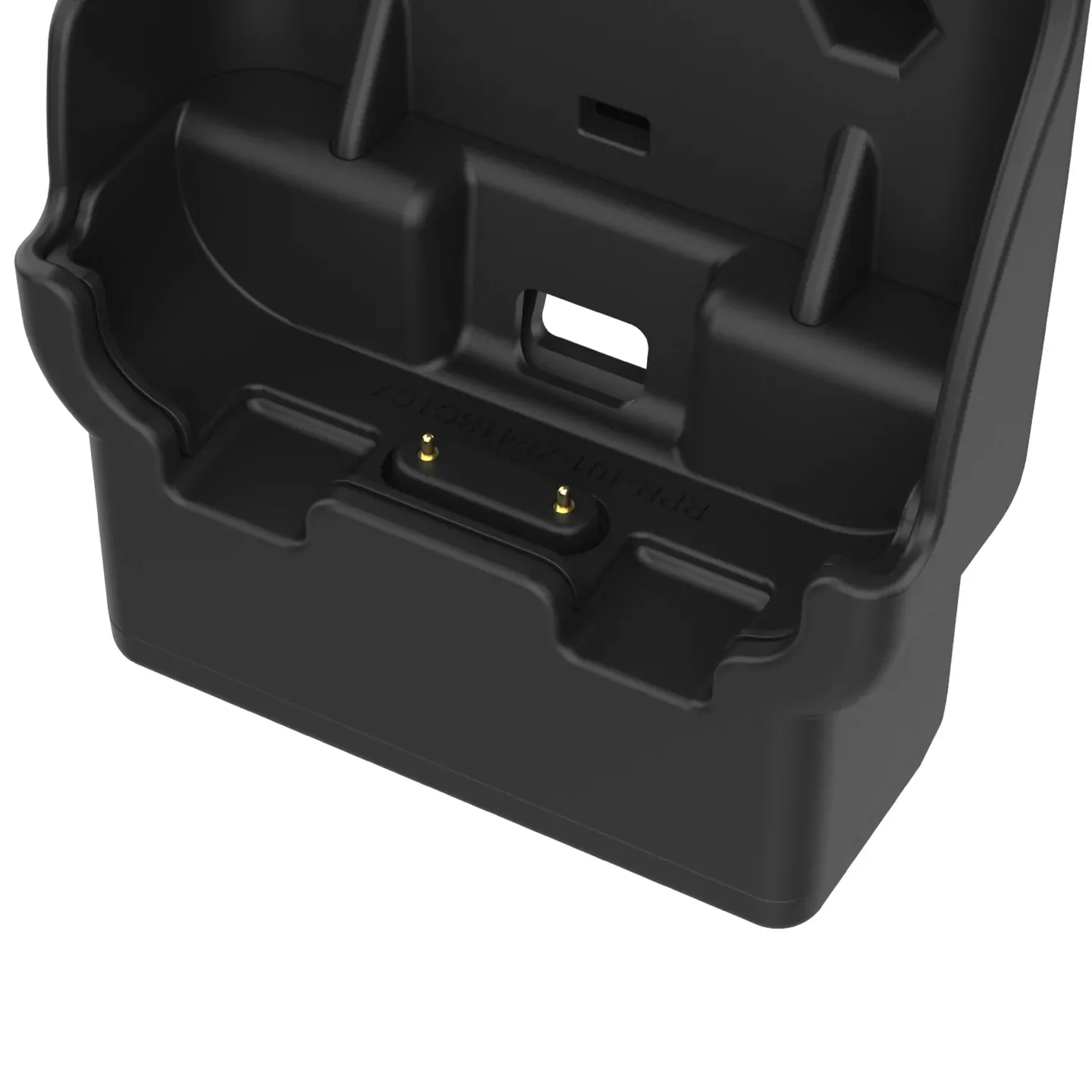

Power delivered through two integrated pogo pins via 5.5mm DC barrel connector

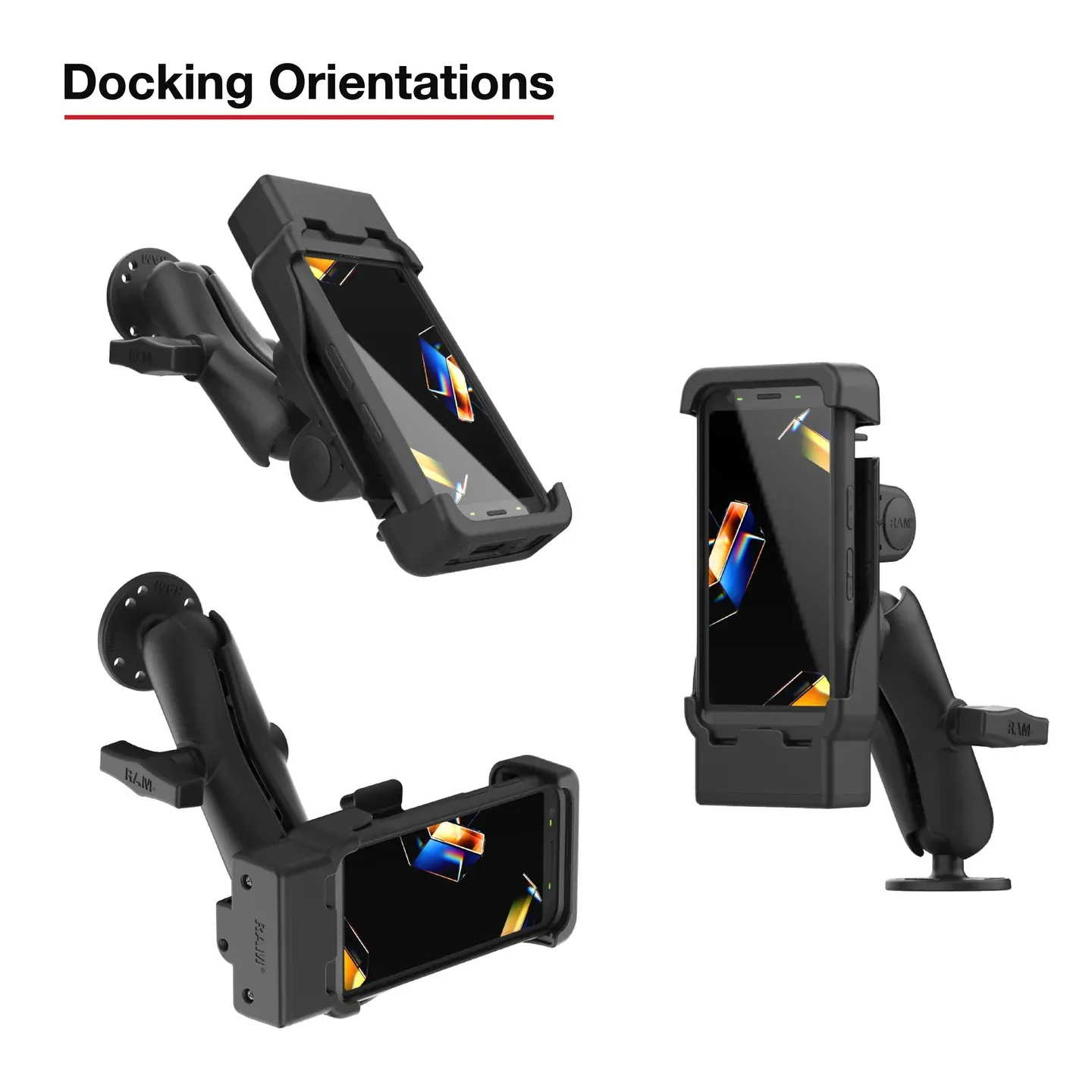

Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
Made of high-strength composites for durability and reliability in the most demanding environments
Backed by a 3-year warranty

(RAM-HOL-ZE41-2U)

Instructions

Assembly Instructions for Zebra Dock

Documents

Buyer Guide: Powered Docks for Zebra TC501 & TC701 Zebra Catalog

Technical Specifications:

Hardware Included	(2) Inserts for Device Without Boot (2) #8-32 x 5/8" Machine Screws (2) #8-32 x 3/4" Machine Screws (2) #8-32 Nyloc Nuts (1) Adhesive for Wireless Charger (1) Cable Clamp
Hole Pattern	2-Hole AMPS: 1.912"
Materials	High strength composite
Packaging Type	Poly Bag
Input Voltage	5V @ 1.6A
Power Output	9W
Input Connector	5.5mm DC Connector
