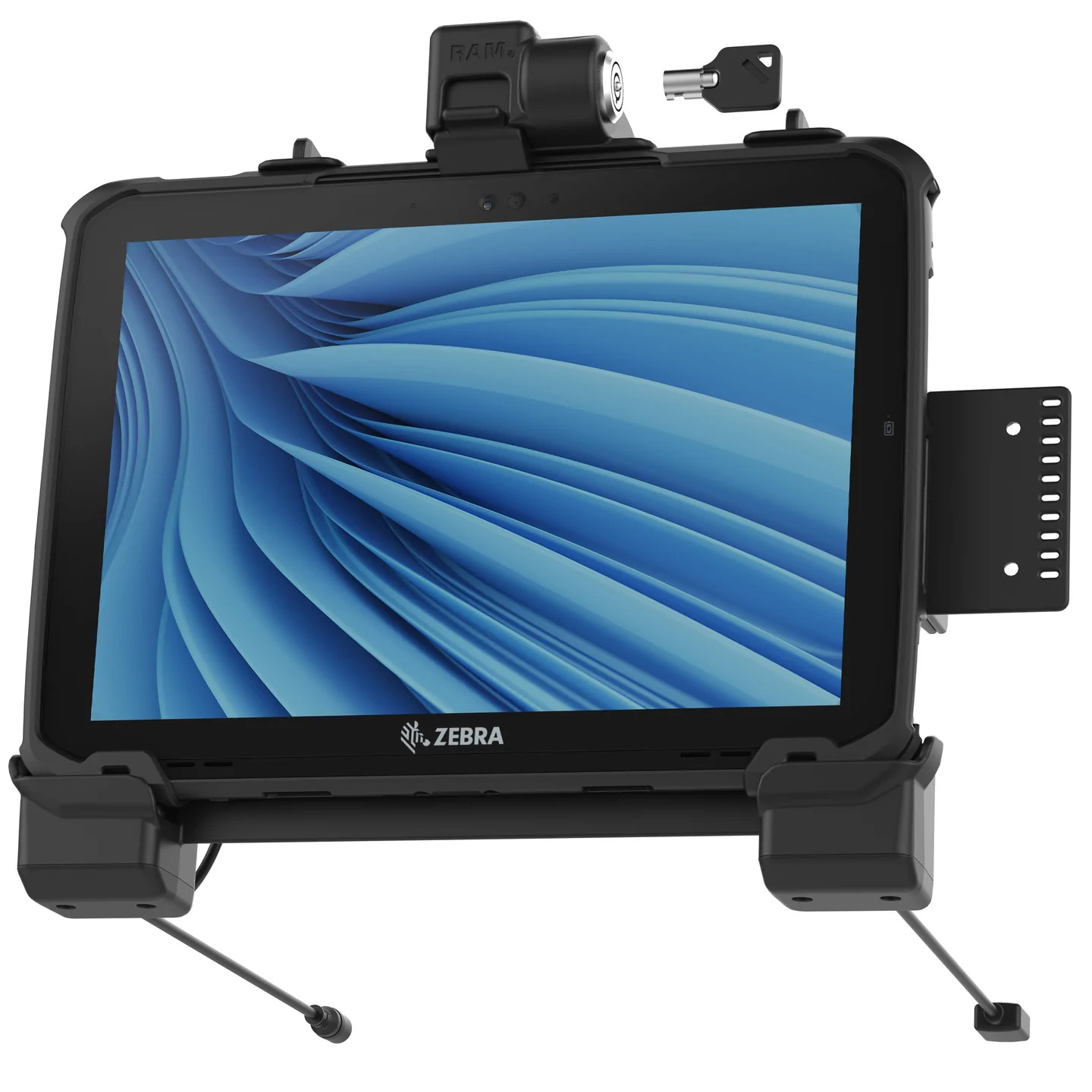

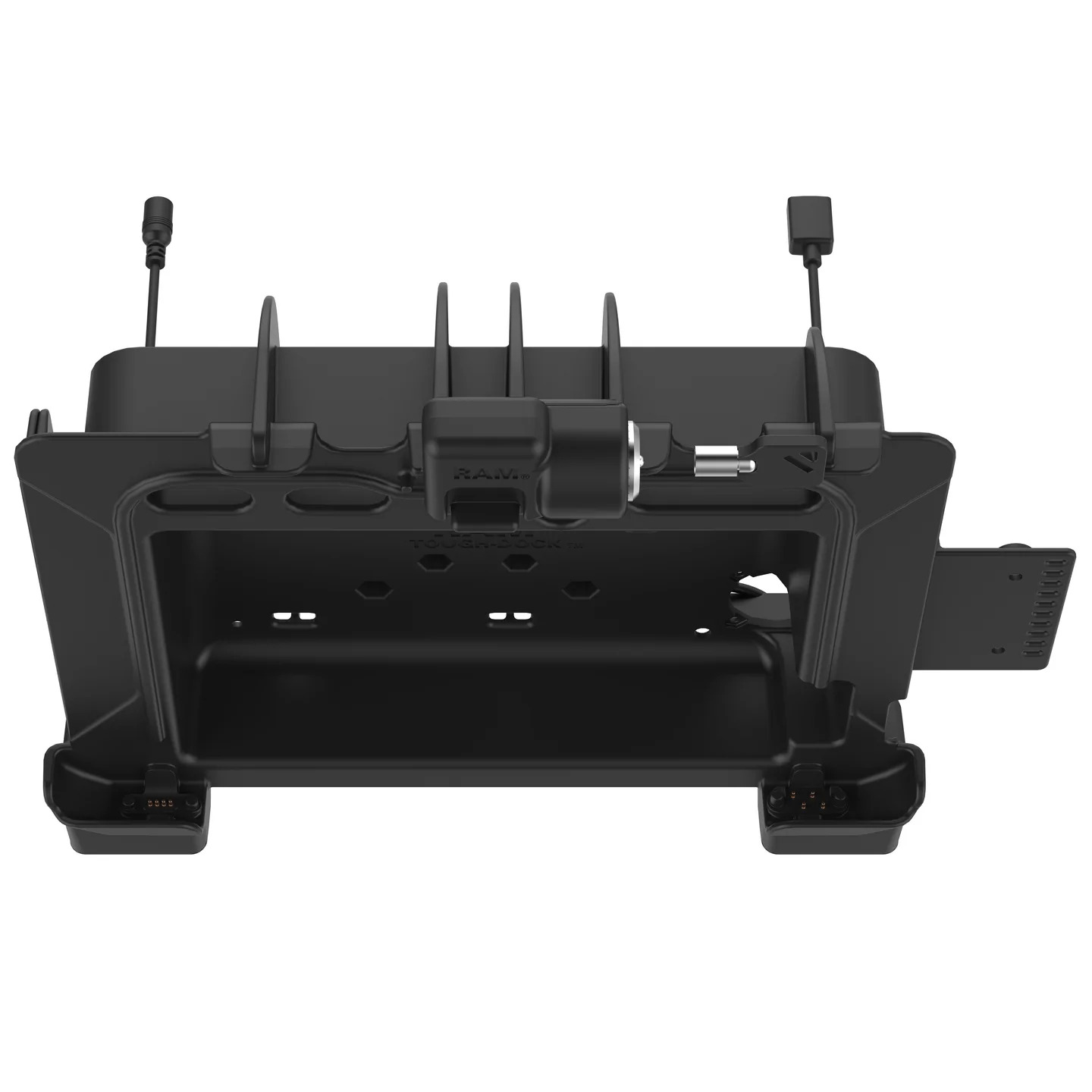

This powered, key-locking RAM Dock features a form-fit design specifically for the Zebra ET8x 20-in-1 tablet series and includes cutouts leaving all buttons and ports exposed. Connect a desired peripheral while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in USB Type A cable. This dock supports the device with or without the Rugged Frame, with or without the Friction Hinge Rugged Keyboard, and accommodates tablet add-ons such as the Zebra Expansion Back, shoulder strap and stylus. Compatible with D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases, attach a double socket arm to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device.
- Powered, key-locking dock provides charging capabilities for the Zebra ET8x tablets, with or without Rugged Frame and Friction Hinge Rugged Keyboard via DC 5.5mm power jack; Single USB-A connector for adding a peripheral
- Two separate housings on the back of the dock allow for add-on modules such as the NFC Repeater, and temperature modules RAM® Vent-Temp™ and RAM® Temp-Right™
- Built-in 2-hole accessory mounting plate for additional device mounting such as a phone, scanner, or NFC Repeater
- Dock accommodates tablet add-ons such as the Zebra Expansion Back, GDS® Roto-Mag™, and GDS® Hand-Stand™ accessories
- Backed by a 3-year warranty
(RAM-HOL-ZE22PDLU)
Instructions
Assembly Instructions for Zebra DockDocuments
Testing Summary: Powered Dock for Zebra ET8x Zebra CatalogTechnical Specifications:
| Hardware Included | (2) Keys (1) Side bracket for accessory mounting (4) #8-32 x 5/8" Machine Screws (2) #8-32 x 1/2" Machine Screws (6) #8-32 Nyloc Nuts (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nyloc Nuts (8) 4" Zip Ties (2) 7" Zip Ties |
|---|---|
| Product Dimensions | Overall Height: 11.85" (30.10 cm) Overall Width: 12.75" (32.39 cm) Overall Depth: 4.36" (11.07 cm) |
| Hole Pattern | 75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496" |
| Materials | High strength composite |
| Packaging Type | Poly Bag |
| Input Connector | 5.5mm DC Connector |
| Input Cable Length | 1 Meter |
| Output Connector | USB 2.0 Type A |
| Output Cable Length | 218mm |
| Peripheral Output | 500mA |
| Transfer Speed | 12Mbps |
| Certifications | RoHS WEEE CE UKCA |
Product Information
| SKU | RAM-HOL-ZE22PDLU |
|---|---|
| Barcode | 793442928116 |
| Brand | RAM Mounts |
| Weight | 1.23 kg |
| Warranty | 3 year warranty |
