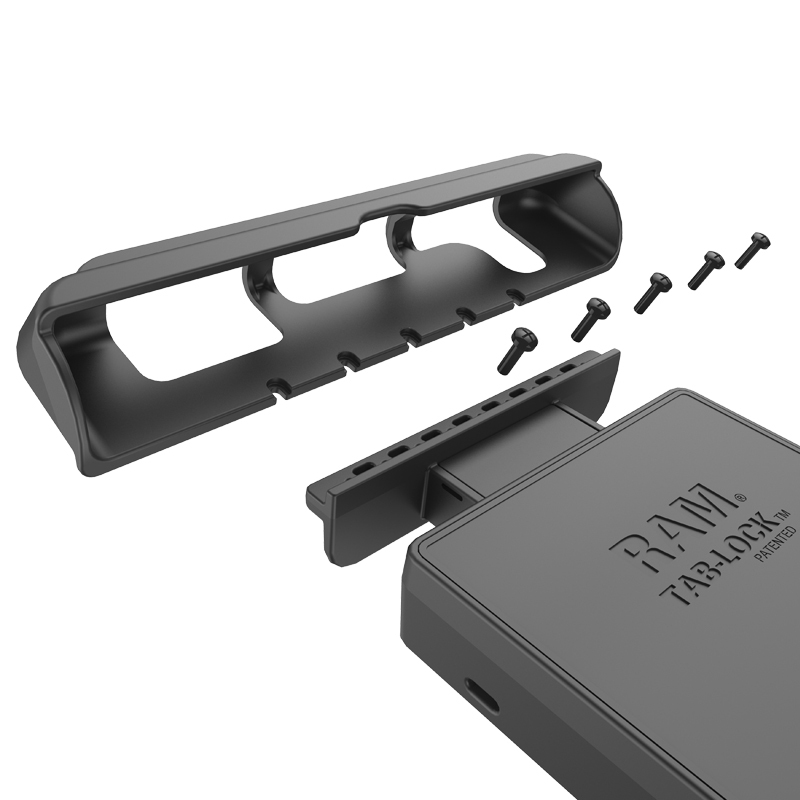

The RAM-HOL-TABL17U consists of a spring loaded back plate, custom support cups and locking mechanism. This spring loaded design makes it easy to load and unload your iPad, along with keeping it secure while on the go. Cup ends are designed to optimize the functionality of your iPad, allowing access to audio jacks, usb, power, and other ports, your iPad can be used just as it was intended. Quickly lock the cradle, keeping your iPad secure and safe from theft. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet.

Height Range: 9.5"​【24 cm】 - 11.75"​【30 cm】
Width Range: 6.375"​【16 cm】 - 8.25"​【21 cm】
Depth Range: .13"​【3,3 mm】 - 1.1"​【2,8 cm】

Key Features:
  • Locking mechanism for theft deterrence
  • Support cups contain open slots to accommodate for tablets of various sizes
  • Back plate can support various size support cups
  • Spring loaded tension provides secure support and quick release for your tablet
  • Backed by a lifetime warranty

(RAM-HOL-TABL17U)

Technical Specifications:

Hardware IncludedAssembly Hardware
(2) #8 x 5/8" Sheet Metal Screws
(2) M4 x 32mm Machine Screws
(2) M4 Nyloc Nuts
(2) Keys
Holder DimensionsHeight Range: 9.5" (24.13 cm) - 11.75" (29.85 cm)
Width Range: 6.375" (16.19 cm) - 8.25" (20.96 cm)
Depth Range: .13" (0.33 cm) - 1.1" (2.79 cm)
Hole Pattern4-Hole AMPS: 1.181" x 1.496"
MaterialsHigh strength composite
Packaging TypePoly Bag

Product Information

SKU RAM-HOL-TABL17U
Barcode 793442941245
Brand RAM Mounts
Weight 0.64 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
