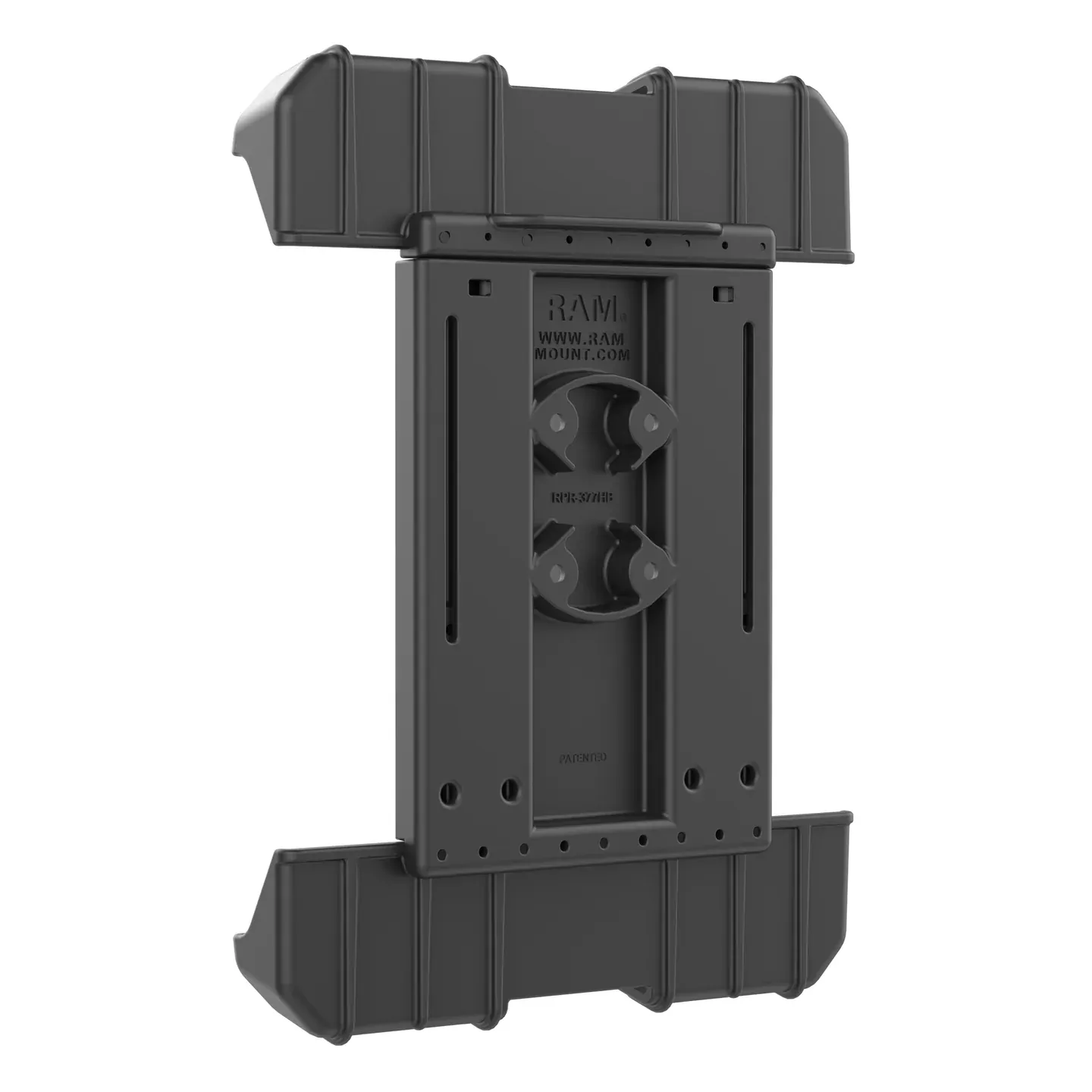

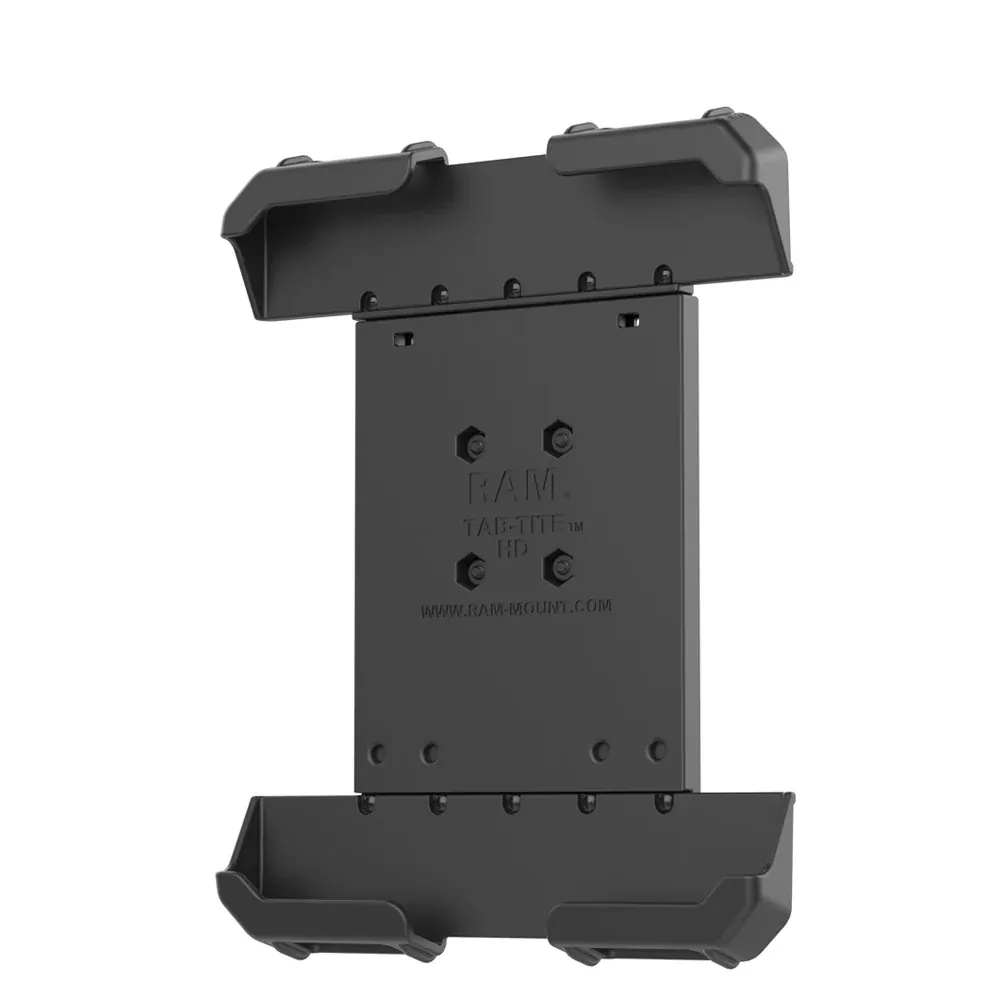

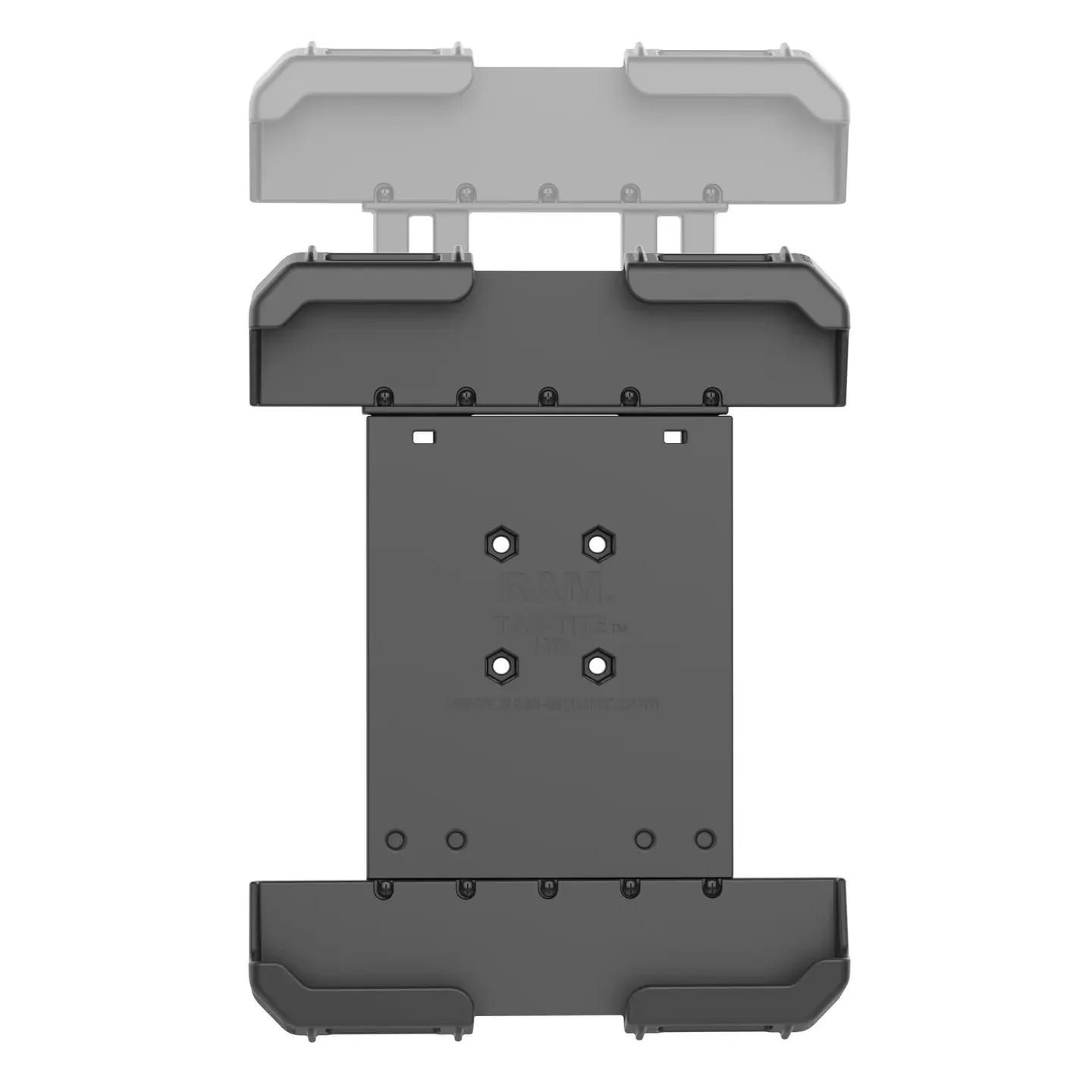

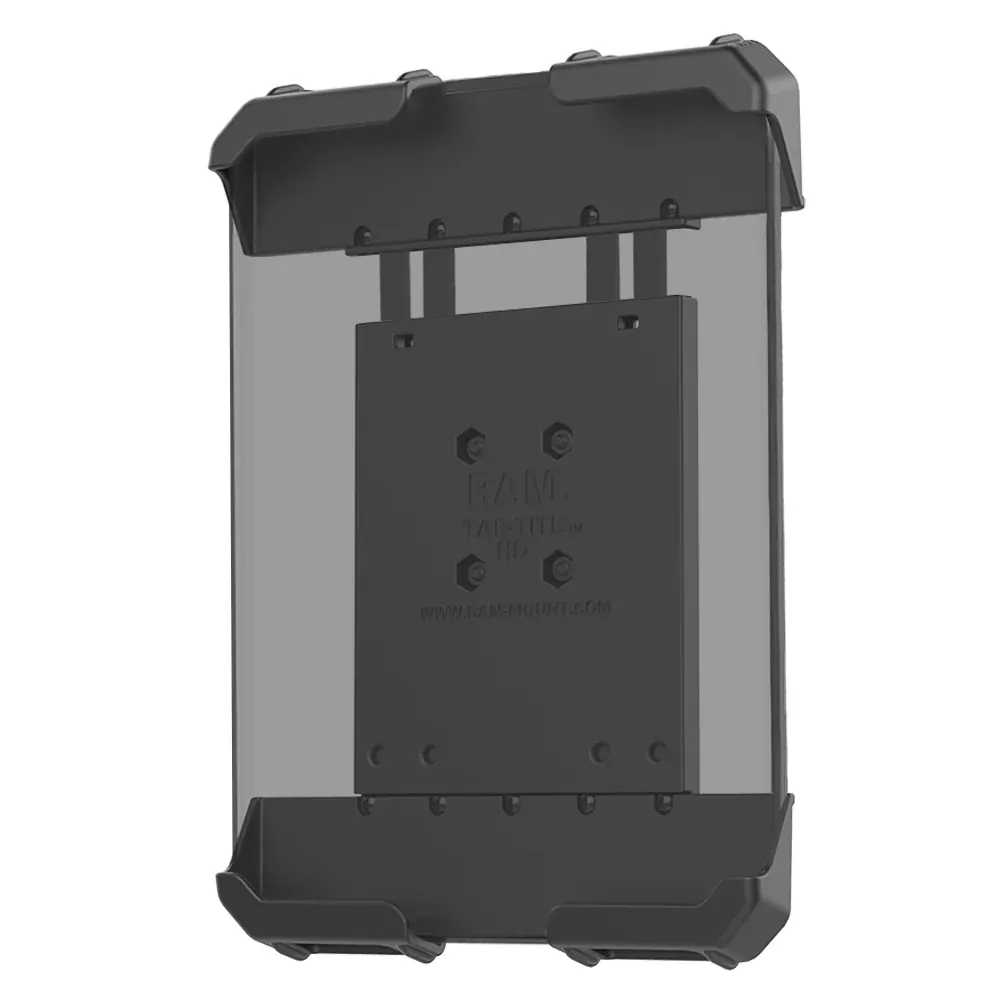

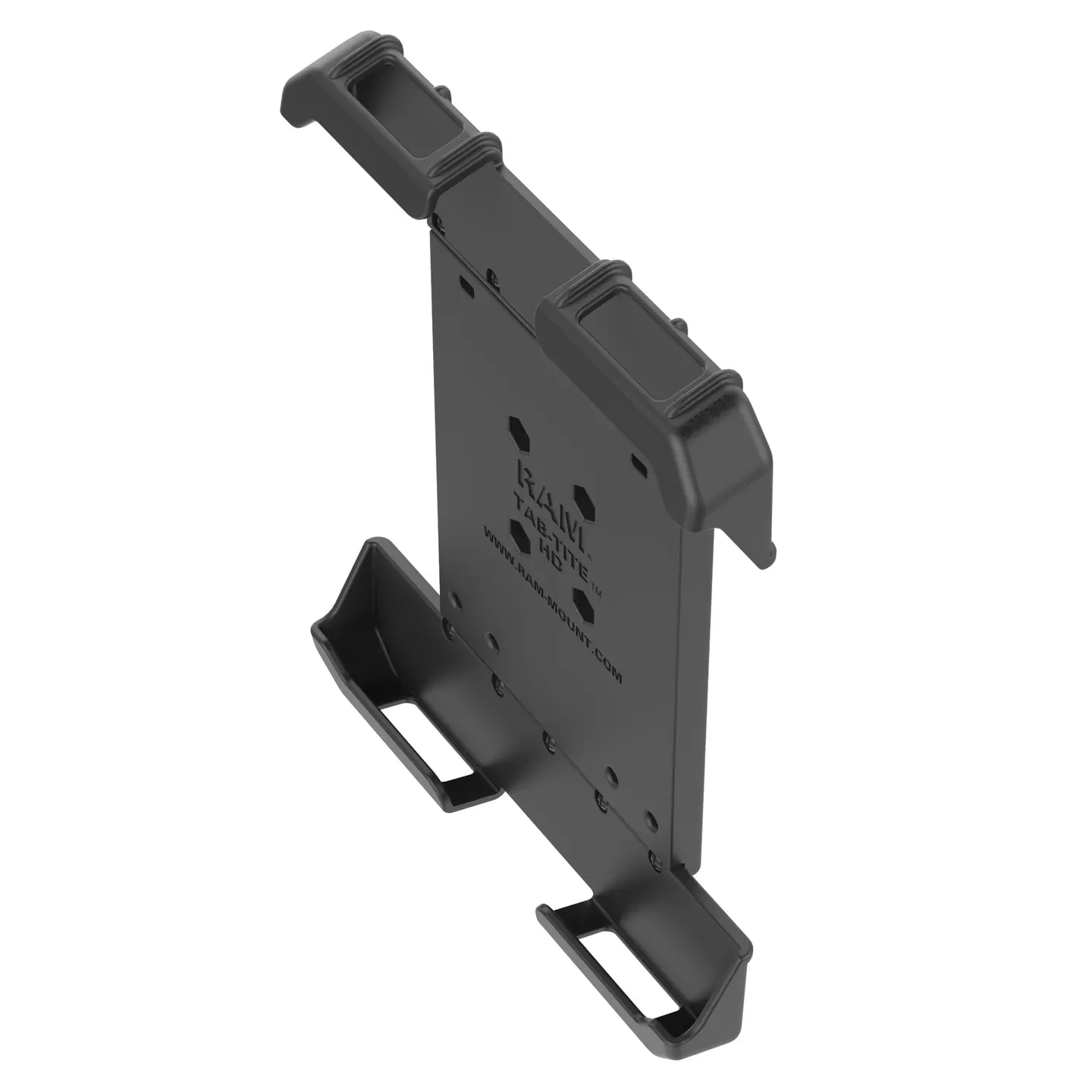

The RAM Tab-Tite spring-loaded, quick release holder offers a secure fit with easy access to the mounted 9"​-10"​tablet. The spring-loaded design makes it easy to insert and remove your tablet, while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM components that contain the universal AMPS hole pattern. The RAM Tab-Tite holder is compatible with any tablet within the listed dimensions.

Height Range: 9.55"​【24 cm】 - 11.8"​【30 cm】
Width Range: 5.5"​【14 cm】 - 6.95"​【18 cm】
Depth Range: .2"​【5 mm】 - .66"​【1,7 cm】 max

Key Features:
  • Spring-loaded holder secures the Samsung Tab (S6 Lite, A7 10.4, S5e, and A 10.1) and Lenovo K10 Tablet with or without case; interchangeable end cups allow you to modify the holder when upgrading devices
  • Compatible with RAM® round ball bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

(RAM-HOL-TAB33U)

Technical Specifications:

Hardware IncludedAssembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nyloc Nuts
Holder DimensionsHeight Range: 9.55" (24.26 cm) - 11.8" (29.97 cm)
Width Range: 5.5" (13.97 cm) - 6.95" (17.65 cm)
Depth Range: .2" (0.51 cm) - .66" (1.68 cm) max
Hole Pattern4-Hole AMPS: 1.181" x 1.496"
MaterialsHigh strength composite
Packaging TypePoly Bag

Product Information

SKU RAM-HOL-TAB33U
Barcode 793442101410
Brand RAM Mounts
Weight 0.49 kg
Warranty RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
