Locking Power and Data Dock Getac ZX10 (RAM-HOL-GE4PDKLU)

The RAM Locking Power + Data Dock for Getac ZX10 (RAM-HOL-GE4PDKLU) allows you to secure the device and keep it charged through the pogo pin contacts while docked - power is provided by connecting to the dock's 5.5mm DC power jack. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM Temp-Right, Vent-Temp, NFC Reach, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the Hard Carry Handle. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM 2-hole diamond bases for additional device mounting such as a phone or other handheld device. Includes a set of keys for locking capabilities.

Key Features:

Key-locking form-fit power + data sync dock designed specifically for Getac ZX10 rugged tablet

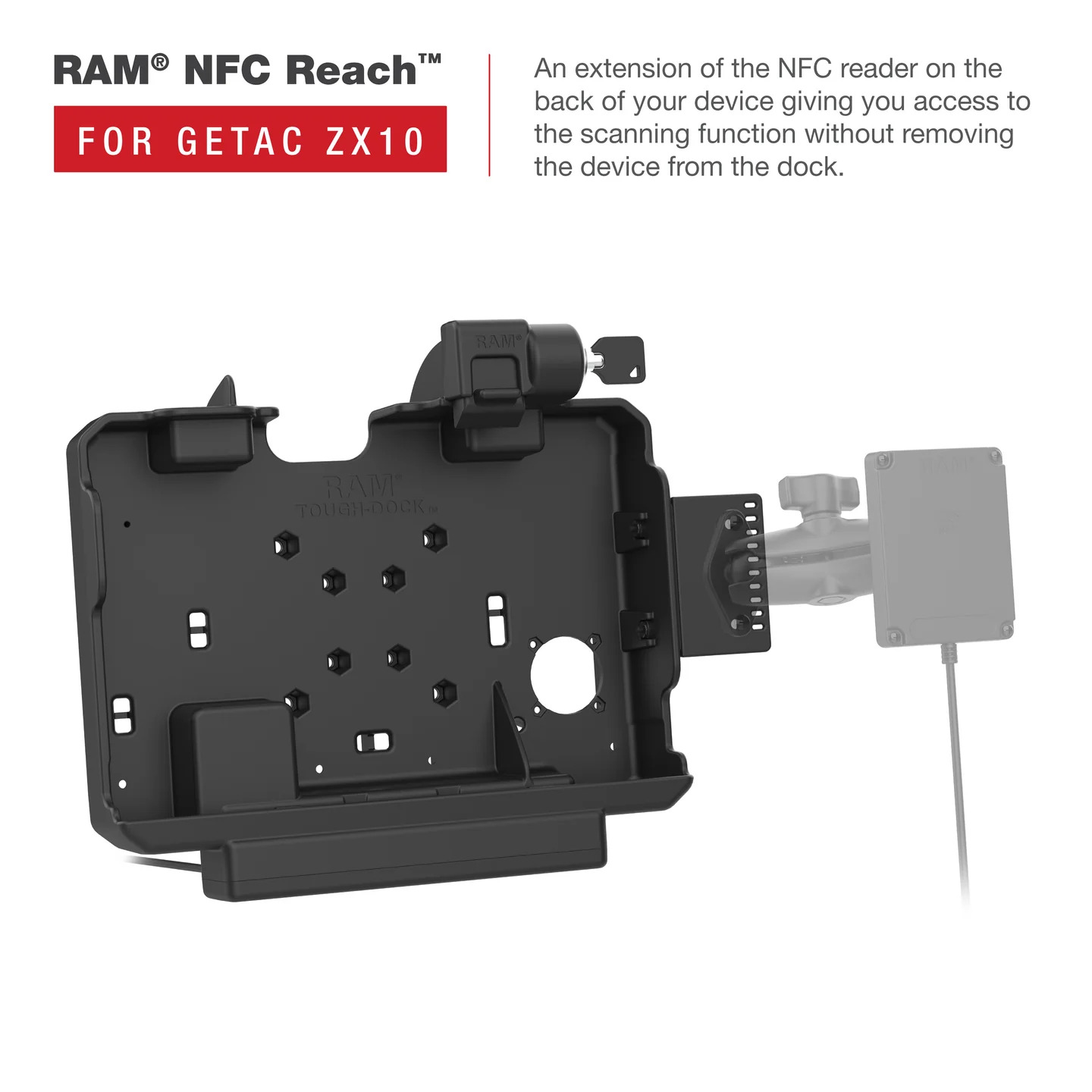

Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base
Power delivered through integrated pogo pin technology via 5.5mm DC Connector; connect a single input device via USB-A connector
Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty

(RAM-HOL-GE4PDKLU)

Instructions

Assembly Instructions for Getac ZX10/ZX80 Dock

Documents

Buyer Guide: RAM® Tough-Dock™ for Getac ZX10 Testing Summary: Getac ZX10 Getac Catalog

Technical Specifications:

Hardware Included	(2) Keys (1) Side bracket for accessory mounting and strain relief (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nyloc Nuts (4) #10-32 x 5/8” Machine Screws (4) #10-24 Nyloc Nuts ()1 Cable Clamp (2) Large Cable Ties (8) Small Cable Ties
Hole Pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
Materials	High strength composite
Packaging Type	Poly Bag
Output Voltage	19VDC
Input Connector	5.5mm DC Connector
Input Cable Length	1 Meter
Output Connector	(1) USB 2.0 Type A
Output Cable Length	240mm
Peripheral Output	500mA
Certifications	FCC, IC, CE, UKCA, WEEE, RoHS

Product Information

SKU	RAM-HOL-GE4PDKLU
Barcode	793442016615
Brand	RAM Mounts
Weight	1.10 kg
Warranty	RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc.
