GDS Thin-Dock for Zebra ET401 and ET4x 10" with IntelliSkin
RAM-GDS-DOCK-ZE47PU
Special Order

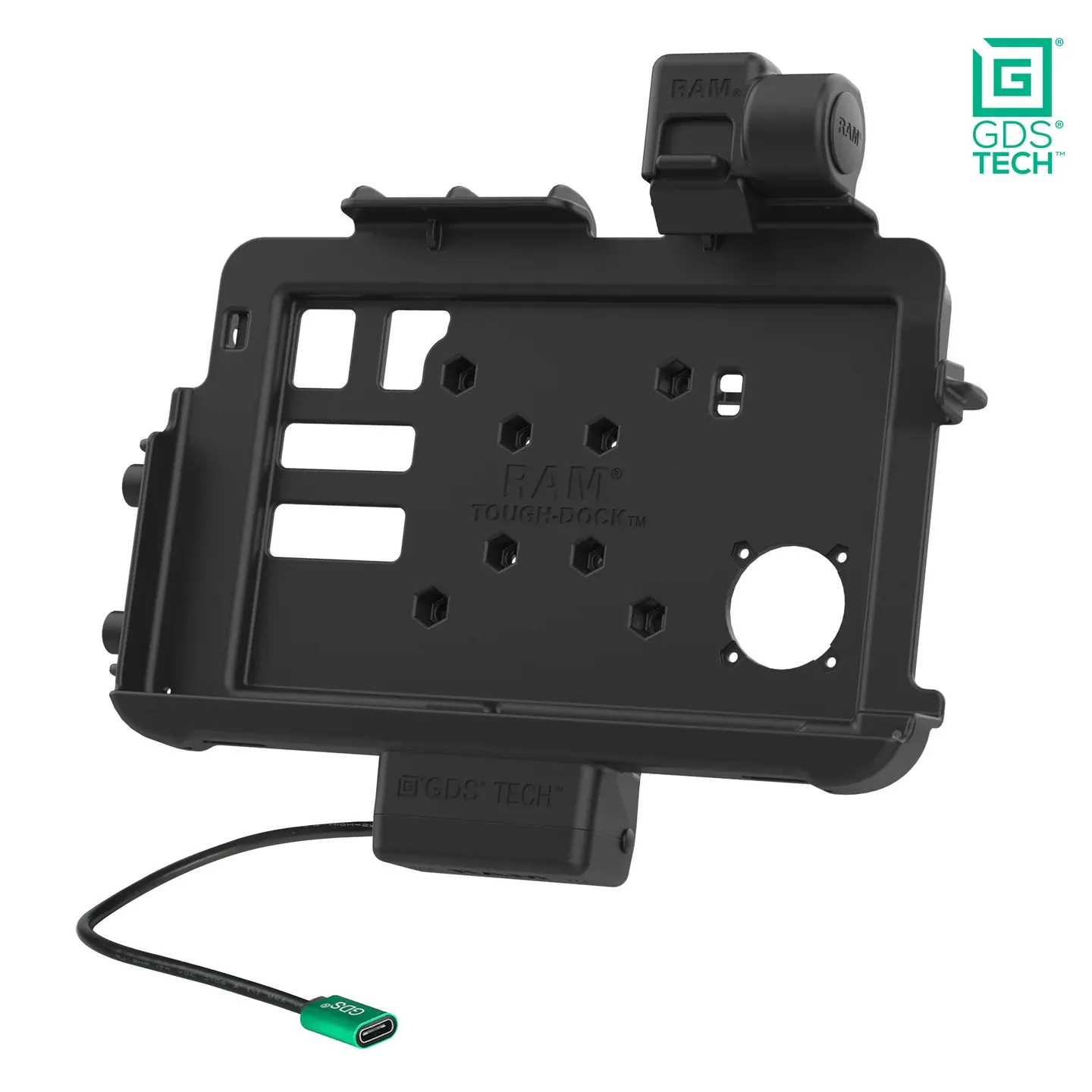

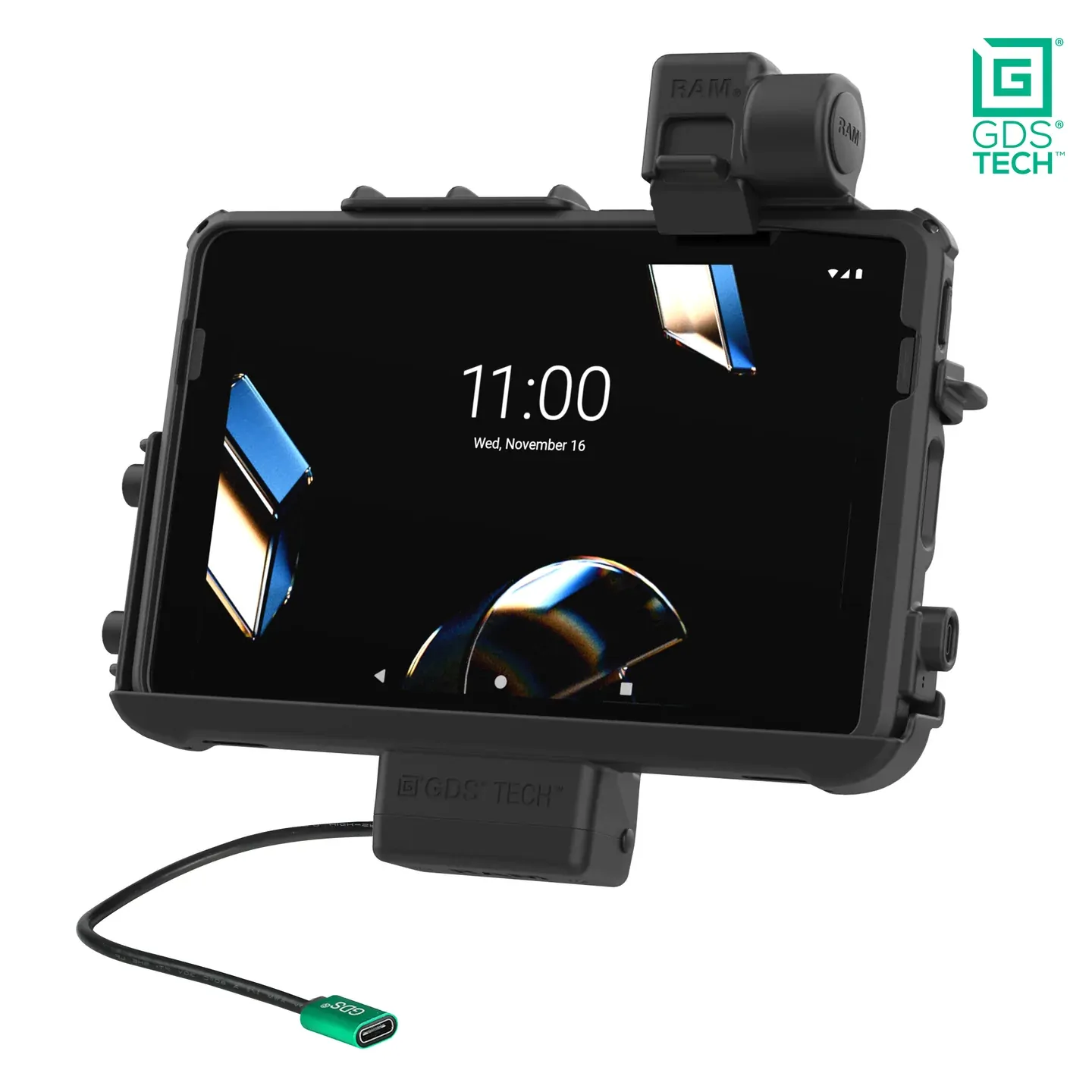

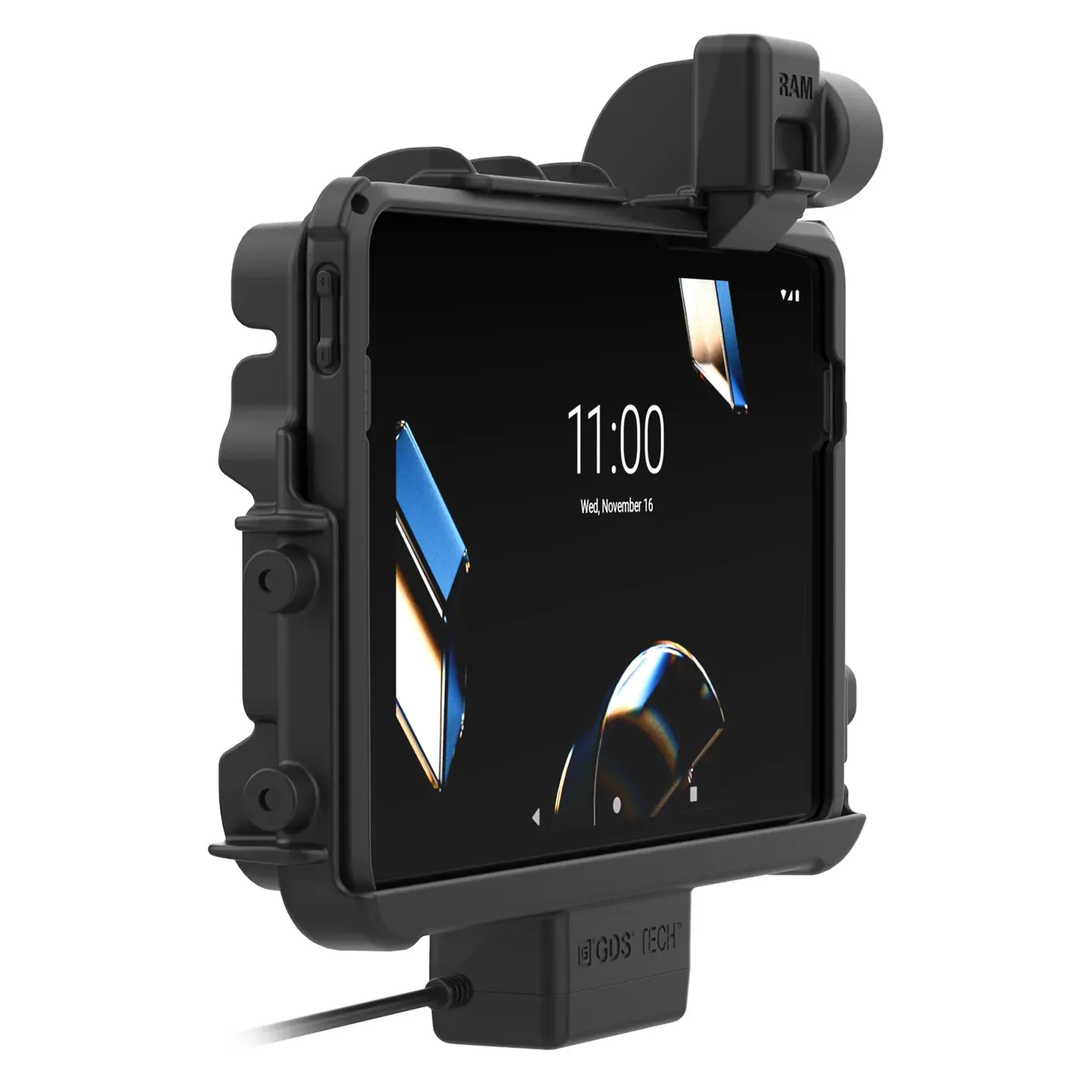

The GDS Thin-Dock for Zebra ET401 & ET4x 10" with IntelliSkin (RAM-GDS-DOCK-ZE47PU) delivers a low-profile, 2.45"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets when used with an IntelliSkin protective sleeve, ensuring a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock keeps your tablet powered through pogo pin contacts while docked, with power supplied via the dock’s USB Type-C connector. The design also maintains access to the tablet’s side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM Vent-Temp, a temperature control accessory, and the RAM NFC Extender.
- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45 wrapped in an IntelliSkin®

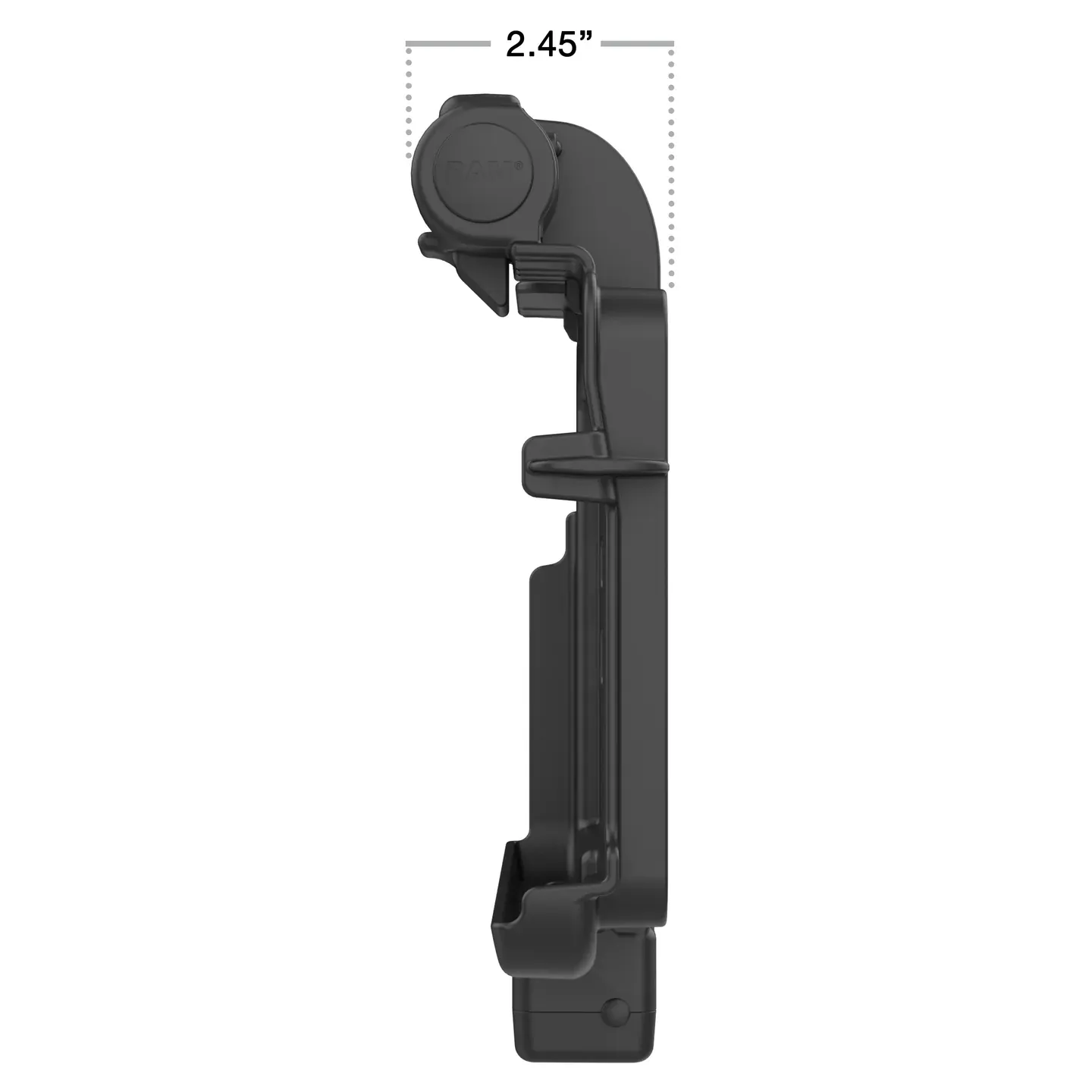

- Slim-profile design at 2.45" depth with metal reinforcement plate

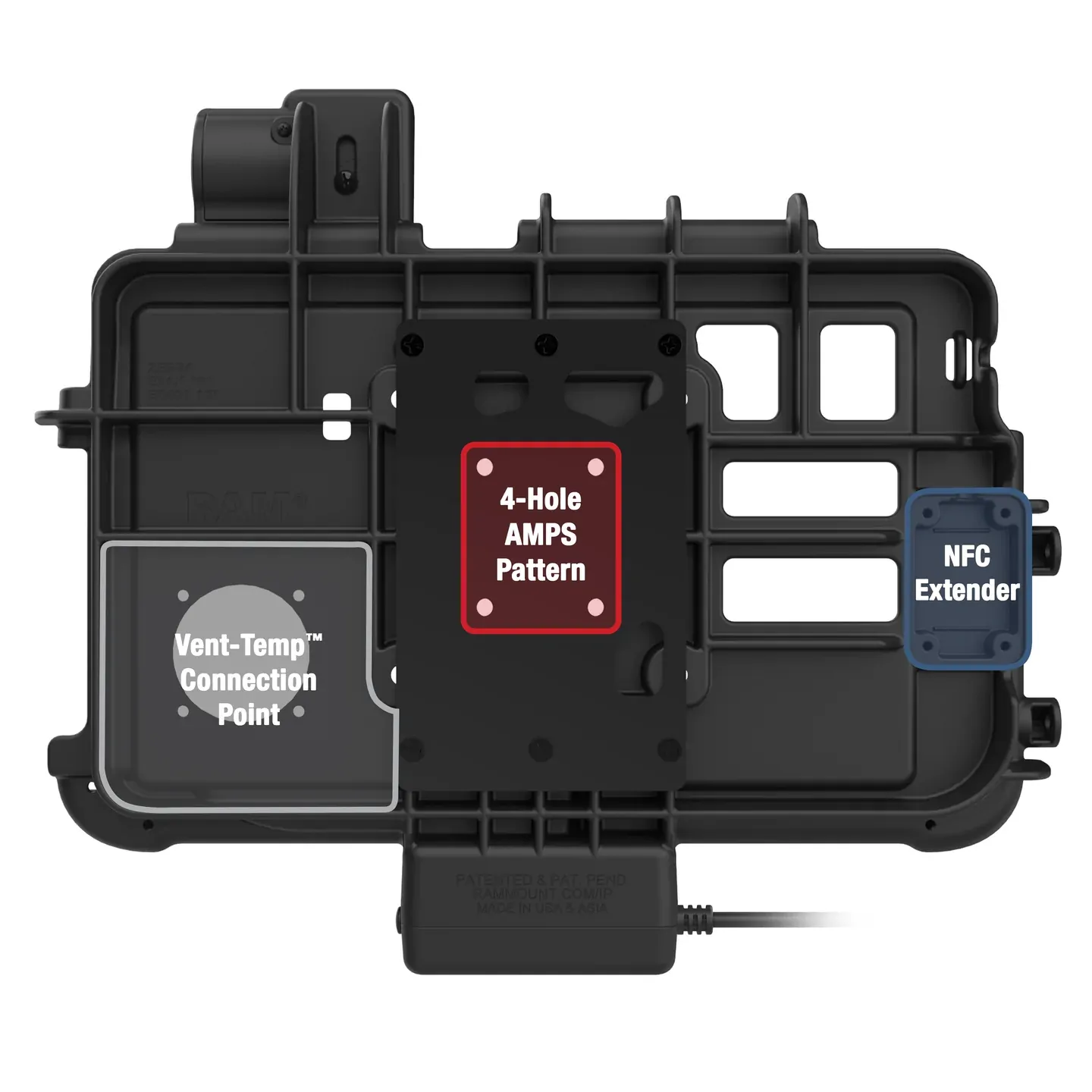

- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-Temp™ and NFC Extender
- Backed by a 3-year warranty
(RAM-GDS-DOCK-ZE47PU)
Technical Specifications:
| Hardware Included | (4) #8-32 x 5/8" Machine Screws (4) #8-32 Nyloc Nuts (4) #10-24 x 5/8" Machine Screws (4) #10-24 Nyloc Nuts (1) Cable Clamp |
|---|---|
| Hole Pattern | 75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496" |
| Materials | High strength composite |
| Packaging Type | Poly Bag |
| Output Voltage | 5V - 20V @ 3A |
| Power Output | 60W |
| Input Connector | USB Type-C |
| Input Cable Length | 215mm |
| Certifications | RoHS WEEE CE UKCA |
Product Information
| SKU | RAM-GDS-DOCK-ZE47PU |
|---|---|
| Barcode | 793442032394 |
| Brand | RAM Mounts |
| Weight | 0.70 kg |
| Warranty | 3 year warranty |
