4" Square Post Clamp Mount with Round AMPS Plate D-Size
RAM-D-101U-C-247-4
In Stock: 1

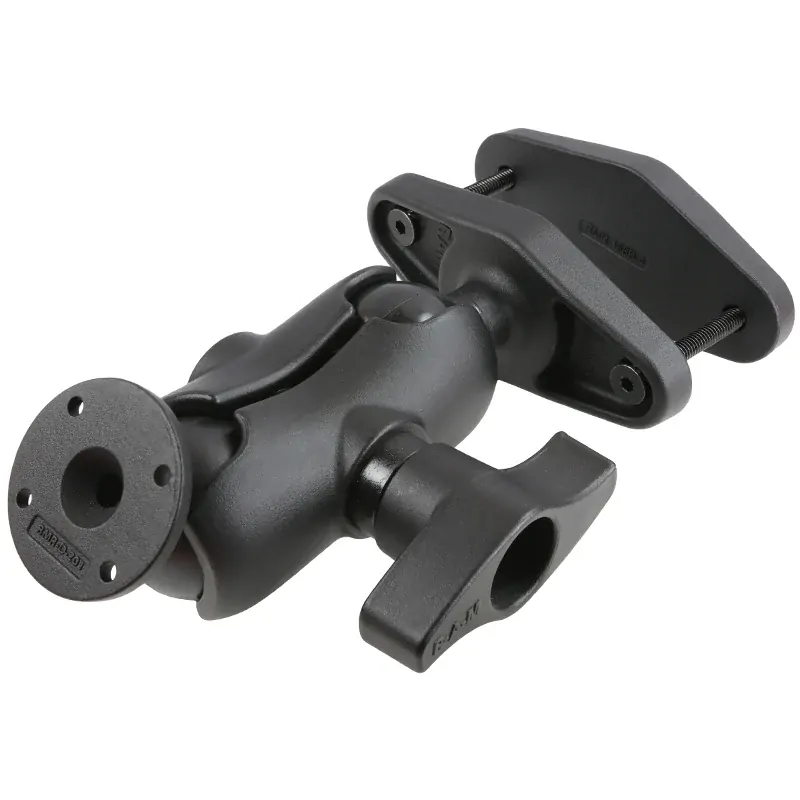

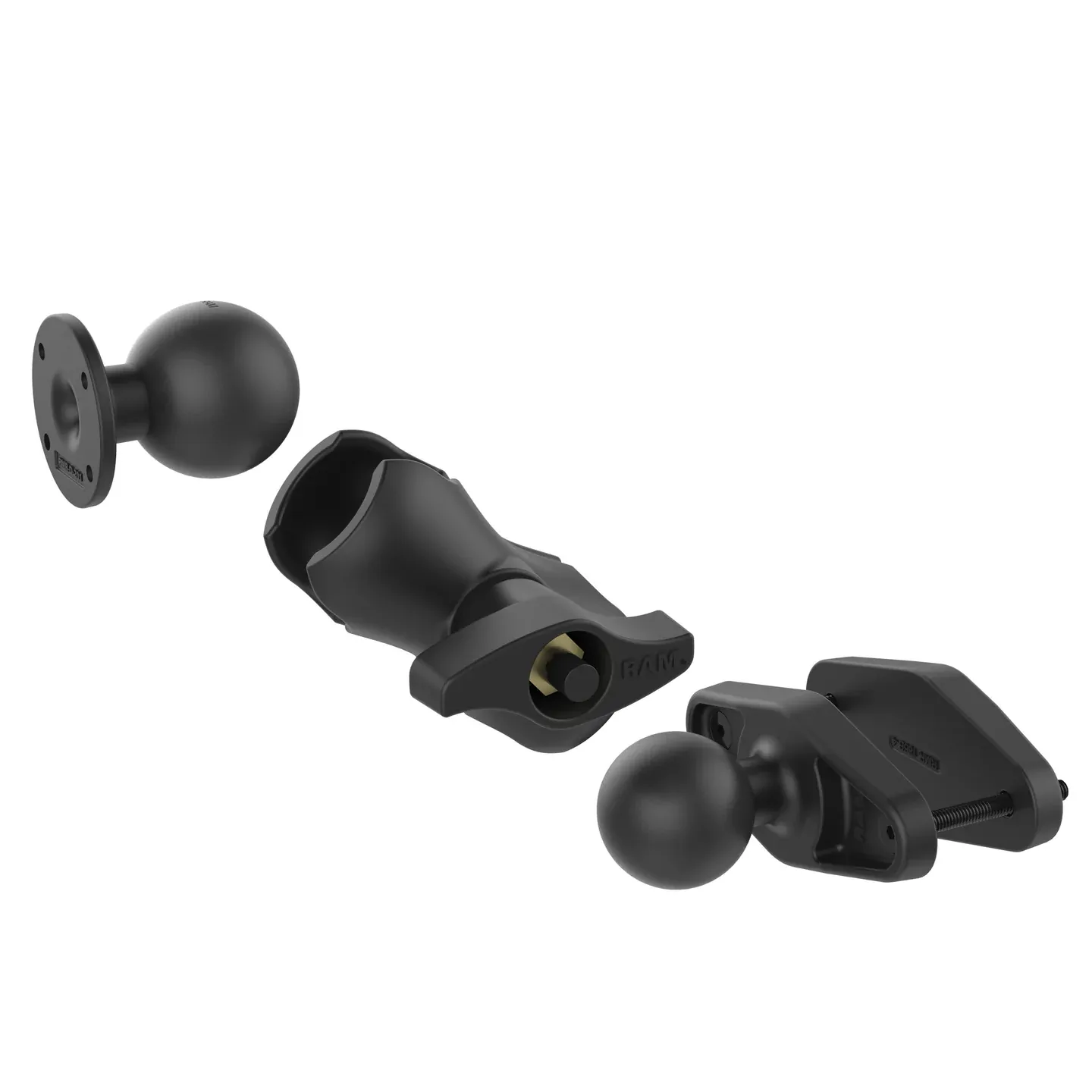

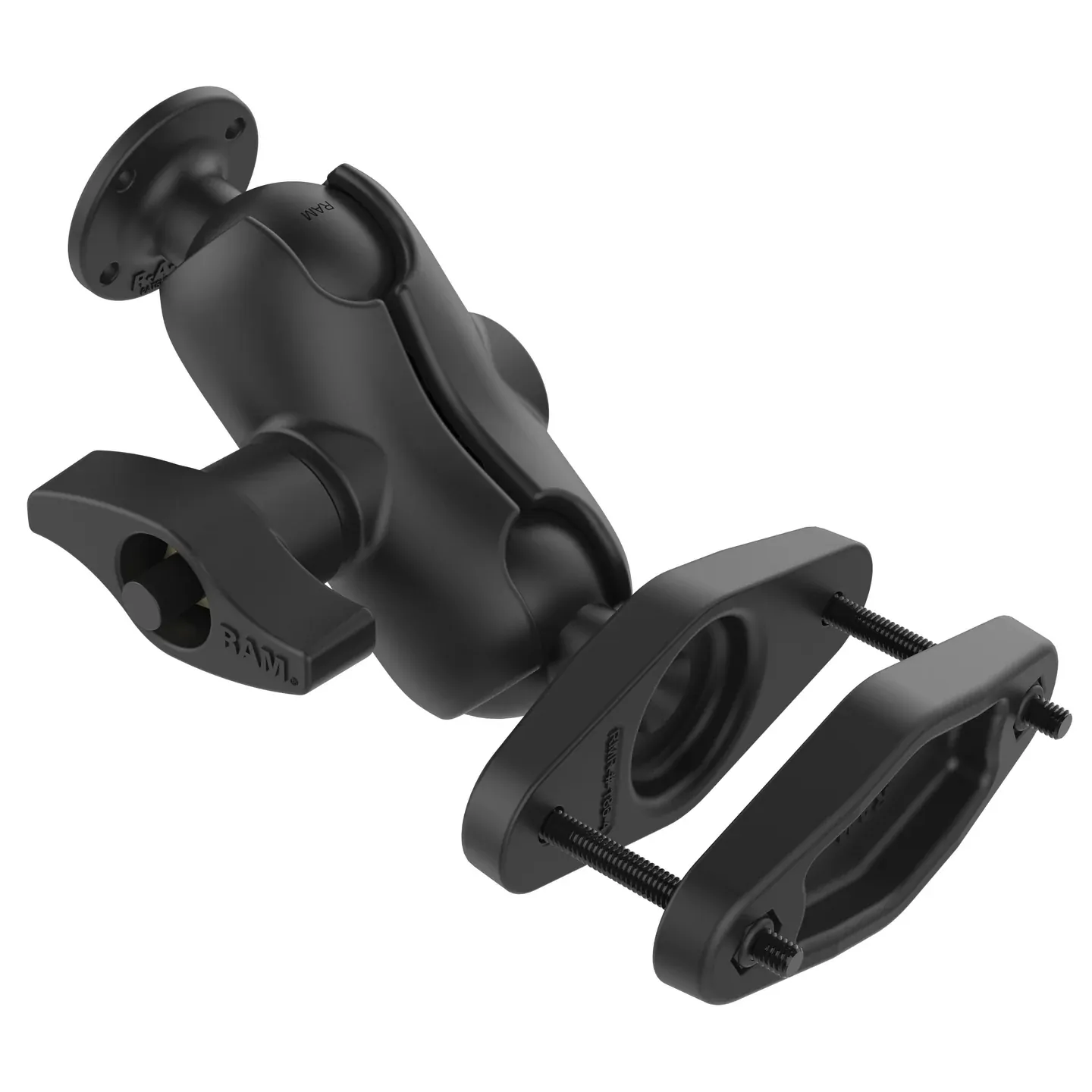

This ideal forklift mount consists of a D size short double socket arm, a round 2.5" diameter round D size base with the universal AMPS hole pattern and 4" clamp base for square post mounting on forklifts. The clamp base will wrap around a maximum width of 4" and is tightened by screwing the two plates together with the included nuts and bolts. RAM Mounts ball & socket technology dampens shock and vibration, as well as allows for almost infinite adjustment for perfect viewing angles. This D size forklift mount is designed for heavy duty monitor mounting for forklifts, as well as rugged tablets which could be paired with accessory brackets to support keyboards and other peripherals.
- D Size ball with 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
- Includes 4" clamping base for posts and a short length, D size RAM® double socket arm with an overall length of 5.1" and socket-to-socket length of 3.6"; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
(RAM-D-101U-C-247-4)
Technical Specifications:
| Hardware Included | (2) 5/16"-18 x 3" Machine Screws (2) 5/16"-18 Nyloc Nuts |
|---|---|
| Clamp Range | 4" (101.6 mm) max width |
| Socket To Socket Length | 3.6" (9.14 cm) |
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" |
| Plate Size | 2.5" (63.5 mm) Diameter |
| Ball Size | D Size (2.25") |
| Weight Capacity | Standard Use: 6 lbs (2.72 kg) Heavy-Duty Use: 5 lbs (2.27 kg) |
| Materials | Marine-grade aluminum |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-D-101U-C-247-4 |
|---|---|
| Barcode | 793442014277 |
| Brand | RAM Mounts |
| Weight | 1.8500 kg |
