X-Grip UN7 Phone Mount with Tough-Claw Small Clamp Base (Short Arm)
RAM-B-400-A-HOL-UN7BU
Special Order

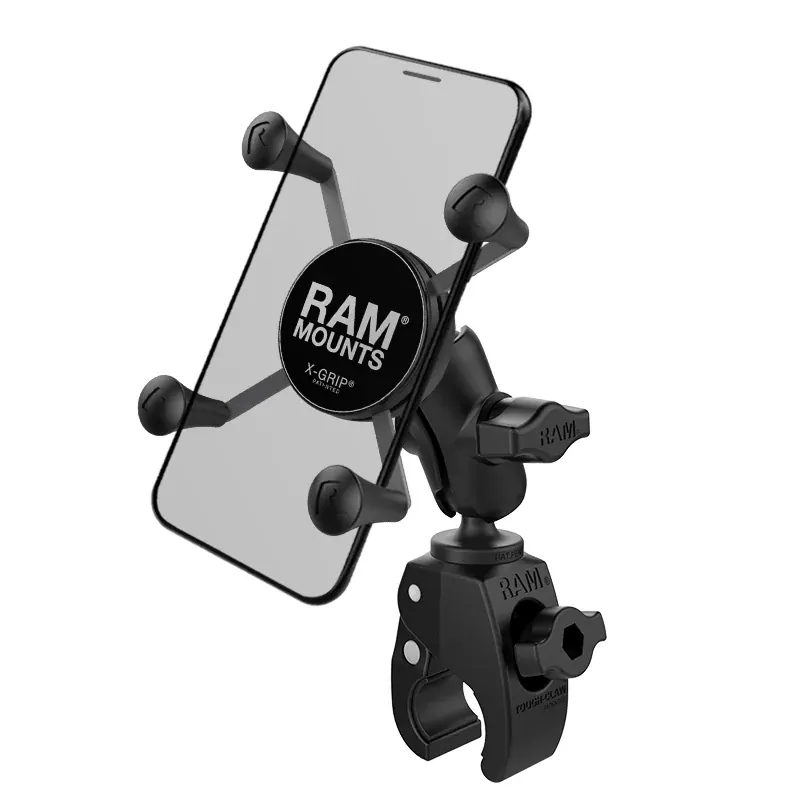

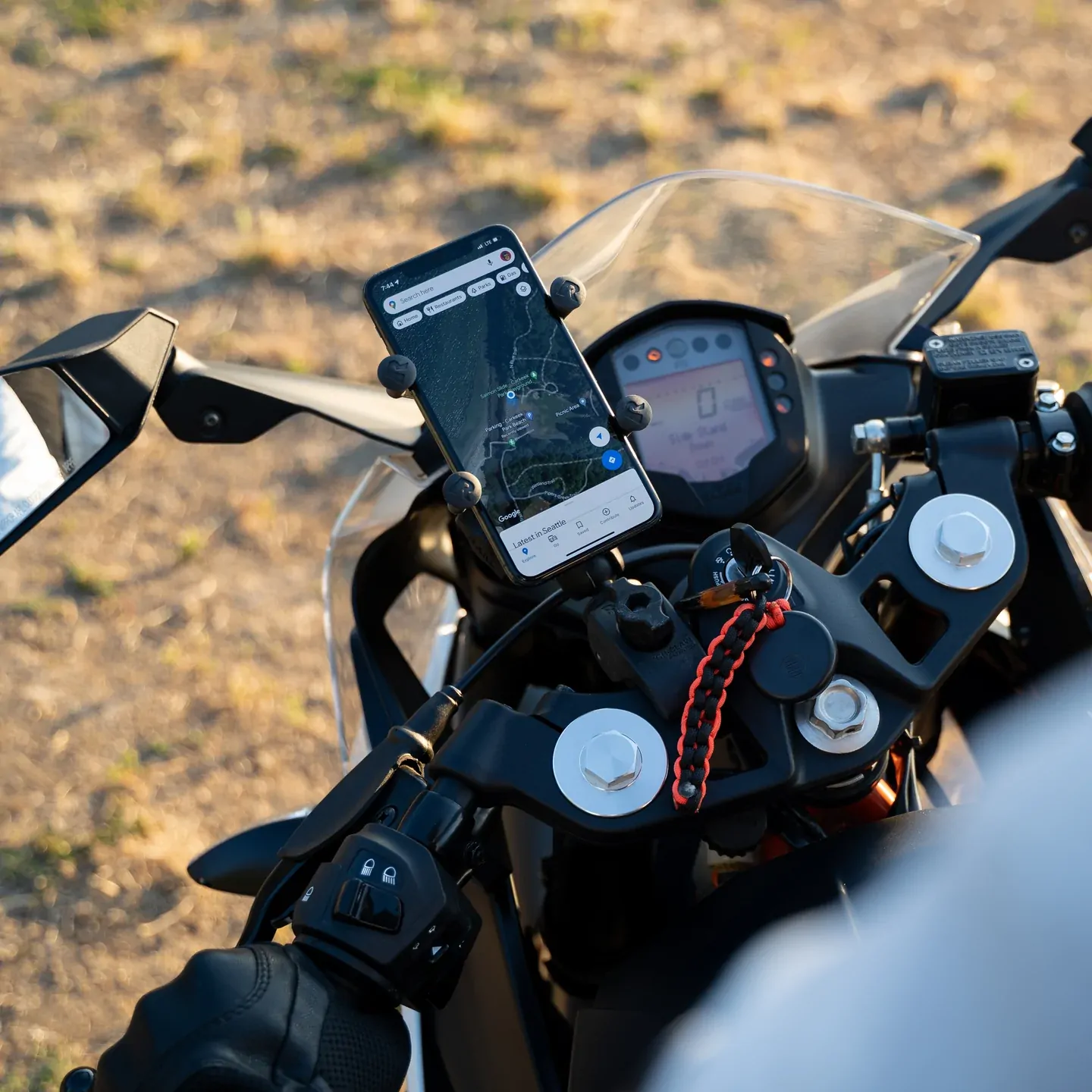

The RAM-B-400-A-HOL-UN7BU consists of the Tough-Claw rail clamp base, SHORT length double socket arm and universal spring loaded X-Grip cradle for phones. The spring loaded X-Grip cradle expands and contracts, allowing for a perfect custom fit of your tablet. Included are easy access grip knobs for quick insertion and release of your handheld device. The Tough-Claw rail clamp base is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 0.625" - 1.14" outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars and much more, the RAM Tough-Claw will soon become another essential RAM component in your collection of mounting options. The X-Grip includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

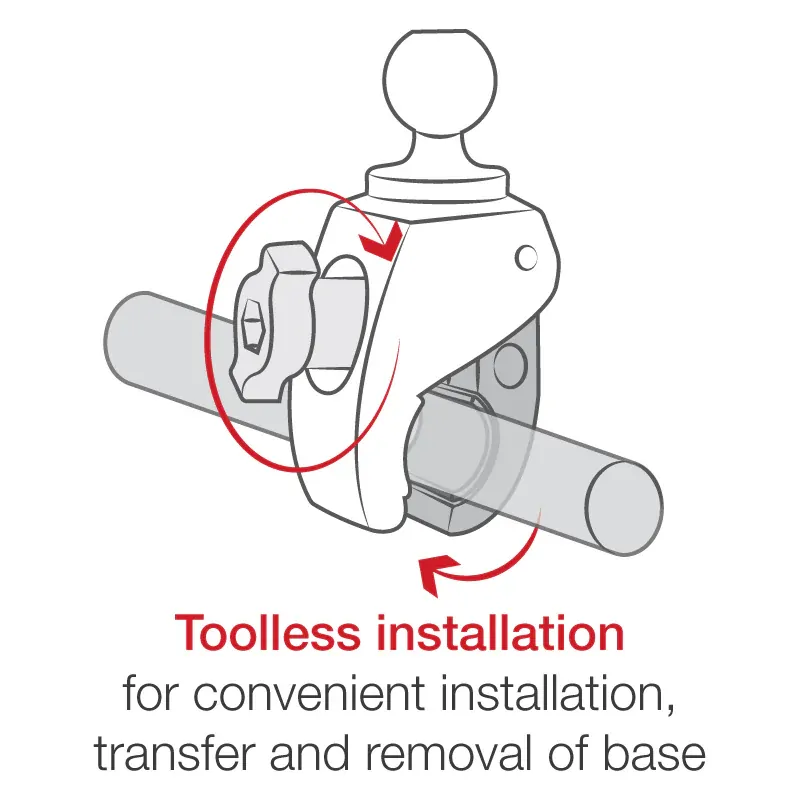

- Small version of the RAM® Tough-Claw™ base is designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from .625" to 1.14" in outer diameter; rubber pads provide stable gripping and protection of mounting surface

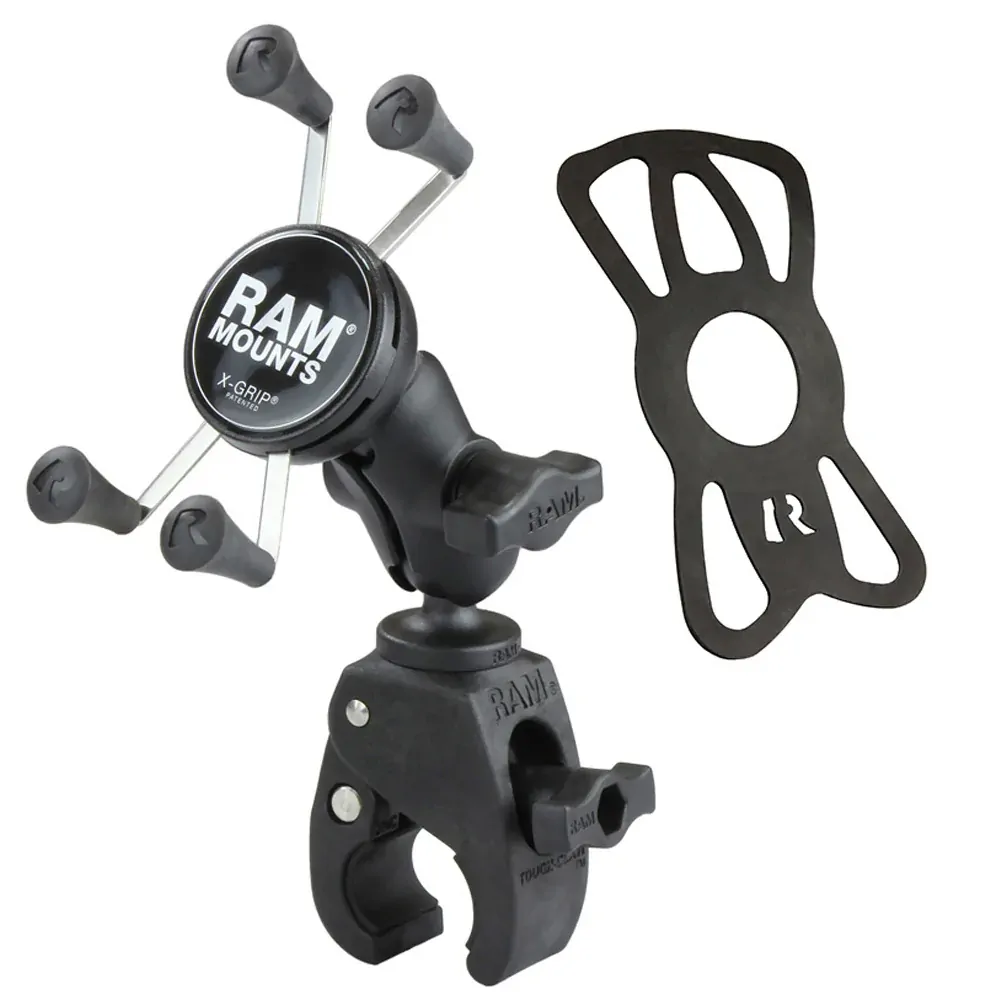

- Spring-loaded 'X' design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
- Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
(RAM-B-400-A-HOL-UN7BU)
Instructions
RAM® X-Grip® Assembly GuideDocuments
Powersports Catalog Knowledge Base: Phone MountingTechnical Specifications:
| Hardware Included | (1) Optional Tether (1) Glue Tube for Rubber Caps |
|---|---|
| Holder Dimensions | Width Range: 1.875" (4.76 cm) - 3.25" (8.26 cm) Depth Range: .875" (2.22 cm) max |
| Clamp Range | .625" (15.9 mm) - 1.14" (29.0 mm) diameter |
| Socket To Socket Length | 1.75" (4.45 cm) |
| Ball Size | B Size (1") |
| Weight Capacity | Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg) |
| Materials | Marine-grade aluminum High strength composite Stainless steel |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-B-400-A-HOL-UN7BU |
|---|---|
| Barcode | 793442948657 |
| Brand | RAM Mounts |
| Weight | 0.33 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
