The RAM-B-316-1-202 RAM-POD-I Vehicle Floor Mount consists of a RAM 1 inch diameter RAM ball and socket system on a 18 inch long Aluminum Rigid Flexible Rod with RAM Universal 2.5 inch diameter Round Plate AMPS hole patten end. This item includes the RAM-B-202U and RAP-B-200-1U and RAM-316-1AU parts.
Key Features:

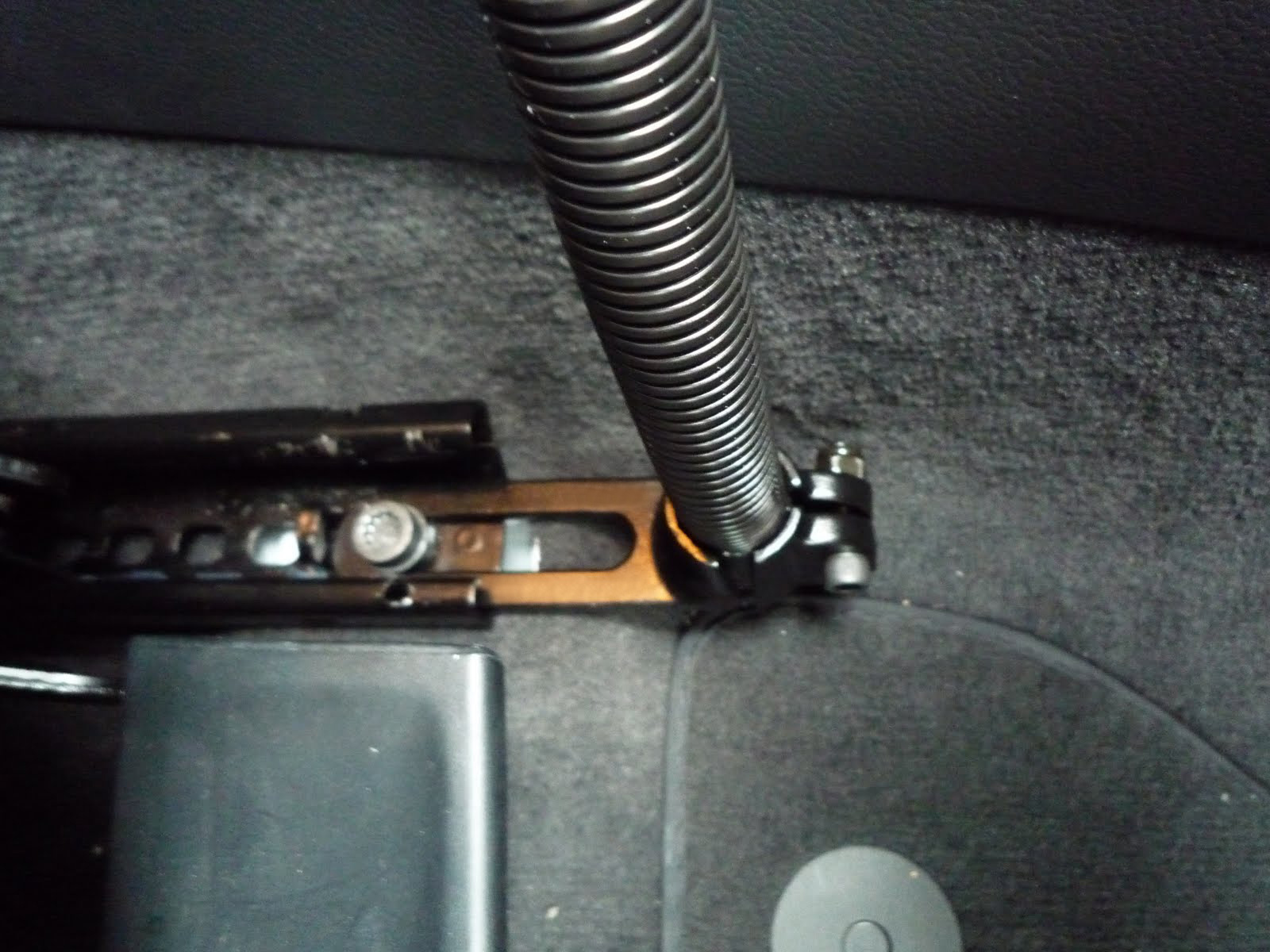

- Universal vehicle mount attaches to seat rail without any drilling necessary; 18" aluminum rod can be bent to your ideal position
- Round plate features industry-standard AMPS hole pattern and connects to a variety of RAM® device holders
- Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
Kits containing this part Need this component urgently? View complete kits that include this component
Tab-Tite with RAM Pod I Vehicle Mount for iPad Gen 1-4 and More
RAM-B-316-1-TAB3
X-Grip UN11 with RAM Pod I Vehicle Mount for 12"-13" Tablets
RAM-B-316-1-UN11U
X-Grip UN9 with RAM Pod I Vehicle Mount for 9"-11" Tablets
RAM-B-316-1-UN9
(RAM-B-316-1-202U)
Instructions
RAM Pod I Universal No-Drill InstructionsPOD1 18" Floor Mount 1" Socket
RAM-B-316-1U
25mm (1") Small Ball and Base
RAM-B-202U
Technical Specifications:
| Hardware Included | Assembly Hardware |
|---|---|
| Product Dimensions | Overall Height: 21" (53.34 cm) |
| Hole Pattern | 4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter |
| Plate Size | 2.5" (63.5 mm) Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg) |
| Materials | Marine-grade aluminum High strength composite |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-B-316-1-202U |
|---|---|
| Barcode | 793442921193 |
| Brand | RAM Mounts |
| Weight | 0.62 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
