Tough-Mag B-Size 88MM Diamond Ball Base
RAM-B-238-MAG88U
Special Order

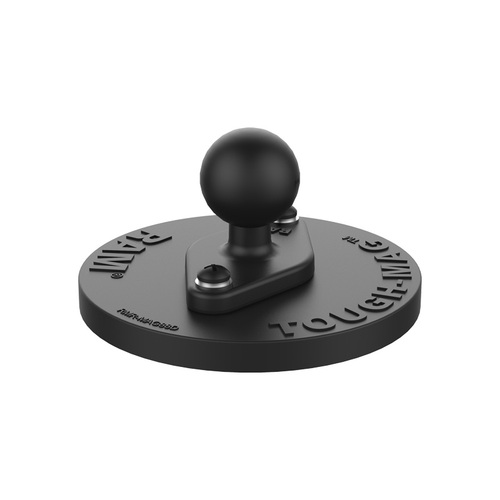

The RAM Tough-Mag base consists of a B size 1" diameter 2-hole AMPS pattern diamond ball base connected to a flat 88mm diameter magnetic base. The magnetic base contains two M4 threaded inserts to attach the included B size diamond base and is designed with a rubber exterior to prevent scratching the mounting surface. Attach any B size double socket arm and your desired holder to complete the magnetic mount.
- Magnetic base contains 2-hole AMPS pattern with M4 threaded inserts for attaching B or C size RAM® 2-hole AMPS diamond ball bases
- Includes B size (1") RAM® 2-hole AMPS pattern ball base for connection to any B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
- Made of powder-coated, marine-grade aluminum and rubber for durability and reliability in the most demanding environments
- Backed by a lifetime warranty
(RAM-B-238-MAG88U)
Documents
Knowledge Base: Ball Sizes
Technical Specifications:
| Hole Pattern | 2-Hole AMPS: 1.912" |
|---|---|
| Plate Size | 3.46" (87.9 mm) Diameter |
| Ball Size | B Size (1") |
| Weight Capacity | Standard Use: 2 lbs (0.91 kg) Heavy-Duty Use: 1 lb (0.45 kg) |
| Materials | Marine-grade aluminum Rubber N52 Magnets (Qty 10) |
| Packaging Type | Poly Bag |
Product Information
| SKU | RAM-B-238-MAG88U |
|---|---|
| Barcode | 793442909443 |
| Brand | RAM Mounts |
| Weight | 0.33 kg |
| Warranty | RAM Mounts components are generally covered by a lifetime warranty against manufacturing defects. Electronic items (and docks and parts containing electronic components) are typically covered by a 3-year warranty. Some items are considered general wear, such as suction cups, foam pads, rubber feet etc. |
